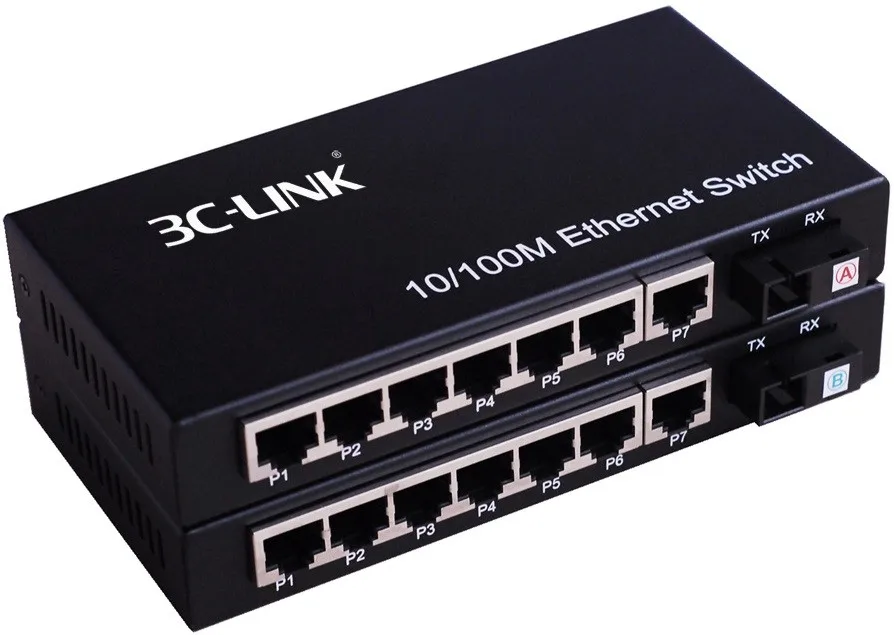

BiDi WDM 7 10/100UTP single mode optical network Ethernet switch fiber media converter bidi fiber media converter

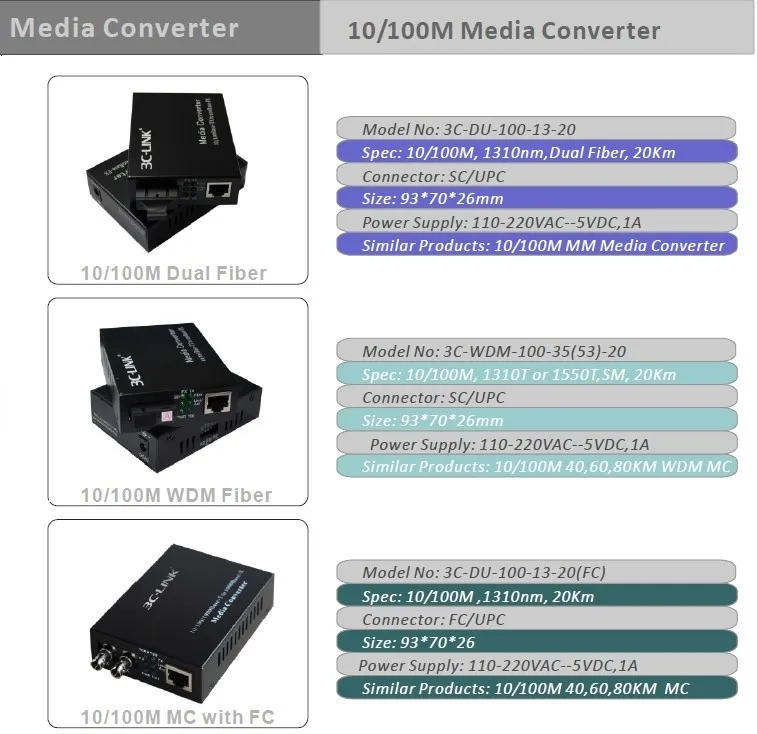

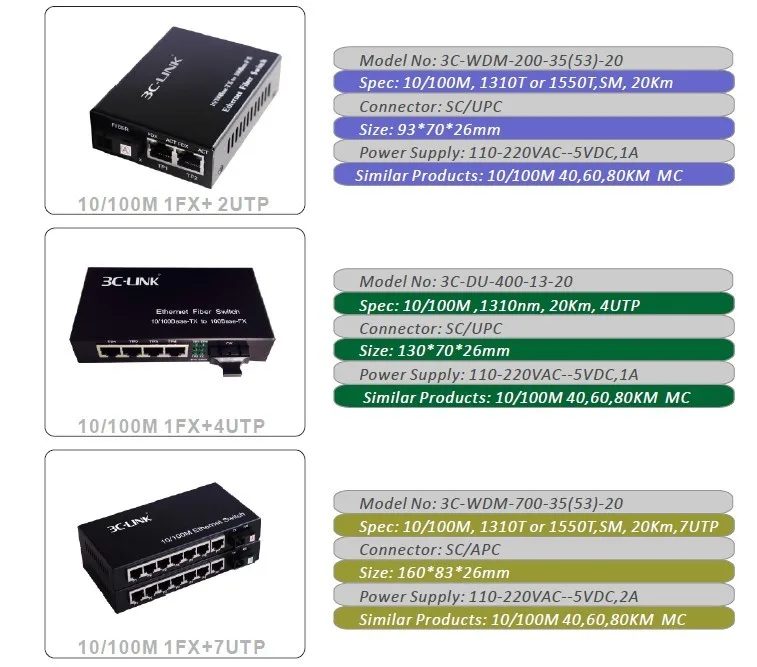

The 3C-WDM-700-35(53)-20 is Fast Ethernet Bridge 100Base-FX fiber to 10/100Base-TX shielded twisted pair (STP) converter. It supports selectable for half-duplex and full-duplex operations and supports a variety of fiber options. The converter auto-adapts to the highest level of performance supported by the device connected to the STP port. When the device is a switch or a workstation that supports full duplex, the converter adapts to the full-duplex mode and provides an effective 200Mbps bandwidth. When the connected device is a hub or a workstation that supports only half duplex, the converter adapts to the half-duplex mode and provides the nominal 100Mbps bandwidth. An override switch provides total manual control over the half/full-duplex operation, in fiber-optic interface. The fiber port of converter operates at 1310 nm and uses ST, SC, or WDM connectors. Multi-mode models that support distances up to 2 km and single-mode models that support distances up to 2/20/40/60/80/120km are available.

 Comply with IEEE 802.3, IEEE 802.3u 10/100Base-TX, 100Base-FX Standard
• Connectors: Two RJ-45 (Auto-MDI/MDI-X) Twisted Pair, EIA568
• One Fiber-optic, 850nm,1310nm,1550nm wavelength, connector-type and distance vary with model
• Data Transfer Rate:
- TP: 10/100Mbps
- FX: 100Mbps
• Duplex mode support:
- Full or half-duplex mode by Auto-Negotiation (TP)
- Full or half-duplex mode by DIP-switch (FX)
• LED indicators: PWR, FX LNK/ACT, FX FDX/COL, TP 100, TP LNK/ACT, TP FDX/COL
• DIP-switch: 2 DIP-switches
- Side DIP-switch: LFP (Link Fault Pass-through) mode selection
