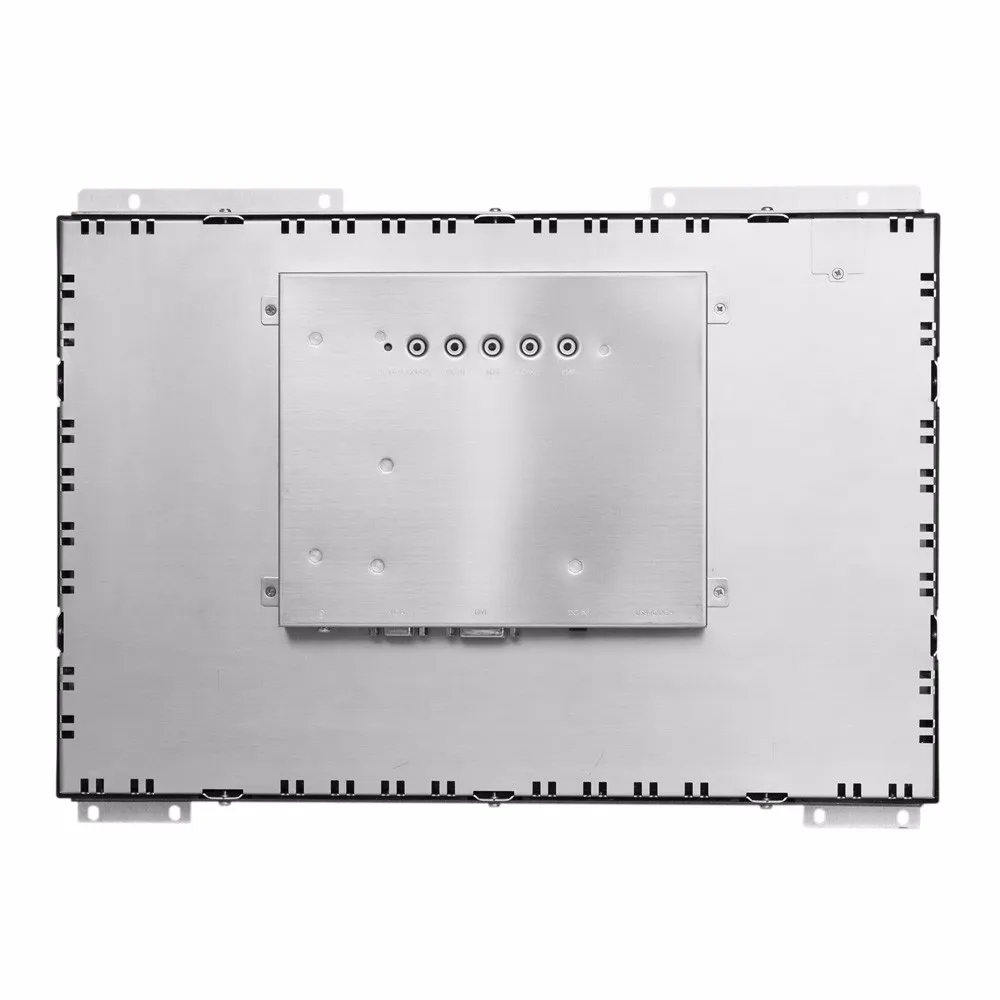

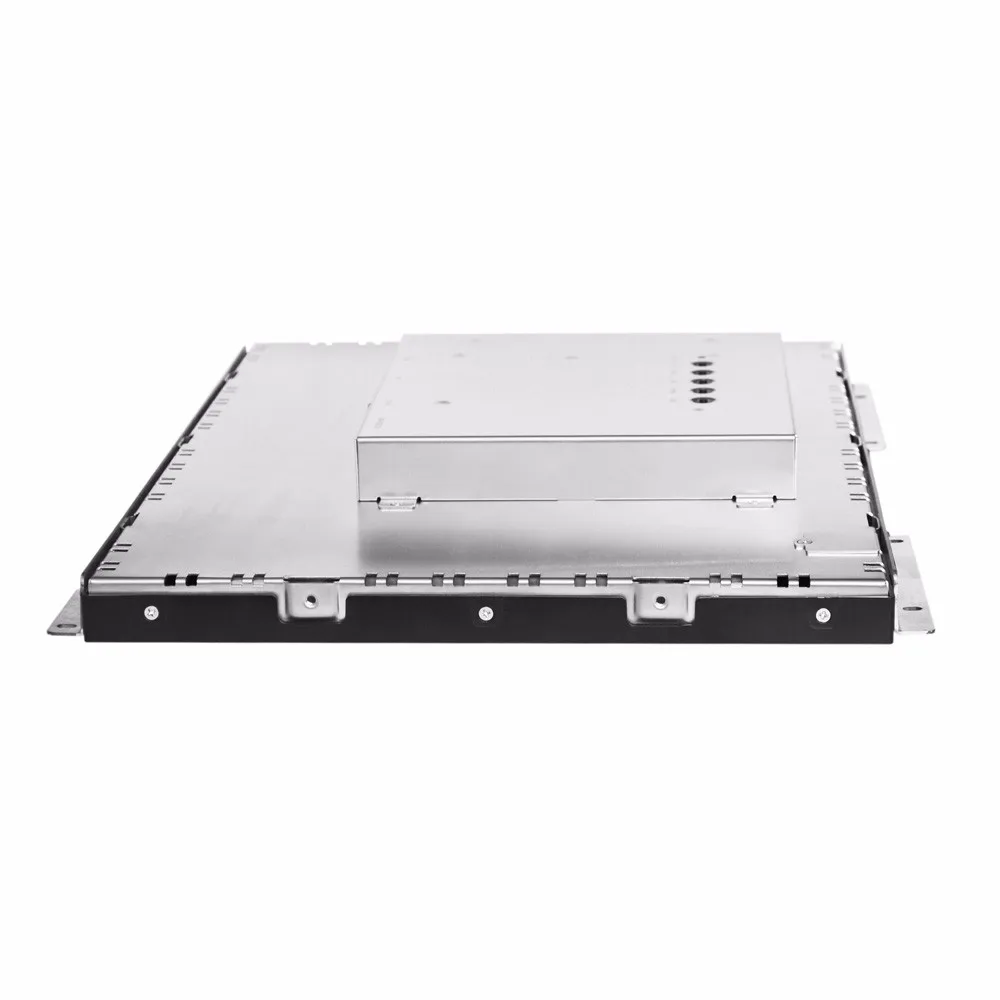

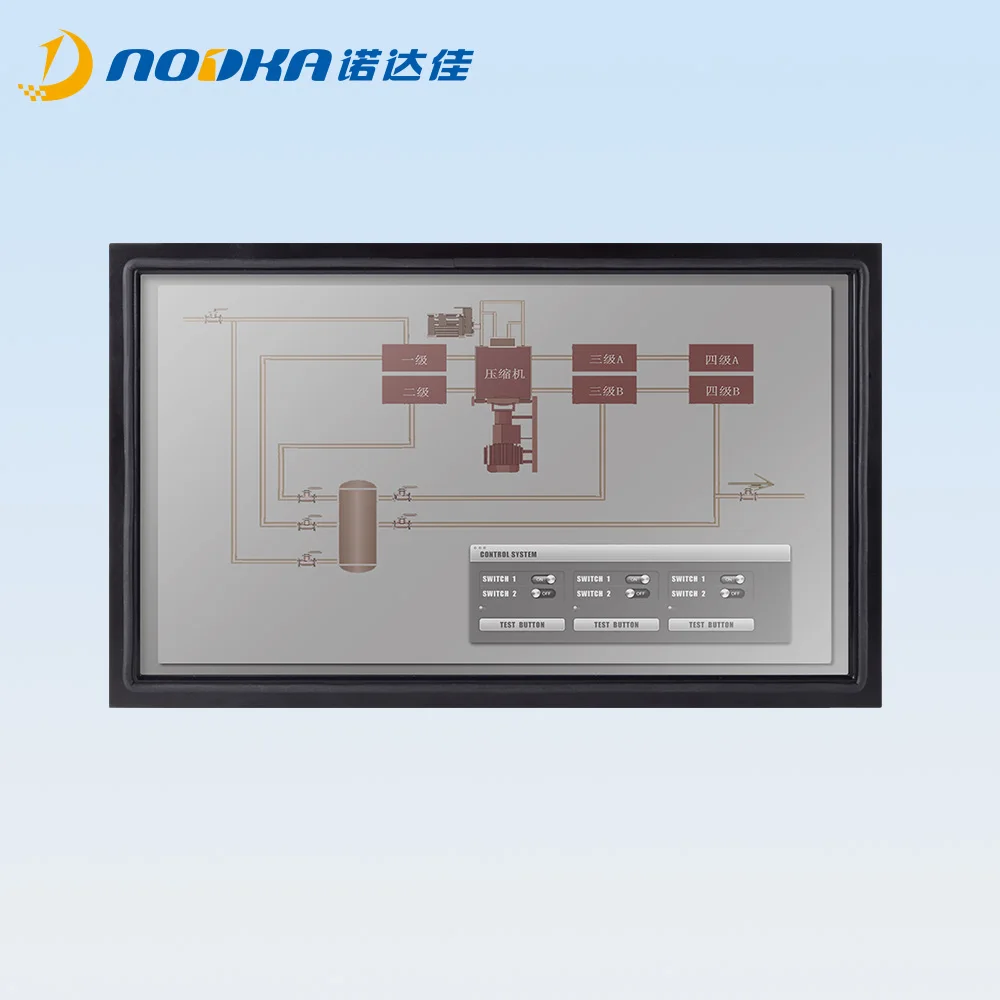

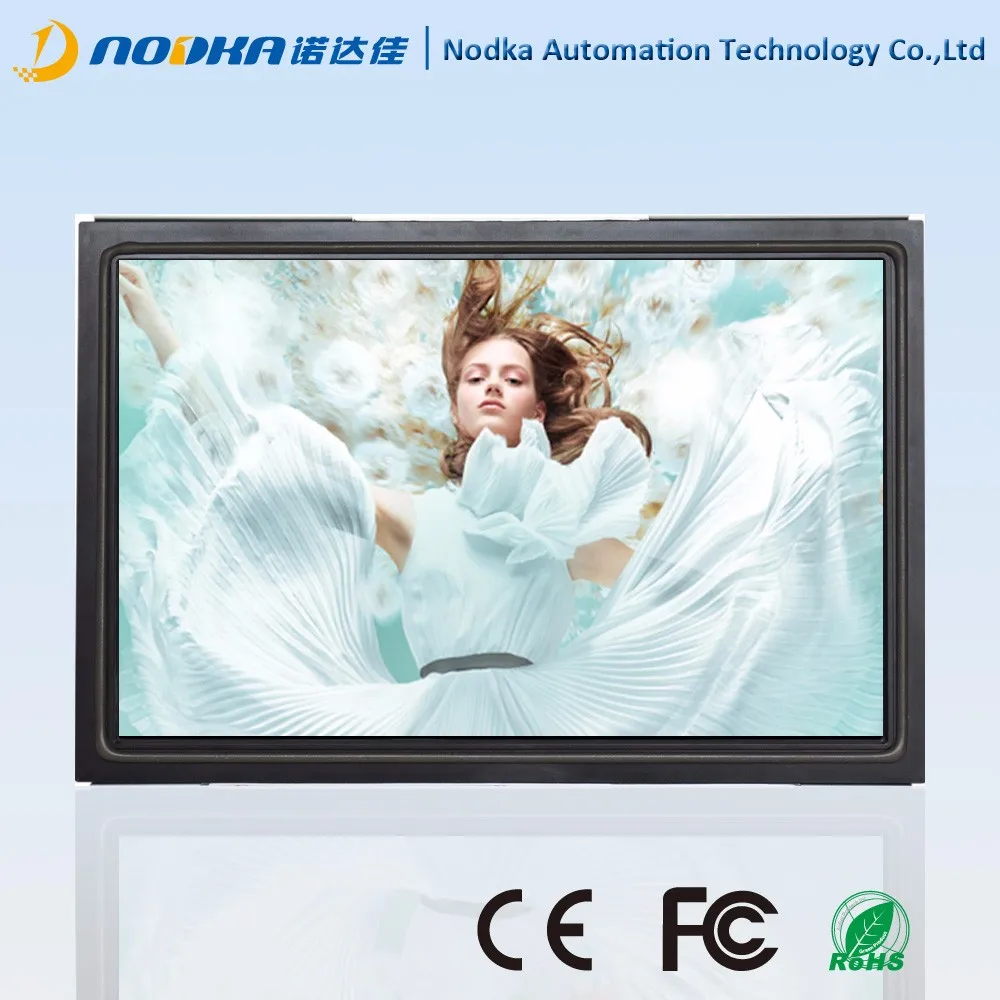

Open Frame 21.5 Inch LED Touch Screen Monitor outdoor lcd display
- Category: >>>
- Supplier: Shanghai NODKA Automation Technology Co. Ltd.
Share on (60766099219):
Product Overview
Description
Product Description
Front Panel | Steel structure,Stainless steel wire drawing process ,open frame panel |
Mounting | Open mount(optional VESA) |
Buttons | The back of the machine is equipped with switches, lights,and control buttons |

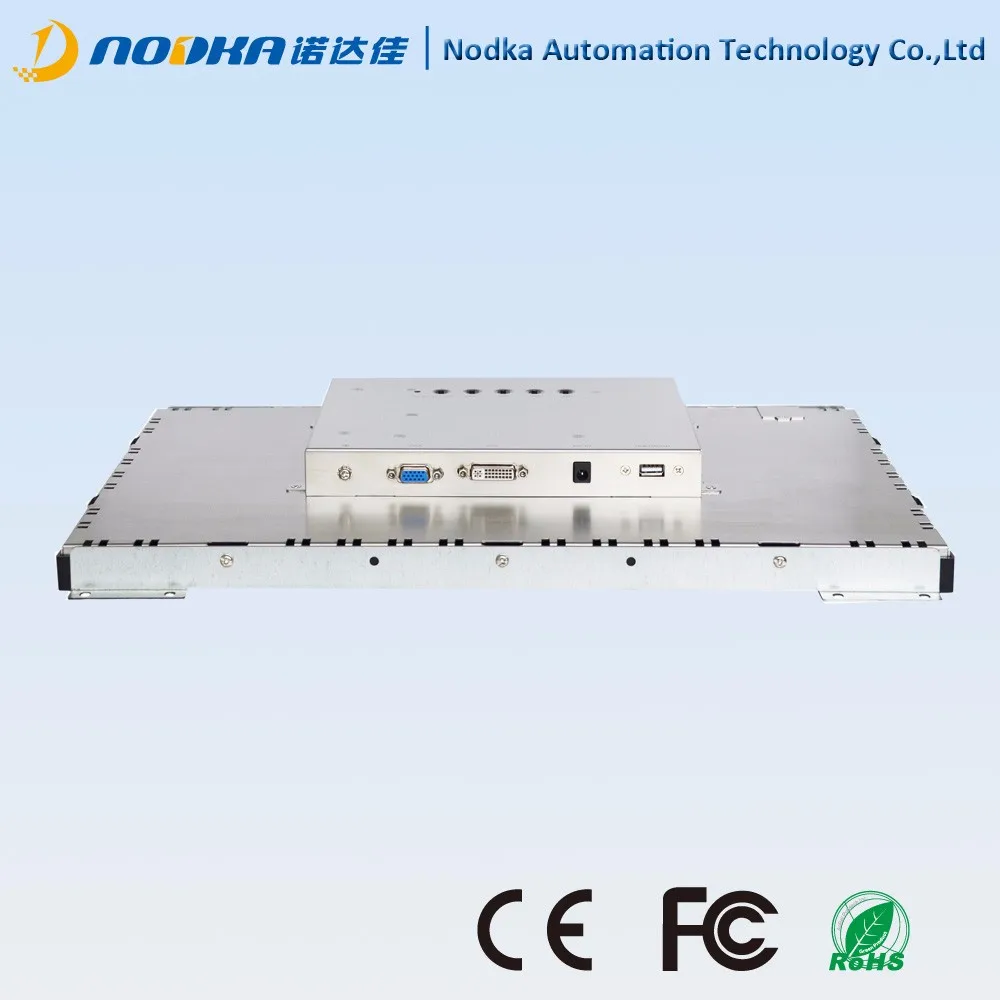

Signal Input | DVI and VGA |
Communication | USB |
Power Input | 12V DC voltage input, optional transfer 12V DC to 220V ACpower adapter |
Front Color | Black |
Overall size | 522.5 × 353.5 × 52.7mm(W×H×D) |
Case Size | 522.5 × 314× 52.7mm(W×H×D) |
Hole Size | 488 × 280 mm(W×H) |
Weight | 7kg |
LCD Size / Type | 21.5" TFT LCD |
Resolution | 1920×1080 |
Maximum color | 16.7M |
Display area | 476.64× 268.11mm |
Reaction time | 18ms |
Backlit | LED |
Backlit MTBF | 30,000 hours |
Lattice | 0.2835×0.2835 |
Brightness | 250cd/sqm |
Contrast ratio | 3000:1 |
Max view angle | (L)89/(R)89/(T)89/(B)89 |

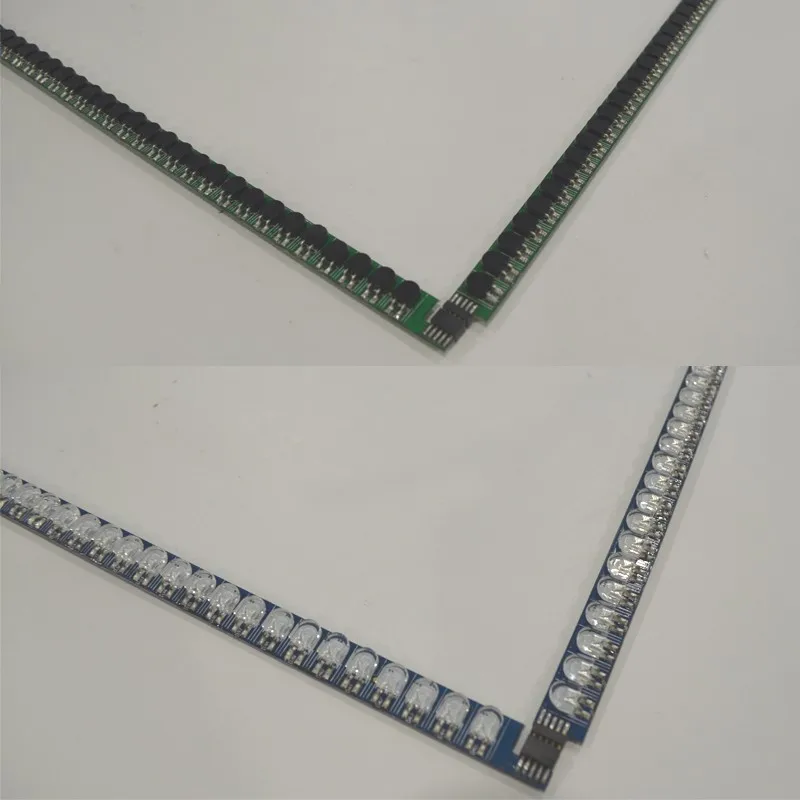

Touch Size/Type | 21.5-inch IR touch screen |
Touch points | 1 or 4 point(switchable) |
Reaction time | <8ms |
Glass | 3mm Tempered glass |
Resolution | 32768×32768 |
Precision of touch | <1.5mm(center area),<3.2mm(Edge area) |
Touch Diameter | >5mm |
Transmittance | More than 92% |
Working temp. | 0~+60℃(Electronic disk) |
Storage Temp. | -30~+80℃ |
Relative humidity | 10~95%@40℃(No condensation) |
Vibration | 50~500Hz,1.5G,0.15mm Peak to peak |
Shock | 10G/peak(11ms sec) |
Products Show
Our Service
High quality
Passed the ISO9001:2008 quality system authentication and ROHS authentication.
ODM OEM service
Set up with excellent design and development capabilities of customized services team.
Assurance Supplier
I am an Alibaba.com Trade Assurance Supplier.You can place an order with me on Alibaba
Our Company
WHO WE ARE
Nodka was founded in 2001 in Shanghai, after 16 years development, Nodka becomes a leading Chinese industrial solution manufacturer, and has Mainboard (R&D) center in Shenzhen, and precision sheet metal machinery machining center in Suzhou.
With branch offices in 14 major domestic cities in China and 1 European sales and service center in the Netherlands.
WHAT WE DO
Nodka is specialized in Industrial solutions, including:
Industrial Panel PC
Touch Monitor
Industrial computer (Mini PC)
OEM and ODM service
Factory
Our Factory located in Suzhou city, about 5000 sq.m.
Workshop
5 production lines and 1OEM production line
Team
This is a vibrant team, believe we can do it
Warehouse
Include materials, semi-finished products, finished products and samples
Packing & Delivery
Packing Details : Carton
Delivery Details : 3-30 days after received the payment
1. Mini pc, Panel PC, Monitor
2. Box of accessories
3. Fixed shock absorber foam
4. Put into the carton
5. Carton sealing
6. Complete package
Our Certifications
Achievement
NODKA is qualified enterprise for ISO9001 quality management system, and products not only to obtain various certifications in China, but also be involved with promotion and development for various Industrial applications.
Exhibition Photo
Embedded World
Embedded world show was hold on 14th March in Nuremberg, it gathered from all over the world in the field of embedded professional manufacturers, agents, and attract visitors. Nodka is a professional manufacturer which has established a good reputation and quality in China market, to enter the overseas market is the inevitable trend of the development of the company.
Industrial Automation Show
CIF was hold on November in Shanghai National Convention and Exhibition Center every year, and Nodka attend the exhibitions every time since 2012,
SIMM in Shenzhen of China
March 29 to April 1, the 18th Shenzhen International Machinery Manufacturing Industry Exhibition (SIMM) held in Shenzhen Convention and Exhibition Center.This is the first time that Nodka show on SIMM, and the new product based on Skylake-U platform is the first show in China market.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-7 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample but not for free charge.
Q: What is your terms of payment ?
A: Payment<=100000USD, 100% in advance.
If you have another question, pls feel free to contact us as below:
