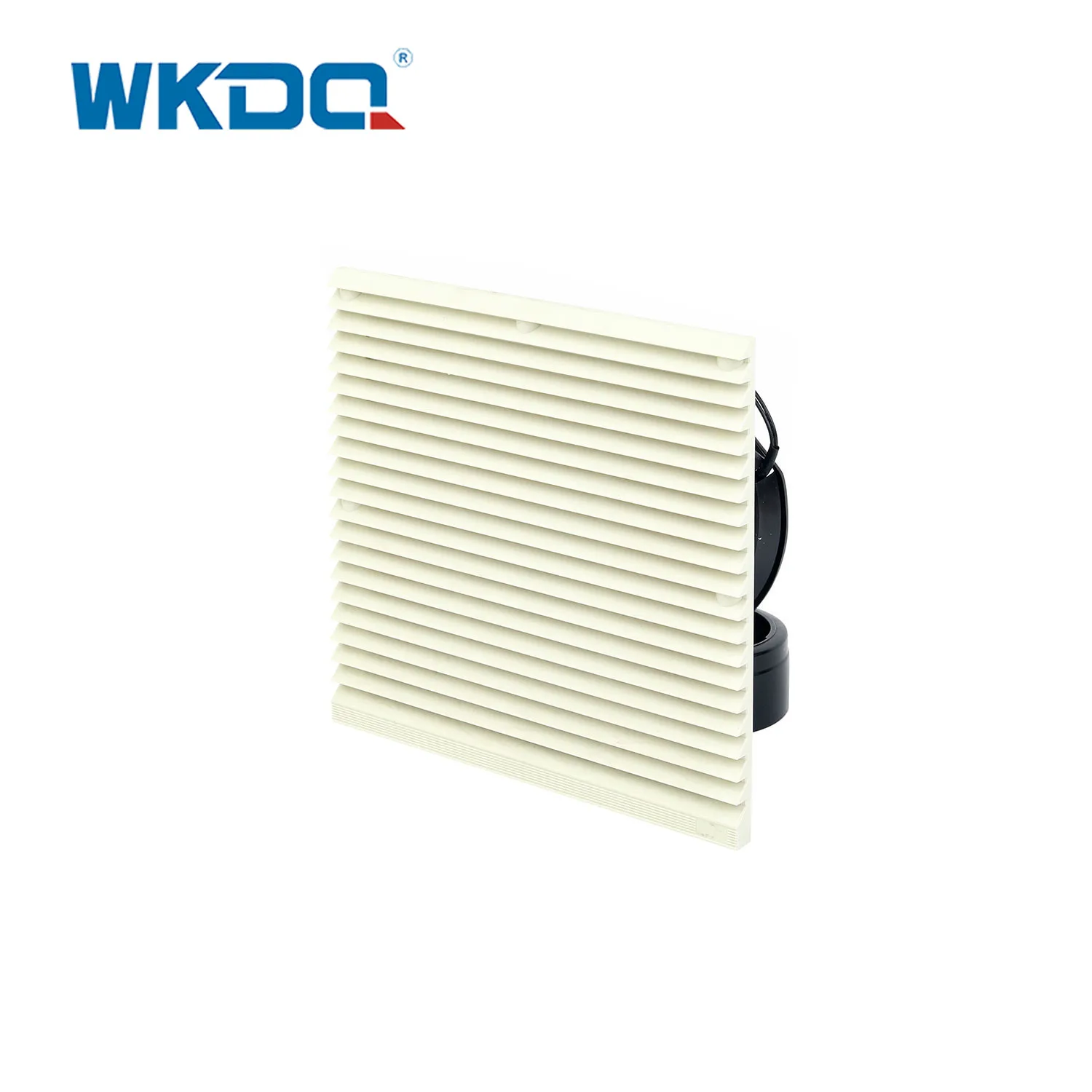

3325-230 Industrial Air Filter Fan Manufacturer
Product Detail
Features:
- Frame material is made from heat resistance and anti-flame ABS.
- Filter pad is made from non-woven fiber, the filters can be replaced during operation without risk of touch with the rotating parts.
- Click-fit design quickly installs into enclosure wall
- Its easy to change the filter pad by using the groove handle on shutter.
- Other dimension can be customized.
Technical parameters:
Filter unit Part No. | 3325-300 |
Fan with filter unit Part No. | 3325-230 |
Unimpeded air flow | 230m³/h |
Noise level | 54dB |

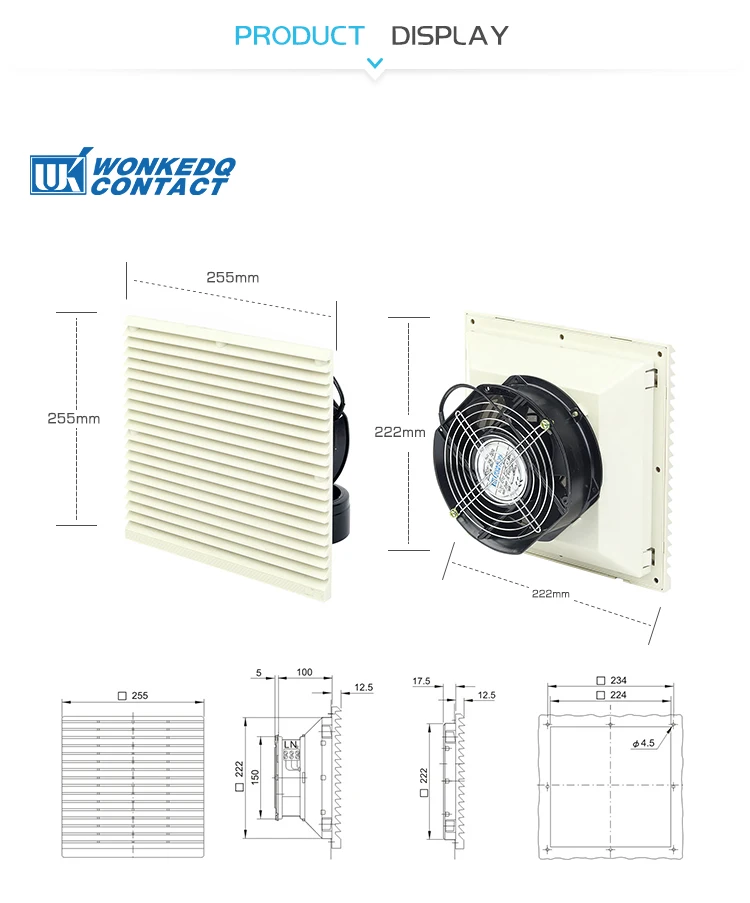

Surface dimension (mm) | 255x255 |
Installation hole size (mm) | 224x224 |
Voltage/Current | 230V/280mA |
Input Power Rating | 41W |
Temperature range | -10℃~+55℃ |
Packing detail: 3325-300 (Filter unit) | 0.315kgs/pc |
Packing detail: 3325-230 (Fitler with Fan) | 1.208kgs/pc |
Certificate | CE, RoHS, CQC |
Other size available:
Filter Unit Item No. | Installation hole size(mm) | Distance between hole (mm) | Overall size L/H/W(mm) | Matched Fan size(mm) |
3321-300 | 92x92 | 102x102 | 116.5x116.5 | 92x92x25 |
3322-300 | 124x124 | 132x132 | 148.5x148.5 | 120x120x38 |
3323-300 | 177x177 | 185x185 | 204x204 | 120x120x38 |
3325-300 | 224x224 | 234x234 | 255x255 | 172x150x51 |
3326-300 | 290x290 | 300x300 | 320x320 | 225x225x80 |

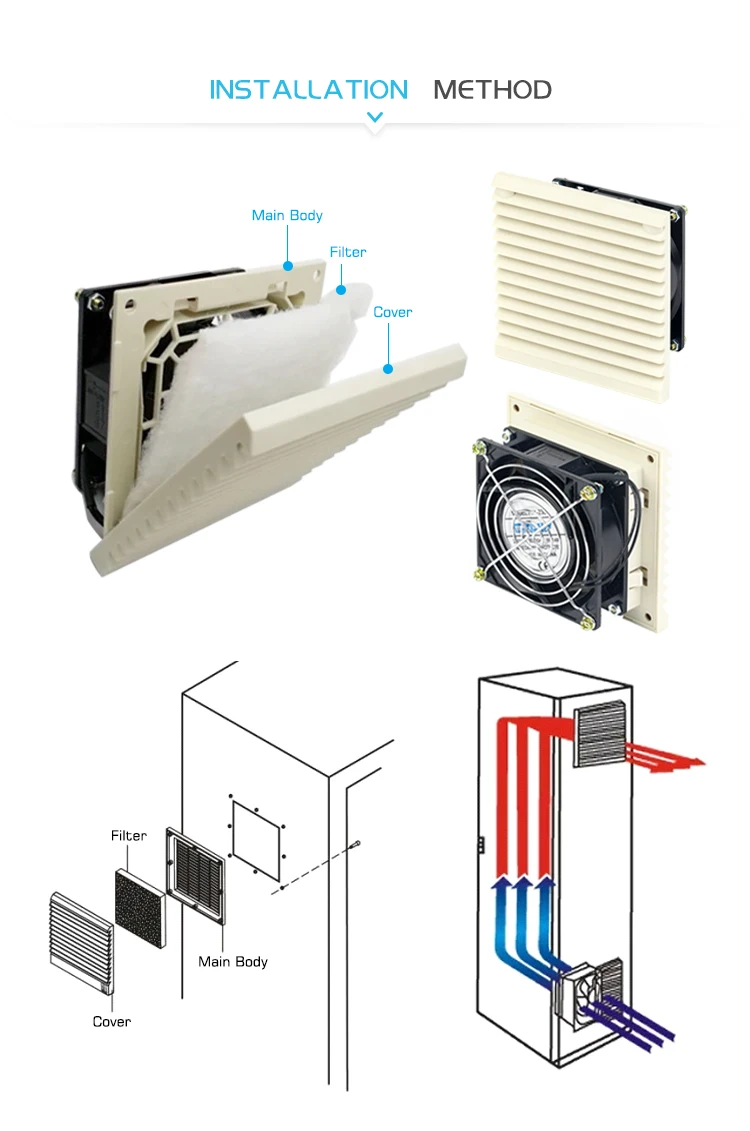

Install and Wiring
