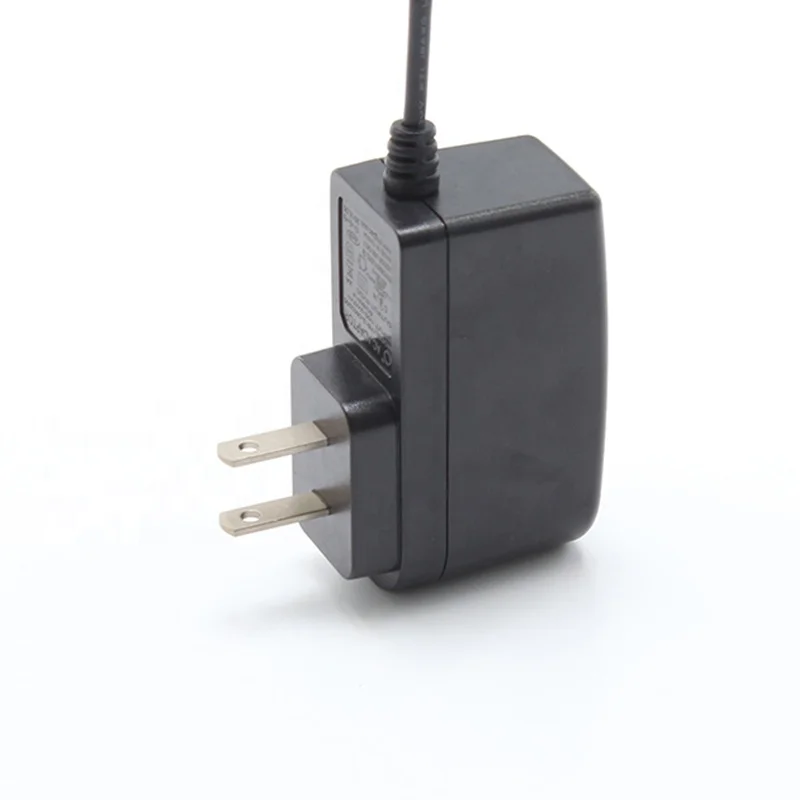

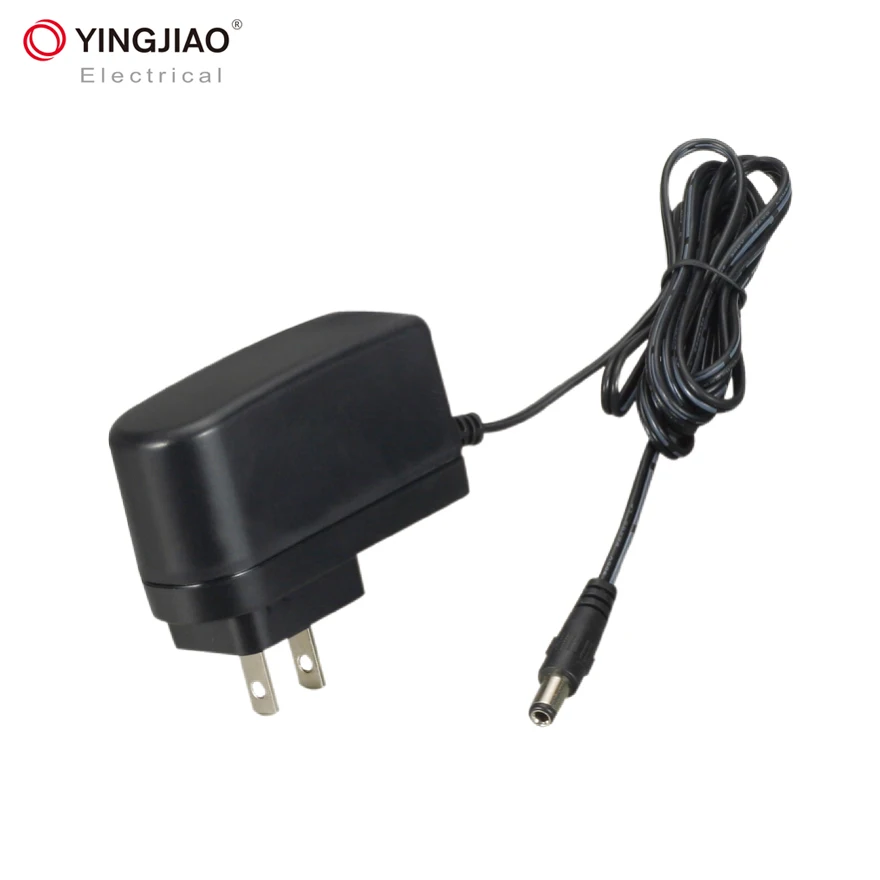

China Factory Direct 12W 12V Power Adapters 5V 2A 12V 1A AC DC Switching Adapter Power Supply For CCTV LCD LED

Model:

YS12-0502000

YS12-0901300

YS12-1201000

YS12-1500800

YS12-2400500

YS12-3600350

Power:

12W max

Input:

AC100-240V

Output Voltage:

5V DC

9V DC

12V DC

15V DC

24V DC

36V DC

Output Current:

2A

1.3A

1A

0.8A

0.5A

0.35A

Inrush Current:

30 Amps max. at 230VAC/50Hz, full load

Leakage Current:

<0.25mA/240VAC

No Load Power Consumption :

<0.075W

Protections:

Short Circuit /Over Current /Over Voltage/over temperature protection

Short Circuit Protection (SCP):

Protection to Zero Voltage

Over Voltage Protection (OVP):

≤Vout*150%

Over Current Protection (OCP):

110%-180%

Withstand voltage:

I/P-O/P 3kVAC

Working TEMP.:

-20°C-50°C

EMC standards:

EN55011, EN55014, EN55022, FCC PART15, EN6100-3-2 EN6100-4-5, EN55015

Safety standards:

UL623681-1, CAN/CSA-C22.2 UL1310, CAN/CSA-C22.2 UL60601-1, CAN/CSA-C22.2 FCC PART 15 CLASS B

Dimension:

69*27*38mm

Packing:

1PC/PE bag+Inner box, 100PCS/CTN, or can be custom
