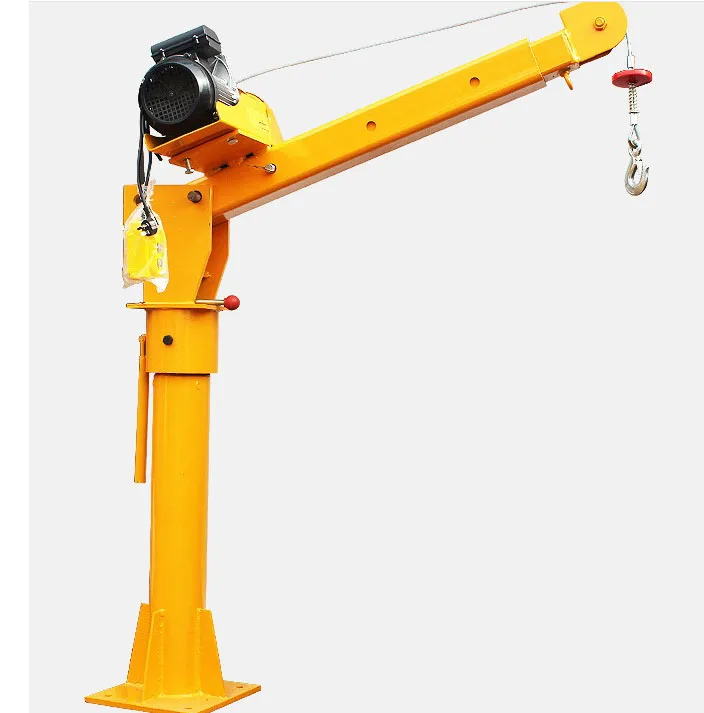

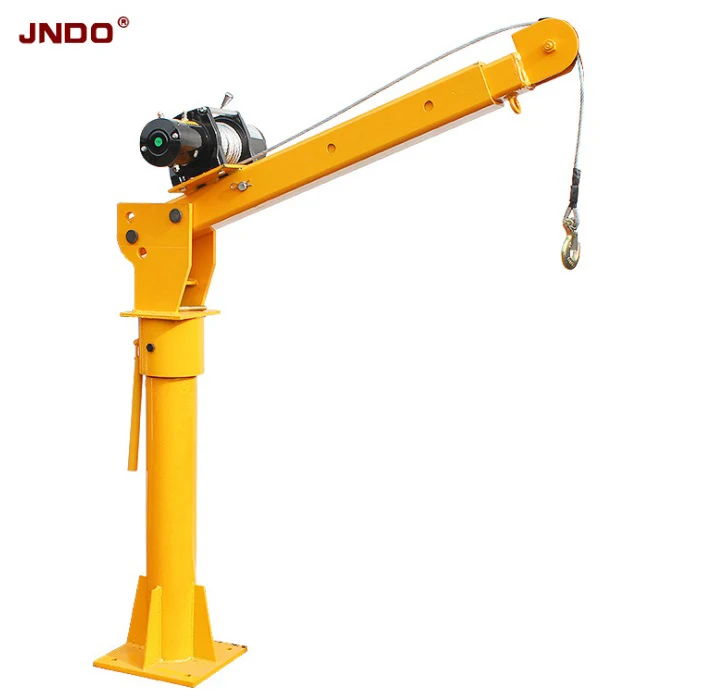

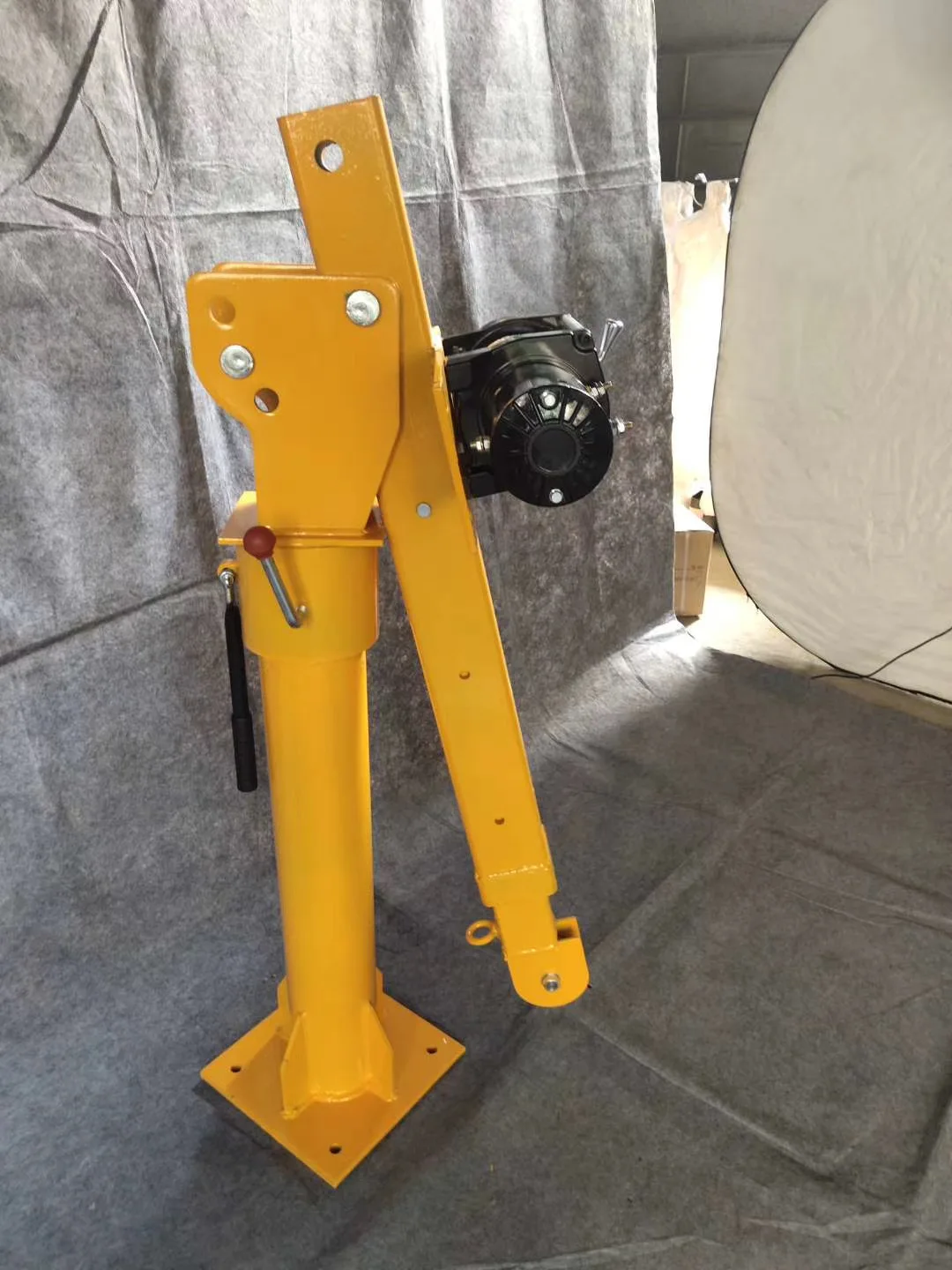

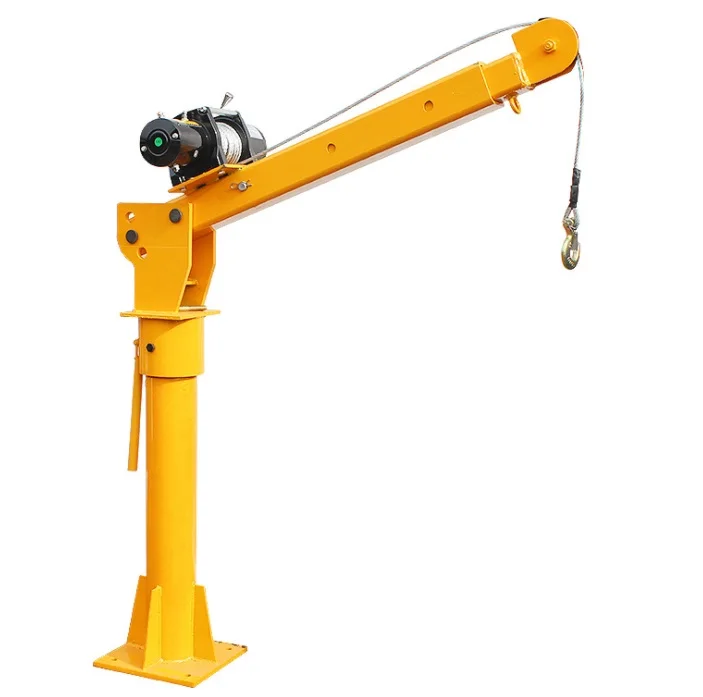

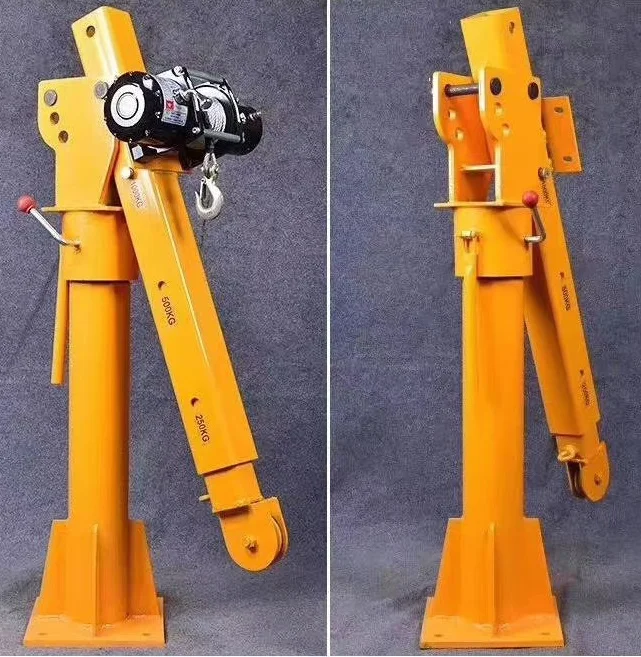

6000lbs electric winch 1000kg small pickup trailer vehicle mounted crane
JN1000 is one of our professional products, with 12/24 volt DC as the power. It is widely used in pick-up trucks, caravan cars, loading docks, platforms etc. With outstanding features such as structurally compact, small sized, light weighted, and minimal space required, JN1000 is a good helper for lifting goods equal to or less than 1000kg in weight.

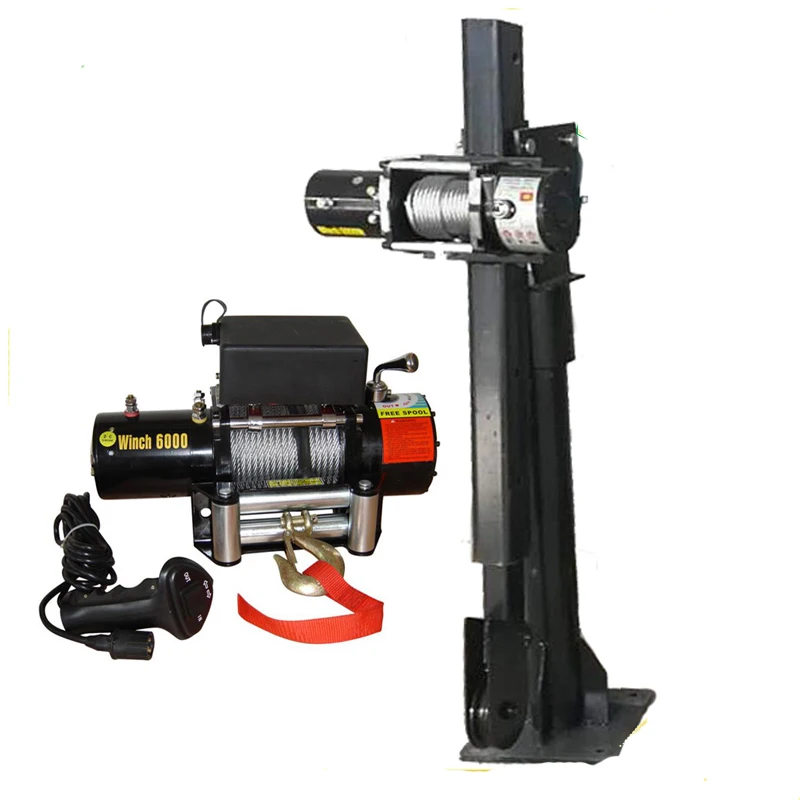

Can work with 12v 6000lbs electric winch or 220v 1phase electric hoist.
parameters of trailer mounted crane
Product name | Mini truck crane | Model | JN1000 |
Line speed(no load) | 8.6m/min,single line | Rotation with brake | 360° manual |
Lifting capacity | 1000kg | Power | 12V DC 310amps |
Lifting cable | Φ7.2mm×10m | Lifting height | 3000mm |
Reach | 2515mm | Gross weight | 140kg |
Switch cable | 4.2m | Mounting base | 300mm×300mm×14mm |
Finish | Hot-galvanized | Mounting bolt hole pattern | 220mm×220mm |
