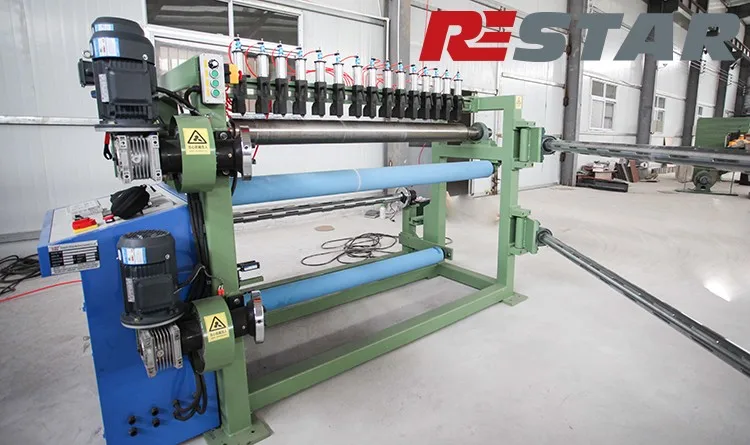

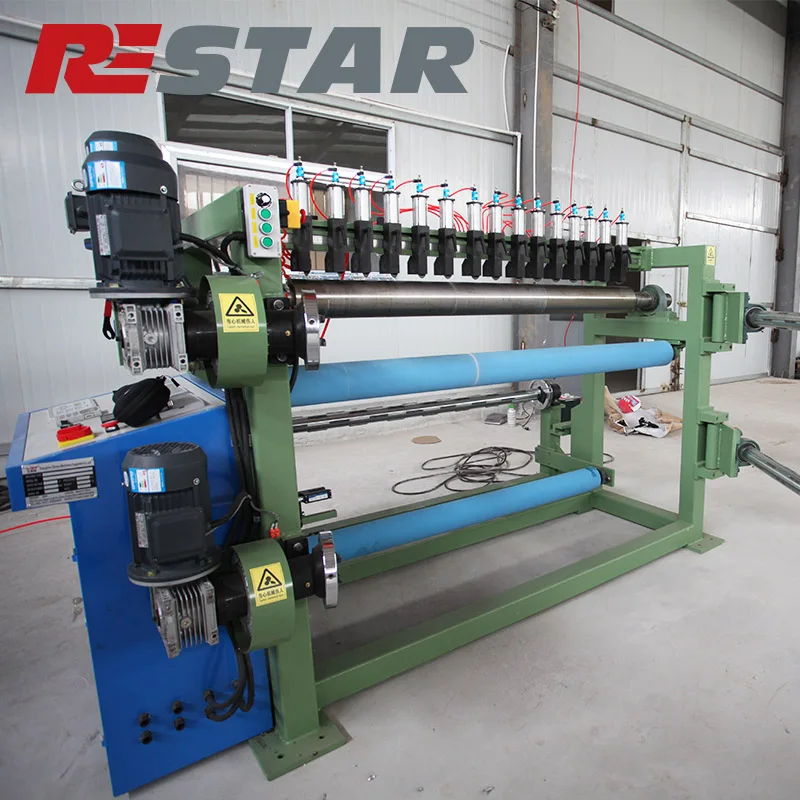

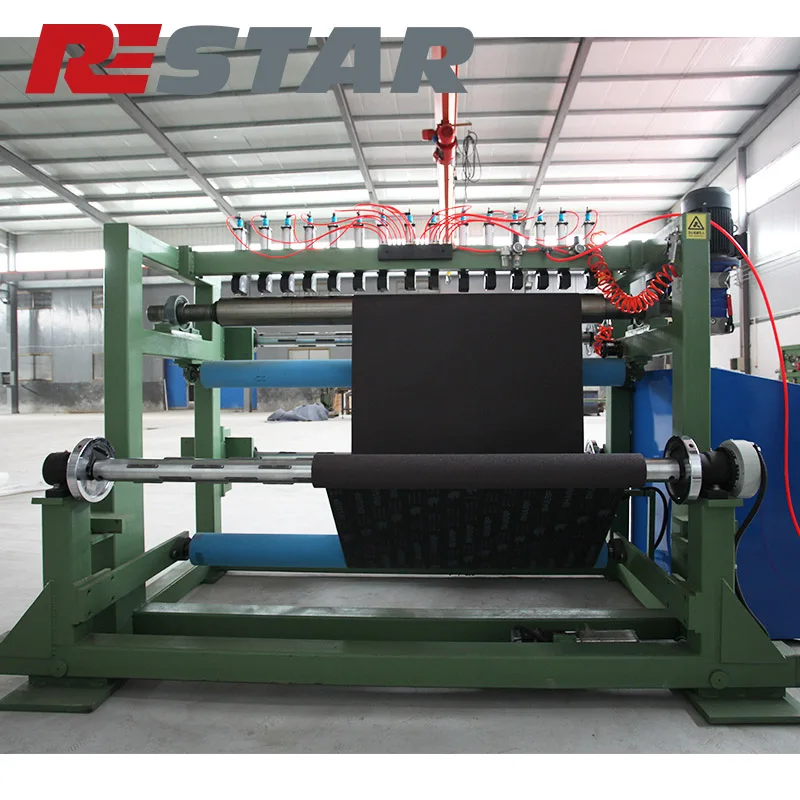

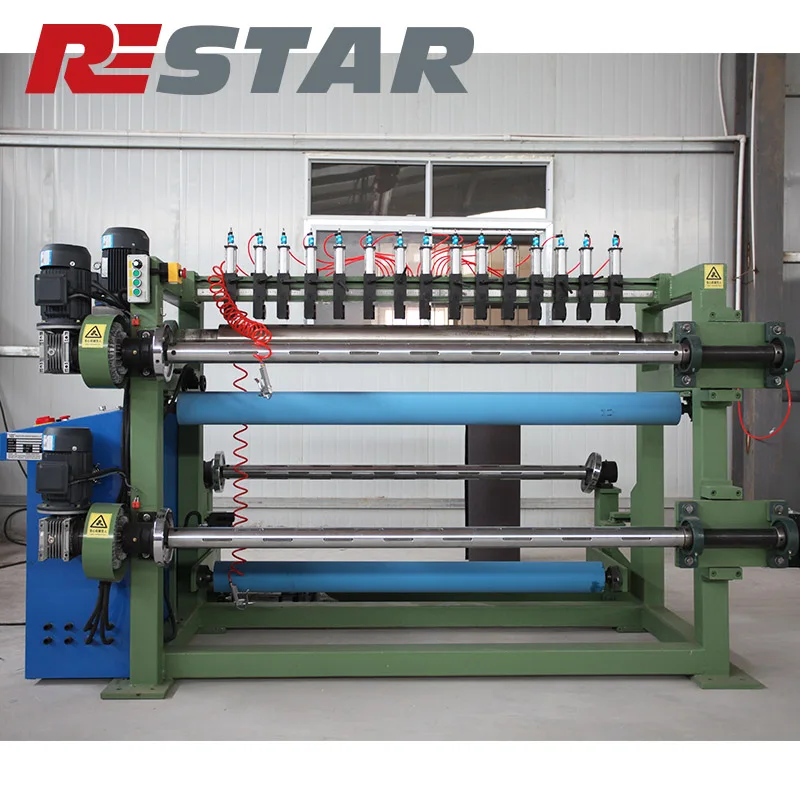

High Precision Abrasive Cloth Slitting Machine

Abrasive Cloth Slitting Machine

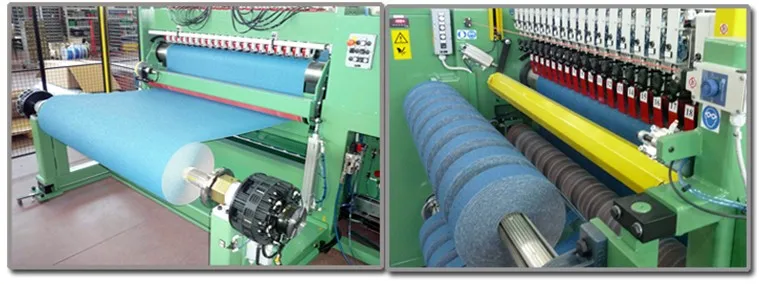

The roll slitter machine is designed to cut rolls of abrasive paper and cloth and to rewind them with grain both inside and outside.

This is a high-performance machine which is suitable for the continuous process of heavy jumbos.

Product Introduction

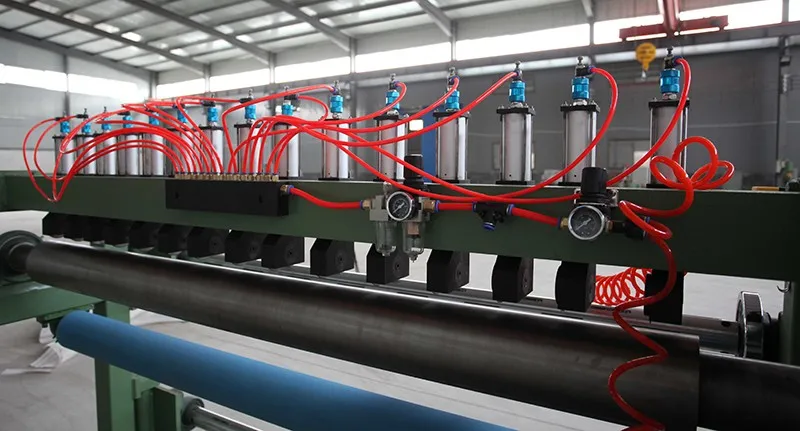

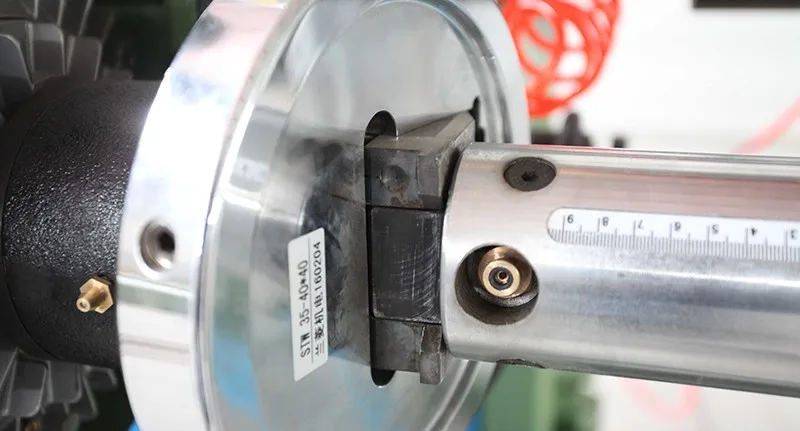

 << This machine is mainly composed of rewinding shaft, unwinding reel, rolling cutter, transmission mechanism, adjusting offset mechanism and frame.

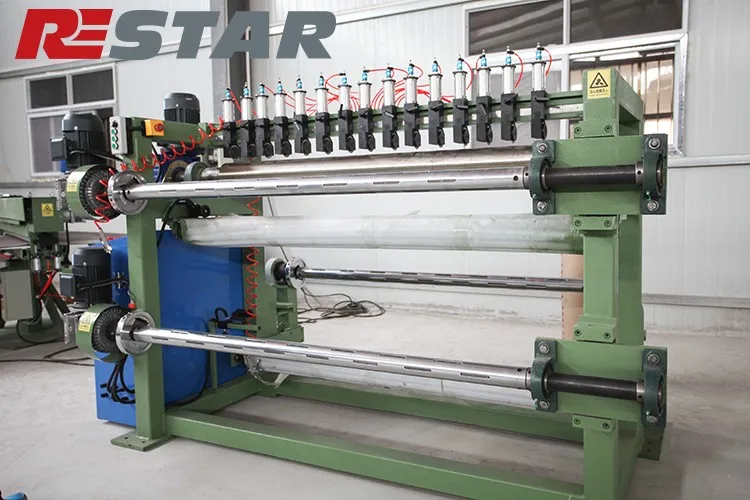

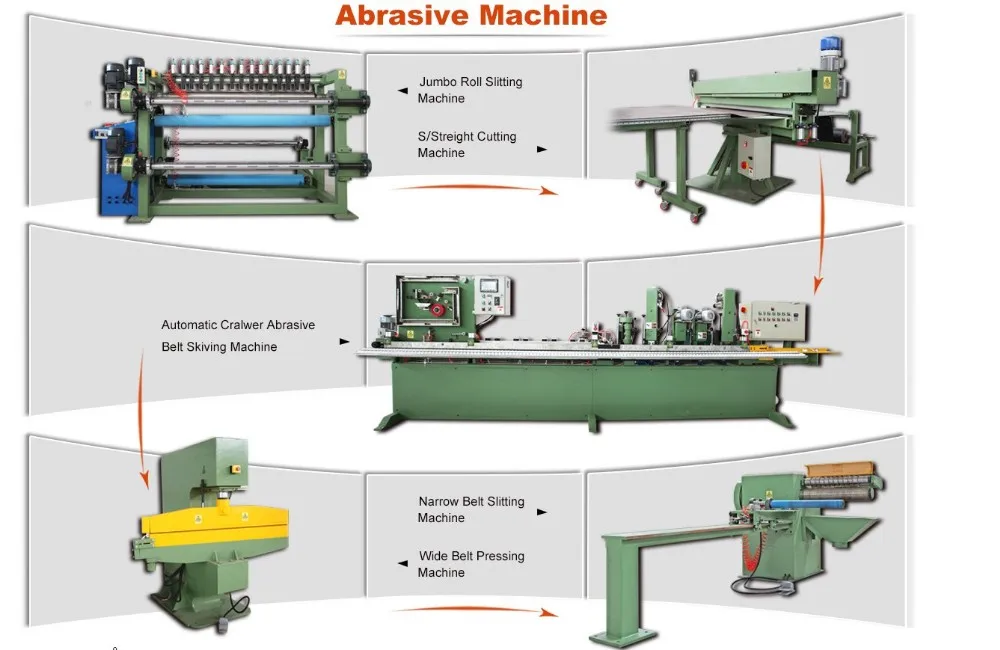

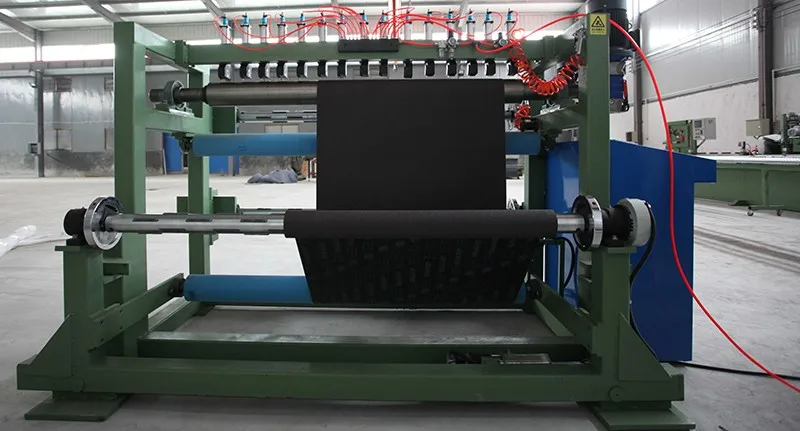

Jumbo Roll Slitting Machine

It is mainly for cutting the abrasive jumbo rolls into the small rolls with different specifications.
Slitter Width:50mm-1650mm

Slitter Speed: 2-10M/MIN
Cutter Loading: 200-800Kgf

Slitting Precision: +/-0.5mm

Electromagnetism Tension : 25N.m

Air Power: 0.7Mpa

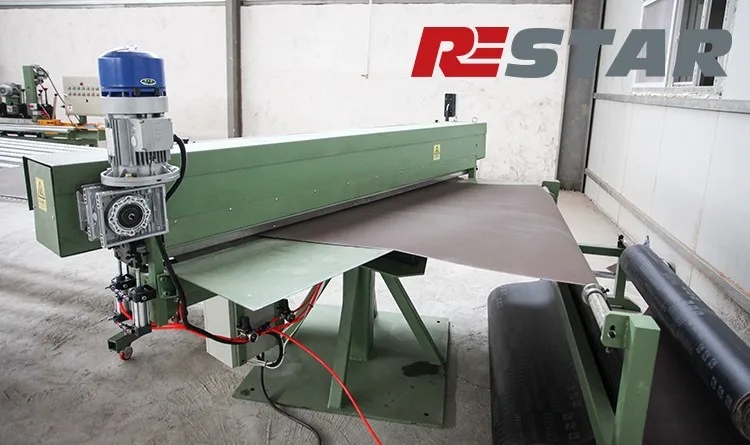

S/Straight Cutting Machine

Cut to Length machine is designed to cut wide belts of abrasive paper and cloth.

Cutter Length: 1600mm, 2050mm

Cut Method: Reciprocating rolling

Cuttter Loading Pressure: Air Powered

Cutter Angle: (+/-)67° (Adjustable)

Power Rating: 0.75KW

Air Pressure: 0.7Mpa

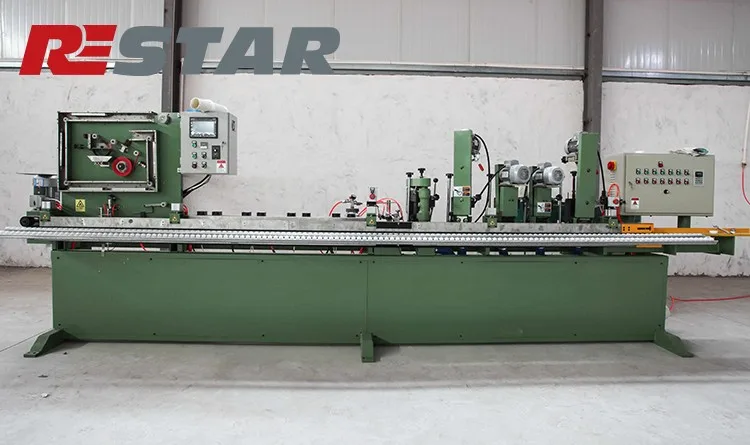

Skiving/Glueing Machine

Line of Skiving Machine is designed for skiving/gluing and tape abrasive belts.

Skiving Width: Continous Feeding, Width no Limit

Skiving Speed: 4M/Min(Stepless Regulation)

Skiving Method: By Belts,Diamond, Wire Wheel

Power Rating: 10KW

Air Pressure: 0.7Mpa

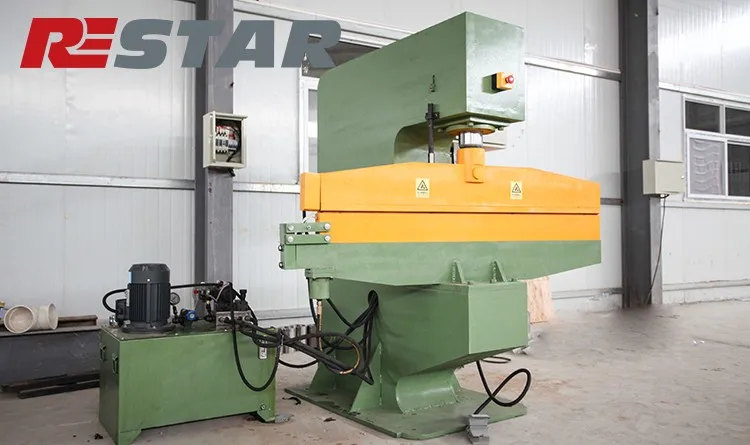

Pressing Machine

The roller press is designed to press the joints of cloth and paper belts.

Mpa: 40T(Adjustable Continously)

Working Surface Length: 1600mm

Pressure Temperature: 20--60Centigrate

Pressure Time: 1---99Seconds

Power: 3KW +2KW(Eletronic Heater)

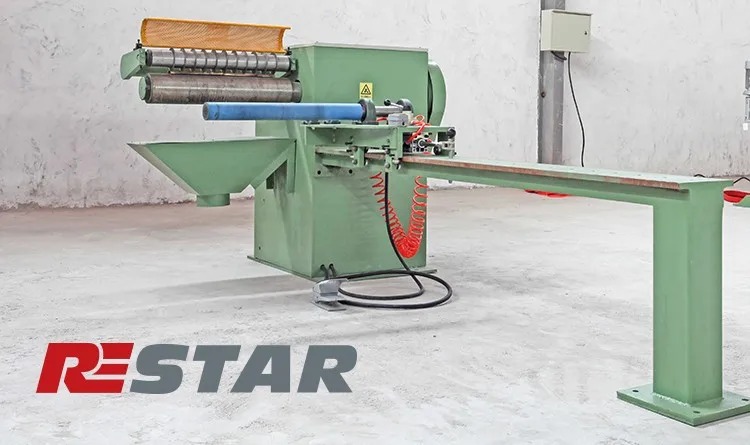

Narrow Belt Slitter Machine

The belt slitter is designed to slit narow belts of abrasive paper or cloth.

Slitting Width: 10---650mm

Slitting Length: 530--4000mm

Cuttter Loading Pressure: 500KGf(Adjustable)

Tenstion Force: 180Kgf

Power Rating: 2.2KW

Air Pressure: 0.7Mpa

OUR STRENGTH

Restar Technology co. Is a reputed manufacturer and supplier of Coated Abrasive Products and more. Our broad range of Coated Abrasive Products include Coated Abrasive Flap Wheels, Abrasive Belts, Spindle Mop Wheels, Abrasive Rolls, Portable Sander Belts, Radial Flap Discs (Cup Wheel), PSA Discs, Cloth Discs, Abrasive Sheets, Mounted Points (Grinding Wheel), Fibre Discs, Non Woven Wheels, Non Woven Wheel With Spindles and Felt Discs.

Our speciality is that we produce both high grade raw materials and finished coated abrasive products meanwhile, so as to make our products more reliable and cost-saving.

Our aim is to go beyond selling products, but offer you individual polishing solutions in diverse industries such as Automotive Industries, Cycle & Motor Cycle Industries, SS Fabrication Industries, Hand Tool Industries, Paper Cone Industries, Wood Working Industries, Plywood Industries and Ferrous & Non-Ferrous Industries.

Our Advantages

• 25 Years Manufacturer's Experience

• 2 Production Iines and 4 Converting Producton Lines

• Domestice and imported Materials

• Advanced Equipment and Professional technicians.
