| Light soure | 8W | 15W | 30W | 70W |
| Solar panel | 20W | 20W | 70W(SUNPOEWER) | 90W(SUNPOEWER) |
| Solar size | 410*340 | 540*340 | 1200*285 | 1200*400 |
| Lithium batteries | 9AH | 13AH | 30AH | 50AH |
| Human body sensing | YES | YES | YES | YES |
| product size | 480*440*50 | 600*440*50 | 1280*360*50 | 1300*500*220 |
| weight | 6 | 8 | 18 | 0.1 |
| Dimension | 550*400*150 | 680*450*150 | 1300*400*220 | 1300*500*220 |
| packing volume | 0.033 | 0.4 | 0.12 | 0.15 |
| Net weight | 7 | 9 | 20 | 24 |
| Luminous Full load | 950 | 1580 | 3200 | 7300 |
| Luminous Less load | 900 | 1500 | 3100 | 7100 |
| Visual angel | 120 | 120 | 120 | 1200 |
| Color temperature | 2700K-6500K | 2700K-6500K | 2700K-6500K | 2700K-6500K |
| Work time Full power | 40 | 40 | 40 | 40 |
| Work time Saving mode | 50 | 50 | 50 | 50 |
| Work temperature | -30℃+60℃ | -30℃+60℃ | -30℃+60℃ | -30℃+60℃ |
| Install hight | 2-3.5m | 4-5m | 7-8m | 9-12m |
| LED source Service life | 50000h | |||
| LED source Guaranteed | 2year | |||
| Controller | Use more than 5 years, guarantee 2 years | |||
| Lithiumbatteries | ||||

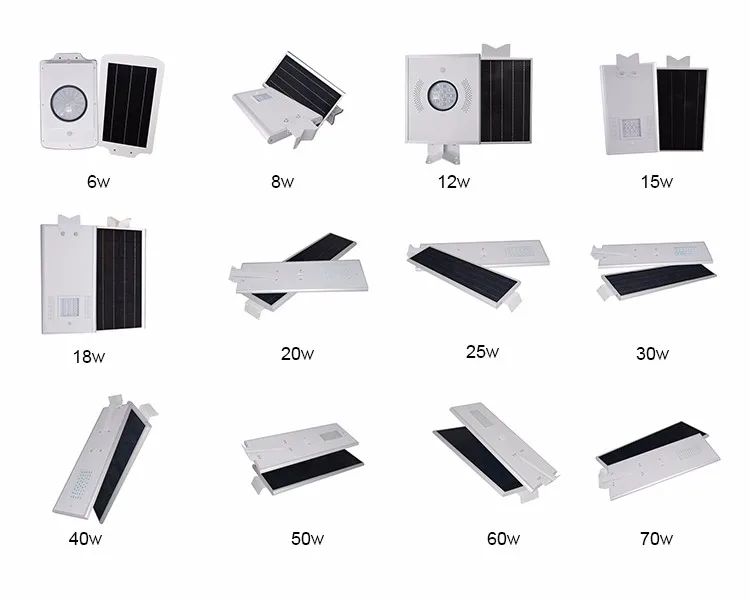

| Power | 8W | 12W | 18W | 20W | 25W |
| Size | 480*440*50mm | 480*440*50mm | 1050*360*50mm | 1280*360*50mm | 1280*360*50mm |
| Solar panel | 18v 20w | 18v 25w | 18v 50w | 18v 65w | 18v 65w |
| Led Brand | 8w Bridgelux | 12w Bridgelux | 18w Bridgelux | 20w Bridgelux | 25w Bridgelux |
| Color Temperature | 6000-6500k | 6000-6500k | 6000-6500k | 6000-6500k | 6000-6500k |
| Lumen | 900-950LM | 1200-1280LM | 1800-1900LM | 2100-2200LM | 2500-2600LM |
| Discharge Time | Over 36 hours | Over 36 hours | Over 36 hours | Over 36 hours | Over 36 hours |
| Temperature | -30℃-+60℃ | -30℃-+60℃ | -30℃-+60℃ | -30℃-+60℃ | -30℃-+60℃ |
| Waterproof Rate | IP65 | IP65 | IP65 | IP65 | IP65 |
| Mounting Height | 2-3.5meters | 3-4meters | 5-5.5meters | 5-6meters | 6-7meters |
| Power | 30W | 40W | 50W | 60W |
| Size | 1280*360*50mm | 1280*360*50mm | 1280*460*50mm | 1280*460*50mm |
| Solar panel | 18v 70w | 18v 70w | 18v 86w | 18v 86w |
| Led Brand | 30w Bridgelux | 40w Bridgelux | 50w Bridgelux | 60w Bridgelux |
| Color Temperature | 6000-6500k | 6000-6500k | 6000-6500k | 6000-6500k |
| Lumen | 3100-3200LM | 4000-4200LM | 5100-5200LM | 6100-6300LM |
| Discharge Time | Over 36 hours | Over 36 hours | Over 36 hours | Over 36 hours |
| Temperature | -30℃-+60℃ | -30℃-+60℃ | -30℃-+60℃ | -30℃-+60℃ |
| Waterproof Rate | IP65 | IP65 | IP65 | IP65 |
| Mounting Height | 7-7.5meters | 7-8meters | 7-9meters | 8-11meters |

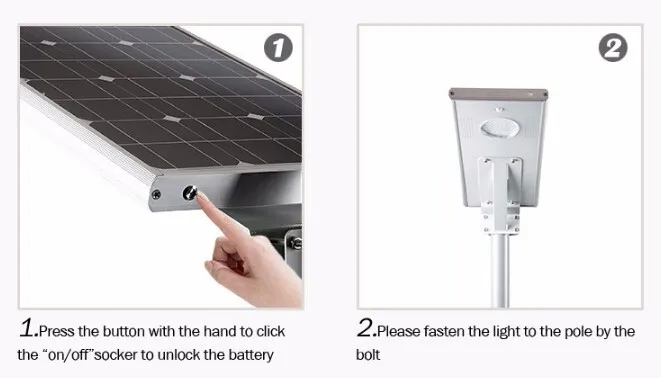

Preparations

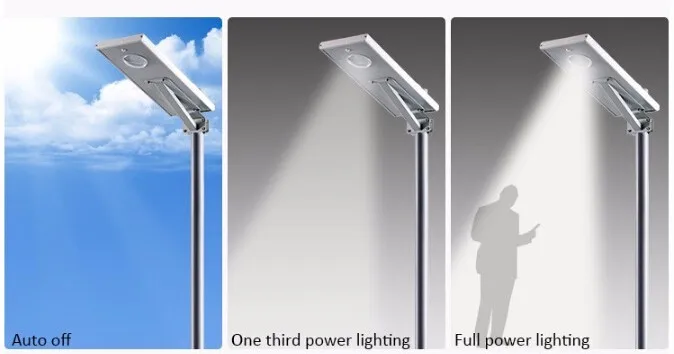

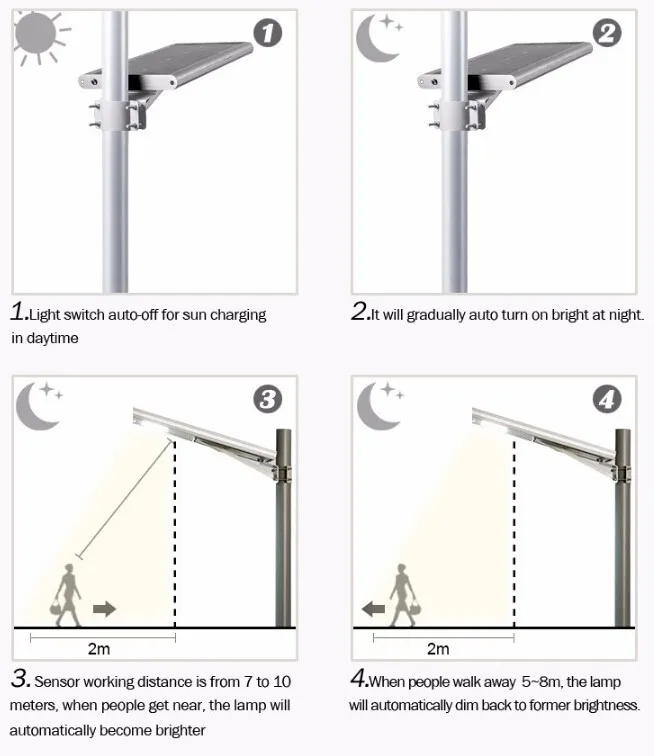

Working Process induction


The controller will control the brightness of the LED lamp according to the battery level.
·Example:Battery level at 50%, the lamp will be automatically transferred to 50% brightness.
·Battery level at 25%, the lamp will be automatically transferred to 25% brightness.
·For sometimes it may be cloudy days in a row, so the power battery gets is limited. To make the lamp
light as long as it can, the intelligent control system is one of big advantages of our integrated solar power






Jiangsu Shixin Landscape Lighting Co.,Ltd.(formerly known as Yangzhou Shixin Landscape Lighting Co.,Ltd.), located in China's historical and cultural city-the northern suburbs of Yangzhou City Tianshan Industrial Park. East of Beijing-Shanghai high-speed, the south-Shanghai-Nanjing high-speed, close to Runyang Bridge, Ningqi railway. Convenient transportation, is a design, development, manufacture, installation and integration services in the outdoor lighting business.

Companies registered capital of 108.88 million yuan, more than 300 employees, of which more than 50 professional and technical personnel, market development staff more than 50 people. Plant area of 28000 square meters, production equipment. With a large CNC bending machine, 2000 tons of aluminum die-casting machine, hycraulic stretching machine, dual-position powder electrostatic spraying lines, LED placement machine, reflow soldering machine, solar module laminator, solar module slicer, tester, luminous flux Testing equipment, automatic cutting, submerged arc welding, gas welding, cars, planing, drilling, bending, and so on more than 100 Taiwan equipment.
