Small biogas generator 10kva 30kva mini household biogas plant
- Category: >>>
- Supplier: Shandong PULITA New Energy Technology Co. Ltd.
Share on (60766285550):
Product Overview
Description
Small biogas generator 10kva-30kva mini household biogas plant

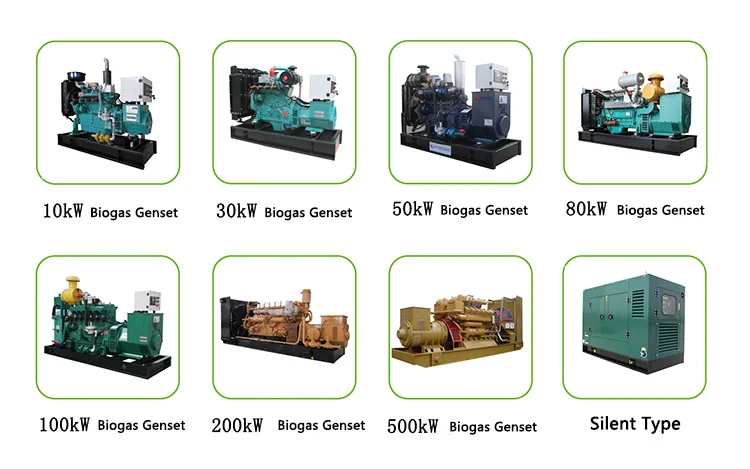

We manufacture CE approved 10kw to 1000kw biogas generator Set
Product Description
Small biogas generator 10kva-30kva mini household biogas plant main specifications
Model | HTG-10GF/20GF/30GF | Rated current | 14A-43A | |
Rated power | 10kva-30kva | Power factor | 0.8 | |
Standby power | 11kva-33kva | Controller | Auto PLC controller | |
Rated voltage | 400V/230V | Speed Governor | Electric control | |
Rated frequency | 50Hz/60Hz | Fuel | Biogas | |
Rated speed | 1500 rpm / 1800 rpm | Gas Consumption | ≤0.65m³/kW·h |

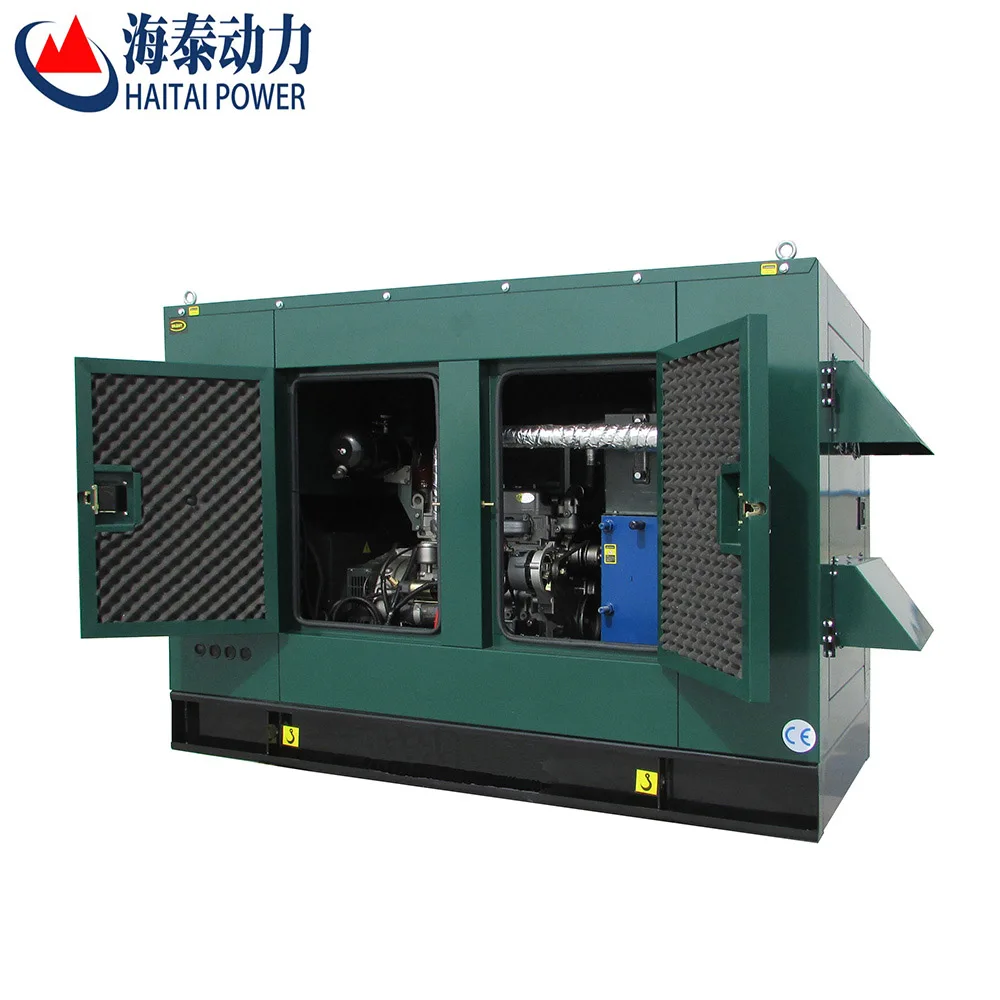

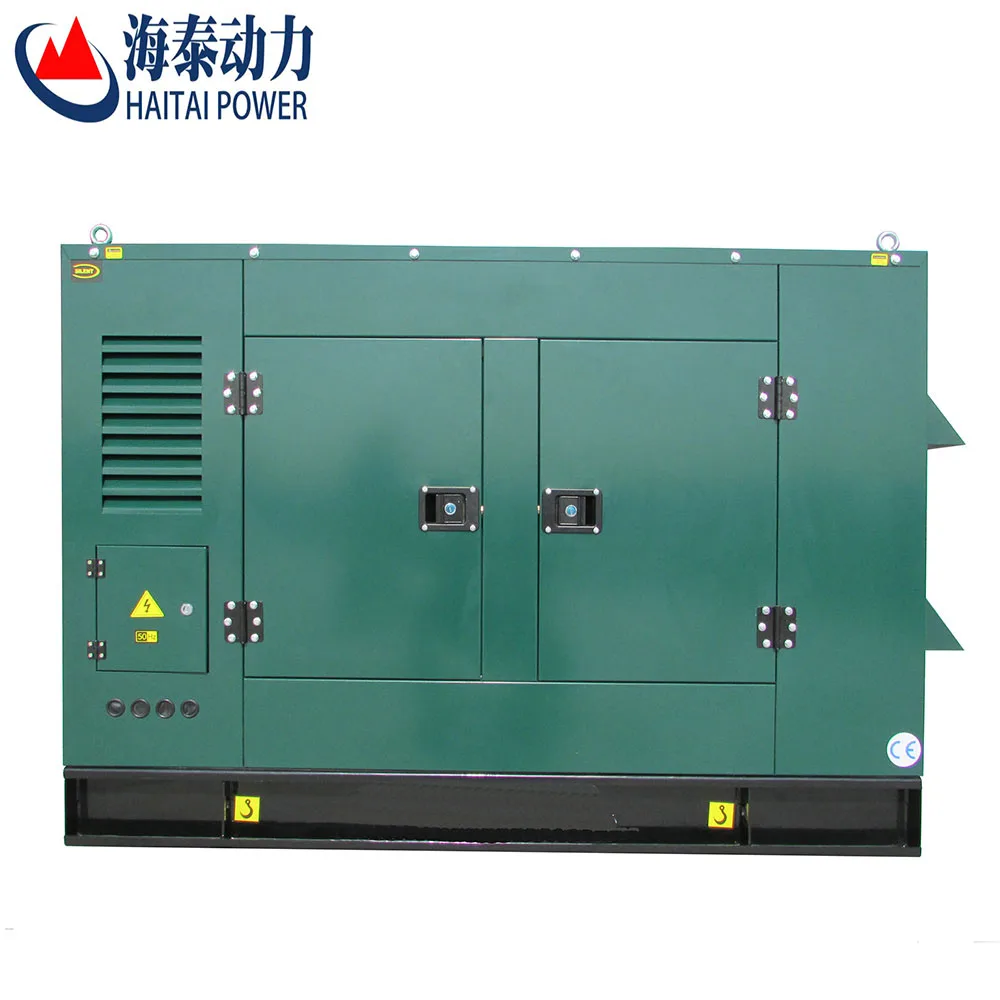

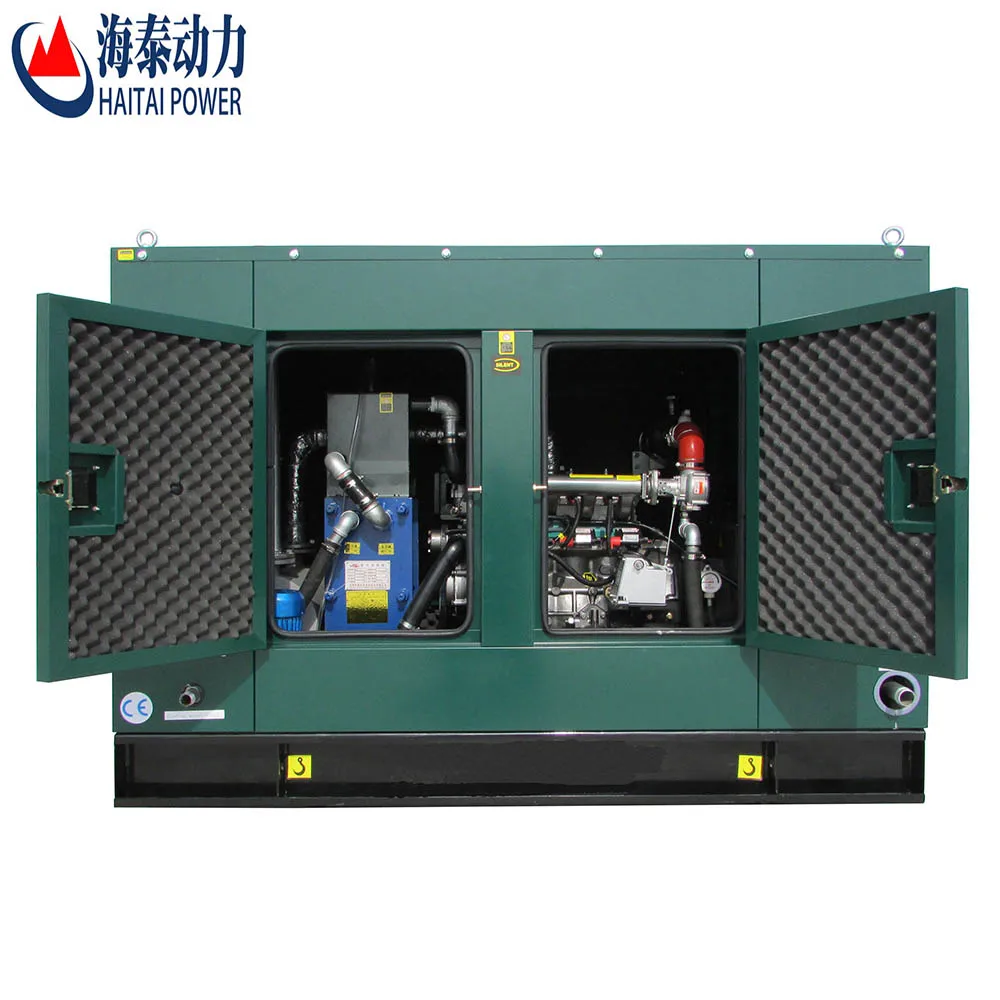

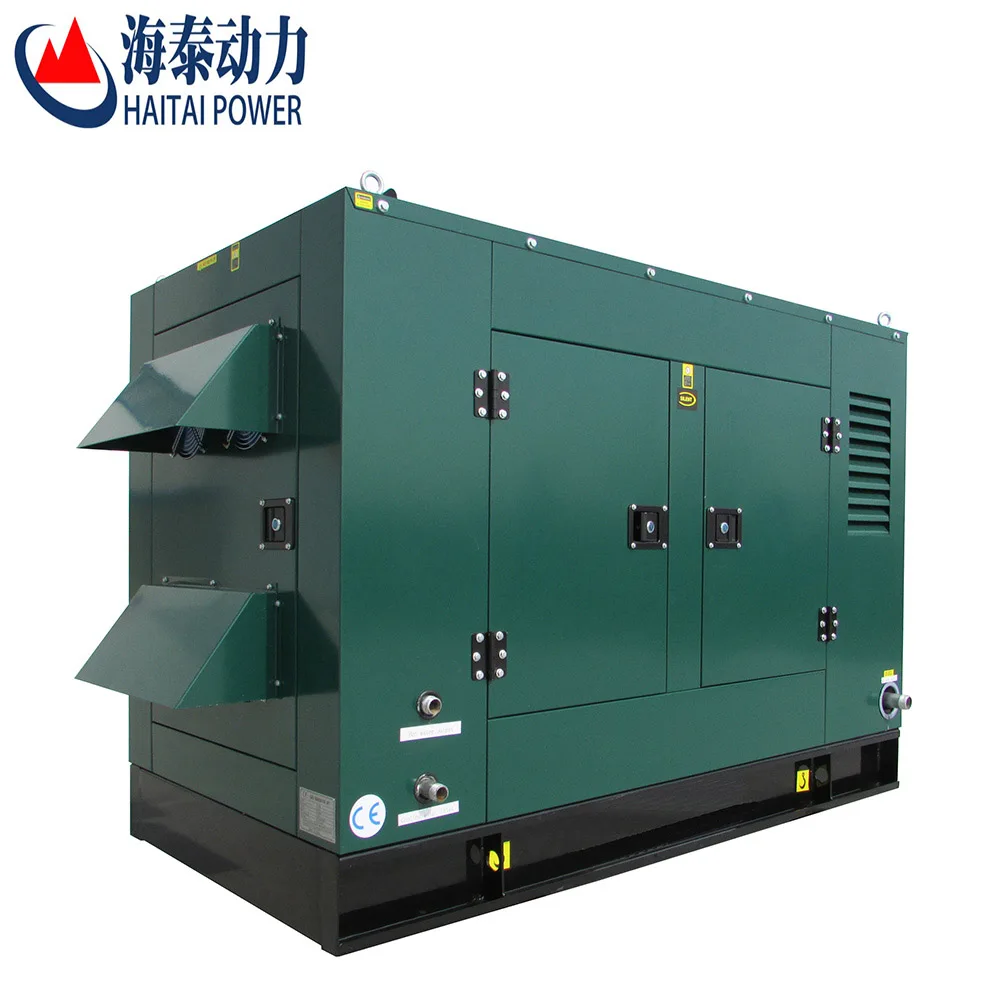

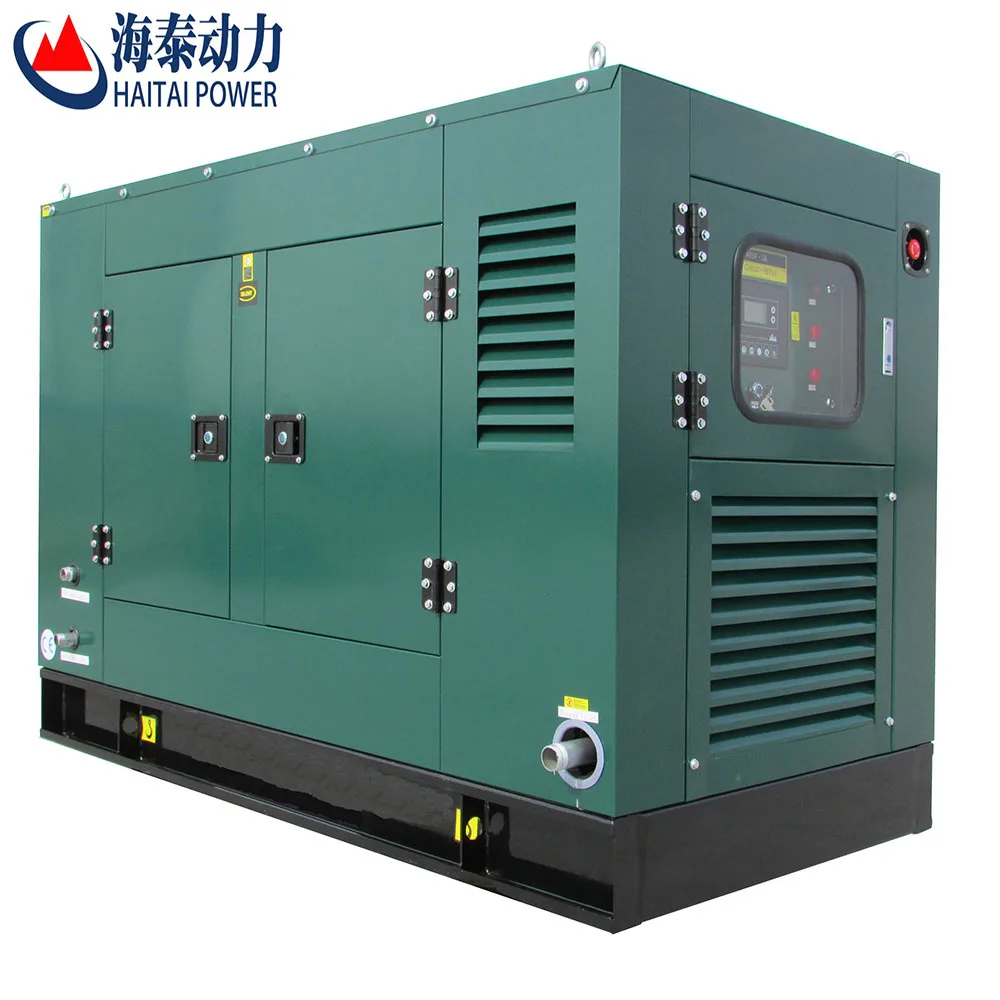

Small biogas generator 10kva-30kva mini household biogas plant pictures
Small biogas generator 10kva-30kva mini household biogas plant options
Item | Picture | Explain |
Soundproof Canopy |  | Scientific and efficient soundproof design can effectively reduce the noise of the generator to 70-75 dB. The use of fire-proof silencer sponge to ensure the safety of generating units. |
Automatic Transfer Switch (ATS) |  | Automatic start genset when main power failed, Automatic stop genset when main power recovered. |
desulfurization system |  | Efficient dry desulfurization device can effectively remove hydrogen sulfide gas, desulfurization efficiency of more than 95%; Dewatering tank production process advanced, good sealing, efficiency up to 95%. |

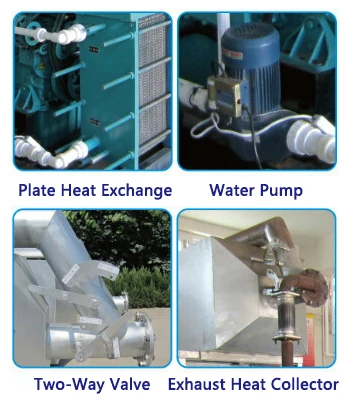

CHP system |  | Gas generator set fully exchanged the heat of exhaust gas and high temperature circulating water of the engine through gas heat recovery system and plate heat exchanger in order to achieve the purpose of energy-utilized. The recovery medium hot water can be used for house, warm and biogas reaction pool winter heating preservation. Both of two heat recovery system efficiency occupies about 42%-44% gas energy utilization, attaching the 35%-36% generating electricity efficiency, which can make the entire generator operational efficiency reach 80%. |

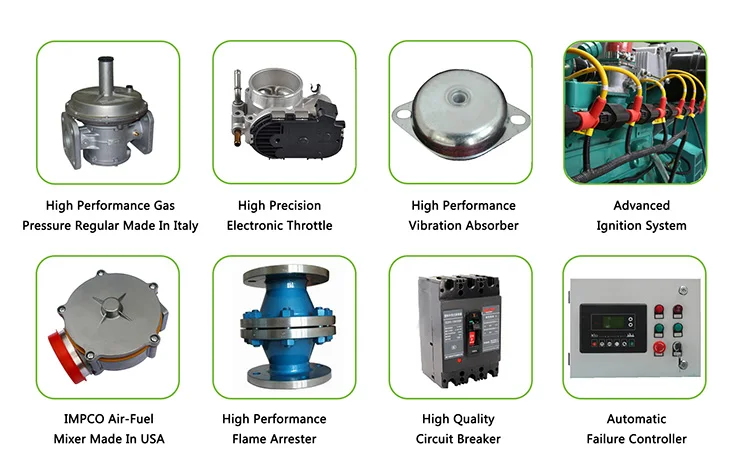

Small biogas generator 10kva-30kva mini household biogas plant advantage
