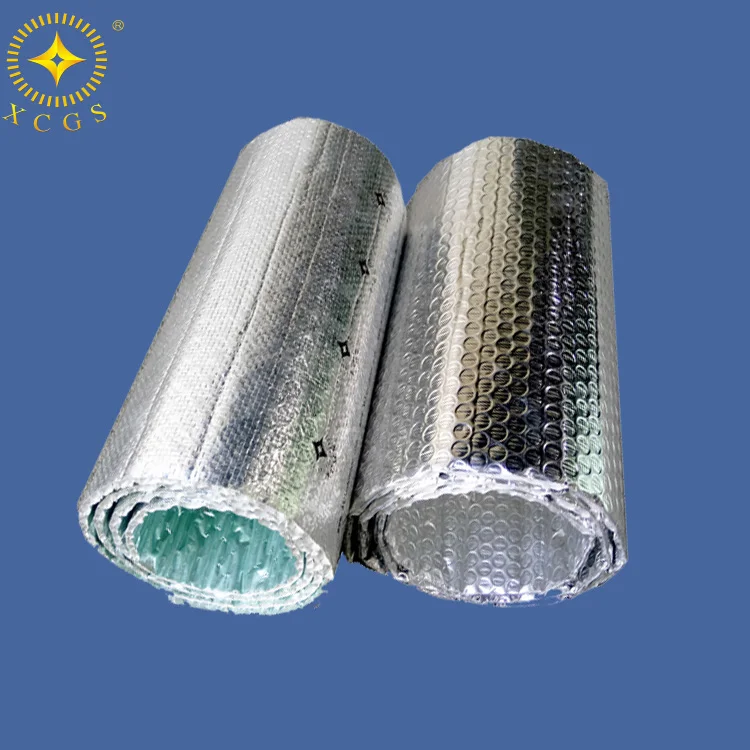

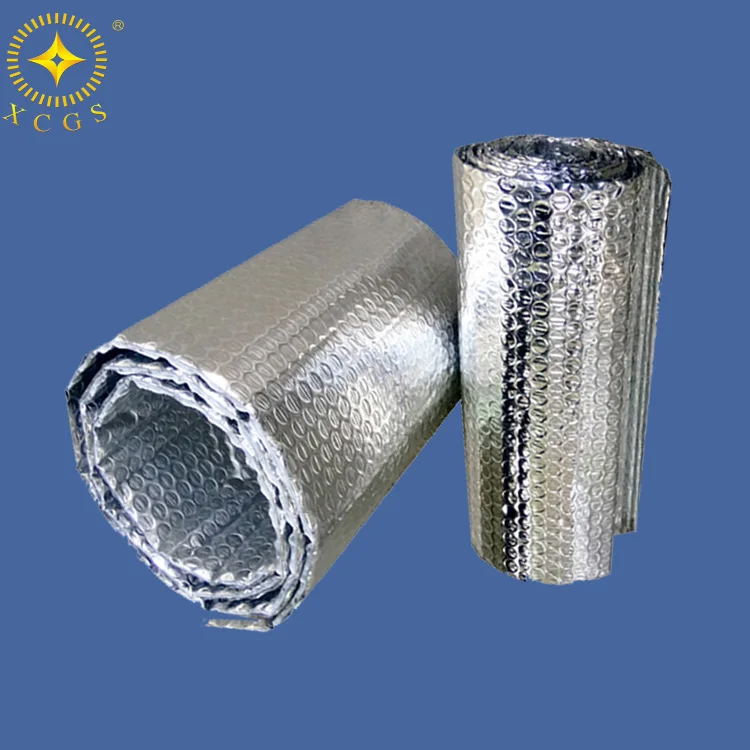

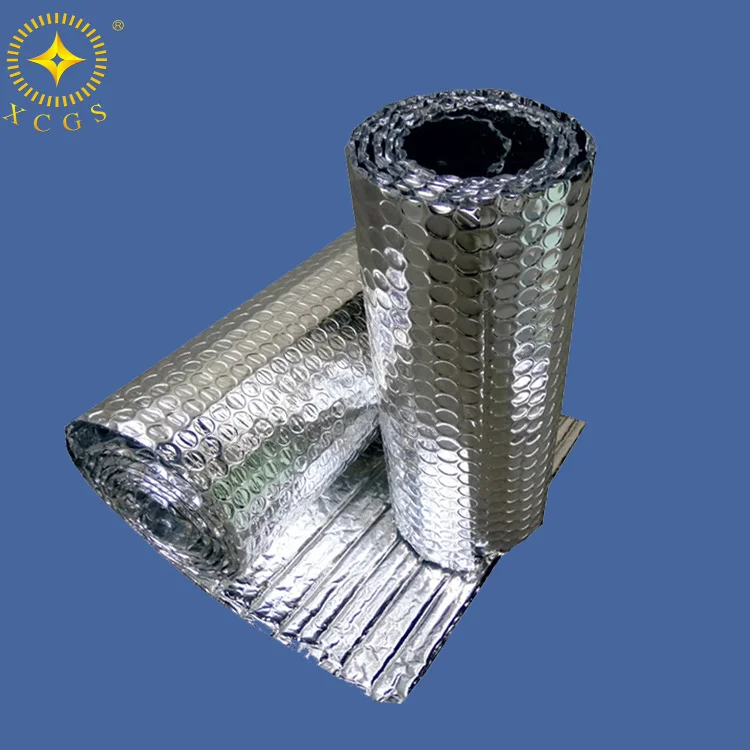

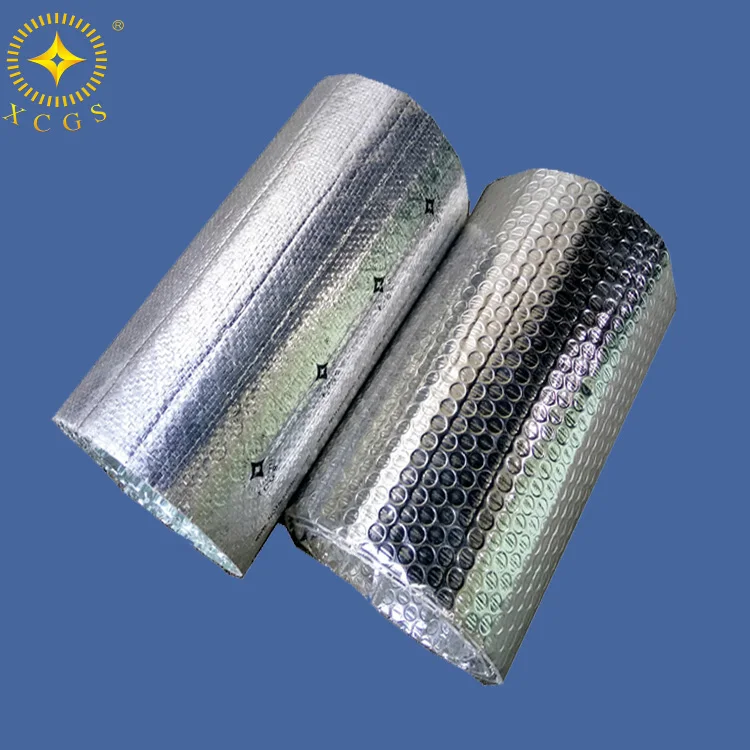

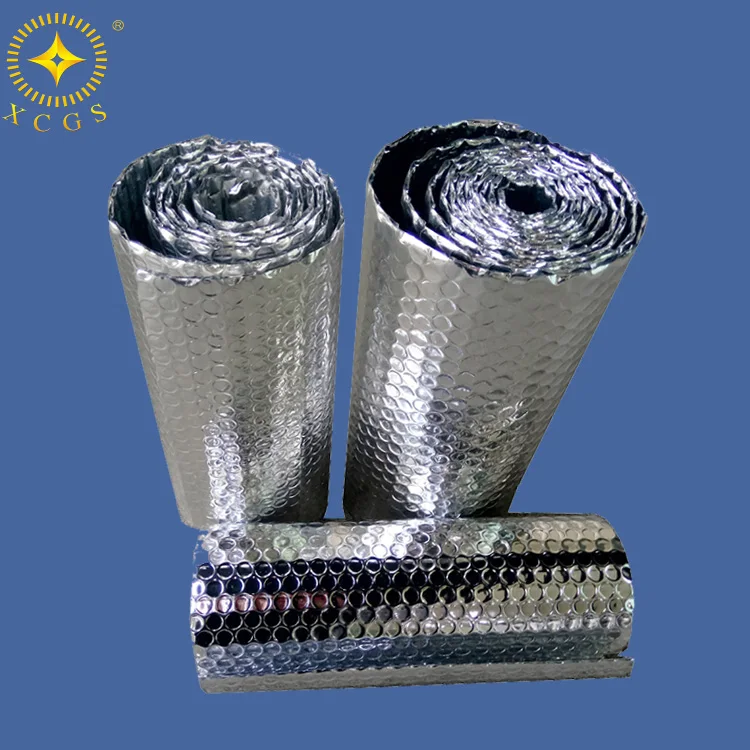

Home Thermal Insulation Pipe Fireproof Bubble Foil Insulation

Share on (60766338189):


Price:

Quantity:


Product Overview

Description









1.Specification


 The Specification for Home Thermal Insulation Pipe Fireproof Bubble Foil Insulation















































MaterialAL+BUBBLE+AL
Thickness4mm
Roll Size1.2*40m
Weight250gsm
Reflectivity97%
ApplicationRoof/ Ceiling/Wall/Floor
Bubble Size 10*2.5/10*3/10*4/10*5/20*7/25*8/25*10
Logo Printing OEM  Available


 2.Parameters


 The Data Sheets for Home Thermal Insulation Pipe Fireproof Bubble Foil Insulation

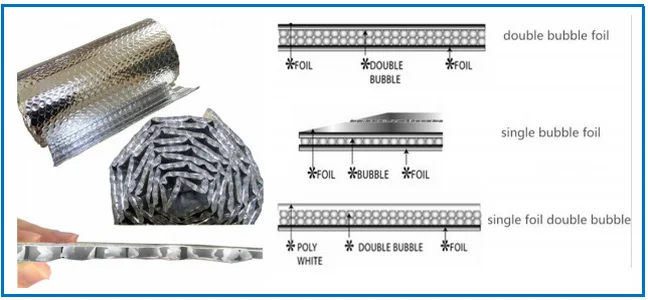

Main Material Alu + (single / double) PE bubble + Alu
Material StructureMPET + (single / double) PE bubble
MPET + (single / double) PE bubble + MPET
Alu + (single / double) PE bubble
Alu + (single / double) PE bubble + Alu
Alu + woven + (single / double) PE bubble + Alu
Alu + woven + (single / double) PE bubble + woven + Alu
Alu + woven + (single / double) PE bubble + Alu + Anti-glare                       Alu + (single / double) PE bubble + woven + Alu + Anti-glare
Air Bubble Size ¢ : 10mm, H: 2.5mm; ¢ : 10mm, H: 4mm;  ¢ : 10mm, H: 6mm;  ¢ : 20mm, H: 7mm;  ¢ : 25mm, H: 8mm;  ¢ : 25mm, H: 10mm
Coating ColorBlue, Green, Pink, Orange or customized
MPET/ Pure Aluminium Foil Thickness12micron/7 micron
Product Thickness:2mm-10mm
Reflectivity96%~97%
Normal Roll size1.2m *30m/roll ; 1.2m *40m/roll; 1.35m *22.25m/roll;  can be customized
Packing1 roll/ clear plastic bag or customized logo printing packing bag accept










3.Application&Installation


 The Application for Home Thermal Insulation Pipe Fireproof Bubble Foil Insulation

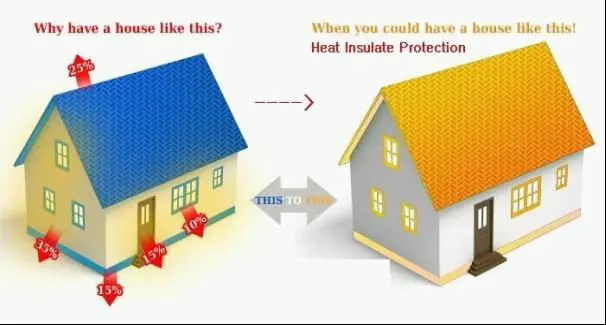

Function




Reflectivity up to 97%

Let's Cool Summer and Warmer Winter !!



Application







Roof,Ceiling,Wall,Floor,Attic,Livestock Shelters,Basement,Factory buildings,Duct wpings,Container liner,Sun-stop cover and vehicles.





Installation Methods




1.Purchase approximately 10% more for overlapping and to provide the proper air gap between the purlins
2.Cover the metal roof purlins with double-sided adhesive tape. Unroll the foil w insulation and attach it to the first purlin.
3.Secure the bubble foil to the framing members with furring strips. Use a drill equipped with a screwdriver bit to drive the screws into the framing members.
4.Cover the seams of the bubble insulation with foil tape.

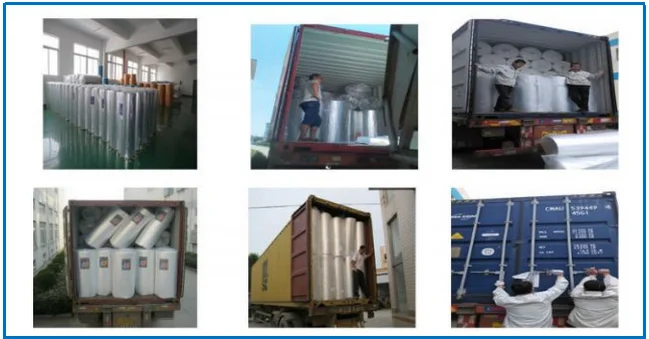

4.Packaging & Delivery


 The Package for Home Thermal Insulation Pipe Fireproof Bubble Foil Insulation


1.Payment term: T/T 30% deposit after order confirmed, the balance after goods ready before shipping . or L/C , or Paypal  for small amount .


2.Lead time : normally in 7~15 days after deposit received .


3.Sample:Samples are always availble.Samples can be ready in 3~7 days once payment received .


4.Shipping port: Shanghai /Shenzhen,China  5.Discounts : We offer discount for big quantity.

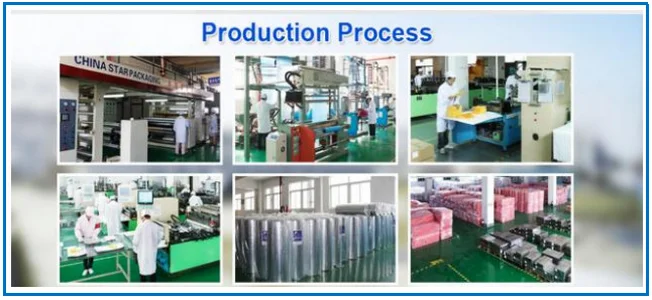

5. Production Process






6.Company Profile&Our Customers

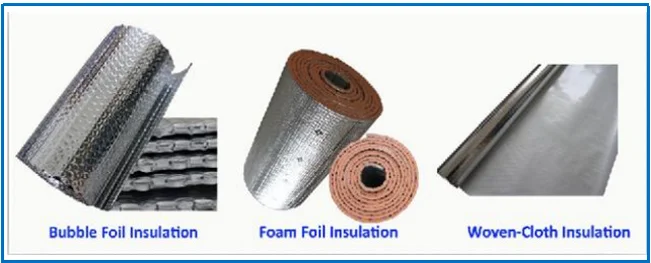

7.Related Products


1.Bubble Foil Insulation 2.Foam Foil Insulation 3.Woven Foil Insulation 4.Insulation Tape






8.FAQ



1. Are you factory direct?
Yes, we have our own factory, all of our products are with competitive factory price.


2. Do you have a special price and service for wholesale?
Yes,we have the most competitive and best service to support our wholesale customers.We s
upply OEM service for the wholesale;


3. What payment methods can I use? And how secure is my payment?
 Currently, you can pay by T/T, and L/C.


4. How long does it take for my order to be shipped? And how long can I receive it.


Generally, your order will be shipped within 7-15 working days after your payment verified.
