5.7 inch 320x240 monochrome lcd display module

DOT matrix: 320 x 240 dots

Size: 139 x 100 x 11.4mm

V. A: 103 x 79mm

Drive method: 1/240 duty, 1/16 bias

View angle: 6: 00

Display: STN Blue or FSTN

Voltage: 5V or 3.3V

Controller: RA8835

TOP: -20-70 Celsius

TST: -30-80 Celsius

5.7 inch 320x240 monochrome lcd display module

 5.7 inch 320x240 monochrome lcd display module

5.7 inch 320x240 monochrome lcd display module

How to custom LCD

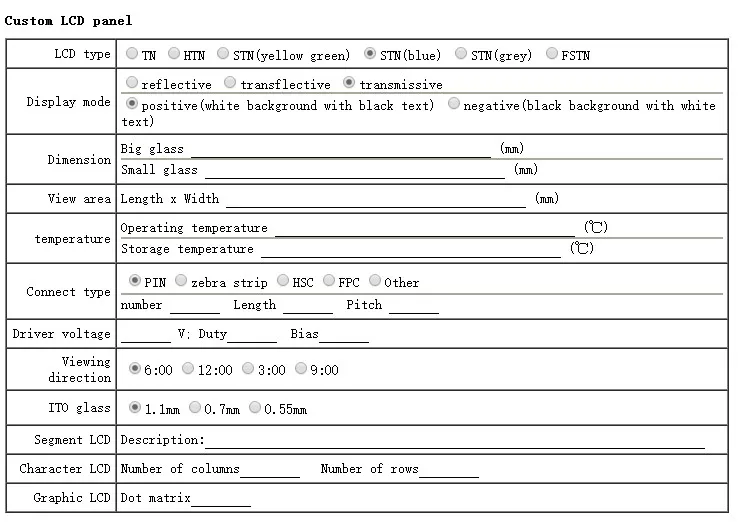

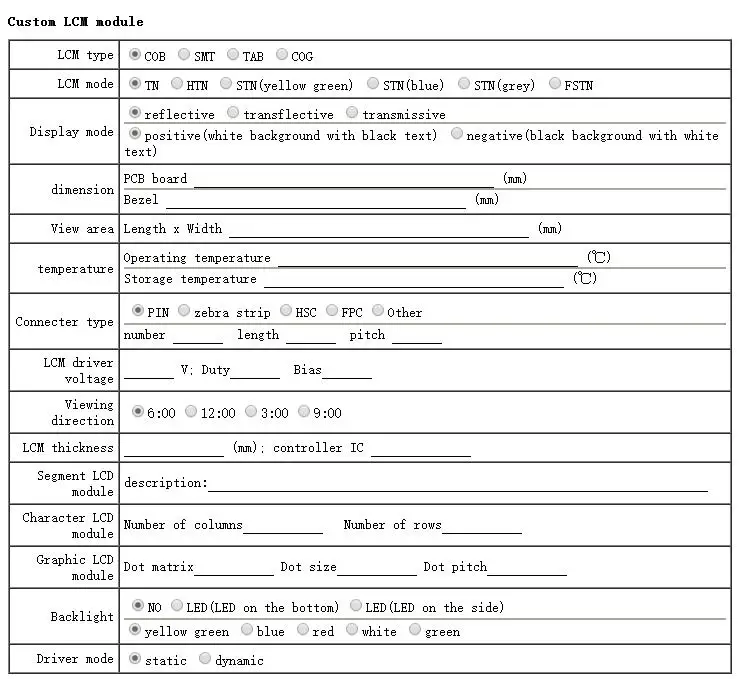

Step 1: Offer us your requirements according the below table or send us your drawing directly
Step 2: Our engineer check it and confirm
Step 3: If confirmed ,pay us tool fees
Step 4:Send you the final drawing and you sign your name on it .
Step 5:Received your payment and start to produce sample
Step 6:ship samples and offer technology support

LCD module is widely used in Healthcare Biomedical Instrumentation,and clinical diagnostics,Wind Sensors for Measurement,Control, Alarm, Internet Access,metering pumps and dosing systems,water treatment ,charging pile and car beauty equipment and Industrial control equipment, instruments and meters, bank terminal,industry machinery equipment as well as electrical home appliances, consumer electronics including white goods, POS system, home applications, industrial instrument, automation, audio/visual display systems, and medical device ect.

Shenzhen Brilliant crystal Technologic Co.,ltd  a professional Character and Graphic LCD manufacturer.graphic LCD displays (liquid crystal display) are available in dot matrix format of graphic resolution including 122x32, 128x64, 128x128, 256x64, 160x128, 160x160, 160x32, 160x80, 192x64,240x128 dots 240x64, 320x240 and etc. The sizes are including 3" LCD, 3.2" LCD, 4" LCD Display, and etc. Graphic LCD modules are including different options of polarizer in reflective, transmissive or transflective types. Our LED backlights are available in various colors including yellow/green, white, blue, red, amber and RGB.

1.Are custom displays more expensive than standard displays?
No,It only means you need pay some tool fees .
2.Can I modify an existing standard display?
Yes, we consider this semi-custom, and anything is possible.It will help you save tool fees .
3.What's you MOQ?
If there is stock,we have no MOQ
If no stock ,Gernerally speaking ,
The MOQ is 1000 pcs for COB styles
3000~5000pcs for segment and COG style
300~500pcs for TFT lcd module styles .
4.What is your Delivery time
1~2 days for sample making.
7-10 days for mass production has raw material stock
30~45 days if no stock raw material
5.How long is your display span
Most of our displays run 7-10 years

 Shenzhen Brilliant Crystal Technologic Co.,ltd
