rubber vulcanizing machine ,rubber expansion joint vulcanizing machine ,rubber vulcanizing hydraulic press machine
- Category: >>>
- Supplier: Qingdao Jiuzhou Jucai Machine Co. Ltd.
Share on (60766397348):
Product Overview
Description
Product Description
Product Application

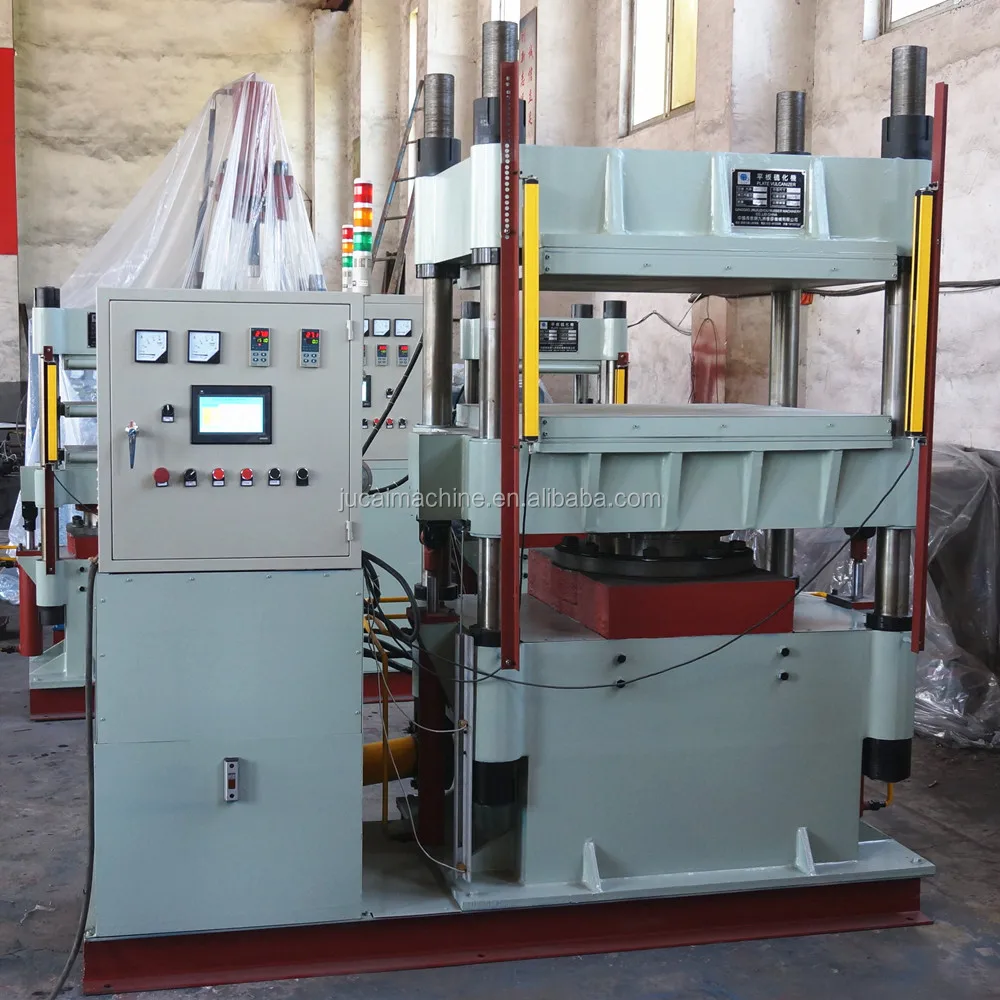

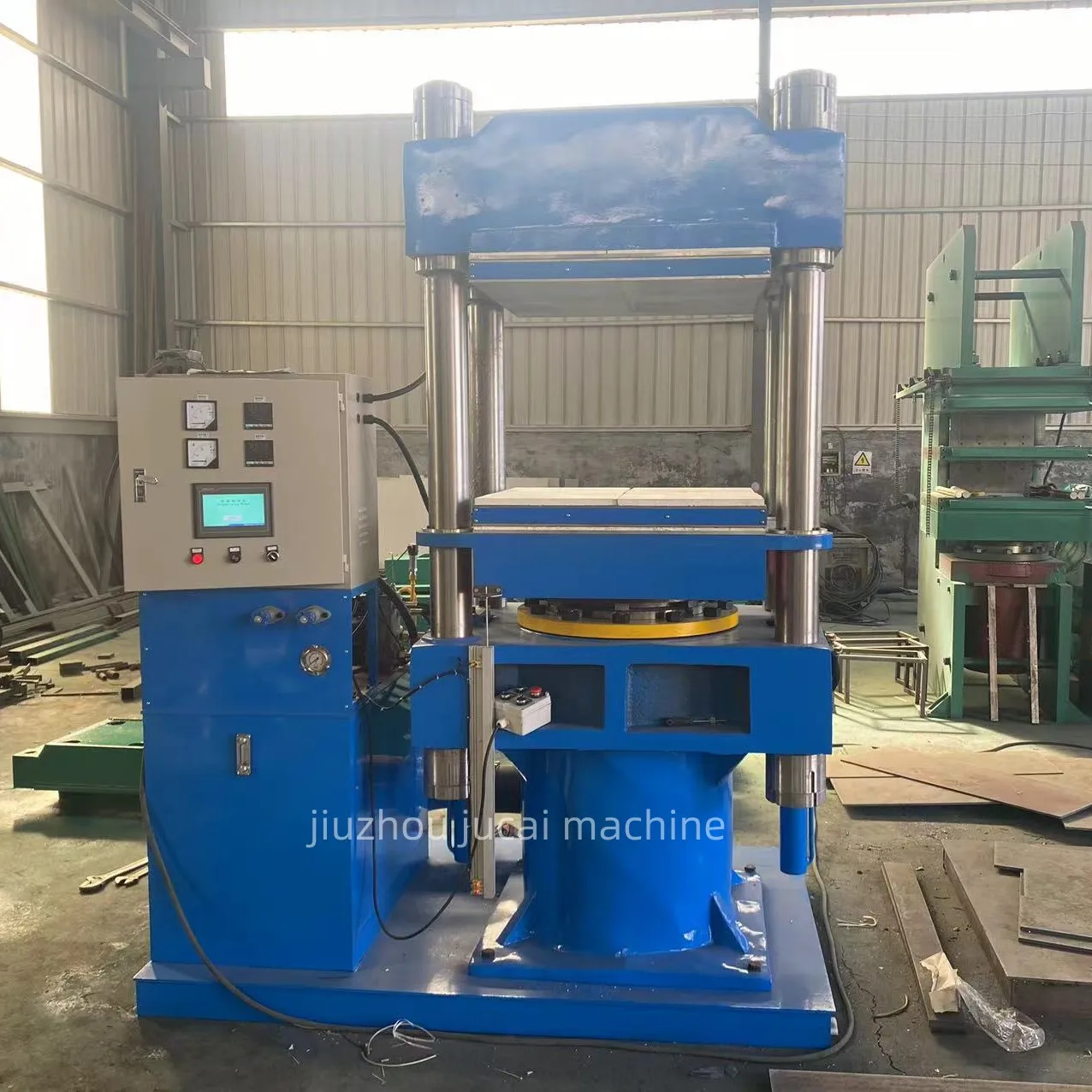

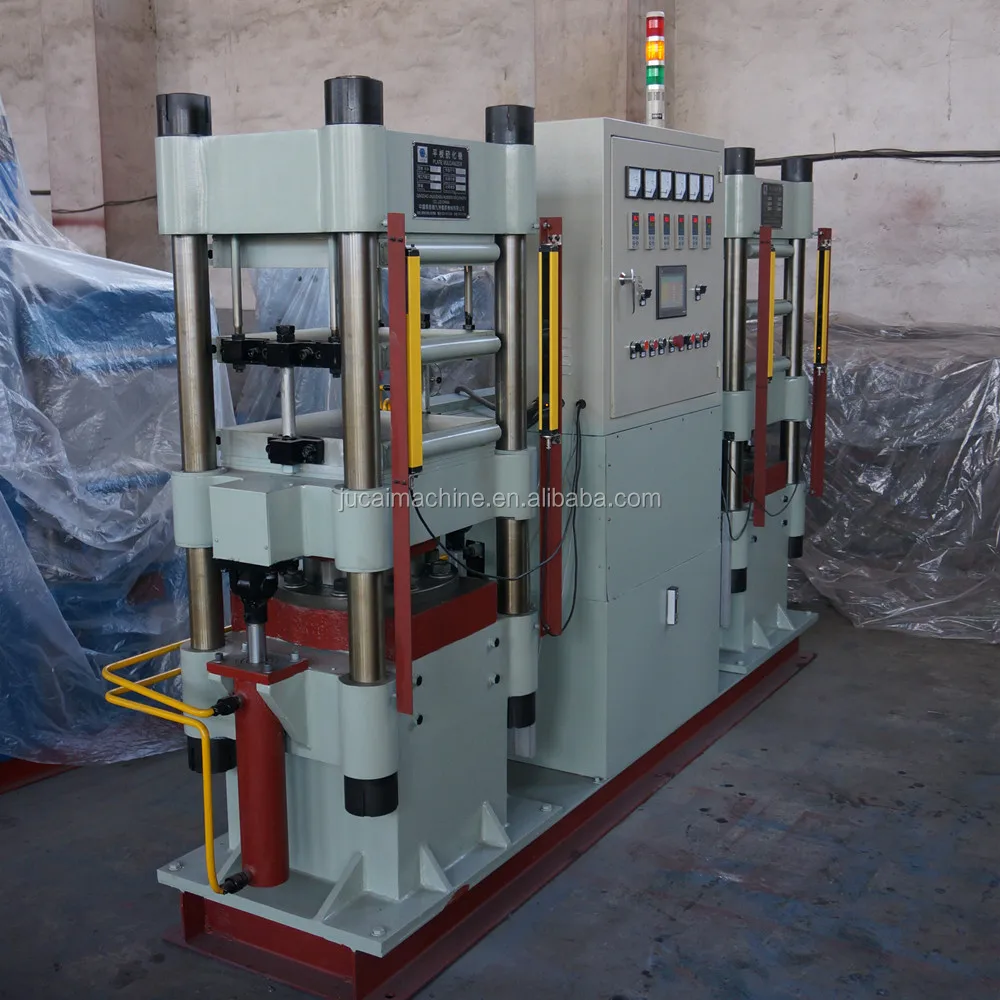

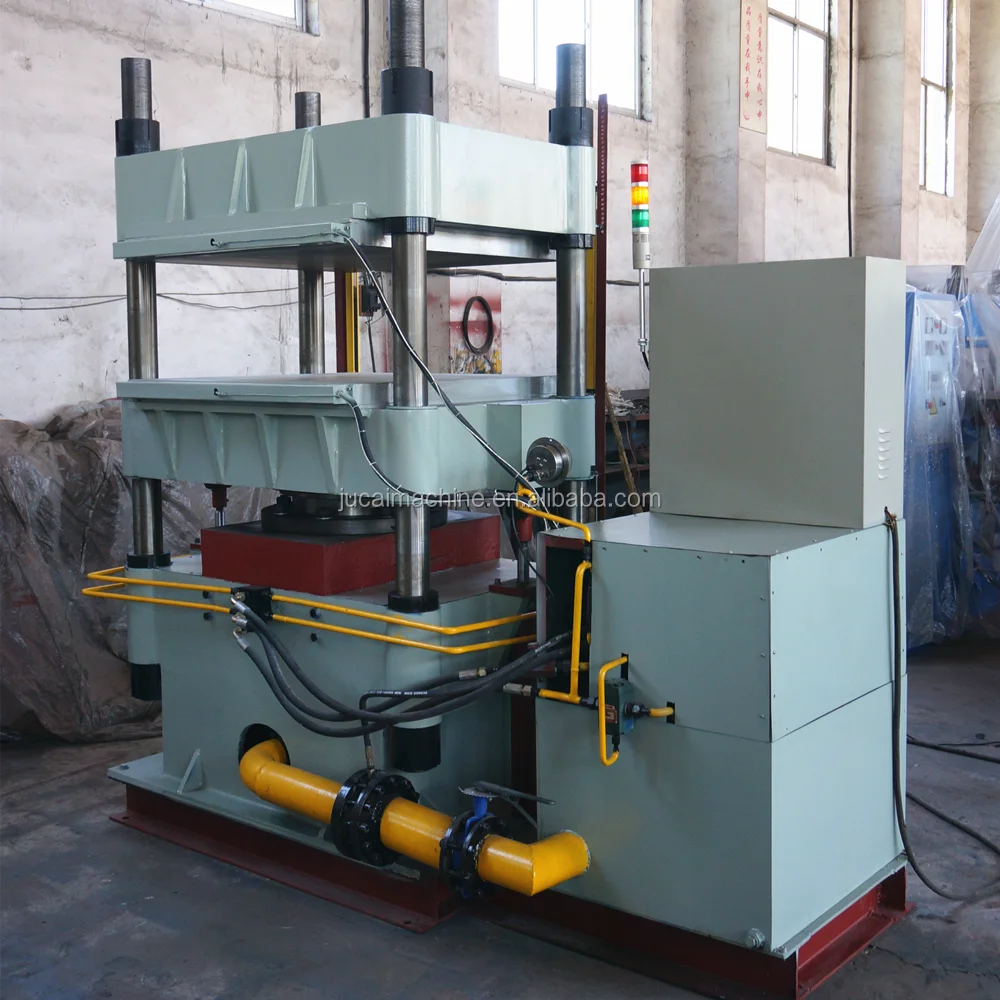

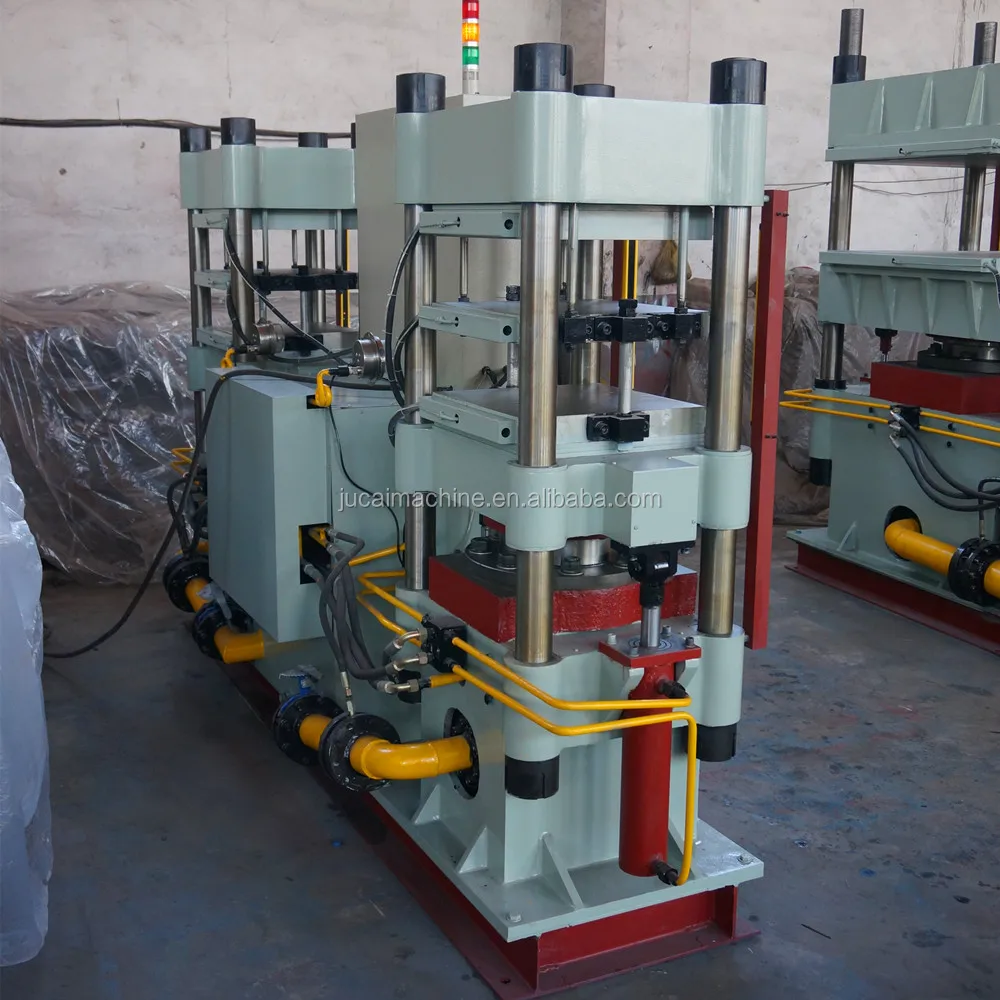

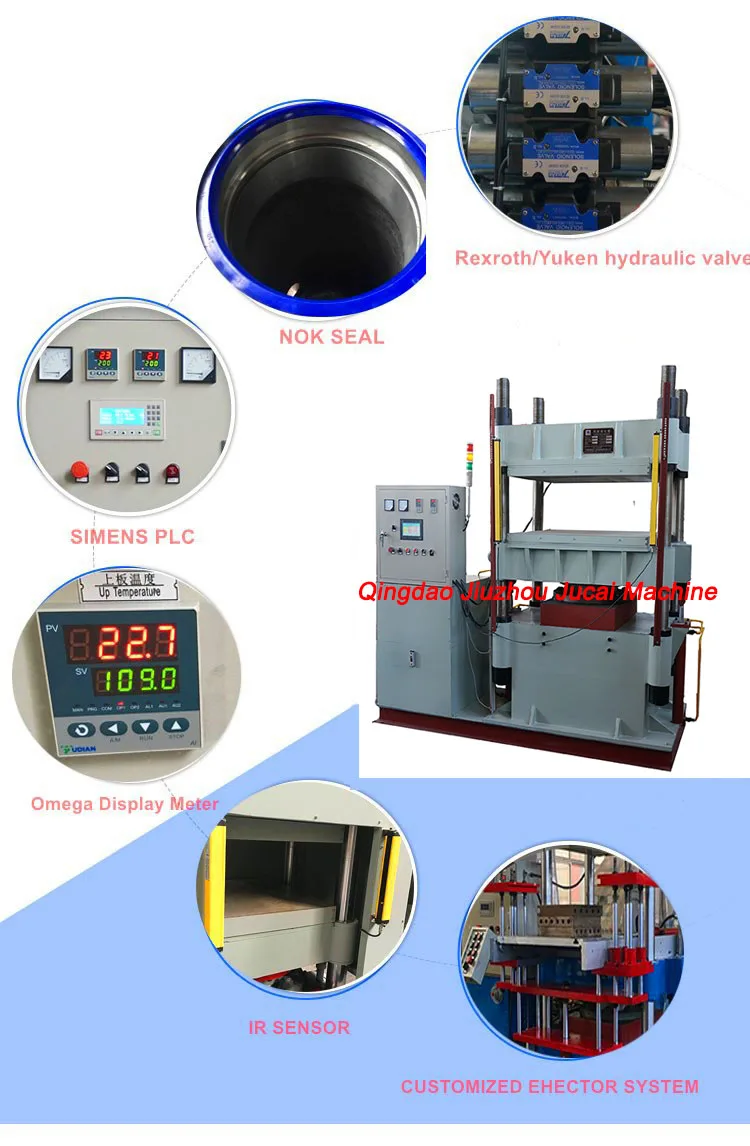

This machine consists of heating plate , beam and plate form , cylinder , base , electrical system , etc .it is widely used for heating , vulcanizing and solidifying various kinds of rubber molded product , such as seal , gasket , o rings , etc
Main Features
1.The machine adopts the semiautomatic control. Worker can set the vulcanzing time , vulcanizing temperature in the cabinet . On finishing vulcanization , machine will alarm and worker can open mold
2.Most spare parts for hydraulic system are from our best domestic brand
3.Machine body casting is made of FCD 50 ductile cast iron ,which is processed by high tensile strength after aging passivation
4.The machine pillars/ columns are made of medium carbon steel , and its hardness can reach HRC55-58
5.The cartridge heater adopts three stages winding, nichrome wire , non-rusty
6.Oil seal are from Japanese NOK and Sakagmi Brand , it is wear-resisitant ,durable and oil tight
7.Main electrical elements are from Schneider France ,which can stabilize machine performance
Product Paramenters
Model | XLB-400*400*2 | XLB-600*600*2 | XLB-800*800*2 |
mold closing force | 50 ton | 100 ton | 160 ton |
plate size | 400*400mm | 600*600mm | 800*800mm |
working layer | 2 | 2 | 2 |
plate clearance | 200mm | 200mm | 200mm |
piston stroke | 400mm | 400mm | 400mm |
piston diameter | 200mm | 300mm | 400mm |
plate pressure | 2.2 Mpa | 2.2 Mpa | 3 Mpa |
machine weight | about 1300 kg | 2500kg | 6500kg |
1.Are your company a trading one or a factory?
Factory + trade (integration), 30 years focusing on rubber machine design and production .
OEM is also acceptable for us.
2.How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of product you need to do and the required specification.
3.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
4.How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change,
necessarily, our engineers may go to your place for better service.
5.How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
6.What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment -packing - delivery - customer receiving - after service.
