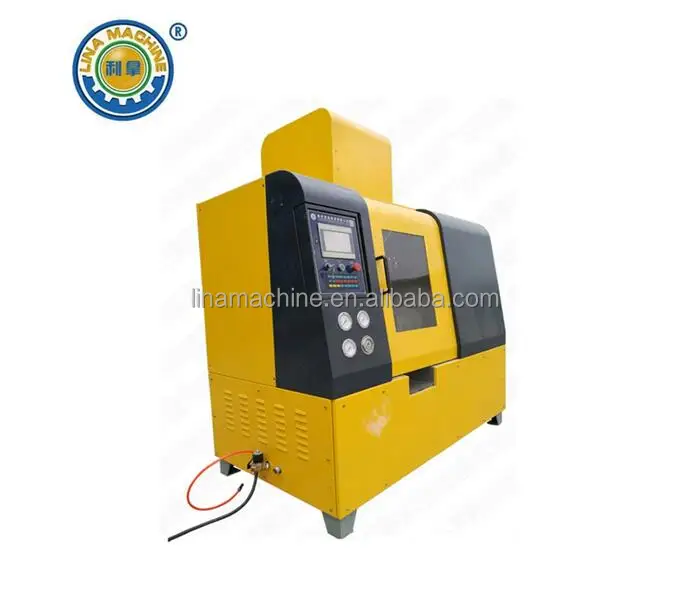

Dispersion Machine Rubber Mixing Mill Slippers Making Machine with ISO CE SGS
Dispersion Machine Rubber Mixing Mill Slippers Making Machine with ISO CE SGS is optimized by well-designed rotors, top and down rams. ("M-W" type). LINA Dispersion Machine is suitable for a wide range material including high filling rubber, plastic, elastomers, ceramics and mental, and other powder materials. LINA 10 liters New Designed Dispersion Machinesare surrounded by closed dust proof cabinet and an enclosed space is formed. This type of Laboratory Dust Proof Pollution Rubber Mixing Millis designed on the base of Pressurized Rubber Mixing Machines, the flipping type is hydraulic or electric, and the double dust proof device is adopted.
Characteristics

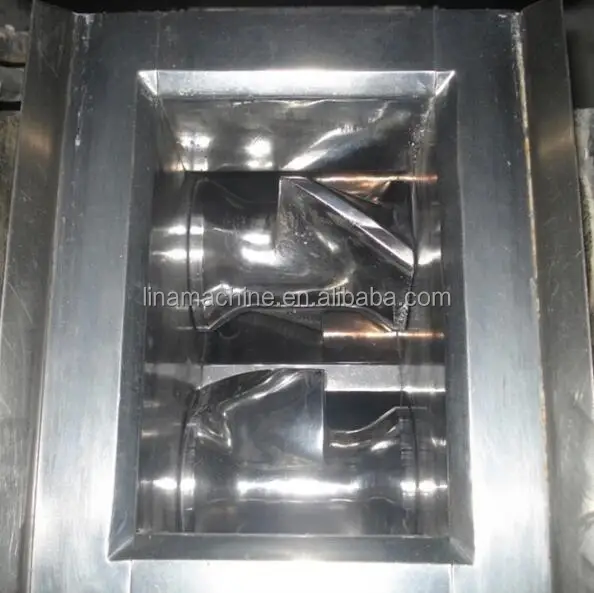

1. Excellent Dispersion Effect: The specification of rotor, top and down ram is optimized to ensure the dispersion effect and material's physical properties reach the best result.

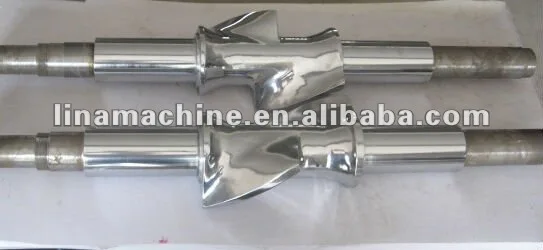

2. The rotor blades are made of imported alloy steel to ensure they are wearable and durable. The rotor shaft is nitrided by 38CrMoAL and HV950-1050 treatment.
3. All surface that has direct contact with the material is sprayed by tungsten carbide. The spraying equipment is imported from Germany. Tungsten carbide alloy is imported, and the wearable level of its surface is 10 times higher than conventional hard chrome plating surface.

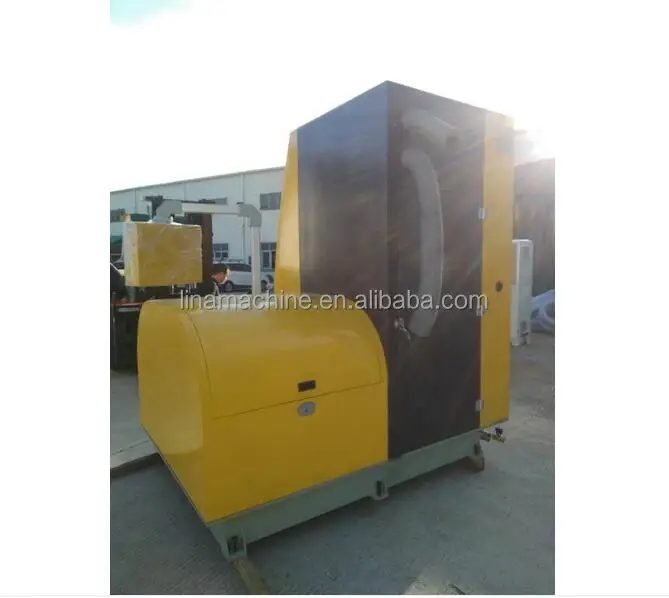

4. The kneader is surrounded by closed dust proof cabinet and an enclosed space is formed. Based on the kneader's internal dust collection device, an external dust collection is added, which can avoid powder pollution when feed powder material into the mixing chamber.
Specifications
Item
Specification
remarks
Type
Lab Test Type
Mixing Capacity
10 L
Production Yield
8.0-15KG per time
Subject to the proportion of material and dispersion requirements.
Main Motor Power
15 KW
Flipping Method
Hydraulic type
Flipping Angle
110°
Temperature Control
Heating or/and cooling
Electric/oil/steam heating and circulating water cooling.
