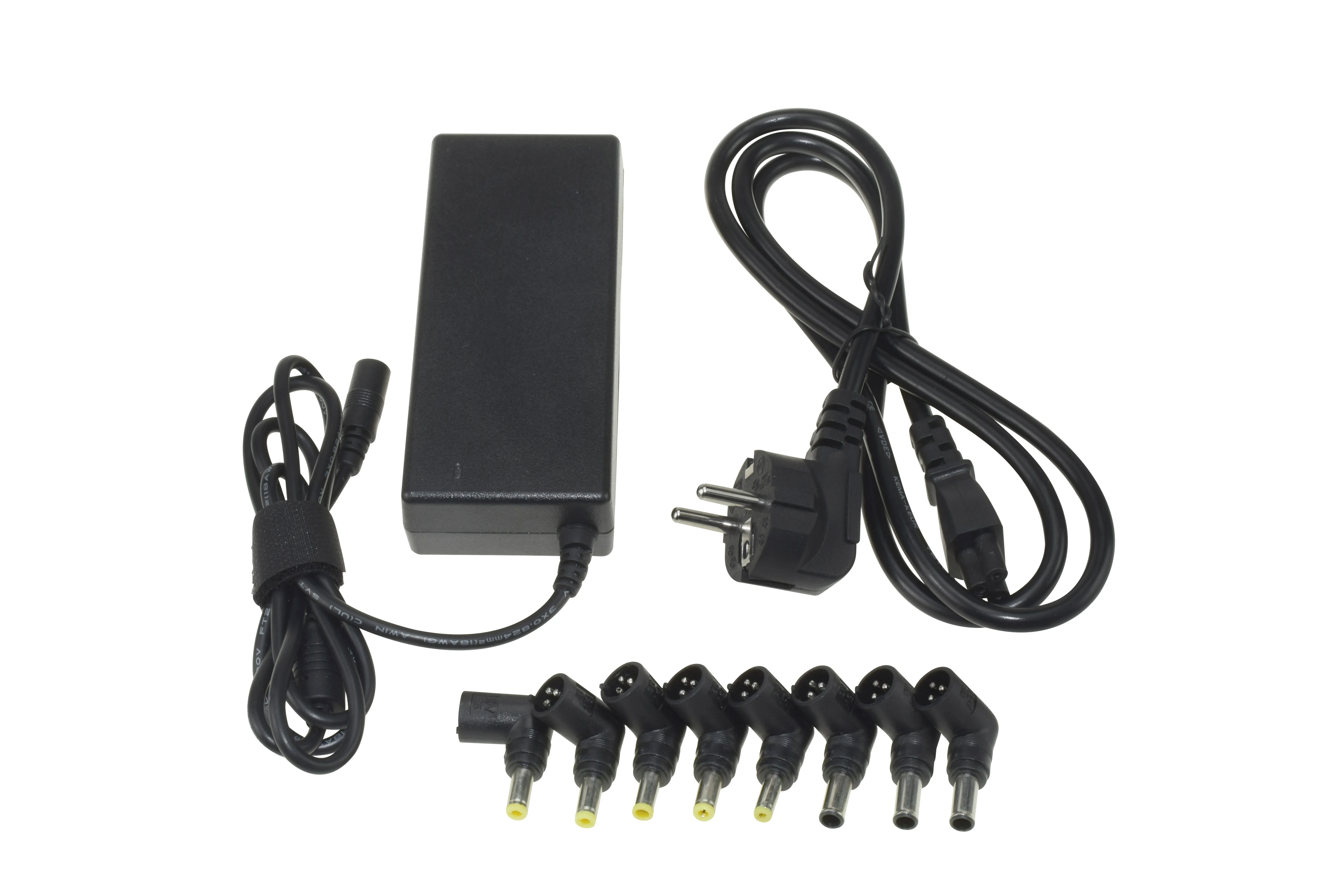

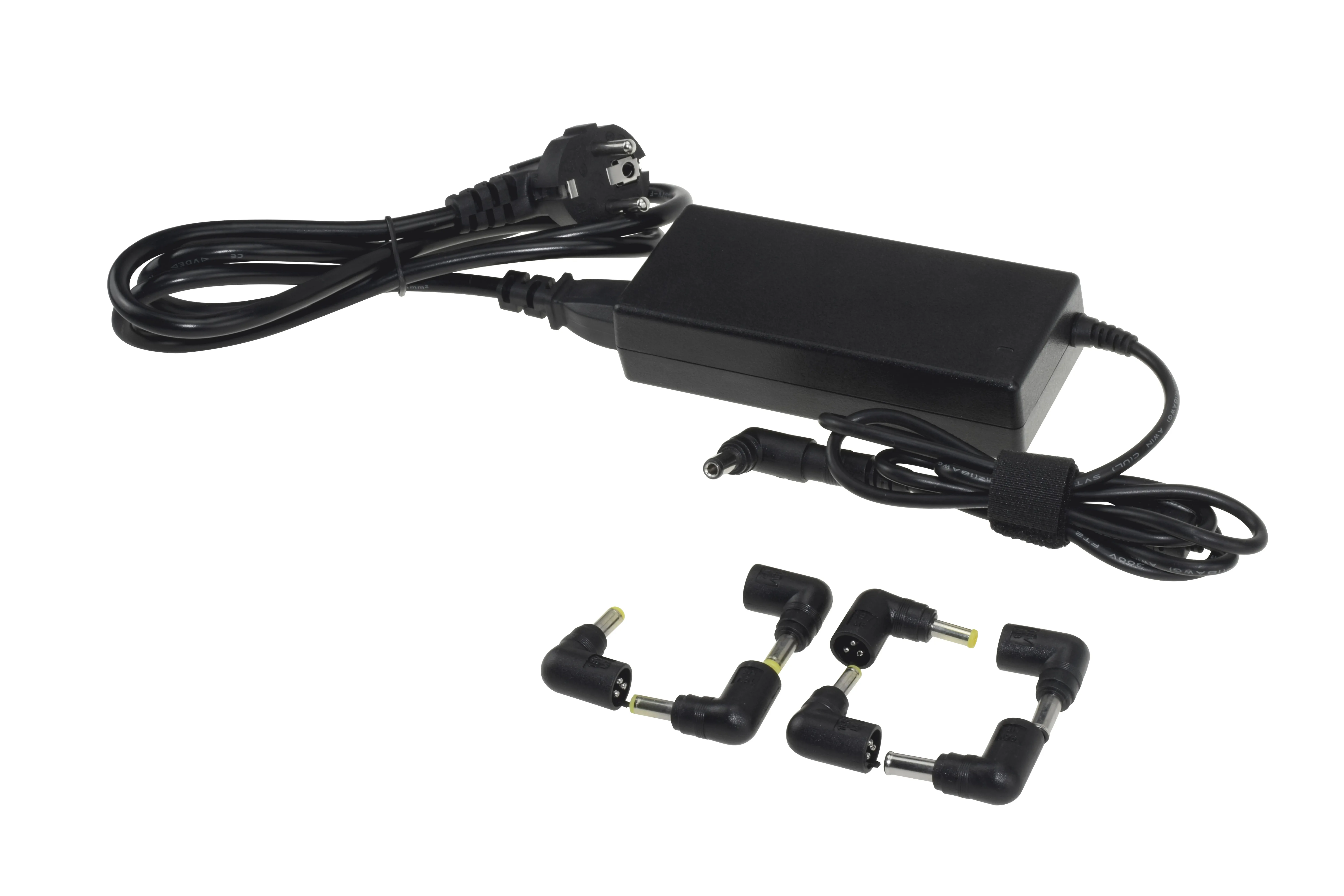

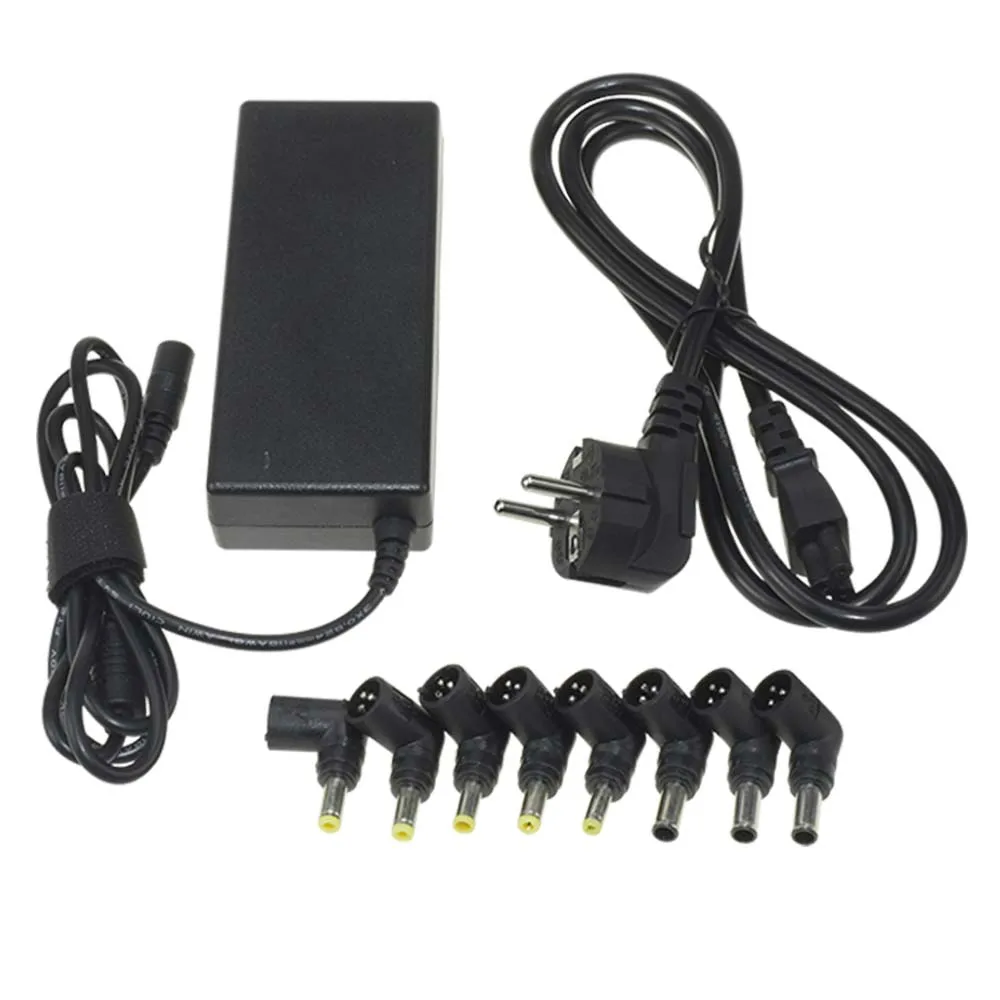

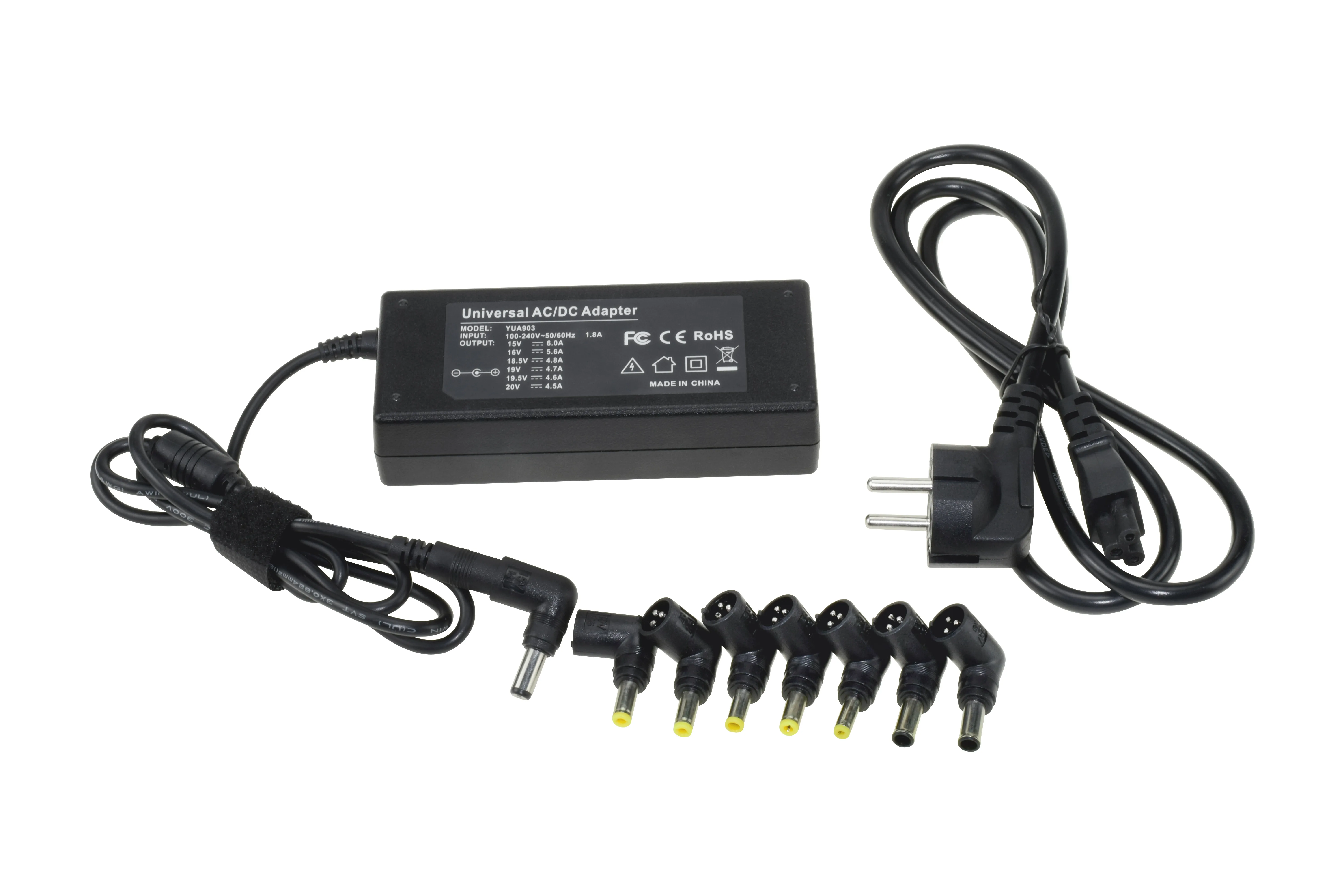

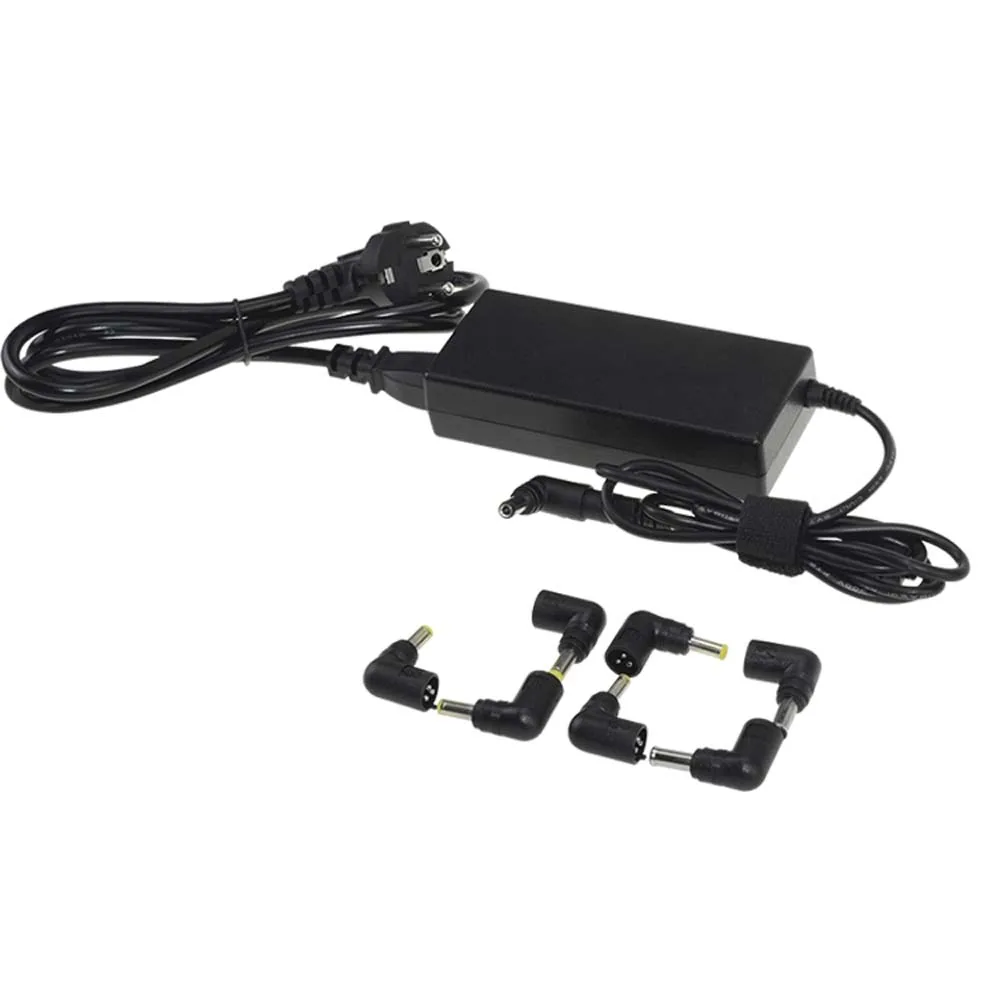

90W universal charger laptop/notebook automatic universal laptop adapter 15V-24V with 8 dc tips
Product Description
Products features:

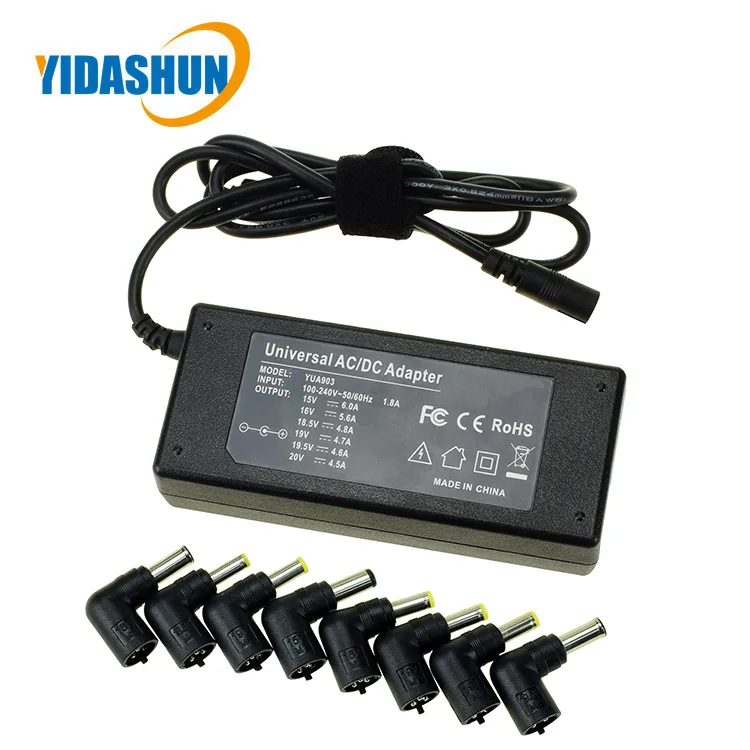

>> This 90W adapter is Automatic universal laptop adapter, Worldwide use input 100-240V, Maximum Output Voltage 19.5V , Power 90W, it is full power when used at 220V or 110V;
>> Automatic Voltage Adjustment: The output voltage would be changed automatically when different DC tips put on it, the aumatic voltage range is dc 15V/16V/18.5V/19V/19.5V ,4.5A~6A
>>8 Standard DC Tips selective for most brand of laptops: 15V/M1 6.3*3.0 mm / 16V/M2 5.5*2.5 mm / 16V/M3 6.5*4.4 mm / 18.5V/M4 4.8*1.7 mm / 19V/M5 5.5*2.5 mm / 19V/ M6 5.0*3.0 mm / 19V/ M7 5.5*2.1 mm / 19.5V/M8 6.5*4.4 m
>> Reliability and Safety: Each laptop charger with OVP/OCP/OLP/SP/OTP etc. multiple security protection/ Premium manufacture mateiral and strict aging test/ Products are CE/RoHS certified.
>>Each tip has a number and voltage printed on it. You can check the size and compatible models before use, it is ideal for use on the road, at home, in the office
1.No-load output voltage test→2.input power load test→3.No-load output ripple test→4.Full load open test→5.Full load output voltage test→6.Full load output ripple test→7.Full load input power test→8.Half load output voltage test→9.Half load output ripple test→10.Over load test→11.Over current protection test →12.Short circuit protection test (above test is under both 110V and 230V.)→13.High voltage test→14. burn-in test→15.Turn on delay time test→16.Rise time test→17.Hold time test→18.Overshoot test

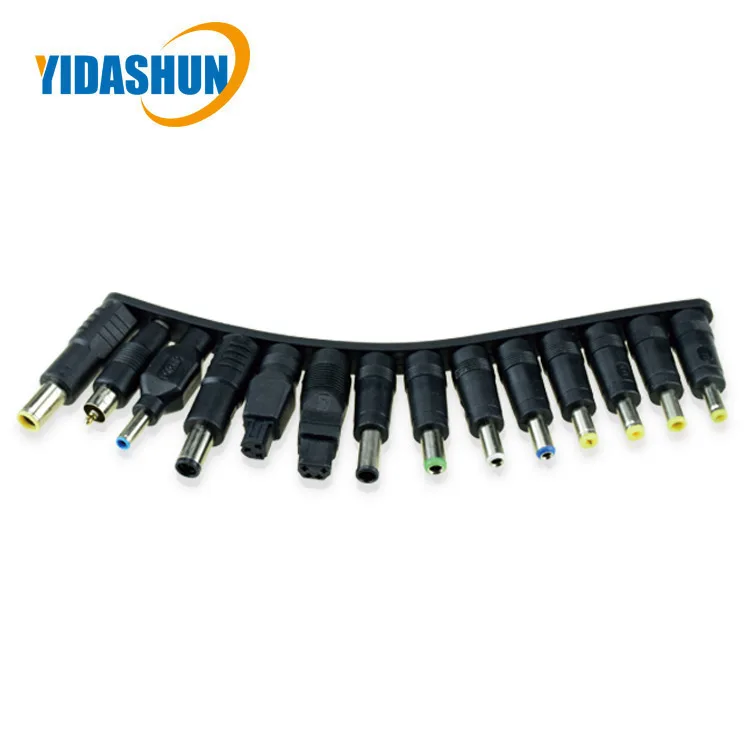

DC tips size and compatible laptop models

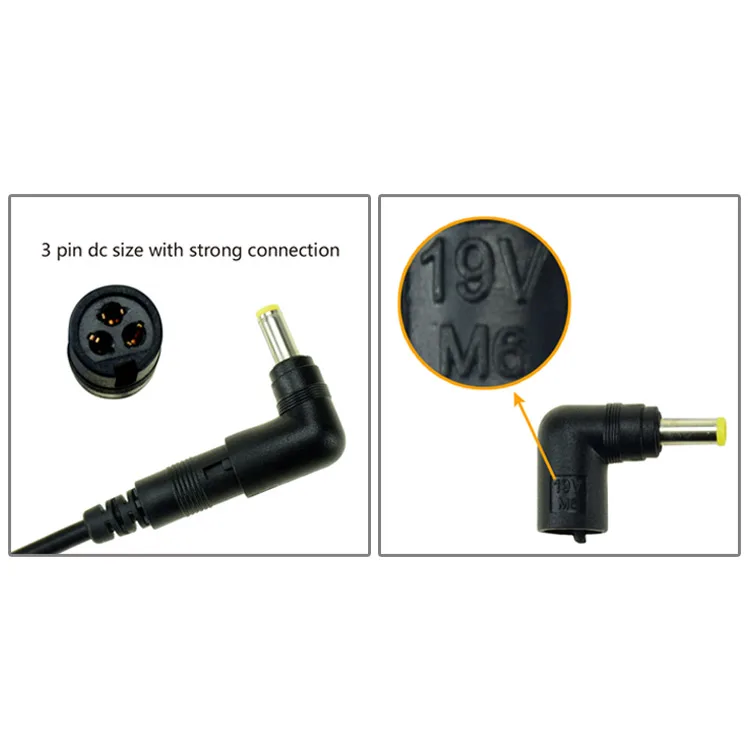

This adapter with 3 pin dc size,8 dc connectors,Each dc connector have a number and voltage print on it, you can check the size and compatible models before use. This dc connectors can be used for most brand of laptops, if you need more dc tips, we also can add more as your requests.
M2:16V, 3.36A 3.5A ,4.5A,5.6A; DC size 5.5*2.5mm for IBM/Lenovo compatible models
M3: 16V, 3.36A, 3.5A, 3.75A ;DC size 6.5*4.4mm for SONY,FUJITSU compatible models M4: 18.5V, 3.5A, 4.9A;DC size: 4.8*1.7mm.For HP compatible models M5:19V, 2.37A, 3.42A, 4.74A;DC size: 5.5*2.5mm. For Toshiba Asus ACER Compatible modes M6:19V, 3.15A,3.16A, 4.74A; DC size: 5.0*3.0mm with pin. For Samsung Compatible models M7:19V 3.42A,4.74A;DC size 5.5*2.1mm, for ACER compatible models M8:19.5V 2A,2.15A,3.9A,4.1A,4.7A; DC size 6.5*4.4mm for SONY Compatible models
Packaging & Shipping
>> Package information:

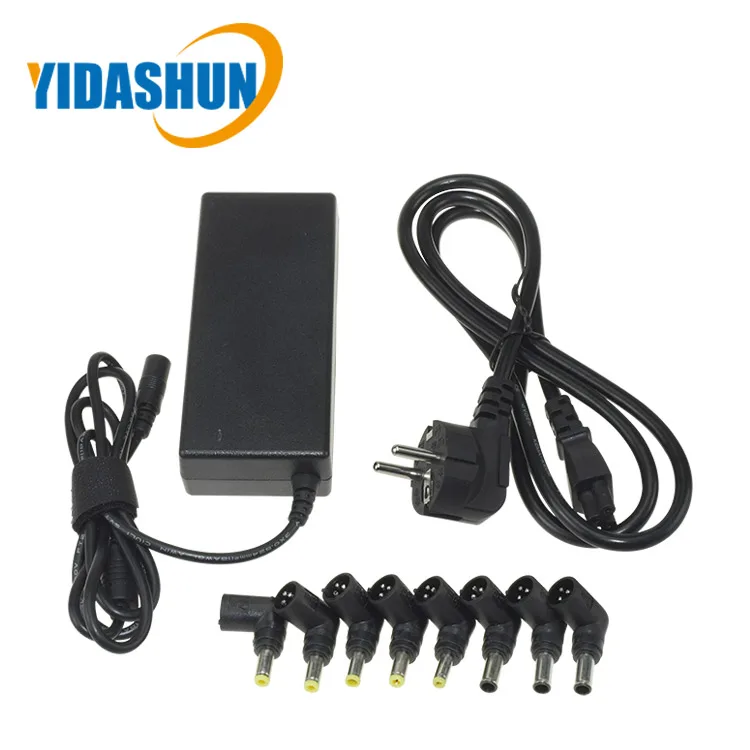

♦ Safe packing: Each adapter+dc tips+ac power cord into blister,then into color box as below pic, each adapter we sell you with AC power cord, 8 dc tips
♦ Adapter Weight: 350G
♦ color box size: 26*16*53 cm
♦color box weight: 80G
♦ PCS/CTN: 20PCS or 40pcs
♦ Carton Size: 42*27*32.5CM or 53*32.5*42CM
♦ Gross Weight: 8900G or 17400G
>> Shipping details:
♦ FedEx/DHL/UPS/TNT for samples, Door-to-Door;
♦ By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
♦ Customers specifying freight forwarders or negotiable shipping methods;
♦ Delivery Time: 1-3 days for samples; 5-15 days for batch goods.
Our Services
1.10 years focus on the AC DC power adapter Research and development, Production;
2.For control the quality ,we have professional test from the raw material to finished products to control the quality seriously;
4.Flexible and fast delivery, bulk orders usually delivery within one weeks, General small batch orders can be arranged delivery within 1-3 days,cause we usually have large quantity of PCB in stock;
5. All our high quality adapters with OCP/OVP/SCP/OTP protection;
6.Certificate:CE/FCC/ROHS
Company Information
Certifications
FAQ
>>What is your warranty for adapters?
We usually offer 1 year warranty
>>What is your MOQ and sample term?
our MOQ is 100pcs, we can offer you free samples, but you pls pay shipping costs.
>> How do you deal with defective rates?
Our defective rates for high quality adapterusually is about 0.3%~0.5% below 1%, we usually will send you replacement part in next order for RMA.
>> Can can accept OEM&ODM?
yes,we can. We can customized the products,labels,package as your demands.
