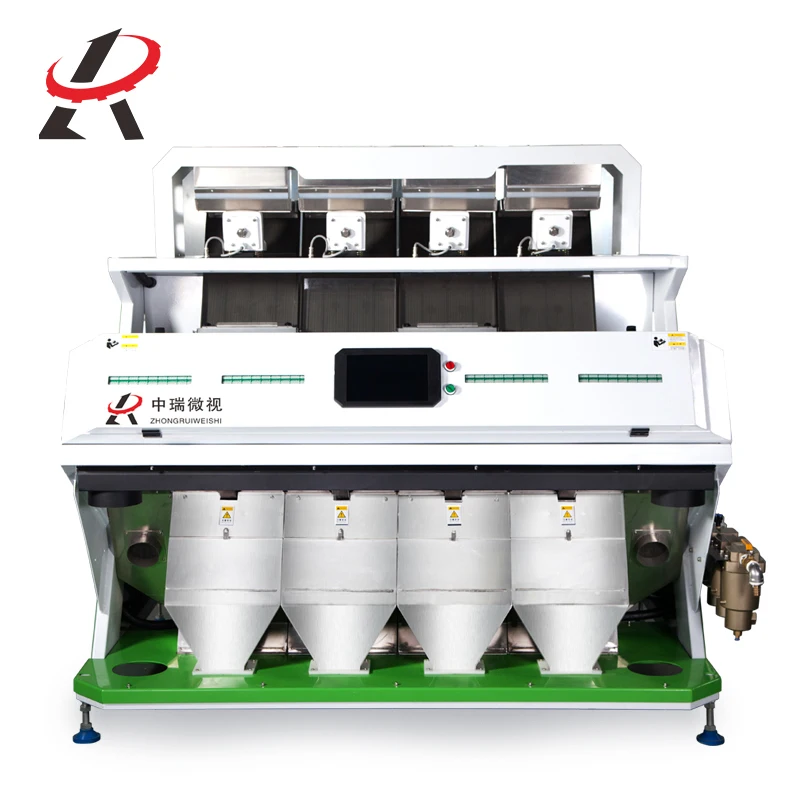

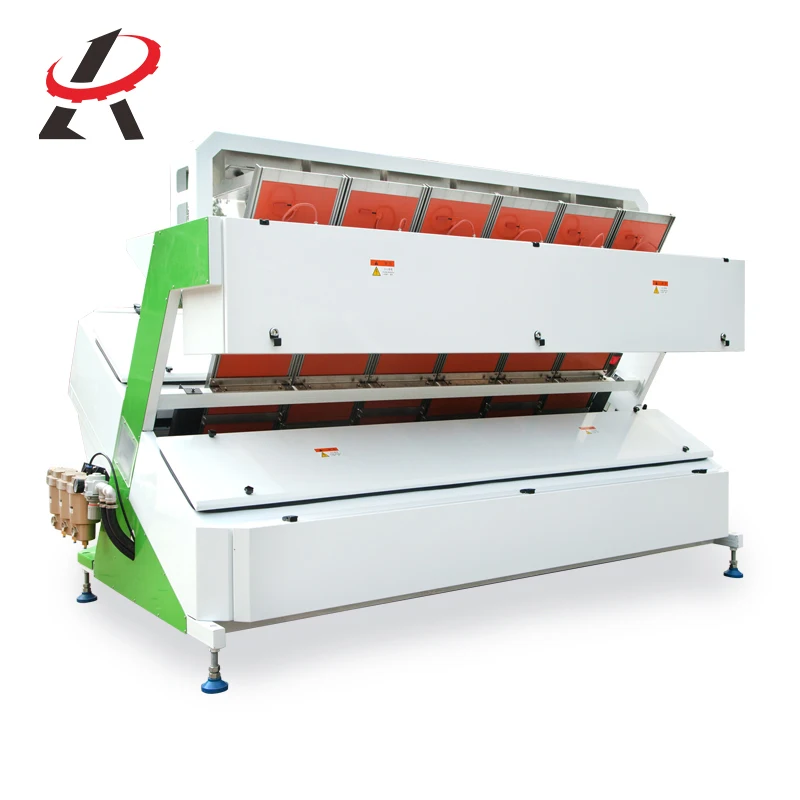

Vision CCD Plastic Material Color Sorter With Ejector

Model

6SXZ-68

6SXZ-136

6SXZ-272

6SXZ-408

6SXZ-612

6SXZ-680

Output(t/h)

0.6-1

1.2-2

2.4-5

4-7

6-10

8-16

Carry over Rate(Bad:Good)

>12.5:1

>12.5:1

>12.5:1

>12.5:1

>12.5:1

>12.5:1

Sorting Accuracy

≥99.99%

≥99.99%

≥99.99%

≥99.99%

≥99.99%

≥99.99%

Voltage(V/Hz)

220V 50HZ

220V 50HZ

220V 50HZ

220V 50HZ

220V 50HZ

220V 50HZ

Power Supply(Kw)

1.0-1.3

1.4-1.8

2.5-2.9

4.8-5.2

6.6-7.2

8.5-10.5

Pressure(Mpa)

0.4-0.6

0.5-0.7

0.6-0.8

0.6-0.8

0.6-0.8

0.6-0.8

Air Consumption(L/min)

<1000

<1800

<3200

<4800

<5600

<6100

Weight

260kg

440kg

820kg

1180kg

1620kg

2200kg

Dimension

950*1510
*1428mm

1290*1510*1770mm

2010*1530*2100mm

2680*1530*2100mm

3710*1530*2100mm

4200*1530*2250mm
