Product Overview
Description
Product Introduction

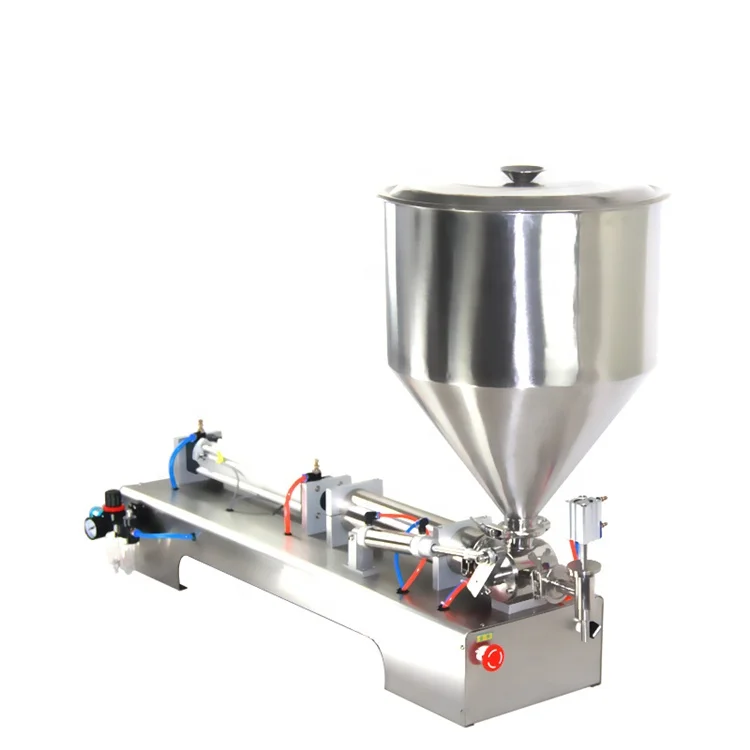

YTK one-head pneumatic liquid filling machine has the characteristics of magnetic switch, stainless steel body, automatic control, wide application range, accurate and quantitative safety and reliability.
This filling machine adopts the corrosion-resistant micro self-priming pump of special materials, and uses the microcomputer to control the working time and intermittent time of the pump, quantitative automatic filling, and equipment for automatically setting the filling time.
This filling machine adopts the corrosion-resistant micro self-priming pump of special materials, and uses the microcomputer to control the working time and intermittent time of the pump, quantitative automatic filling, and equipment for automatically setting the filling time.
Product Application
Alcoholic beverages, carbonated drinks, hair care products, fresh milk, yogurt, oils, oral liquids, fruit drinks, liquid alcohol, cosmetics, syrup, toothpaste, sauces, skin care products, detergents
Features
This series of filling machine has reasonable structure, compact size, reliable performance, accurate quantitative and convenient operation. The power part adopts pneumatic structure, and all adopt pneumatic components such as German FESTO and Taiwan AirTAC and SHAKO. The material contact parts are made of stainless steel and meet the requirements of GMP certification. According to the user's needs, the irrigation volume and filling speed can be adjusted arbitrarily within the range of the model, and the filling accuracy is high. The filling head is made of anti-drip and lifting filling device.
Technical Parameters
Machine model | G1WG-100 | G1WG-300 | G1WG-500 | G1WG-1000 | G1WG-3000 | G1WG-5000 | |||||
Filling range | 5-100ml | 10-300ml | 50-500ml | 100-1000ml | 500-3000ml | 1000-5000ml | |||||
Filling speed | 5-25 bottles/min | ||||||||||
Filling error | ≤±1% | ||||||||||
Voltage | AC 220V 50Hz / 110V 60Hz | ||||||||||
Air pressure | 1.5Hp air compressor ; 0.4-0.9mpa air pressure | ||||||||||
Dimension(cm) | 98*40*39 | 98*40*39 | 98*43*40 | 117*41*38 | 143*40*39 | 120*48*46 | |||||
46*46*49 | 46*46*49 | 46*46*49 | 46*46*49 | 46*46*55 | 46*46*55 | ||||||
Net weight | 35kg | 36kg | 42kg | 43kg | 45kg | 53kg | |||||
Detailed Images

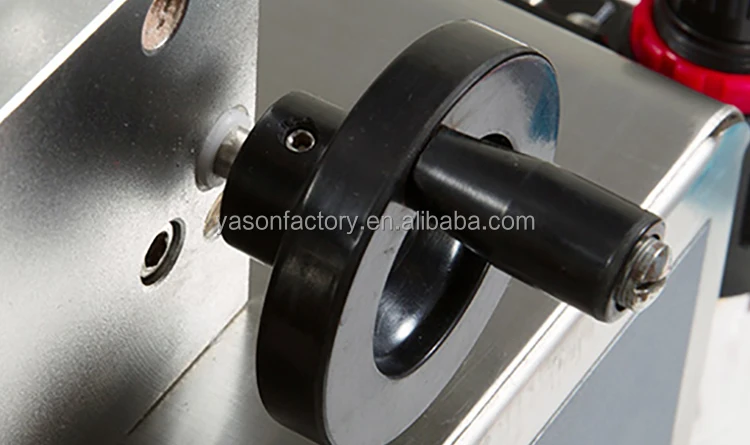

Filling adjustment rocker
A hand crank that adjusts the filling amount allows you to adjust the amount of filling at will, and the operation is very convenient.
Filling adjustment knob
The filling adjustment knob makes the discharge easier to master, the adjustment method is simple, and the difficulty of getting started is lower.

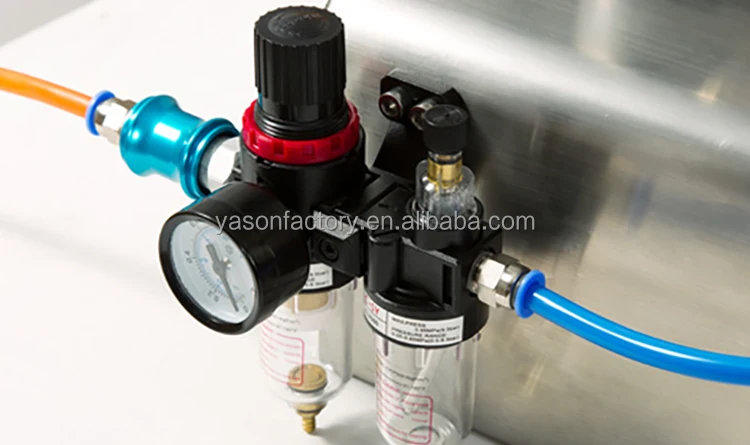

High-end barometer
The detachable air pressure gauge is convenient for cleaning and maintenance, and the machine operation adjustment is simpler.

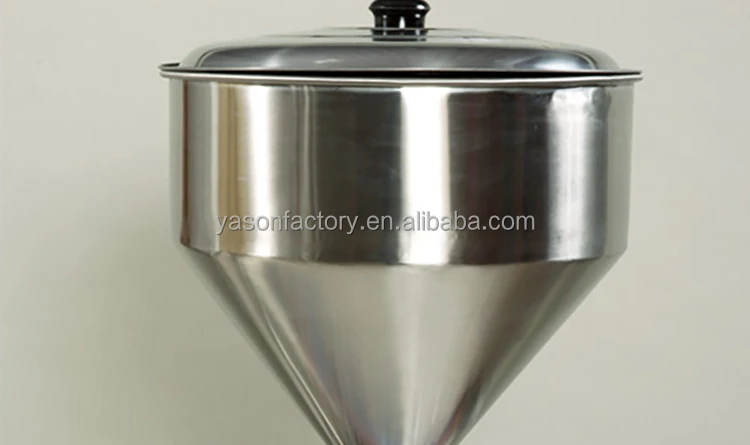

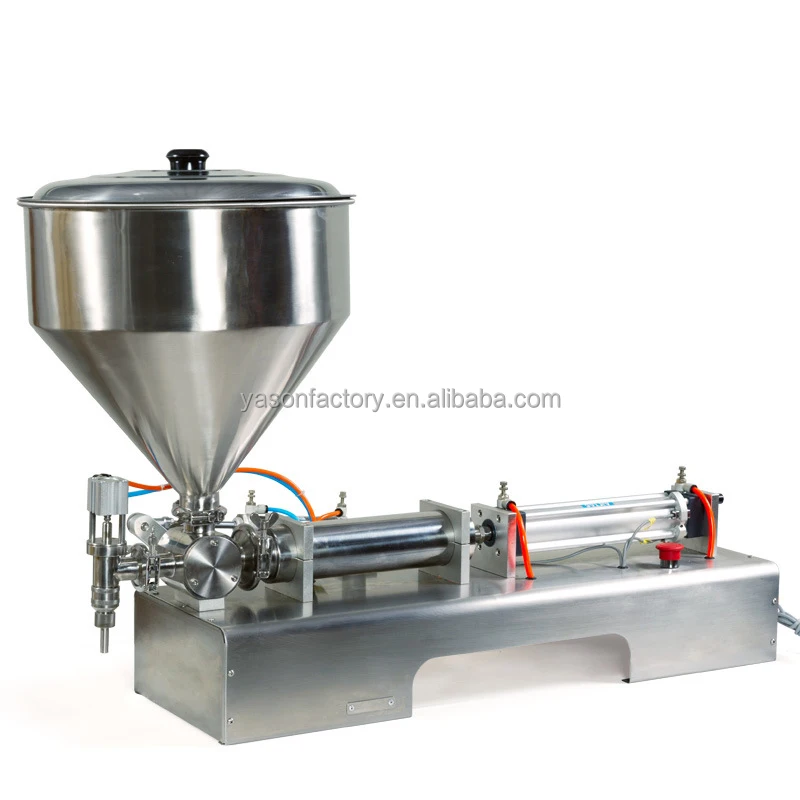

Large capacity hopper
Large-capacity stainless steel hopper, which can work continuously for a long time.

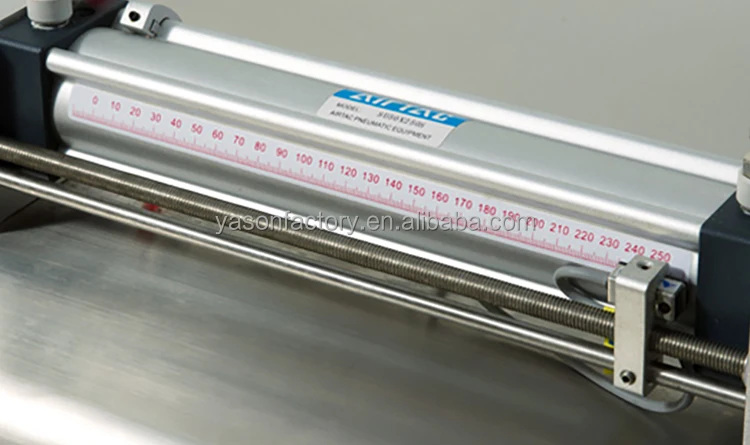

Preferred discharge cylinder
The machine uses high-quality discharge cylinders to make the machine discharge more smoothly and last longer.

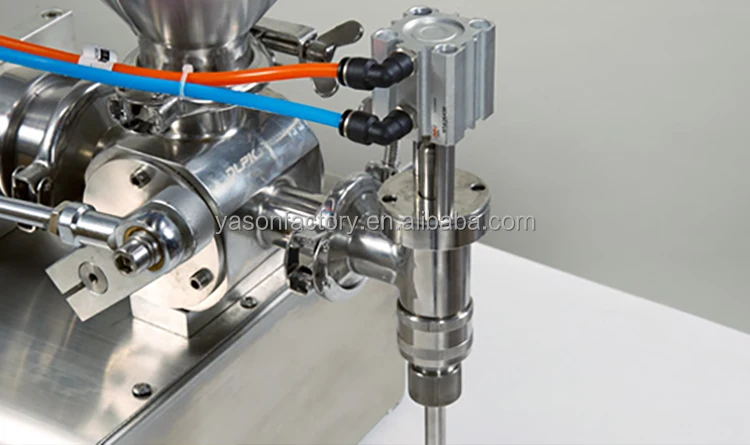

Anti-drip filling nozzle
The filling nozzle is made of stainless steel, which can be accurately filled without clogging and can be disassembled for easy
cleaning and maintenance.
cleaning and maintenance.

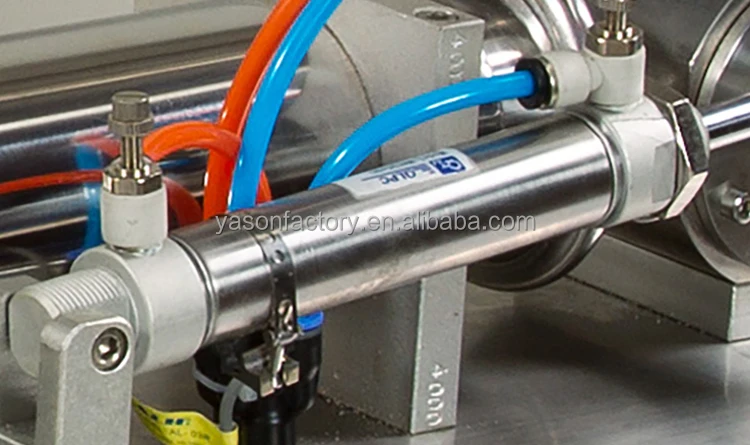

Airtac cylinder
Airtac plus large high-power cylinders are more powerful, more efficient and more durable.

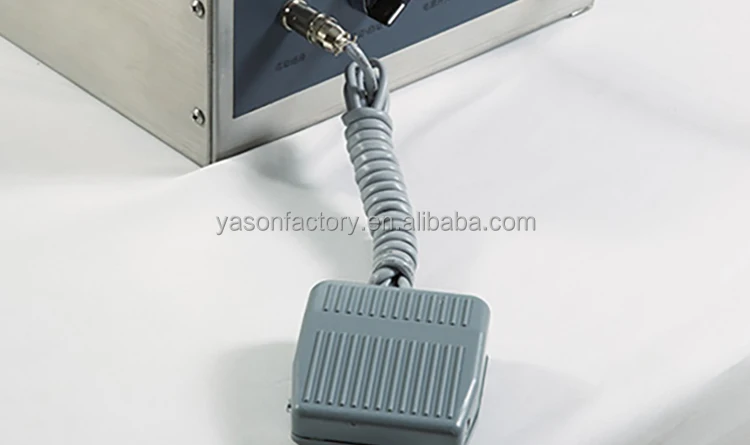

Foot pedal convenient switch
The factory design can be plugged into the foot switch interface, making the operation of the device easier and easier to use.
About Us
FAQ
Q1: Are you factory or trading company?
A: We are factory and manufacturer.
Q2: Can you guarantee your quality?
A: Sure. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
Q3: What should I do if we are not able to operate the machine when we receive it?
A: Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have professional after-sale group to customer 's site to solve any problems.
Q4: How could I get the spares on machines?
A:We will send extra sets of easy broken spares and accessories like O ring etc. Non-artificial damaged spares will be sent freely and shipping free during 1 year's warranty.
Q5: Is there any insurance which I pay for to guarantee I will get the right machine?
A: We are an onsite check supplier from Alibaba. Trade Assurance provides quality protection, on time shipment protection and 100% safe payment protection. Our factory already highest stars of the grade.
Q6.What's the payment terms and trade terms for new customers?
A: Payment terms:30% T/T DEPOSIT PAYMENT IN ADVANCE,BALANCE 70% AGAINST COPY OF B/L.WESTERN UNION,LC ARE ACCEPTABLE.
Q7:What's the Minimum Order Quantity and warranty?
A:MOQ:1 set
Warranty:12 months,some customized products will be 24 months.
A: We are factory and manufacturer.
Q2: Can you guarantee your quality?
A: Sure. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
Q3: What should I do if we are not able to operate the machine when we receive it?
A: Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have professional after-sale group to customer 's site to solve any problems.
Q4: How could I get the spares on machines?
A:We will send extra sets of easy broken spares and accessories like O ring etc. Non-artificial damaged spares will be sent freely and shipping free during 1 year's warranty.
Q5: Is there any insurance which I pay for to guarantee I will get the right machine?
A: We are an onsite check supplier from Alibaba. Trade Assurance provides quality protection, on time shipment protection and 100% safe payment protection. Our factory already highest stars of the grade.
Q6.What's the payment terms and trade terms for new customers?
A: Payment terms:30% T/T DEPOSIT PAYMENT IN ADVANCE,BALANCE 70% AGAINST COPY OF B/L.WESTERN UNION,LC ARE ACCEPTABLE.
Q7:What's the Minimum Order Quantity and warranty?
A:MOQ:1 set
Warranty:12 months,some customized products will be 24 months.
