Yellow Color 20Ft Container Chassis 2 Axles Container Trailer 20 Ft
- Category: >>>
- Supplier: Shenzhen Standard Automobile Co. Ltd.
Share on (60766475646):
Product Overview
Description
SPECIFICATION
Specification | ||
1. Dimension | 7880 x 2480 x 1520 mm | |
2. Tare weight | 4000 kg | |
3. Payload | 30 tons | |
4. Twist lock | 4 units | |
5. Function | Load 1x20' container | |
Standard Configuration | ||
1. Axle | 13 ton Fuwa brand, 150x150, 2/3 units | |
2. Suspension | Mechanical suspension | |
3. King pin | 2", bolt on type | |
4. Landing gear | 28 ton, two speeds | |
5. Tire | 11R22.5, 8/12 units | |
6. Rim | 8.25-22.5, 8/12 units | |
7. Braking system | Gladhand valve, Wabco relay valve, 30/30 double brake chambers on rear axle, 30 single chambers on other axles | |
8. Electrical system | Dual circuit, 7-way split pin receptacle plug, LED light | |
9. ABS | None | |
10. Painting | Blasting sand before painting, one coat primer and two coat finish painting, colour supplied by customer | |
11. Mudguard | Plastic or steel | |
12. Others | 1 tool box, 1 wheel carrier, excluding spare wheel | |
Optional Configurations | ||
1. Air suspension | Firestone, Goodyear or Chinese brand | |
2. Lift axle system | Lift axle system | |
3. ABS system | Wabco or Chinese brand | |
4. Axle | BPW 12 ton | |

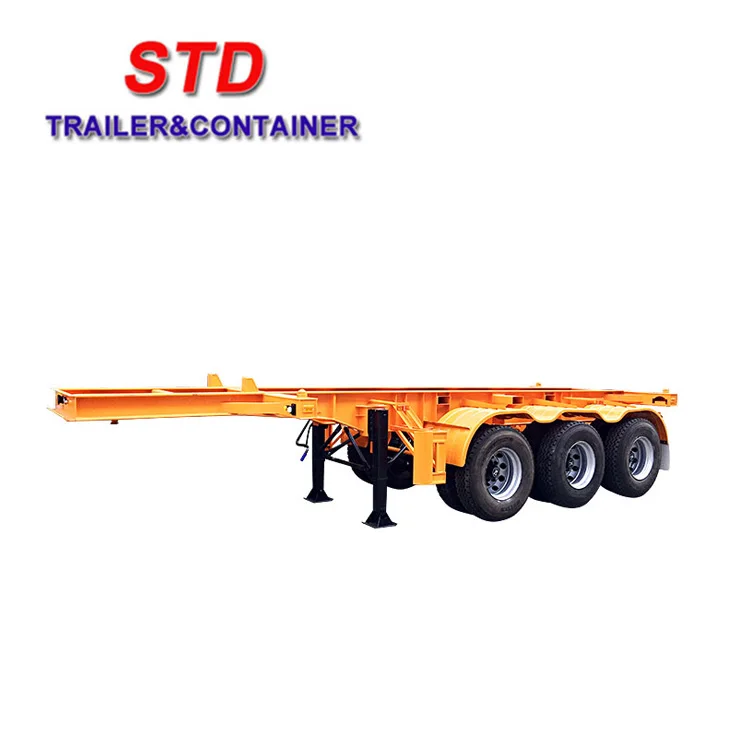

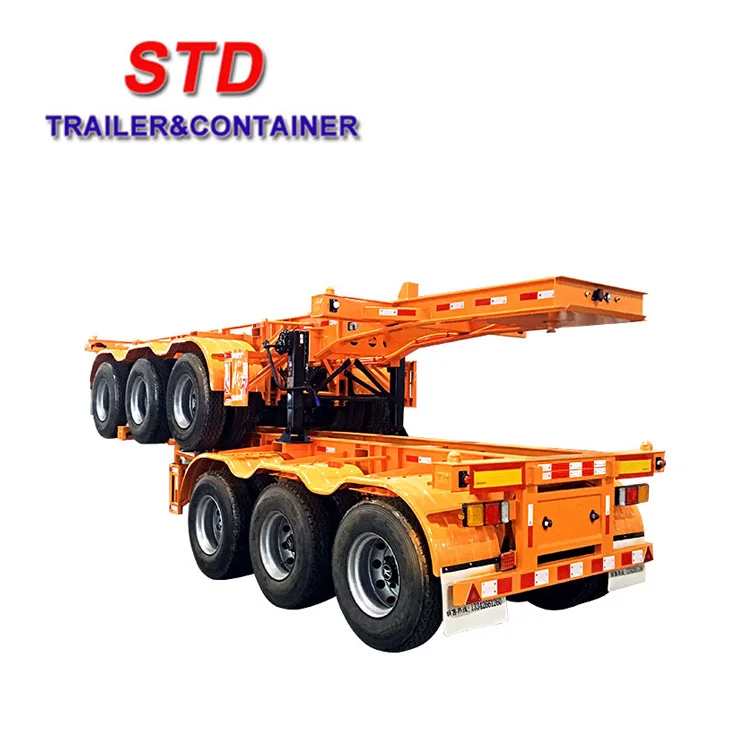

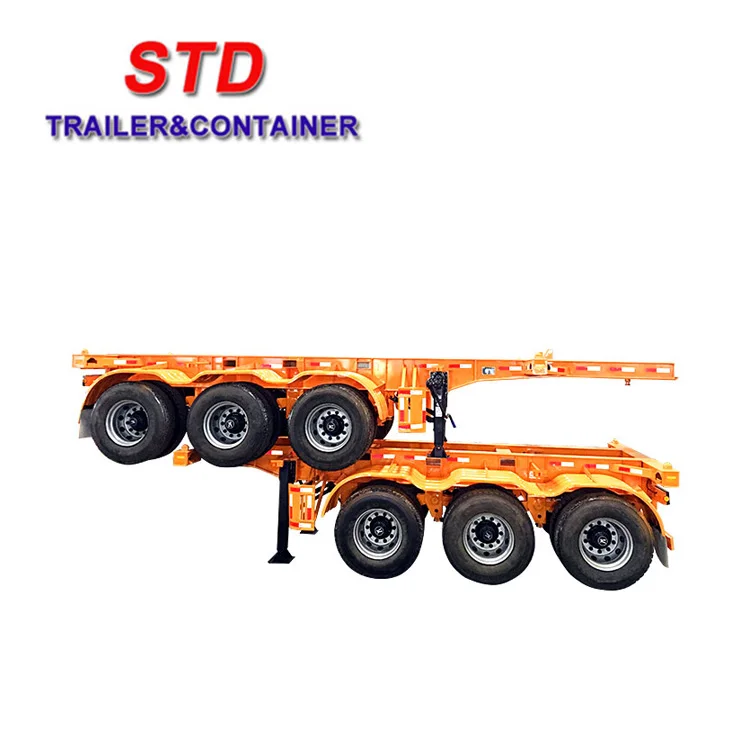

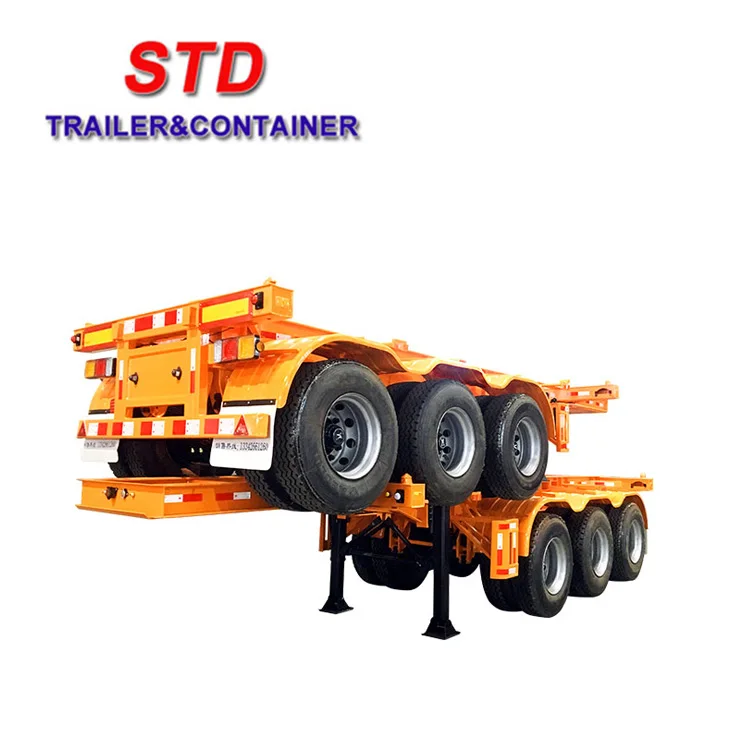

PRODUCT PICTURE
RECOMMENDATIONS
COMPANY PROFILE
PACKAGING & SHIPPING

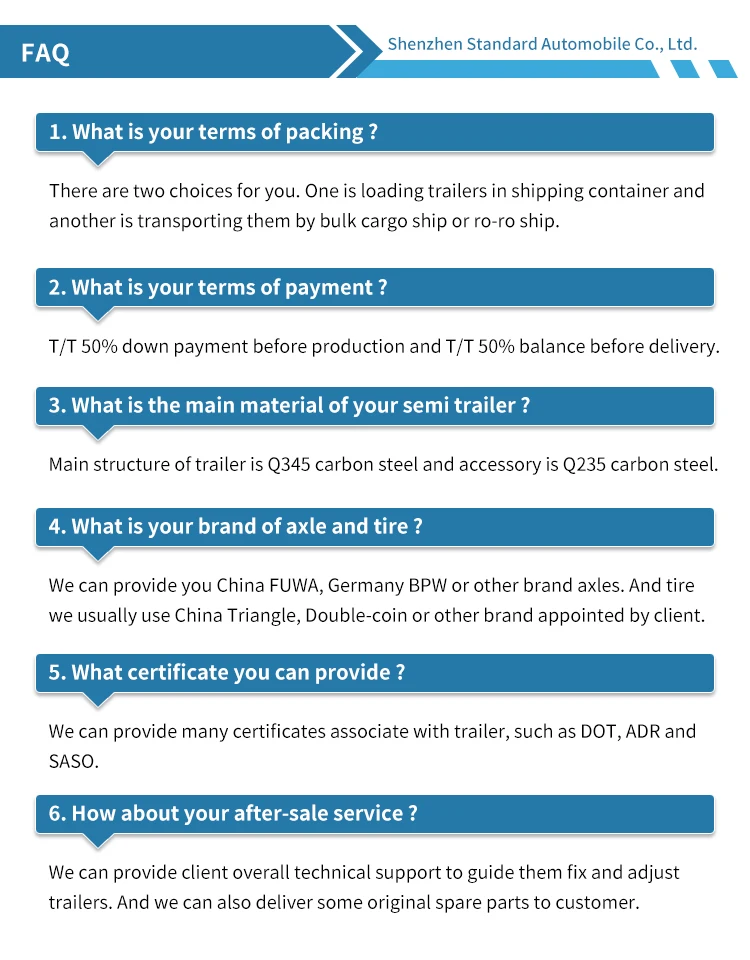

FAQ
