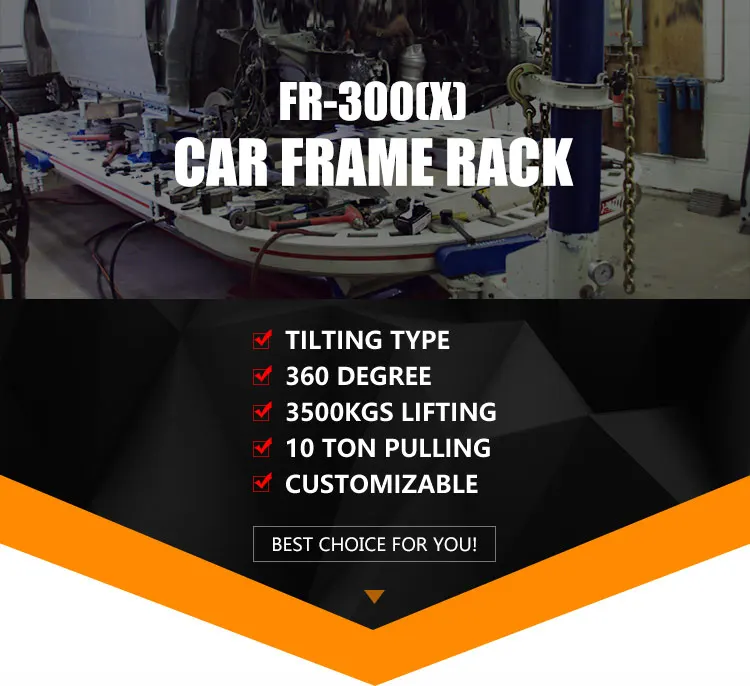

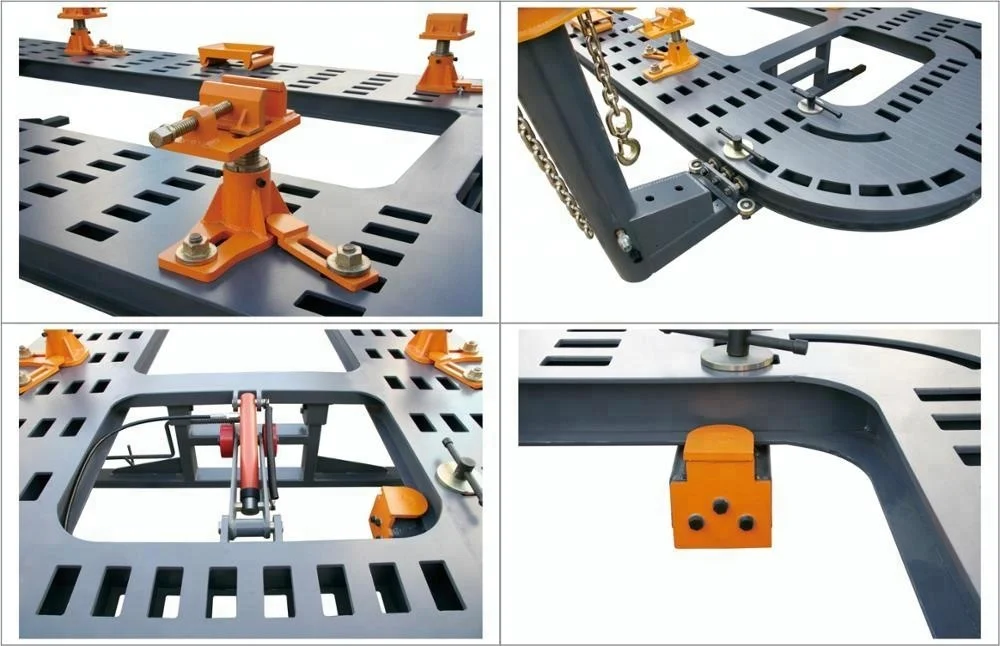

FR-300 LANDER Factory Direct Car Body Collision Bench Auto Frame Machine

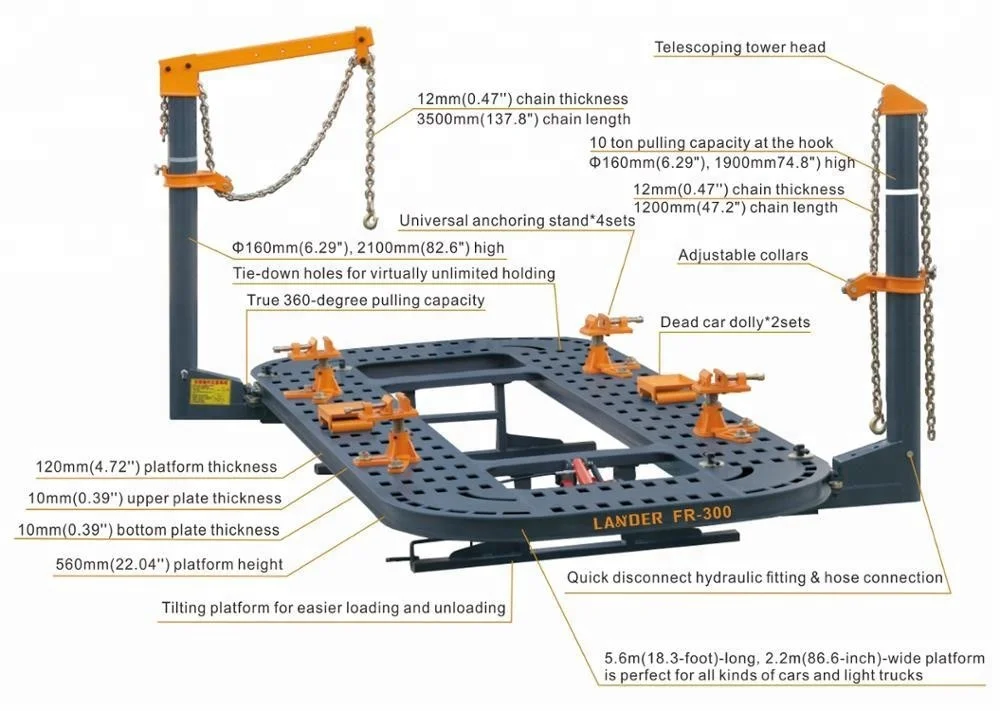

| SPECIFICATIONS OF FR-300(X) FRAME RACK | ||
| FR-300 | FR-300X | |
| Platform Length | 5200mm(17.06feet) | 5600mm(18.3feet) |
| Platform Width | 2100mm(82.67inch) | 2200mm(86.6inch) |
| Platform Height | 560mm(22.04inch) | 560mm(22.04inch) |
| Diameter of the Post | 160mm(6.3inch) | 160mm(6.3inch) |
| Height of the Post | 1900mm(74.8inch), 2100mm(82.67inch) | 1900mm(74.8inch), 2100mm(82.67inch) |
| Hydraulic Pressure | 70Mpa(10000PSI) | 70Mpa(10000PSI) |
| Post Max. Tension | 100KN(10Ton) | 100KN(10Ton) |
| Post Working Range | 360° | 360° |
| Lifting Capacity | 3500KG(7700LBS) | 3500KG(7700LBS) |

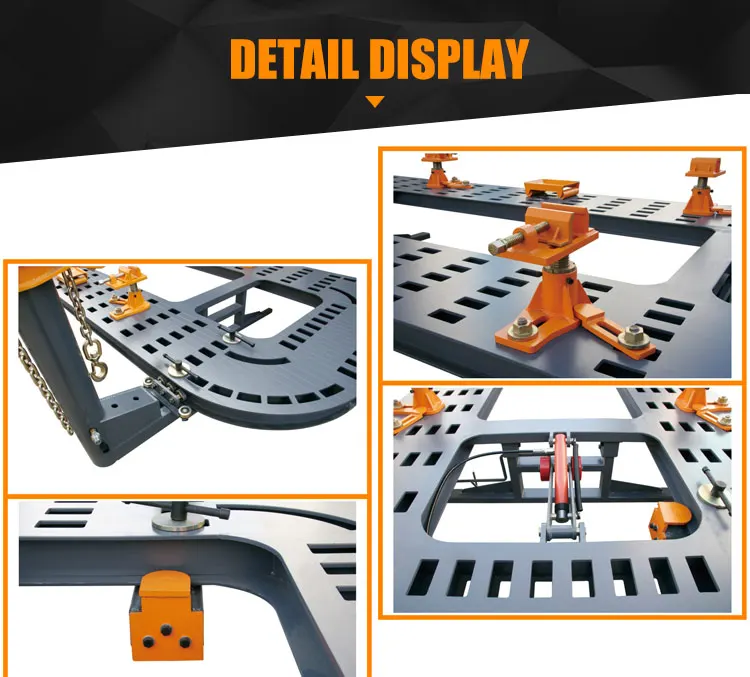

1. Designed to accommodate Full-frame or Uni-body type vehicles
2. Hydraulic Tilt Deck operation with 3500kgs(7700lbs.) lifting capacity
3. Universal anchoring system with adjustable heights
4. Clear floor, true 360 degree pulling capacity
5. Durable powder coat surface finish
6. Two towers with 10-ton hydraulics
7. Unique drive-on ramps
8. Two Air Hydrualic foot operated pumps
9. Complete tool board
10. 3 year structural warranty, 1 year hydraulic system warranty









Lander Auto Equipment Warranty
Lander warrants to the original purchaser that it will replace without charge, any part found under normal use, to be defective in materials or workmanship, for a period of one (1) year from date of purchase. Warranty covers parts only; purchaser is responsible for any and all labor requirements.
Lander will cover warranty parts replacement shipping charges for the first 30 days after purchase. Purchaser is responsible for shipping costs after this time.
Exclusions
This warranty will not apply to any machine:
Which has not been operated or maintained according to specifications
Which has been abused, misused altered or improperly maintained
Which has been improperly assembled and/or installed
Requiring parts needed for normal maintenance, such as rubber pads, soap-buckets, brushes, plastic inserts, etc.
Lander Equipment reserves the right to make improvements and/or design changes to its equipment without any obligation to previously sold, assembled or fabricated equipment.
