CE certification power supply smps 24V 6.3A led driver 150W



Product Description


 Features:


1,With wide application,they had been used in LED lighting,ACS,medical and beauty device,electrical power system,communication system,military industry and others.


2,Some models achieved GS,CE,CCC,ETL,ISO,ROHS certification now.


3,There are more than 1,000 kinds of models.























































































































































































1,Universal AC input;



2,Built in active PF;



3,High efficiency;



4,Protections: Short circuit / Overload / Over voltage .






 parameter           Item No.



K26H-UP150S5 V1



K26H-UP150S12 V1



K26H-UP150S24 V1



K26H-UP150S36 V1



K26H-UP150S48 V1









OUTPUT
























DC Output Voltage


+5Vdc+12Vdc+24Vdc +36Vdc +48Vdc

Output Rated Current



20A






12.5A






6.3A




4.2A




3.2A



Output Current Range



0-20A



0-12.5A



0-6.3A




0-4.2A




0-3.2A



Rated power



100W



150W



151.2W



 151.2W







153.6W



Ripple noise



100mVp-p



200mVp-p



240mVp-p




360mVp-p




480mVp-p



Output adjustable range



±10%(5V:-5%~+10%)



Output Accuuracy



±1%



Line Regulation



±0.5%



Load Regulation



±0.5%



Set up,Rise,Hold up time



500ms,50ms,20ms






INPUT
























Input Voltage range



90-264V AC



AC current



0.8A @ 220V AC



Input frequency



47-63 Hz



Efficiency



80% @230Vac



85% @230Vac



87% @230Vac


 87% @230Vac 88% @230Vac
Inrush current

COLD START 20A/115V,40A/230V


Leakage Current

<1mA@240V AC


Power Factor

>0.99@110V;>0.95@220V



Over Temp.protection


Over load protection

110~200%,TYPE:HICCUP RESET:AUTO RECOVER


Output over-voltage

6-7V



15-18V



28-33V




42-46V




55-60V


Over temperature----

ENVIRONMENT









Working Temp.,Humidity



-20~50℃,10~90% RH, non-condensing



Storage Temp.,Humidity




-20~85℃,10~95% RH



Temp.,Drift



±0.03%/℃(0~50℃)



Vibration



10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES






SAFETY&EMC









Safety standards



EN60950-1



Pressure



I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:500VAC



Insulation resistance




I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms



EMC standards



EN55022 CLASS A, EN61000-3-2






OTHER









Demension



115*60*35mm



Weight



0.5Kg










Note:         1,All the parameters in the 230VAC input, rated load, temperature 25 ℃, humidity 70% under the conditions of determination;
2, Accuracy: including setting error, line adjustment rate, load regulation rate;
3,Ripple test: connect the power supply and load with 30cm long wire and 0.1u and 47u capacitance at the load end, measured on the load side with 20MHz oscilloscope;
4,The power supply is considered a compoent which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
5,Derating may be needed under low input voltages. Please check the derating curve for more details.

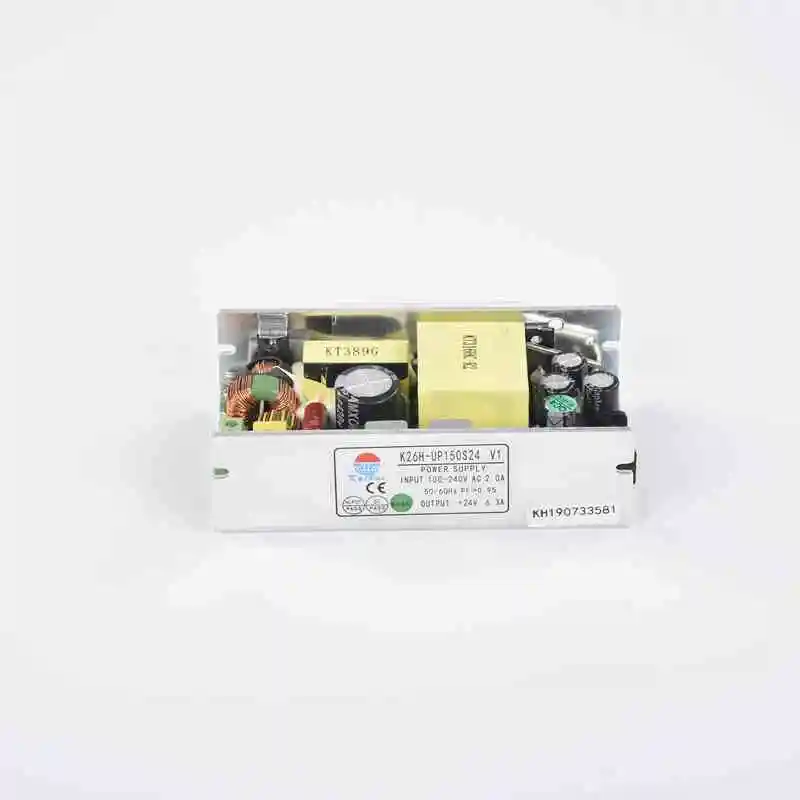

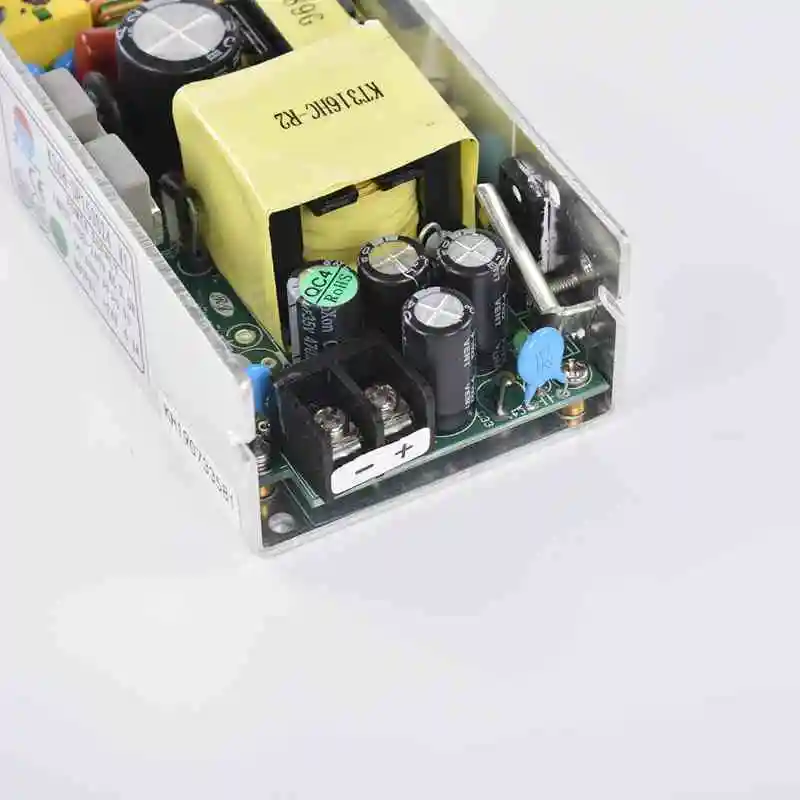

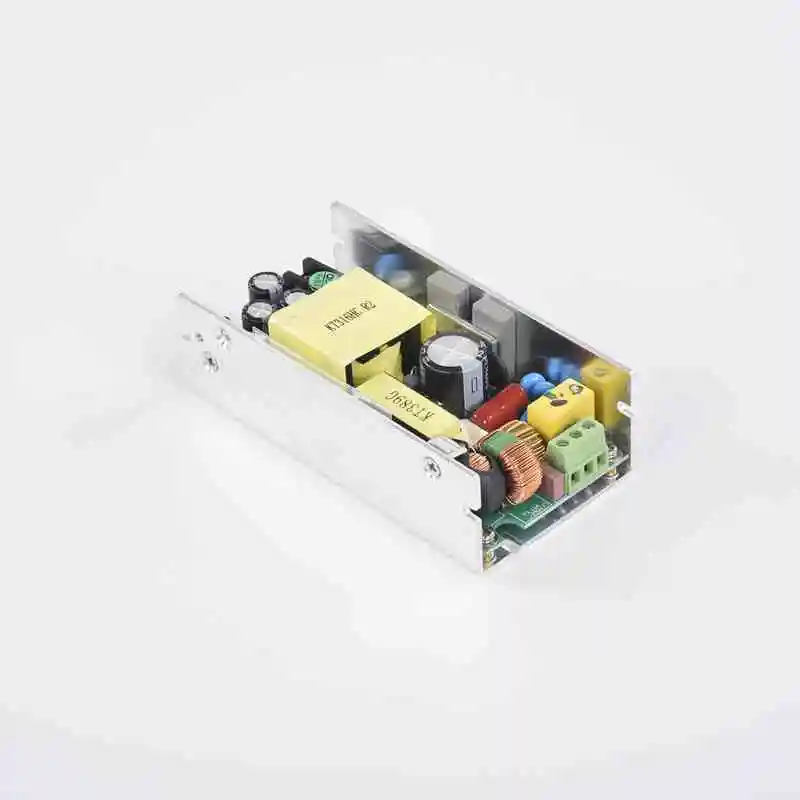

K26H-UP150S24 V1 (2)_K26H-UP150S24 V1 (7)_-K26H-UP150S24 V1 (4)_-

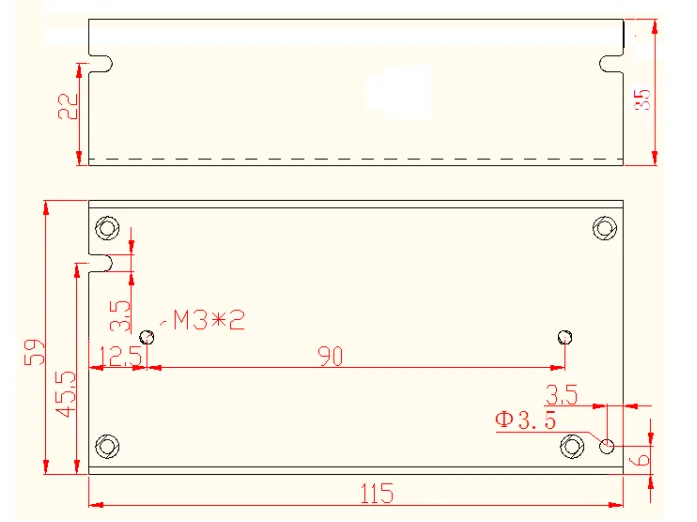

Demension


 Unit:mm















Related Products


_08


 _06

























Company Information


_10


_11





FAQ





Q2: Do you accept OEM/ODM for the switching power supply  ?


A2: Yes. we do.





Q3:How about the quality?


A3:We have the better professional and experienced engineers team and strict QA and QC system.Repair rate under 0.1%~0.2%





Q4:What is PFC?
A4:PFC stands for Power Factor Correction. The purpose of PFC is to improve the ratio of apparent power and real power. The power factor is only 0.5~0.7 in non-PFC models. In PFC models, the power factor can reach above 0.9. The calculation formulas are as below:
Apparent Power=Input Voltage x Input Current (VA)
Real Power= Input Voltage x Input Current x Power Factor (W)





Q1. Can I have a sample order for power supply?
A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
