China Factory cheap residential wheelchair stair lift small elevator for 2 person with CE
- Category: >>>
- Supplier: Jinan Lift Lifting Machinery Co. Ltd.
Share on (60766587674):
Product Overview
Description
Product Description

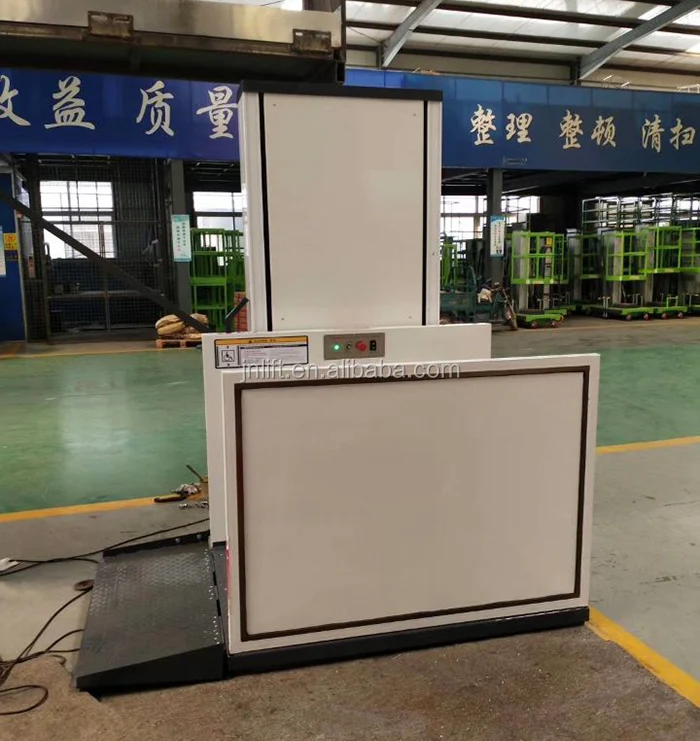

China Factory Selling cheap residential wheelchair stair lift small elevator for 2 person
➤The small elevator for 2 person adopts vertical elevating system. This durable and easy-to-use vertical lift is suitable for indoor or outdoor applications requiring vertical transportation.
➤The lift home use can be directly installed into the ground without architectural supporting pits and easy to operate.
➤Its hydraulic or screw system offers passengers smooth and comfortable transportation and different safety devices remove every hiding risk.
➤Emergency descending system: when there is no power or malfunctions, manually descend the lift.
➤It’s suitable for large-sized newly-built residential estates and those areas where there is compact land resource.
Specifications | ||||||
Product Name | Model | Lifting capacity | Material | |||
Outdoor wheelchair lift | SJC | 250KG (customizable) | 304 stainless steel or painted steel | |||
Platform size | 1300x1000mm | |||||
Overall size | 1400x1370x4200mm (H) | |||||
Max. platform height | 3500mm ( customizable as per your actual needs) | |||||
Configuration | open through or front and side entrances | |||||
Lifting speed | 70mm/s | |||||
Power Output | 1.5kw or 2.2kw | |||||
Power Input | 220V/50HZ/25A (or customized as per local voltage) | |||||
Drive System | hydraulic | |||||
Control Mode | inching switch or automatic (optional) | |||||
Drive Control | self-resetting system | |||||
Guardrail & drive cabinet (framework) | 304 stainless steel or painted steel (optional) | |||||
bWorking Condition | both indoors and outdoors | |||||
Working temperature | -10°~60°C | |||||
Installation | Non-pit installation, directly fixed to concrete floor (the concrete floor below the platform shall not be lower than the ground) | |||||
Detailed Images
Safety Devices | ||
Safety Interlock | Lock the platform when it is out of control | |
Safety Sensor | The operation must be stopped immediately the safety edge meets obstacles during operation. | |
Emergency lowering | The platform can be lowered manually | |
Auto-flap | Turn up after lifting | |
Control panel
Multi-function button box: with"Power. Lock. Up. Down. Emergeny Stop" buttons
Anti-skid auto flap
Auto flap safety working range: max 75° to prevent the wheelchair from moving outside
Remote control
Optional as per your actual needs
Handrail on guardrail
Keep people's safety
Conlumn switch
It is installed on every floor for convenience of control
Certifications
Our Service
JINAN LIFT LIFTING MACHINERY CO.,LTD
is the professional manufacturer of hydraulic lifts for 7 years. Our factory covers 78500 square meters and has a series of modern production equipments, like automatic cutting equipment, automatic equipment, automatic abrasive blasting production rust removal line. spray paint line, automatic welding robot and so on.
Welcome to visit us, sincerely.
Pre-Sales Service
* Technical supports and suggestions before you order a machine according to your work place.
* All the machines will be full tested before shipments
* View our Factory.
After-Sales Service
* Operation manual and training how to use the machine.
* Engineers available to service machinery overseas.
* 12 months warranty period and we will provide the consumable parts at cost price after the warranty period
* 24-hour technical support by emails, calling or videos
Packing & Delivery
Packaging | ||
Size | as per special model | |
Weight | as per special model | |
Packaging Details | The normal package is plywood case.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
