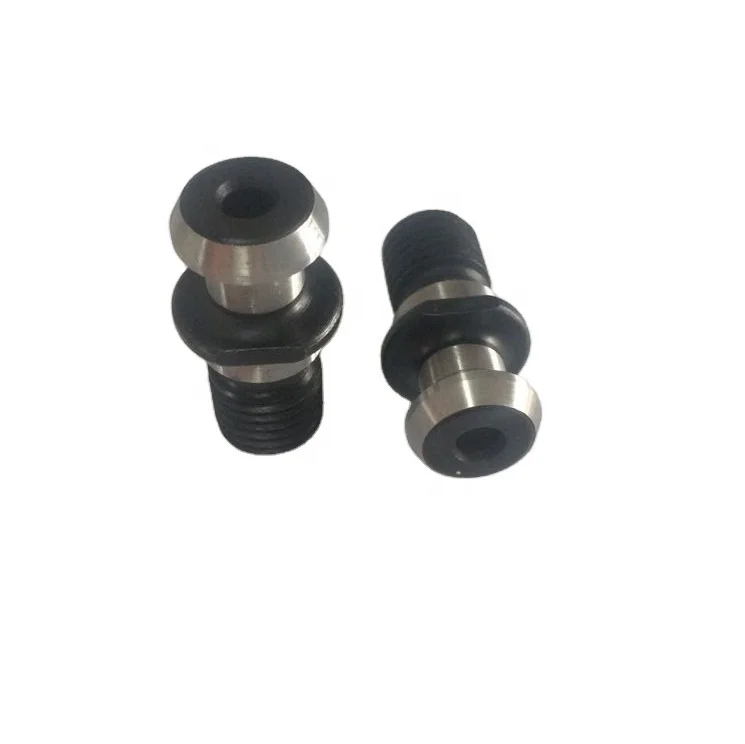

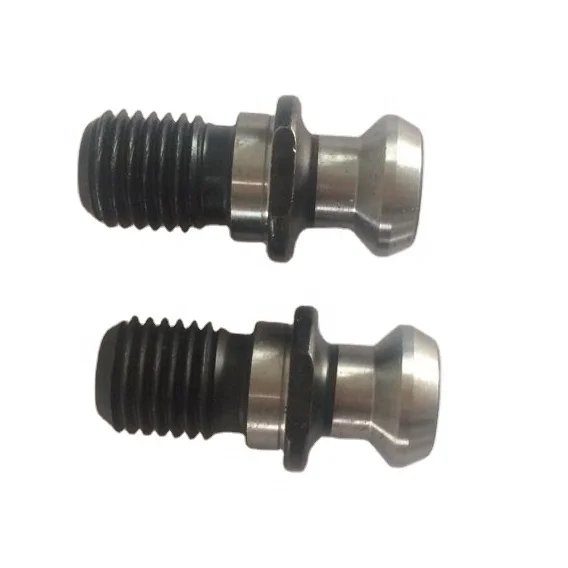

Mazak and Mitsui serial pull stud

Product Overview

Description

Mazak and Mitsui serial pull stud:

1.material:high quality alloy steel
2.hardness:HRC44-48 or HRC48-52 as per different material:

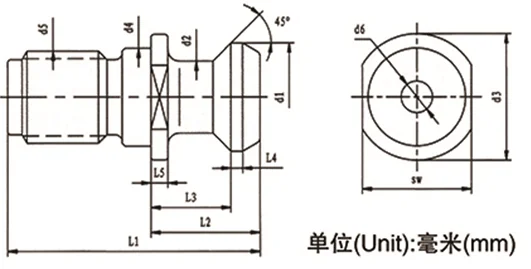

Model no.	d1	d2	d3	d4	d5	d6	L1	L2	L3	L4	L5	SW	Weight(kg)
MAZAK-BT40	18.80	12.45	22	17	M16	6	44.1	19.1	14.02	2	3	19	0.05
MAZAK-BT50	29.00	20.83	37	25	M24	10	65.2	25.2	17.7	2.5	5	30	0.18
MAZAK-CAT40	18.80	12.45	22	17	M16	7	41.1	16.1	11	2	3	19	0.05
MITSUI-BT40	15	10	23	17	M16	-	51	25	18	3	6	19	0.06
MITSUI-BT50	24	18	36	25	M24	-	57	31	23	5	10	30	0.19
