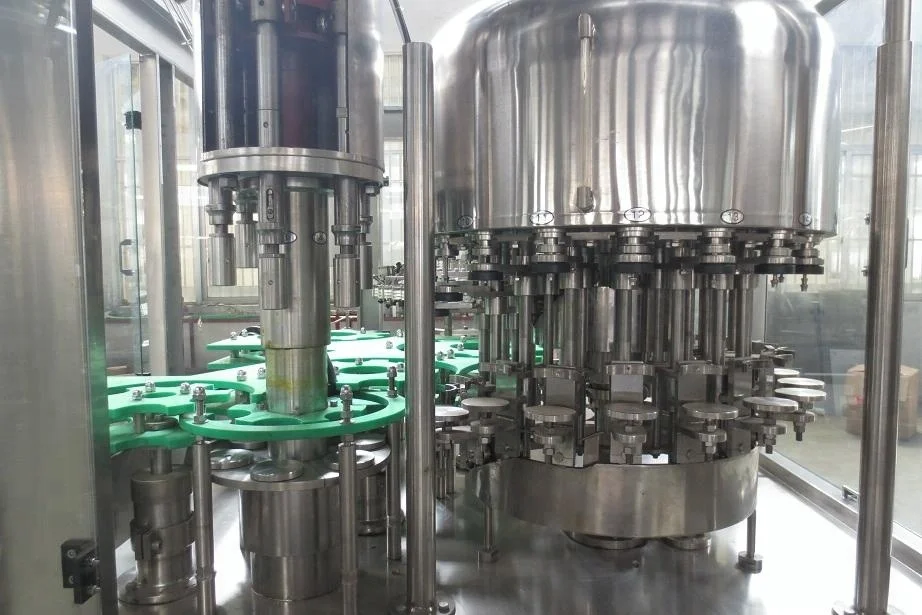

Three in one monoblock automatic glass bottle brandy wine filling and sealing machine
- Category: >>>
- Supplier: Zhangjiagang Twelve Wei Machinery Co. Ltd.
Share on (60766675721):
Product Overview
Description

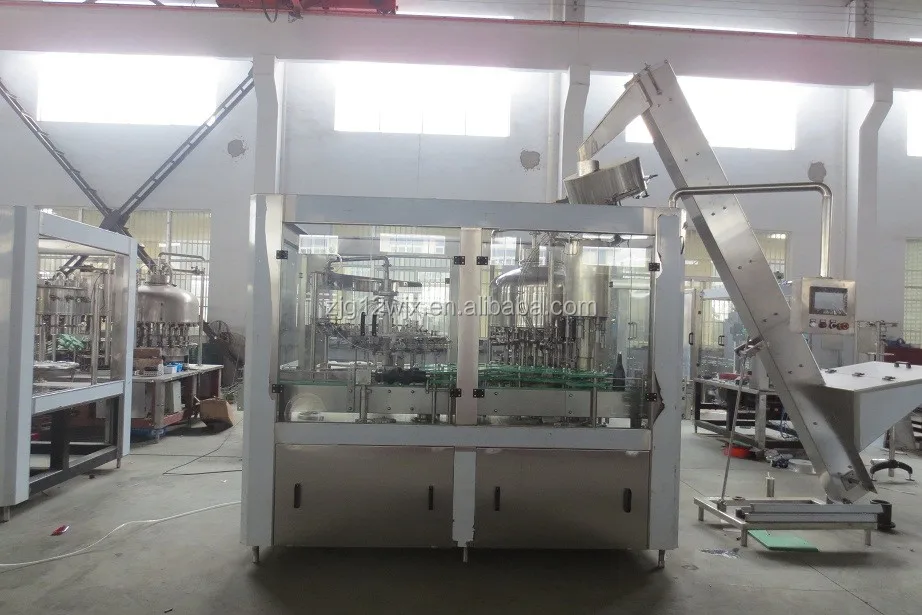

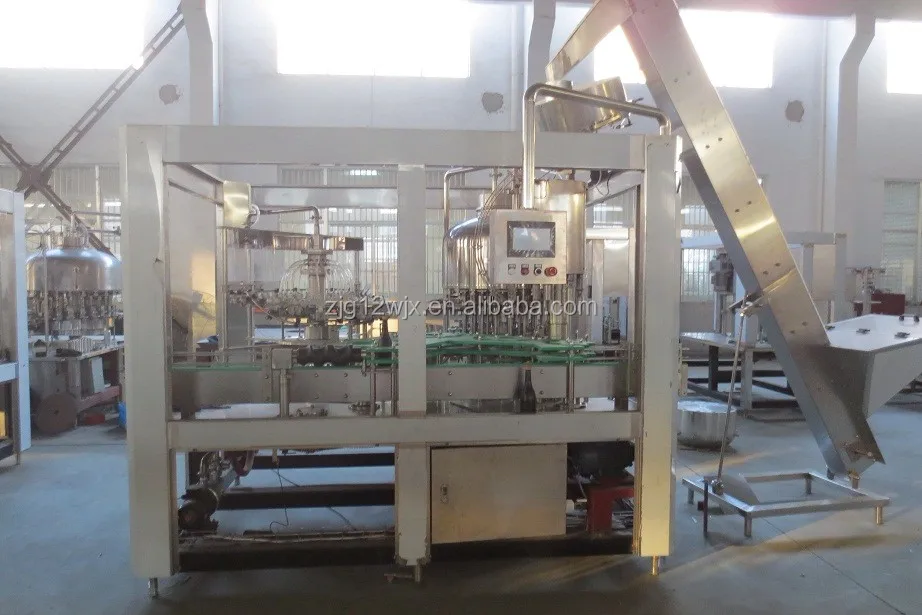

Glass bottle brandy wine filling and sealing machine
You can check machine'Video from the link: https://www.youtube.com/watch?v=Yi_wpXmhozs

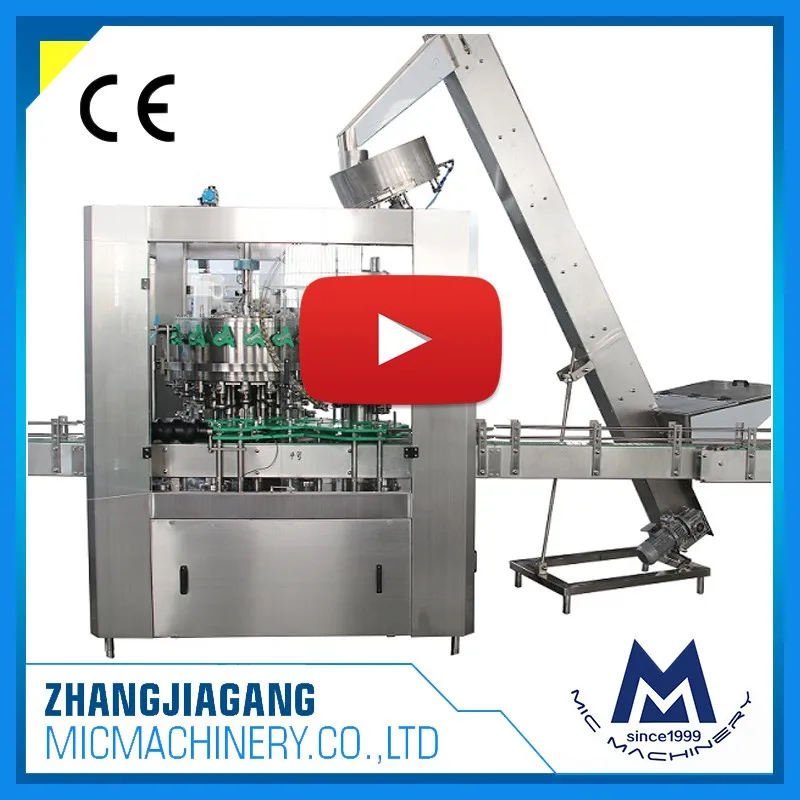

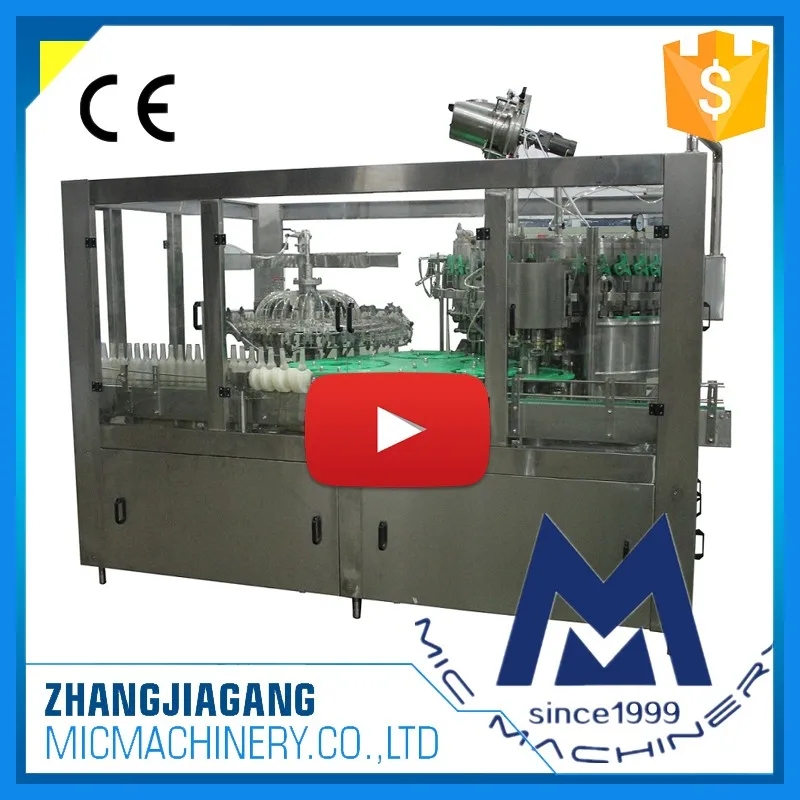

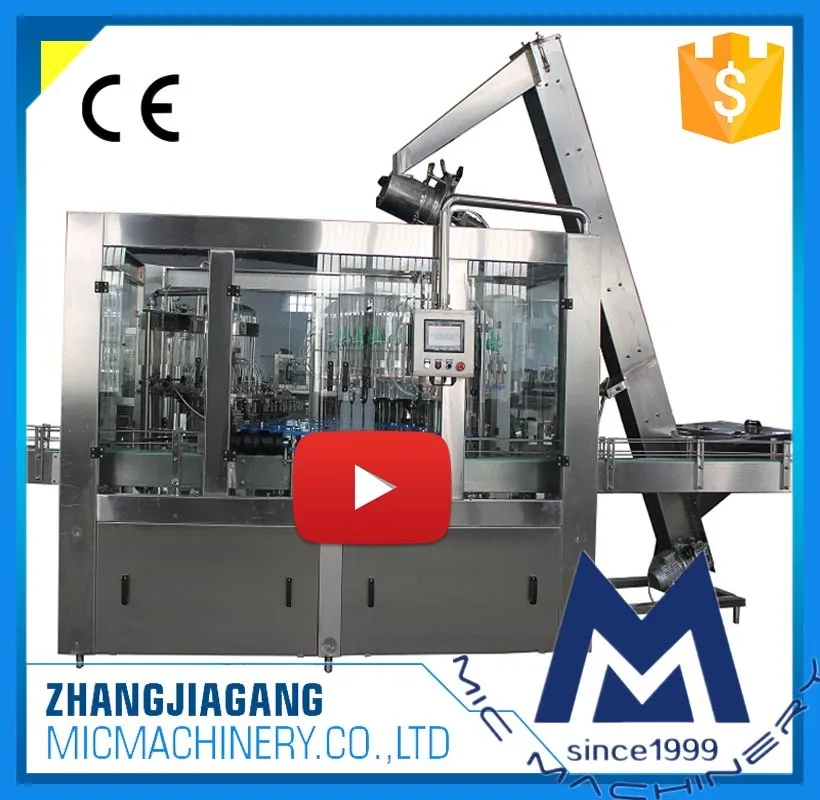

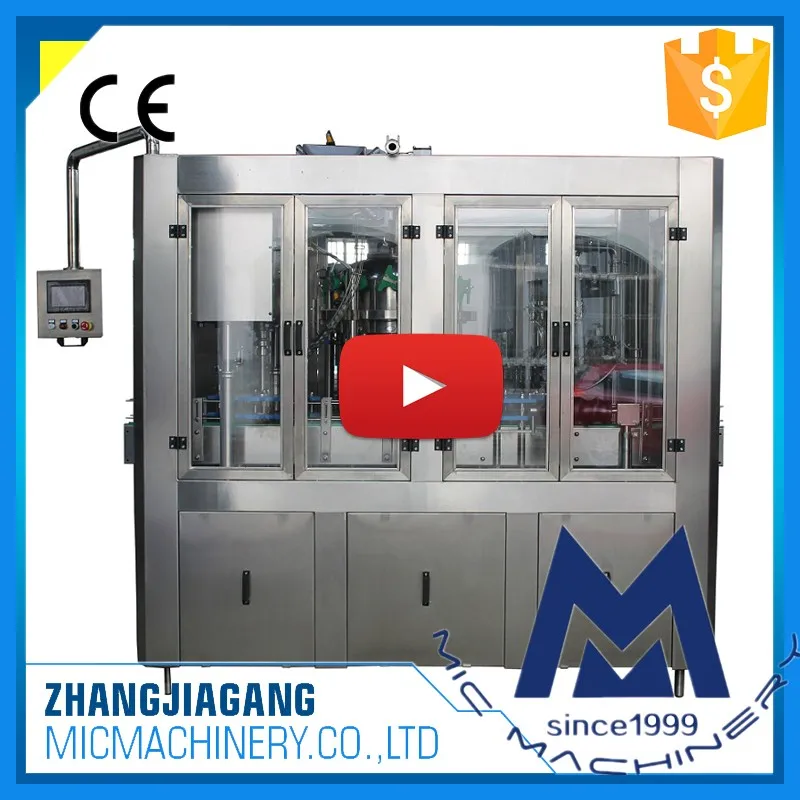

Or you can click the followed picture:
If you want to see more videos about other type filling machines, you can check my Youtube: https://www.youtube.com/channel/UC0xTIHs82mYUAvwJ5LVKtzQ
We are manufacturer for glass bottle filling capping machine and can filling seaming machine, steady machine which can reach Germany standard, hope you can come to see us.
If you want to know other type liquid filling machines, please click the name:
XGF12-12-1 | XGF18-18-6 | XGF24-24-6 | XGF32-32-8 |
12 | 18 | 24 | 32 |
12 | 18 | 24 | 32 |
1 | 6 | 6 | 8 |
800-1500BPH | 3000-4000BPH | 3000-6000BPH | 8000-10000BPH |
Main Features

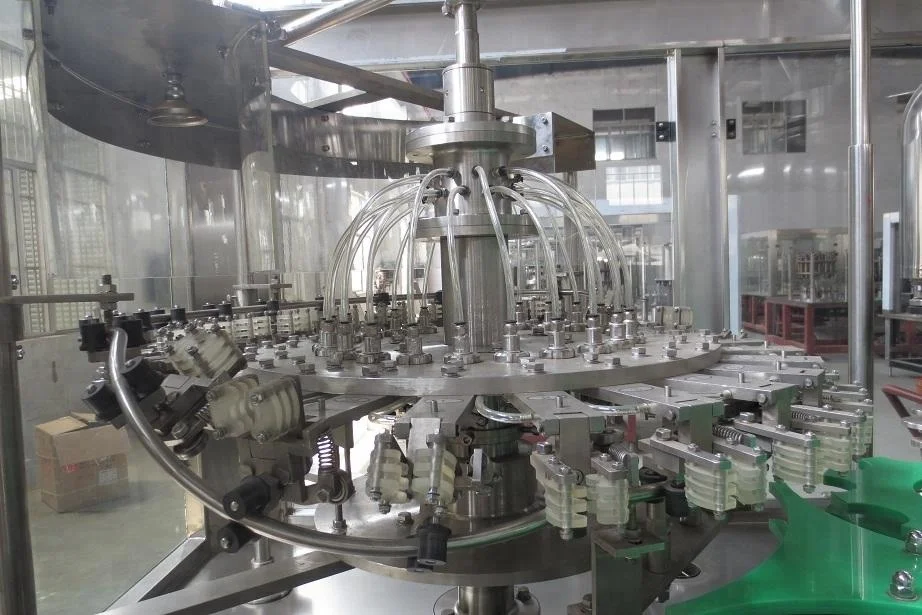

Rinser
1. The rotary wheel is a fully stainless steel welded structure.
2. The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of SUS304 stainless steel, this bottle clamp is hygienic and durable.
3. The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.
4. All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.
5. The rinser is driven by driving system positioned inside machine frame via gear transmission.

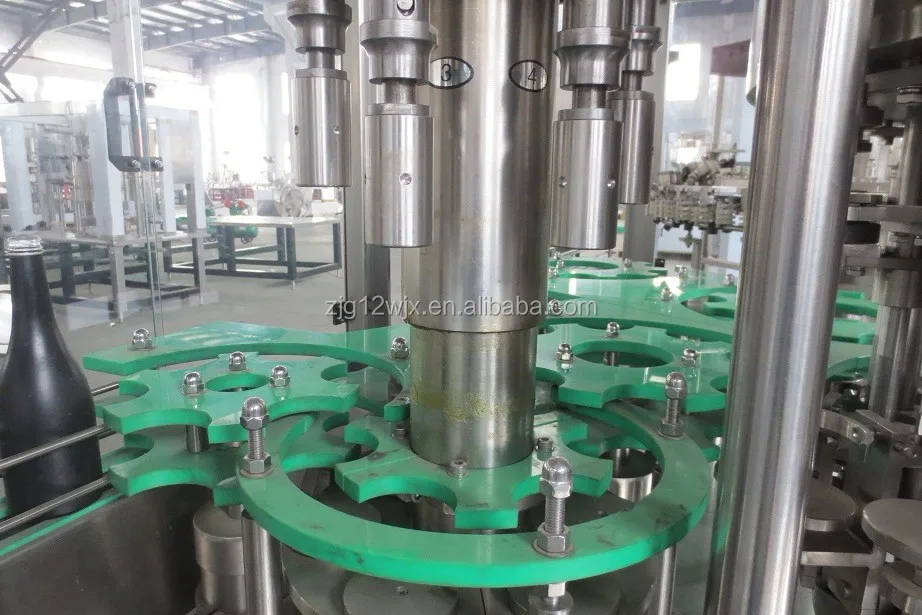

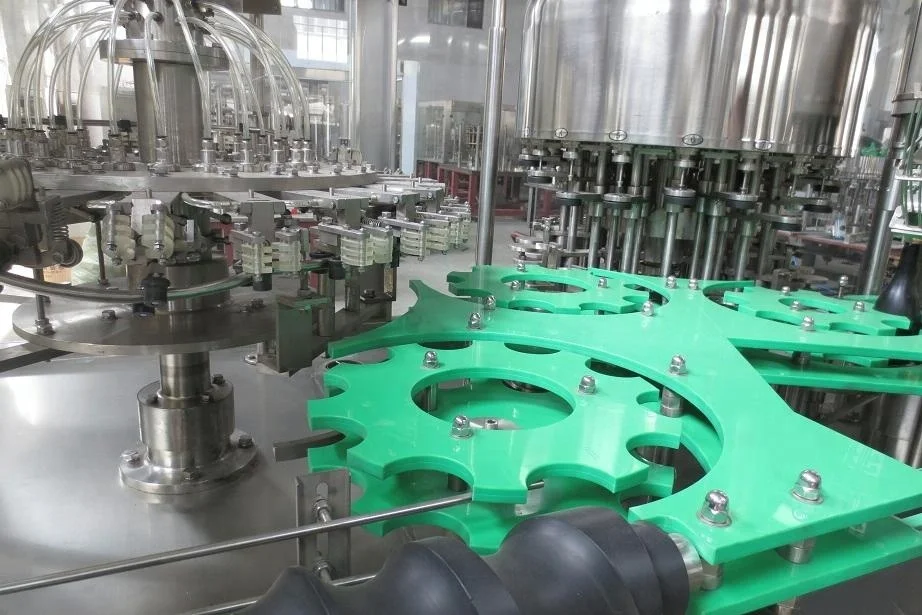

6. Transfer starwheel
7. Made of stainless steel of superior quality.
8. Equipped with bottle jam protection device.

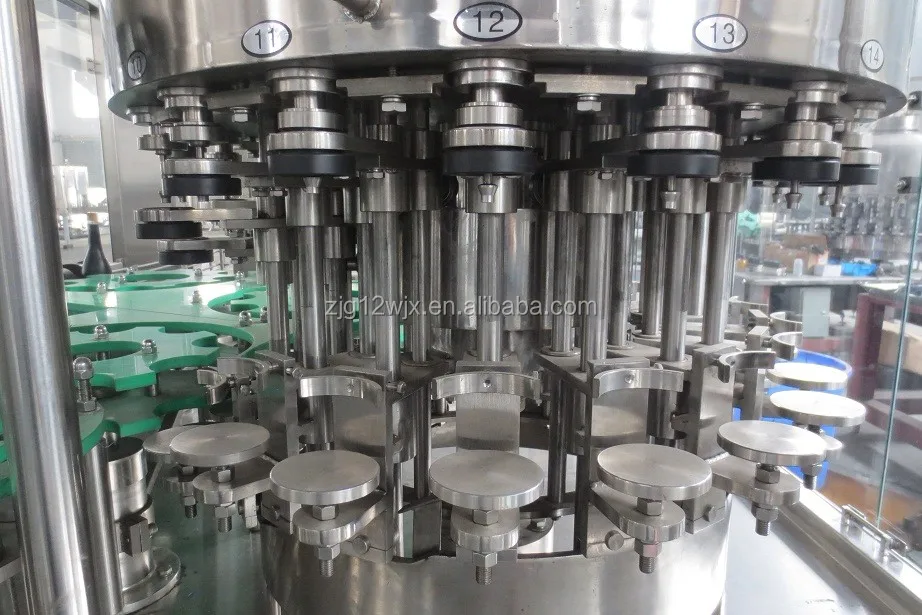

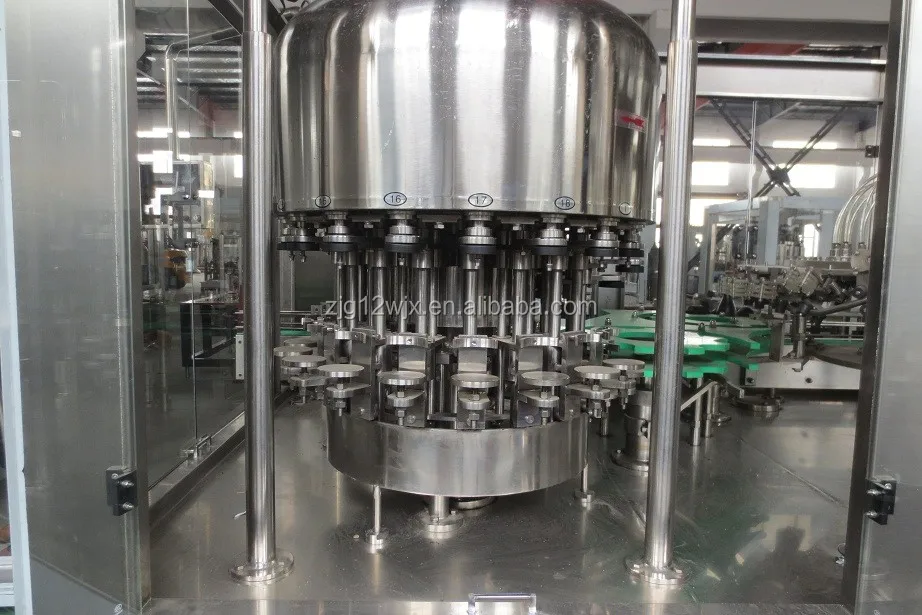

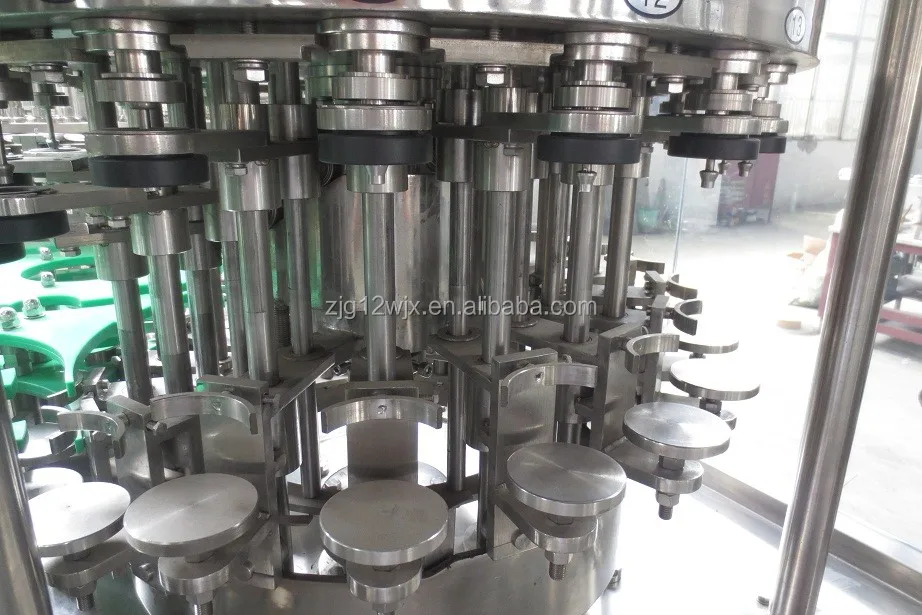

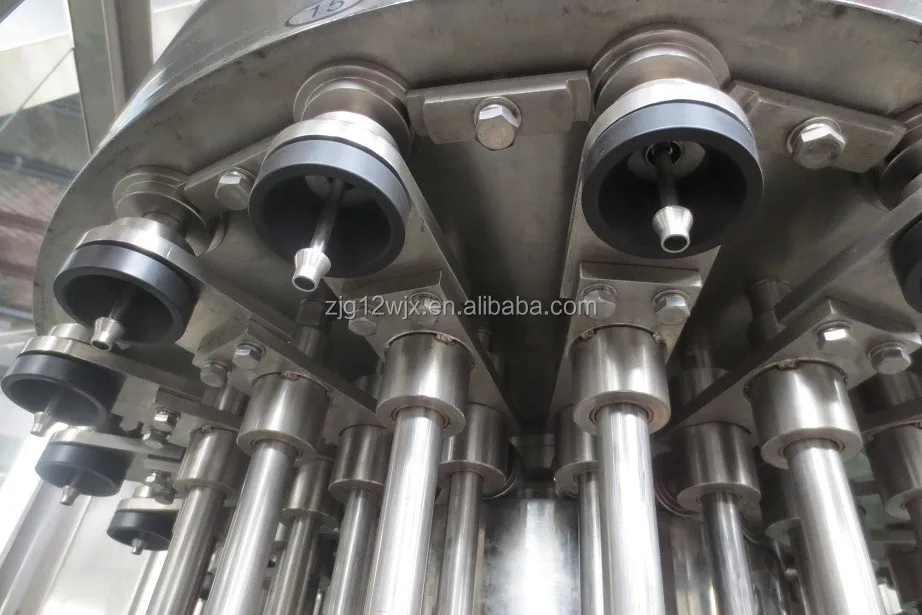

Filler
1. Rotary wheel fully made of stainless steel SUS 304.
2. Gravity filling method.
3. Filling valves are made of SUS316L.
4. Filling valves are reasonably structured with accurate filling.
5. Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.

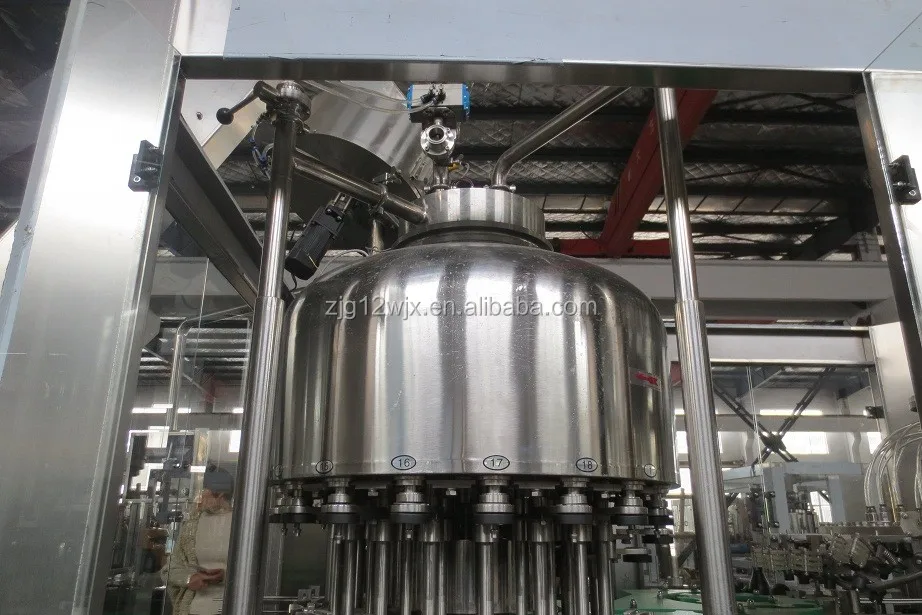

6. Level of cylinder is controlled with float-ball.
7. Filler is driven through gears inside the machine frame.

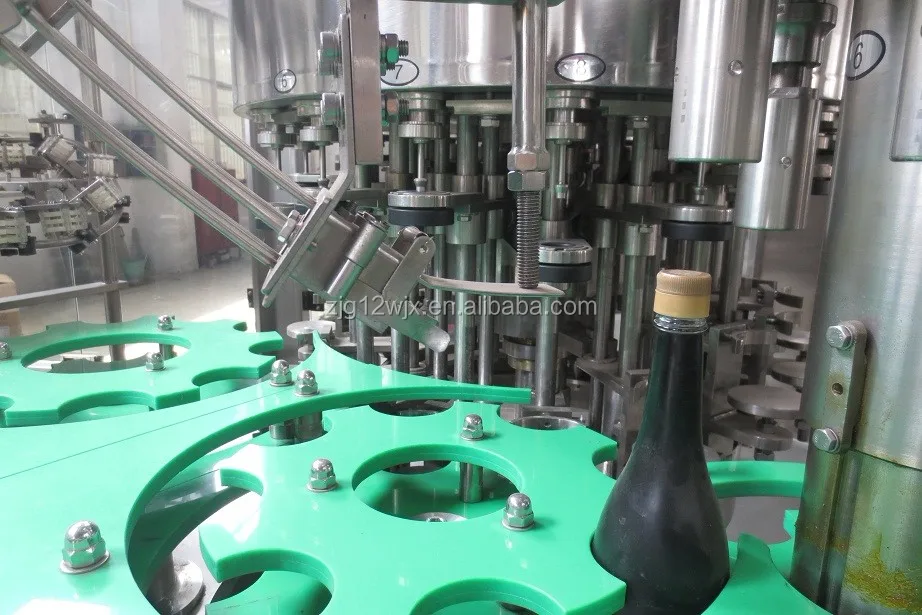

8. Link-wheels in rinser, filler and capper are transported in ringed support of bottle-neck.
Capper
Capper is the machine with highest precision, influence very much with the stability and reliability of the filling monoblock. Our capper features as follows:

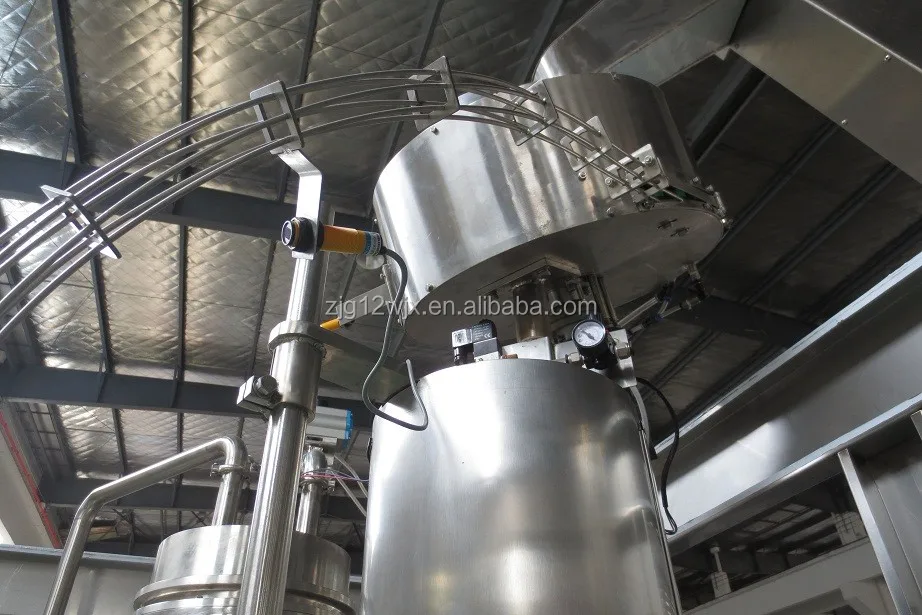

1. Cap distributing chute is equipped with reverse cap stop and reverse cap pick-out mechanism.
2. Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute.
3. The capper is equipped with inlet bottle detection switch.
4. Centrifugal way of cap arranging is adopted to reduce damage of caps.
5. A cap inspecting system is applied to control on-off of elevator.
Machine Parts

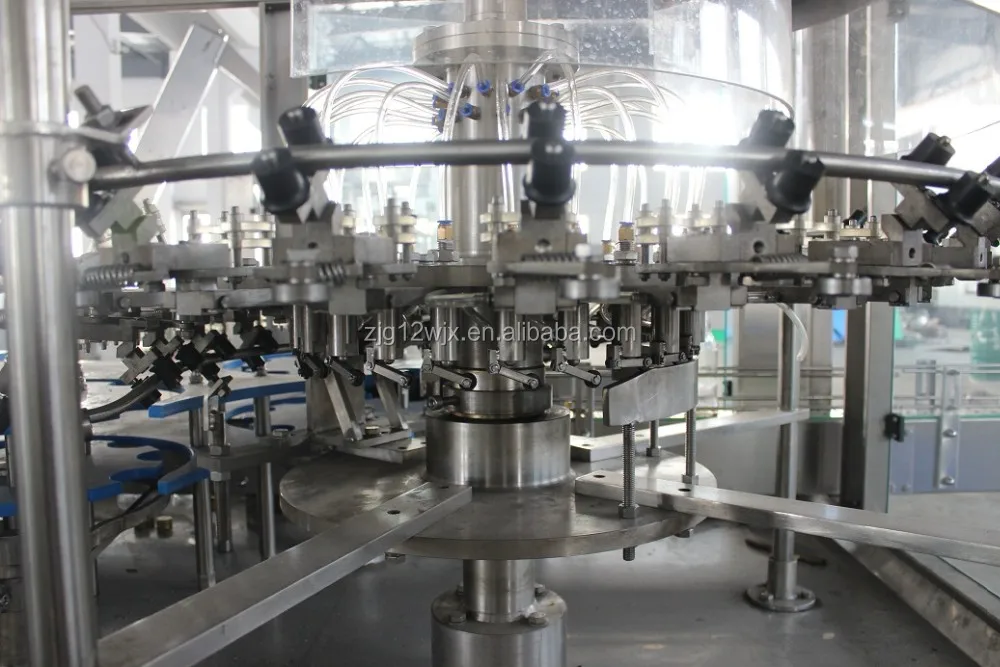

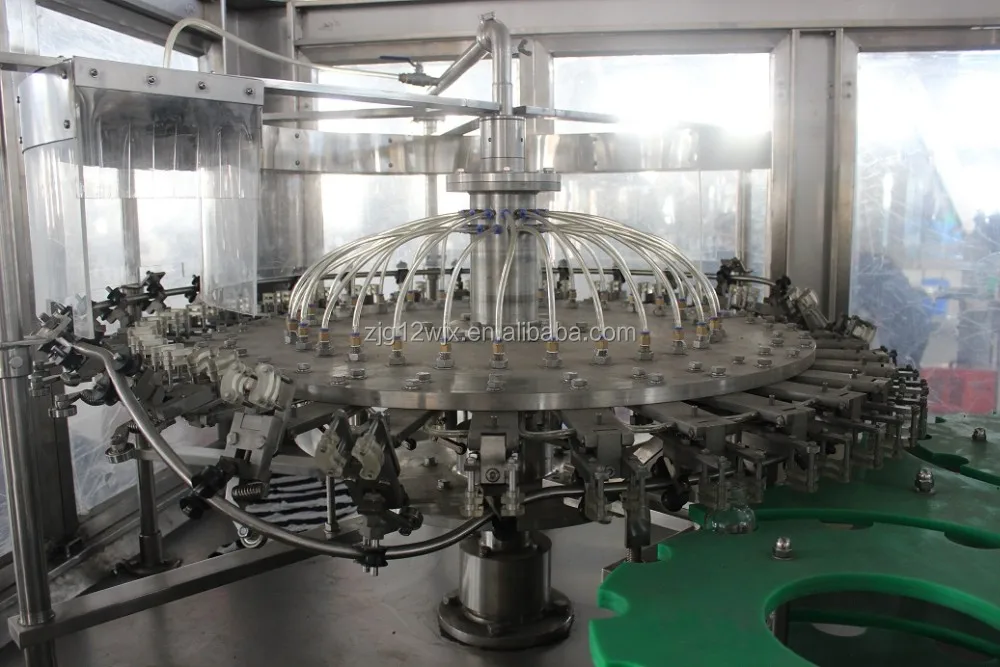

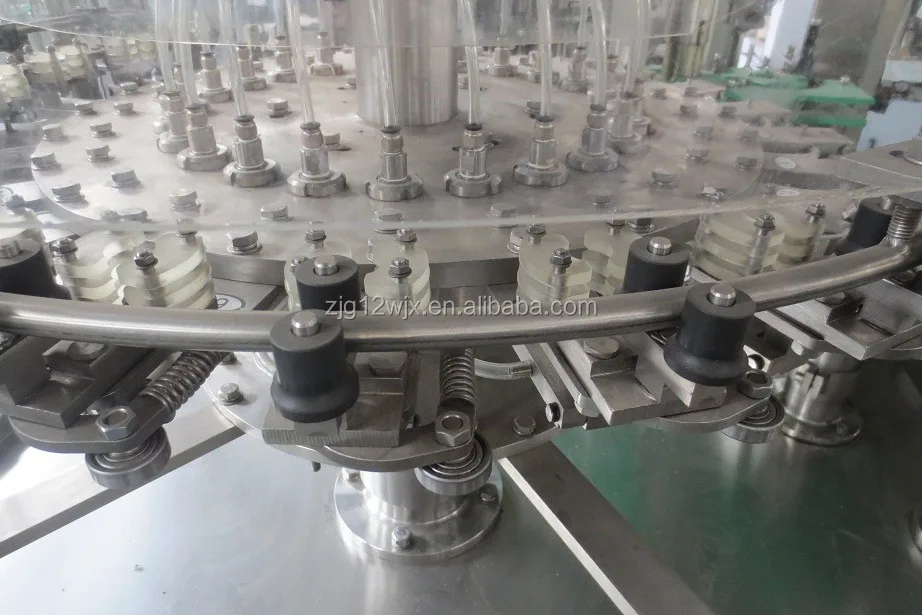

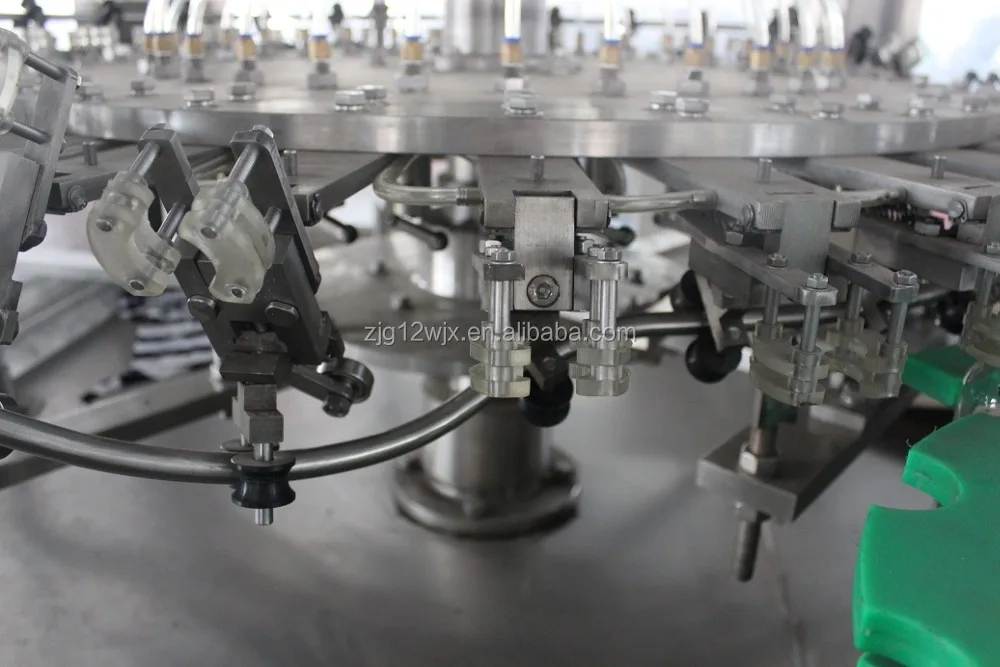

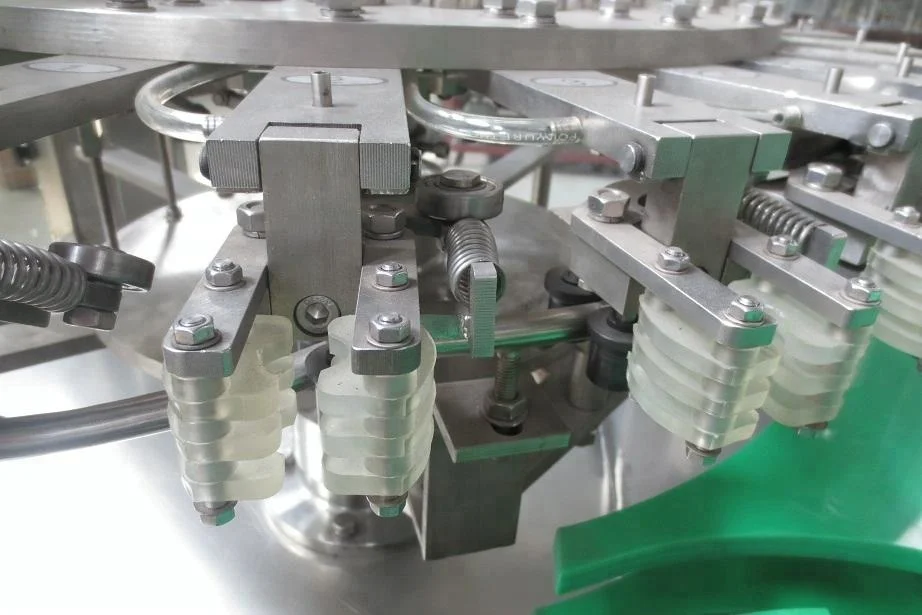

Name: Washing part
Brand: MIC
Original: China
This is glass bottle washing part. The washing heads are rubber material. It will not drop bottle, will not damage bottle, and it will not scratch bottle also.
Main Features
Machine Parts

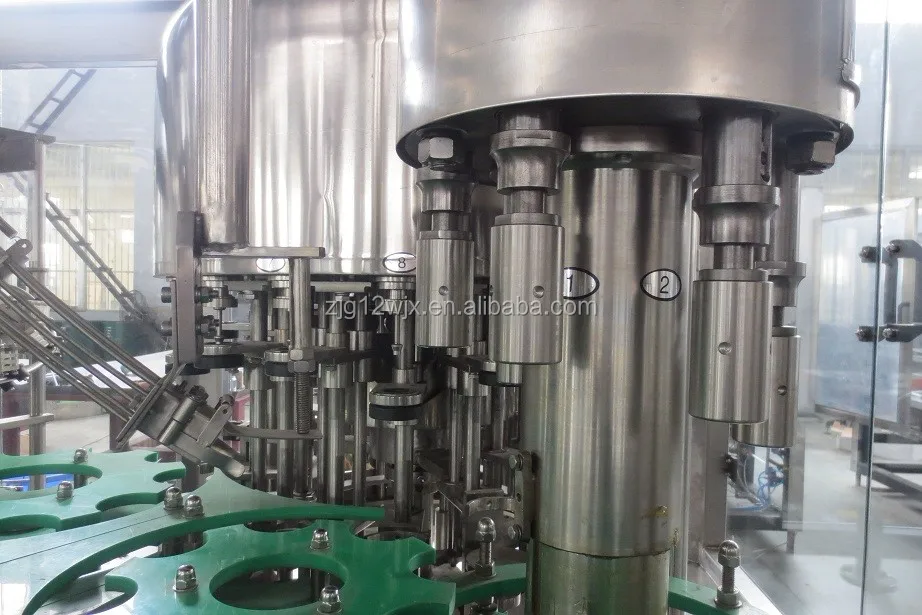

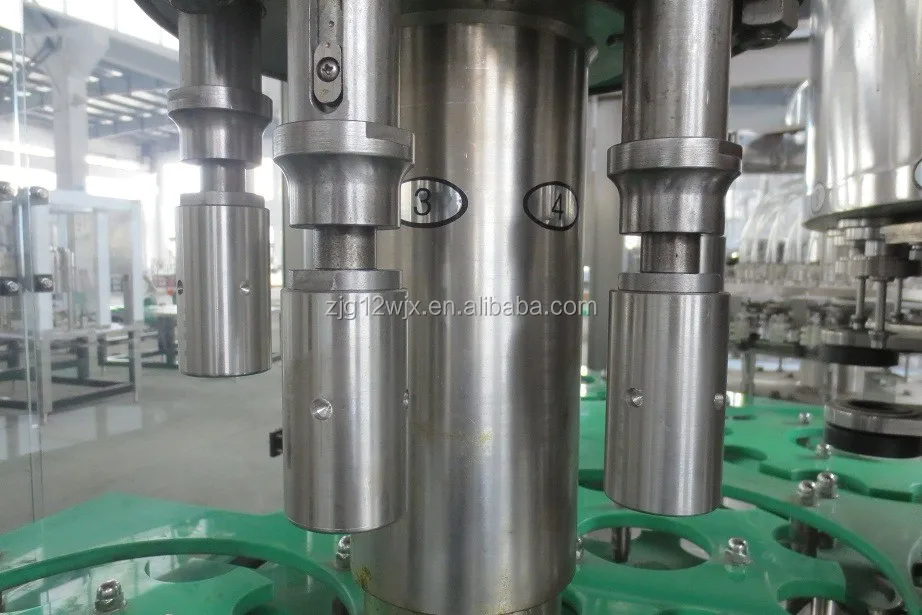

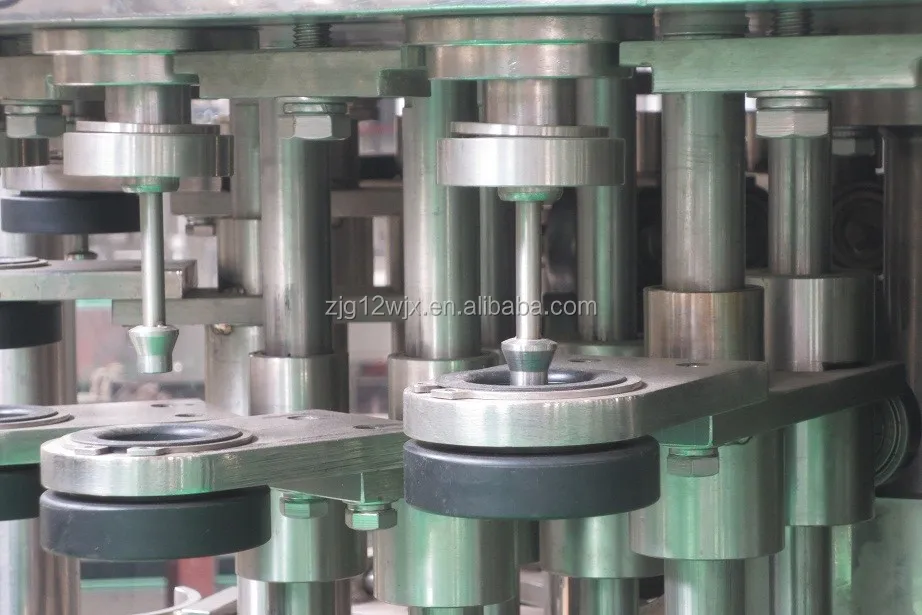

Name: Capping part
Brand: MIC
Original: China
That is special designed for the plastic pressure Cap. It will not damage Cap, magnetic structure
uniform force, bottle will not leak after sealing. It can be applied for plastic cap or aluminum Cap.
Main Features
Air compressor

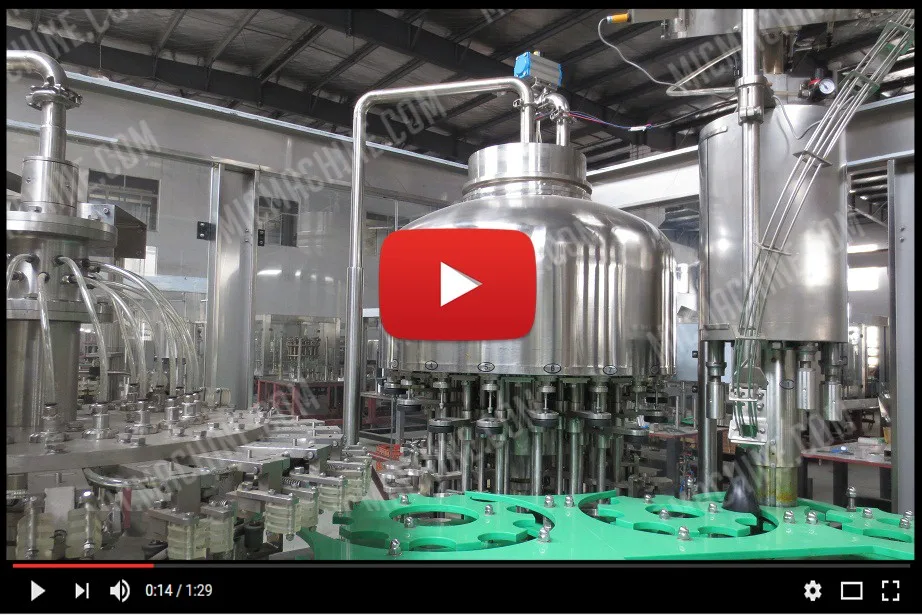

https://www.youtube.com/watch?v=vkIecXuPV8A
Sterilization machine
https://www.youtube.com/watch?v=n_Nd6Nc8XyI
Labeling machine
https://www.youtube.com/watch?v=brQn3zpQkRI
This machine need air compressor, 0.8 m3/min 10Kg is enough
This machine can be connected with:
- Water treatment system
- Glass bottle depalletizer
- Glass bottle washer, filler-seamer monoblock
- Glass bottle cooling tunnel
- Glass bottle blow dryer
- Liquid level inspector
- Glass bottle labeling machine
- Glass bottle code printer
- Glass bottle packaging system (shrink-wrapper or carton packaging machine)
- Palletizing system
Design Ability | All the machines designed by CAD | ||||
Manufacturing Ability | Mechanical parts: high quality stainless steel, processed by CNC | ||||
Reliability | Electrical parts from world famous suppliers | ||||
Professional | Focus on beverage and cosmetics packing machines Exported to over 20 countries with good reputation 2 years Alibaba Golden supplier without complaint | ||||
Good Service: | Service include complete production line design, manufacturing, on-site installation & after sales maintenance. | ||||
Profession on Export: | Authorized export licence | ||||
Packaging | ||
Size | 3000(L) * 1800(W) * 2500(H) | |
Weight | 3500KG | |
