Changbao FTP STP Shielded 23AWG 4 Pairs PVC or LSZH Jacket Indoor Cat6 lan ethernet network cables 305m roll price
- Category: >>>
- Supplier: Chang Bao Technology Co. Ltd.
Share on (60766717606):
Product Overview
Description
Product Description

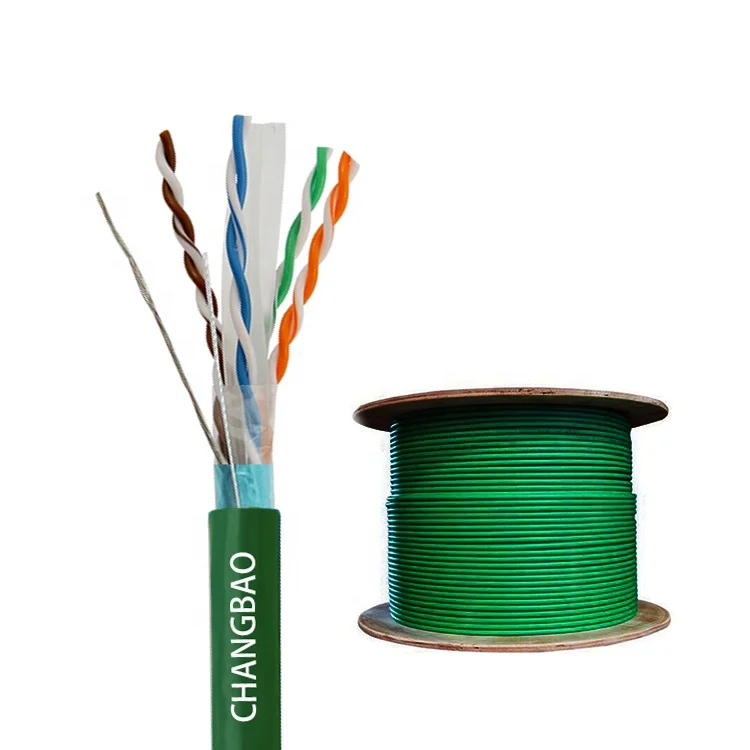

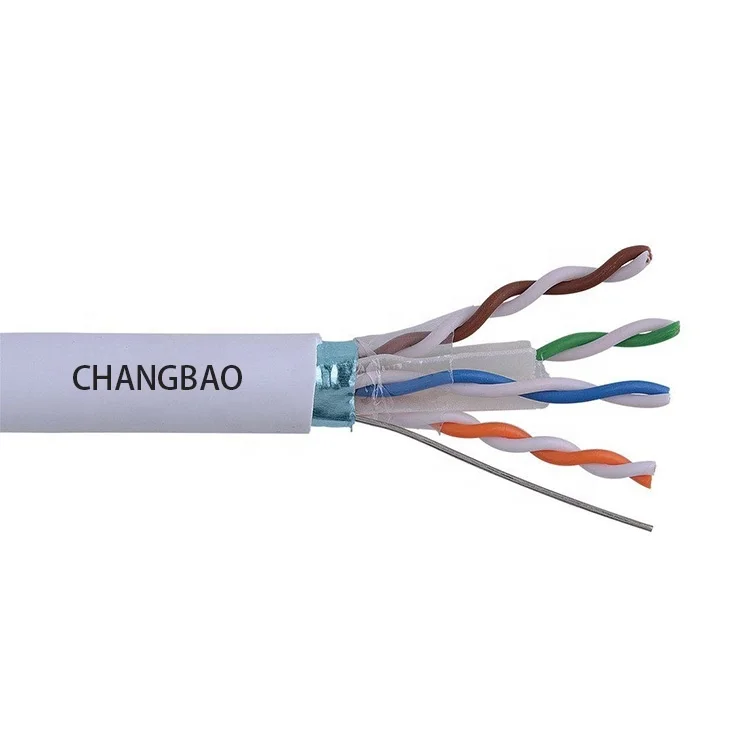

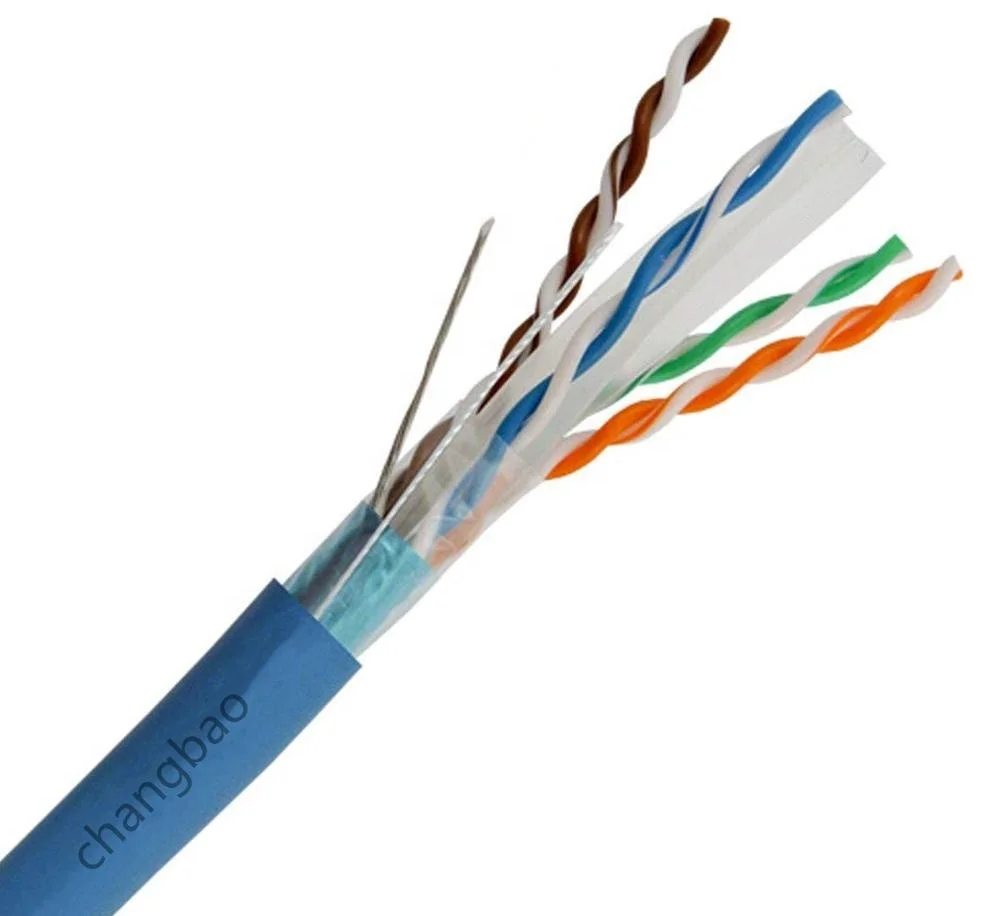

Changbao FTP STP Shielded 23AWG 4 Pairs PVC or LSZH Jacket Indoor Cat6 lan ethernet network cables 305m roll price
- Cat6 FTP Shielded Twisted Pair Cable
- Pass FLUKTest High Performance Computer Networking Cable
- Suitable for Fast, Gigabit, and 10-Gigabit Ethernet
- Digital Communication Applications of up to 550MHz Bandwidth
- Exceeds ANSI/TIA 568-C.2 , ISO/IEC 11801 Standards
- Tangle Free Reel-in-box or Spool Packing
- Small MOQ : 5 Spools Only . (305m/spool)
- CE / ISO / RoHS Approved, PVC Jacket Use Indoors
- Jacket In Any Color As Required
- Customized Jacket Prints and Private Label
- ETL CMX / CM / CMG / CMR / CMP Rated are Available

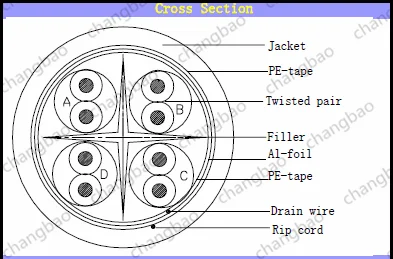

Construction Characteristics:
Conductor | Material | Solid Bare Copper |
Size | 23AWG X 4P | |
Construction | 1/0.585±0.005mm | |
Insulation | Material | HDPE |
Diameter | 1.02mm±0.01mm | |
Colors | Blue-White/Blue | |
Orange-White/Orange | ||
Green-White/Green | ||
Brown-White/Brown | ||
Shield | Filler | LDPE |
Core wrap | PE Tape | |
Drain wire | 1/0.40±0.004mm | |
Shield | AL Foil | |
Core wrap | PE Tape | |
Jacket | Material | PVC |
Diameter | 7.60±0.20mm |

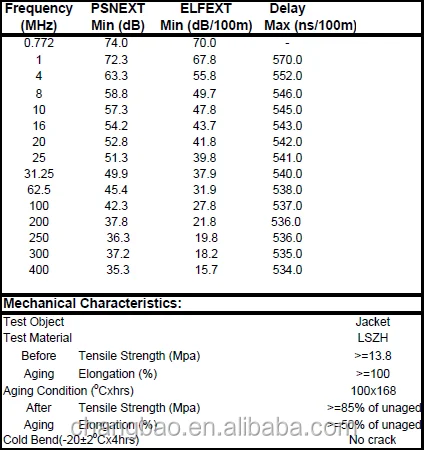

Performance :
* Values above 250MHz are information only
