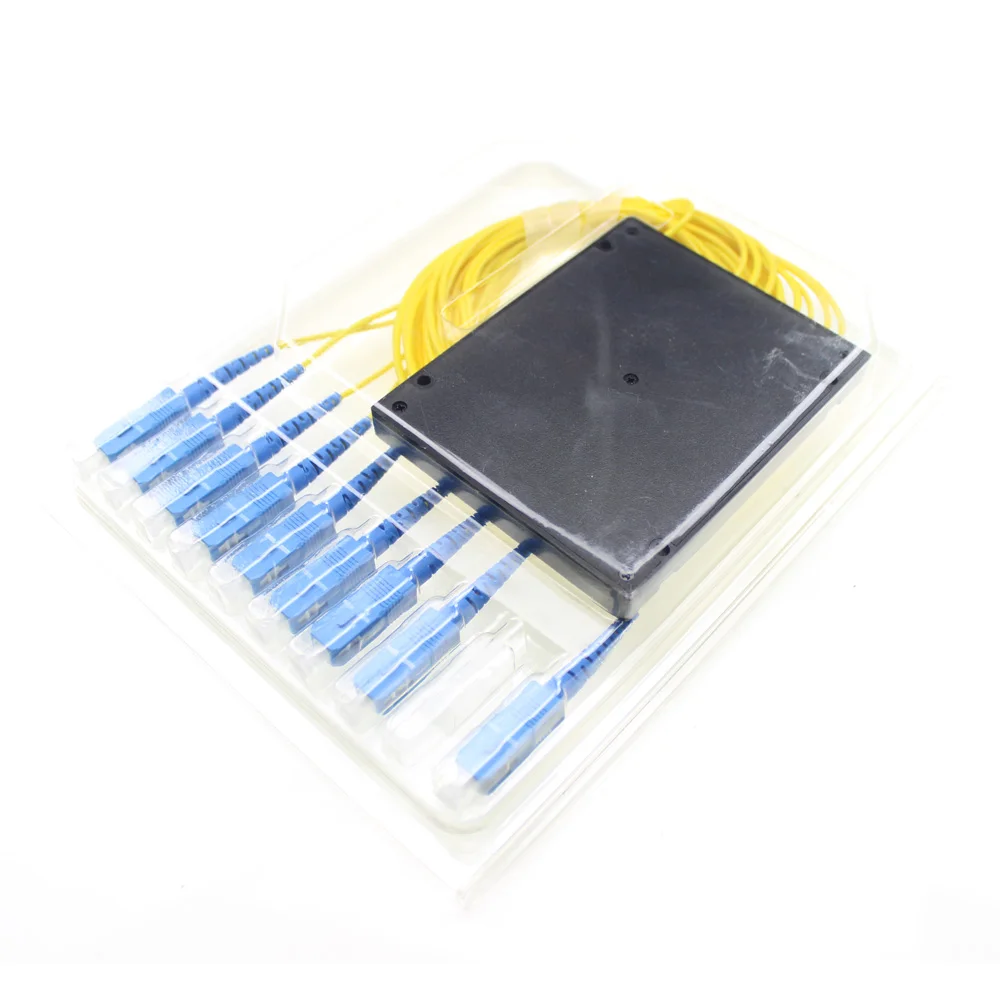

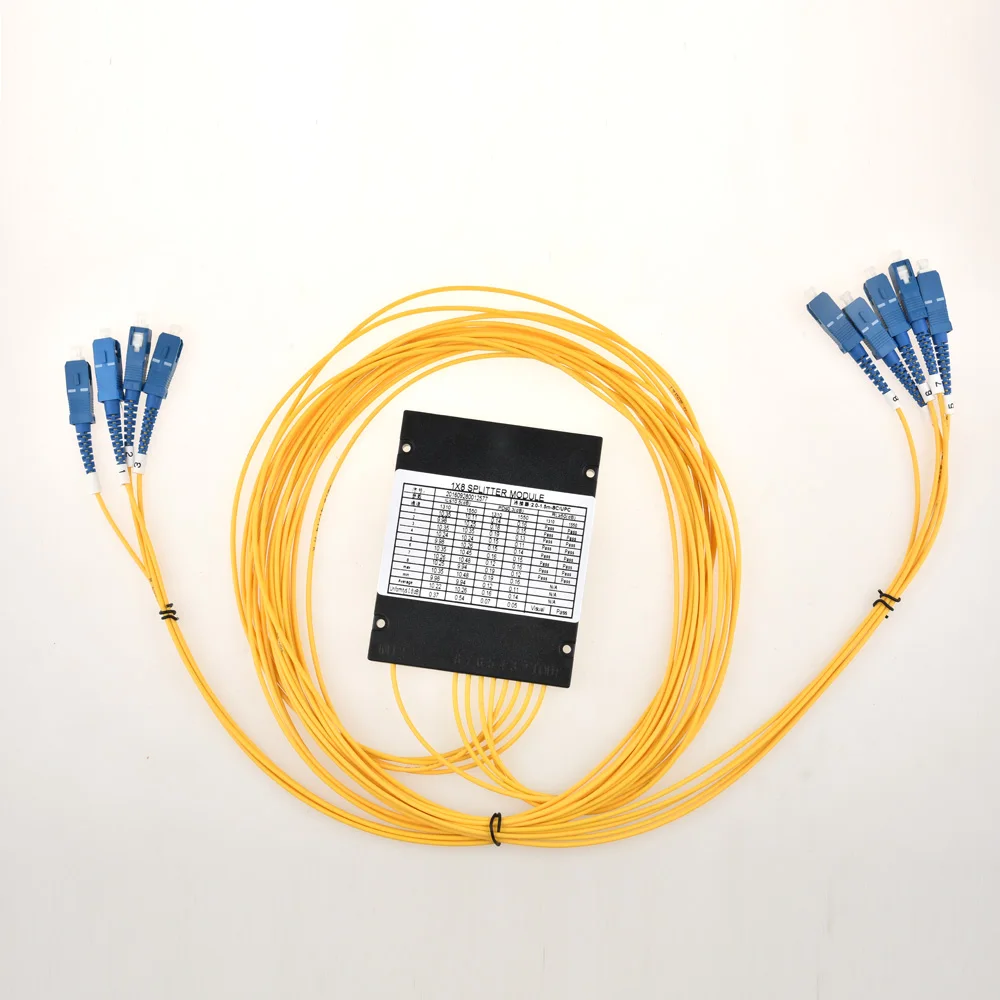

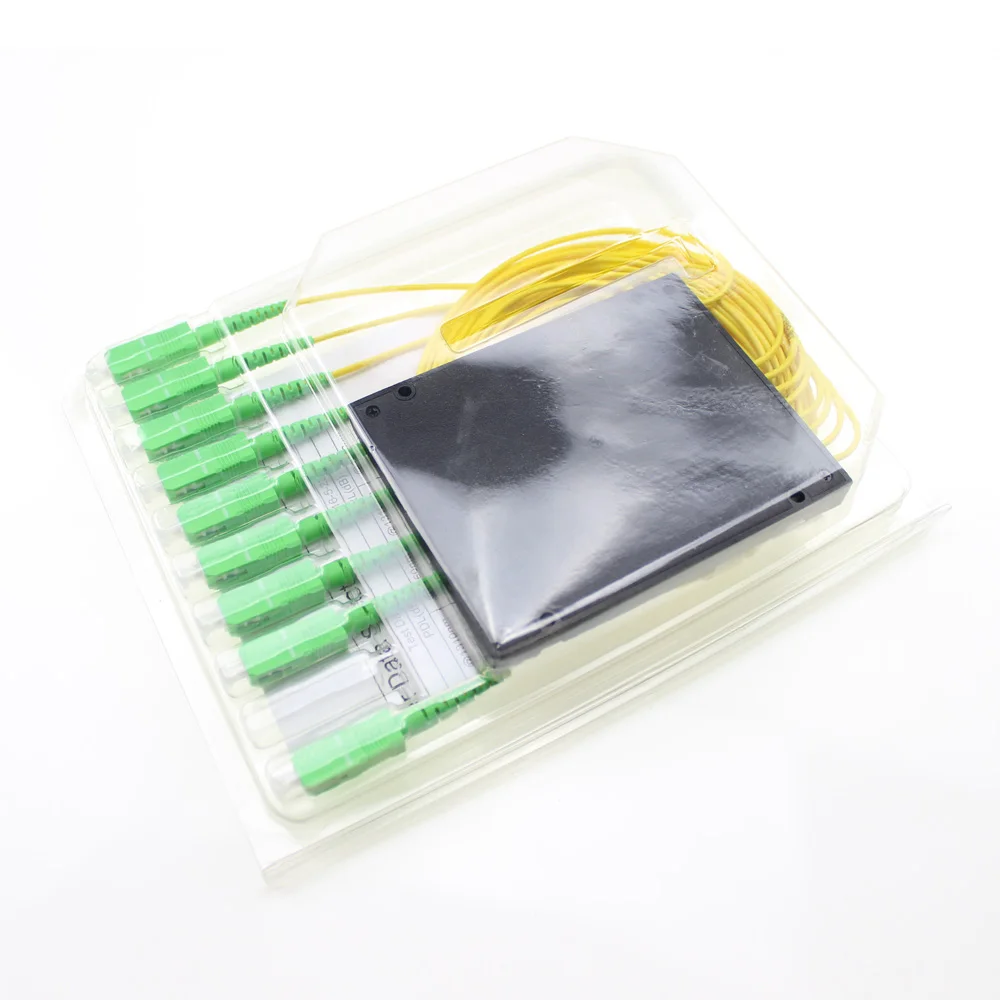

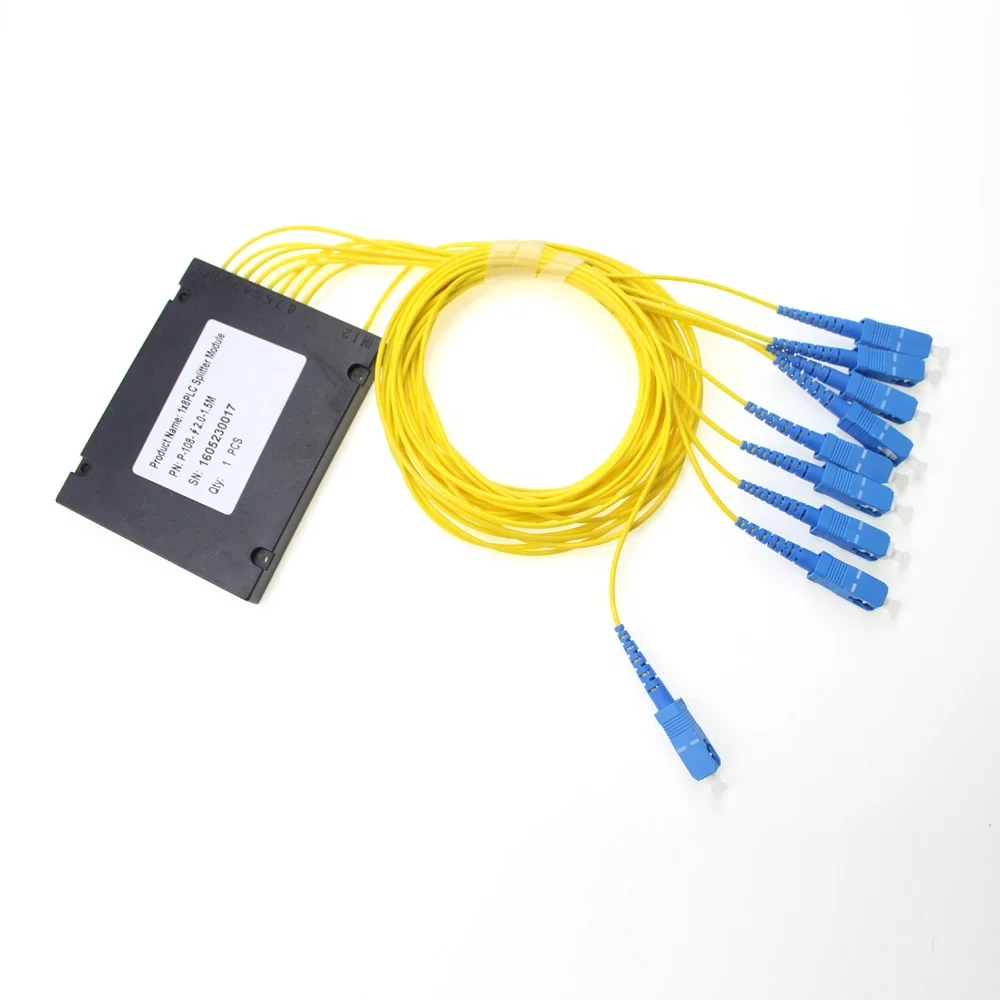

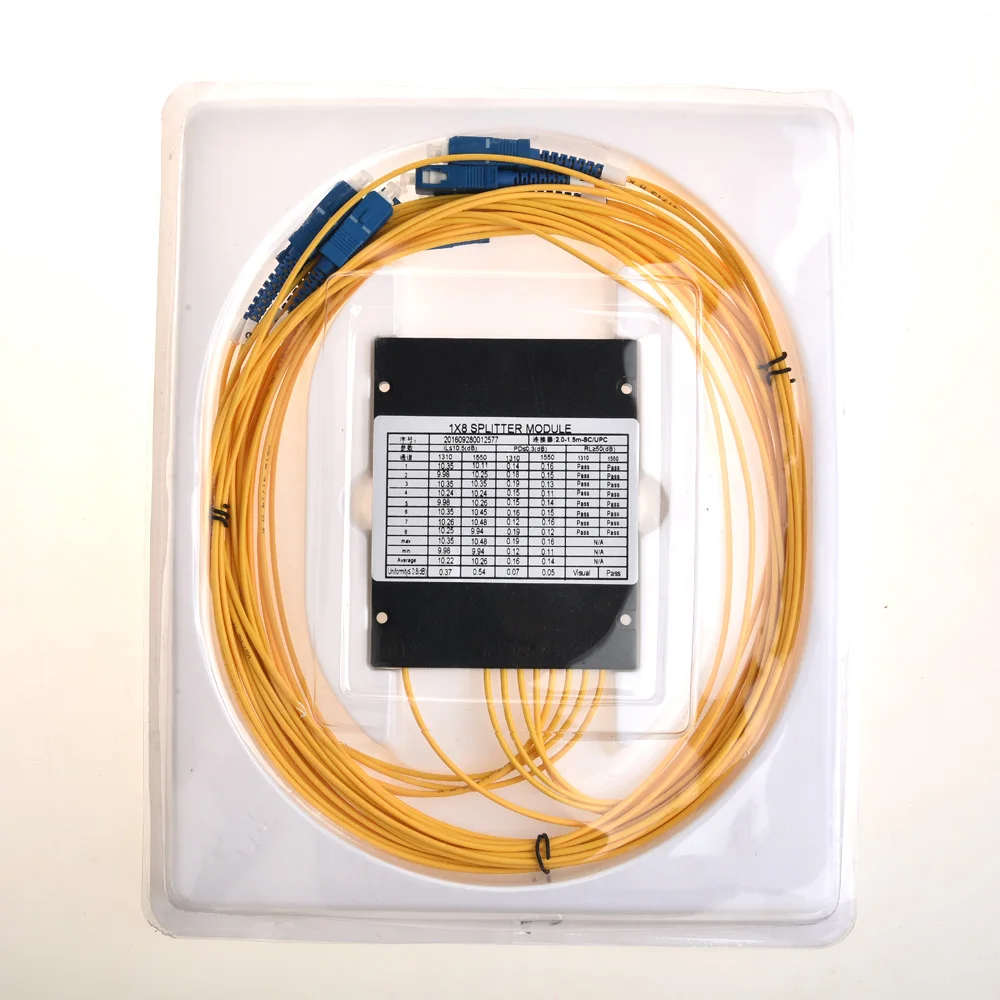

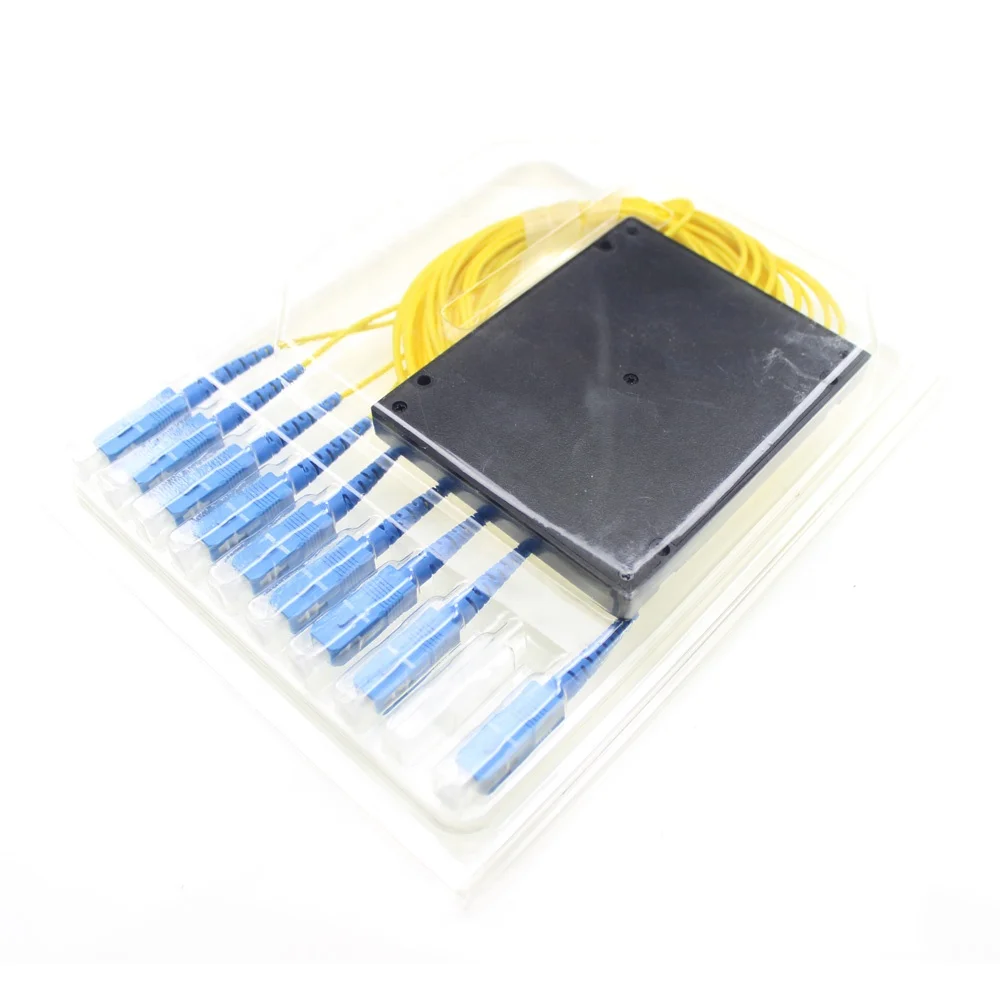

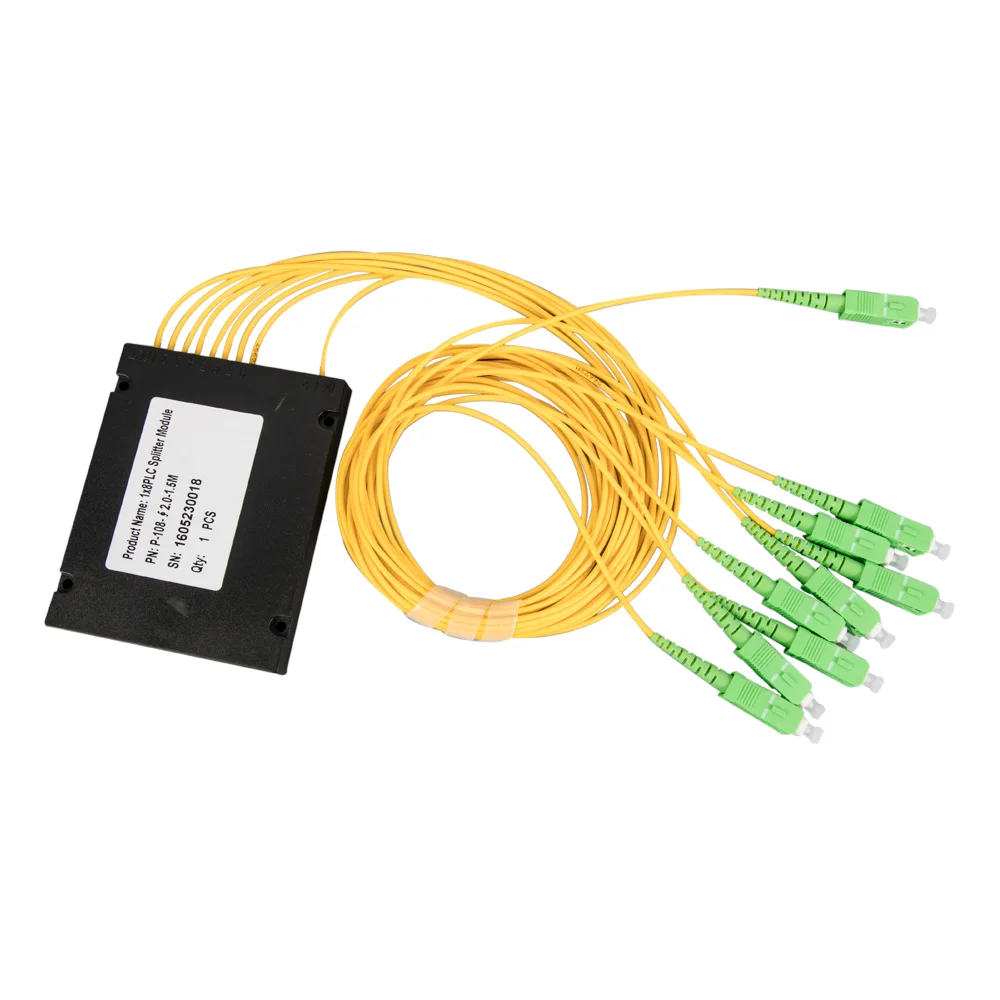

Telelcom spliter optic cassette PLC Optical modular 1*8 box Fiber splitter

Product Overview

Description

Telelcom spliter optic cassette PLC Optical modular 1*8 box Fiber splitter





Product Name	Telelcom spliter optic cassette PLC Optical modular 1*8 box Fiber splitter
Modle Number	1*8 box type PLC splitter
Length	1m/1.5m
Operating Wavelength	1310/1490/1550
Ferrule Polish	APC UPC PC
Fiber Type	SM
Application	FTTX,CATV Metro,LAN
Dimension	12*8*1.8cm
Connector Type	SC,LC,FC
Form of sale	Neutral/OEM/ODM
Use	Optical connect,Splitting
Custom Design	welcom
Sample Lead Time	1-3days
Sample price	As per sample details
Certificate	RoHS,SGS,CE
Advantage	Best price,best service



Parameter	Unit	1x2	1x4	1x8	1x16	1x32	1x64	1x128
Wavelength	nm	1260-1650
Insertion Loss	dB	≤4.2	≤7.4	≤10.7	≤13.9	≤17.2	≤21.5	≤24
PDL	dB	≤0.25	≤0.2	≤0.3	≤0.3	≤0.3	≤0.4	≤0.5
Uniformity	dB	≤0.6	≤0.8	≤0.8	≤1.0	≤1.5	≤2.0	≤2.0
Return Loss	dB	≥50
Directivity	dB	≥55
Temperature Range	°C	(-40~+75)
Storage Temperature	°C	(-40~+85)
NOTE:The above parameter is for splitter with connector.





• Low insertion loss,high return loss
• Excellent Temperature stability
• Good repeatability and exchangeability
• Excellent mechanical endurance
• Strict curing time and temperature control
• Strict testing standards and methods for quality
• Environment protection (ROHS Compliance)
• The fiber optical patch cord can be customized according to customers'specific
  requirements (Customized Connector/Length/package...)
• 100% NEW raw material and well quality control ensure the best life time.
