Wood thickness planer belt sander machine drum wood sanding machine

Product Overview

Description

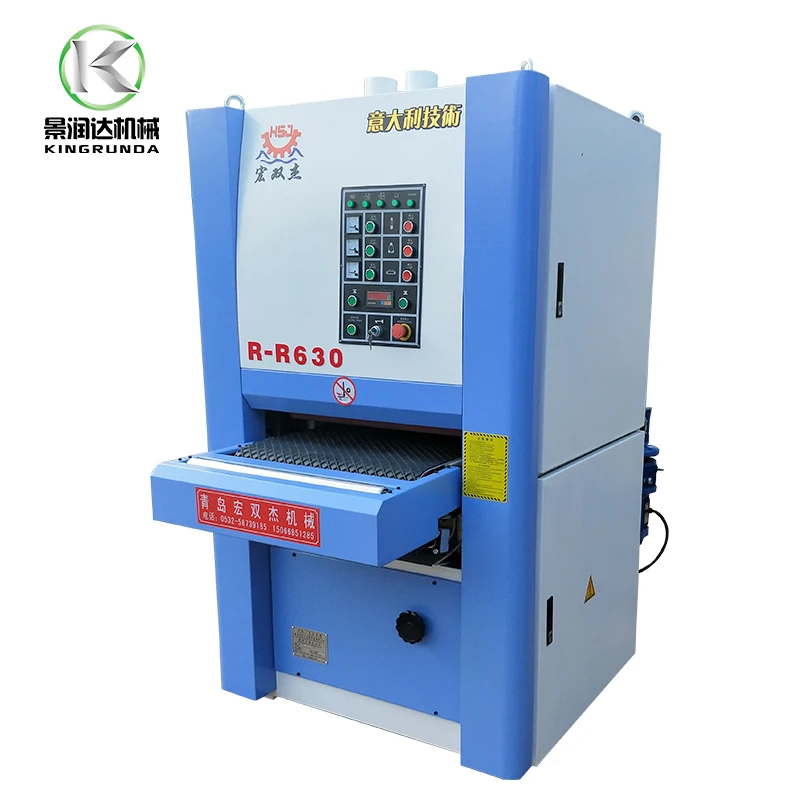

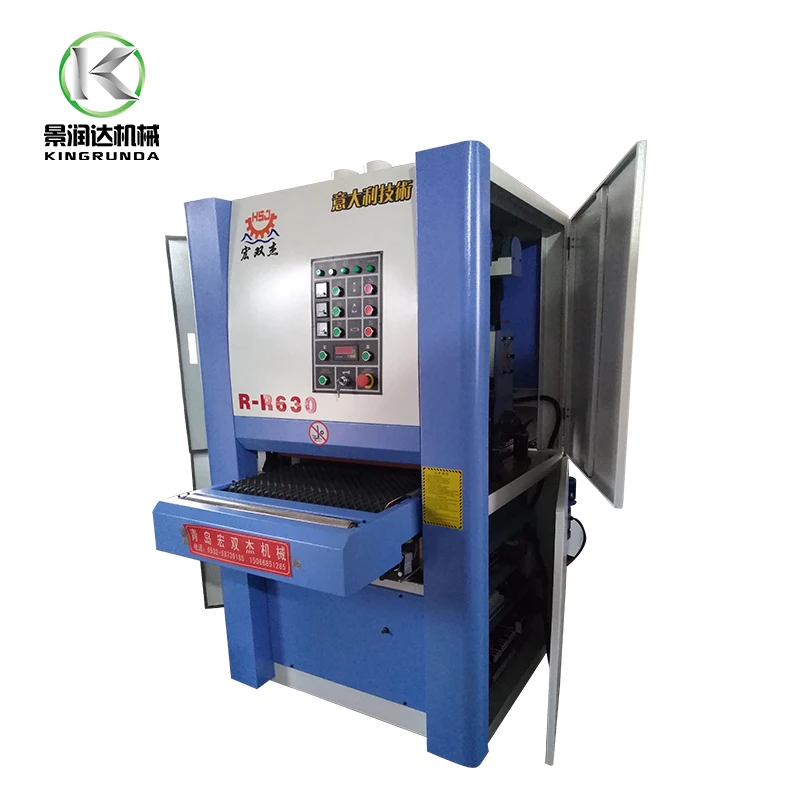

Thicknesser planer woodworking machine drum sander machine

  Product information

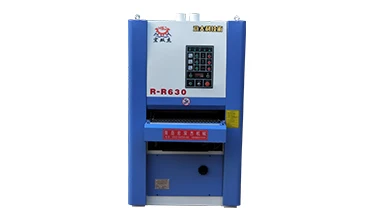

    Model: DS-630

    Name: Dual frame standard wood sanding machine

    Outer size:1700*1100*2100 mm

    Total power:   18.6KW

    Workpiece processing length:630 mm

    Workpiece processing width:100 mm



   Features

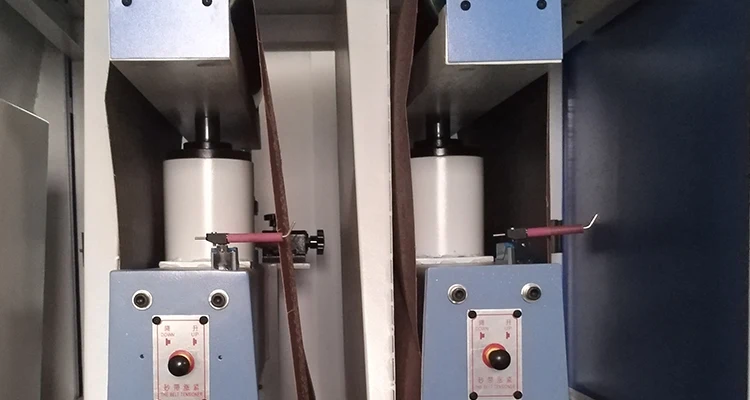

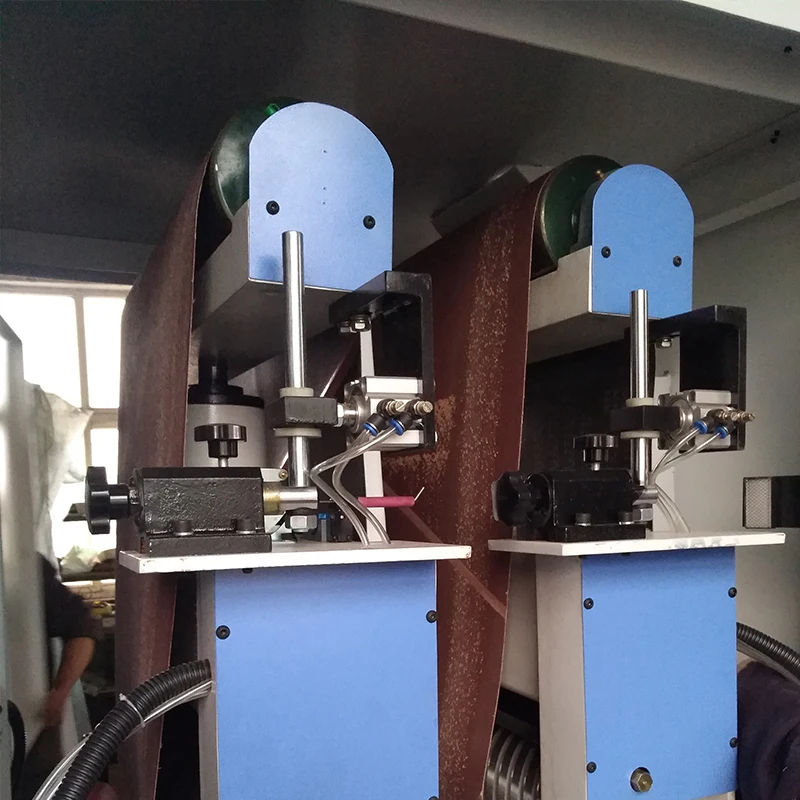

1.    Self made heavy duty sanding belt tensioning air tank, bold piston, better stability.

2.    Auto test thickness, work bench auto adjusts to corresponding height.

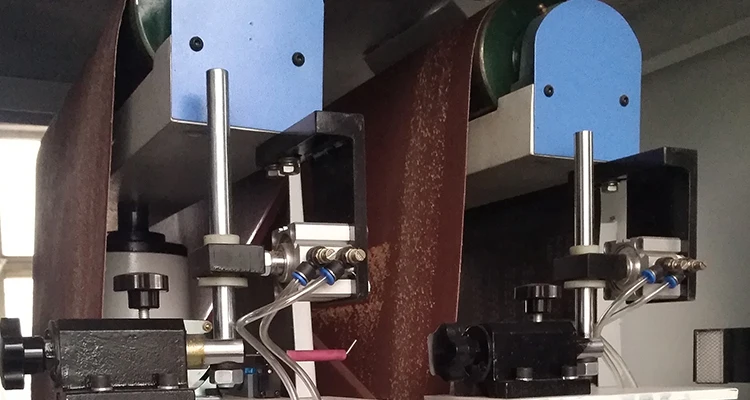

3.    Auto clean dust on photoelectric switch surface, avoid machine stops from dust accumulation.

4.    Auto test speed, auto photoelectric thickness testing.



   Sander introduction



      Standard sanding machine, applicable for thickness calibrating various solid wood panels, wood plate furniture. Maximum sanding width is 630mm, and thickness is standard 100mm. After sanding, surface is even and smooth.

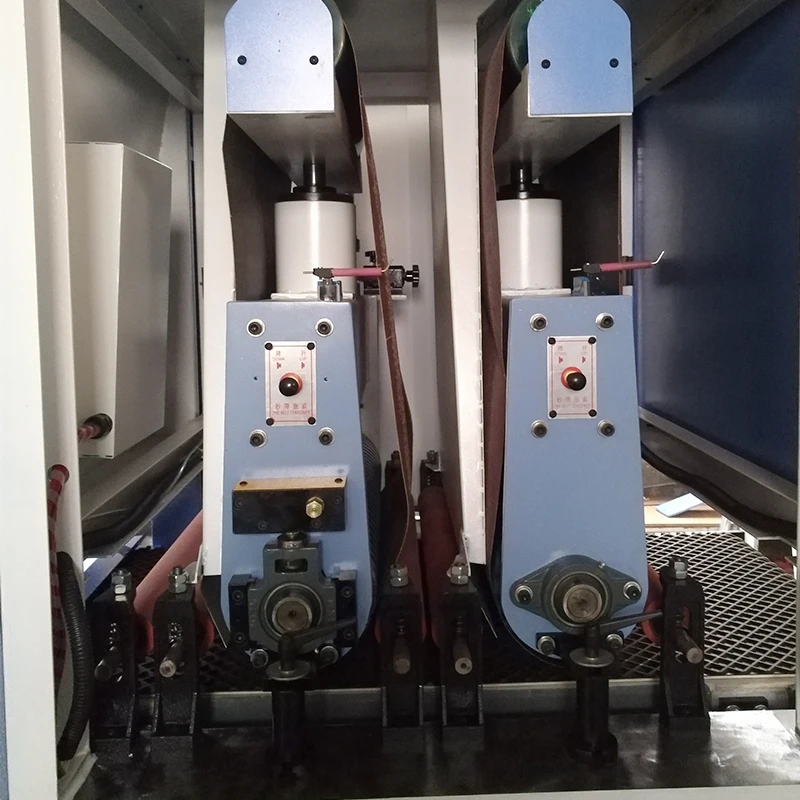

      Workpiece goes through press roller, iron roller, rubber roller and finish sanding. Iron roller is the 1^st heavy sanding, rubber roller is 2^nd sanding for fine grinding. All rollers have gone through dynamic balance test. Calibration precision is 1g-3g, 20% higher than national standard.



Kingrunda high quality sander for your factory



We produce economical but functional high quality sander providing 420mm, 630mm, 1000mm, 1300mm, 1600mm sanding width capacity.

High quality conveyor belt for long service life.

Dynamically balanced sanding drums ensure smooth running.

One/Two-sanding-drum configuration provides high efficiency sanding performance.

Conveyor belt tracking is convenient to adjust.

The sanding drum drive is controlled by a magnetic switch.

The conveyor belt running is operated by a key switch.

Convenient replacement of sanding belt.







Name	DS-630 dual drum sanding machine
Overall size	1700*1100*2100
Total motor power	18.6

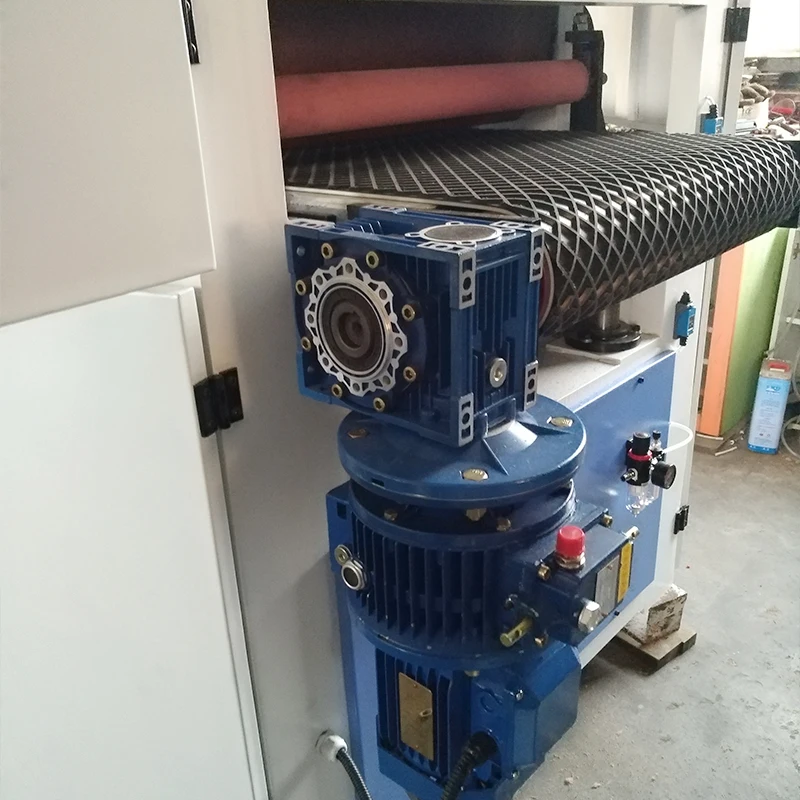

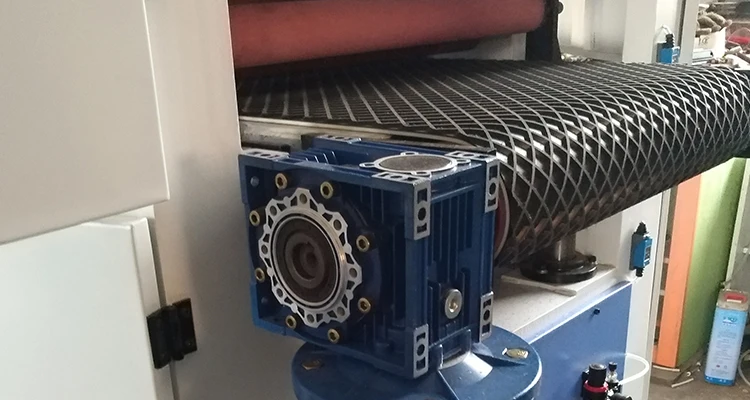

Motor power for work table	1.1
Iron roller motor power	11
Rubber roller motor power	7.5
Working width	630
Working thickness	100
