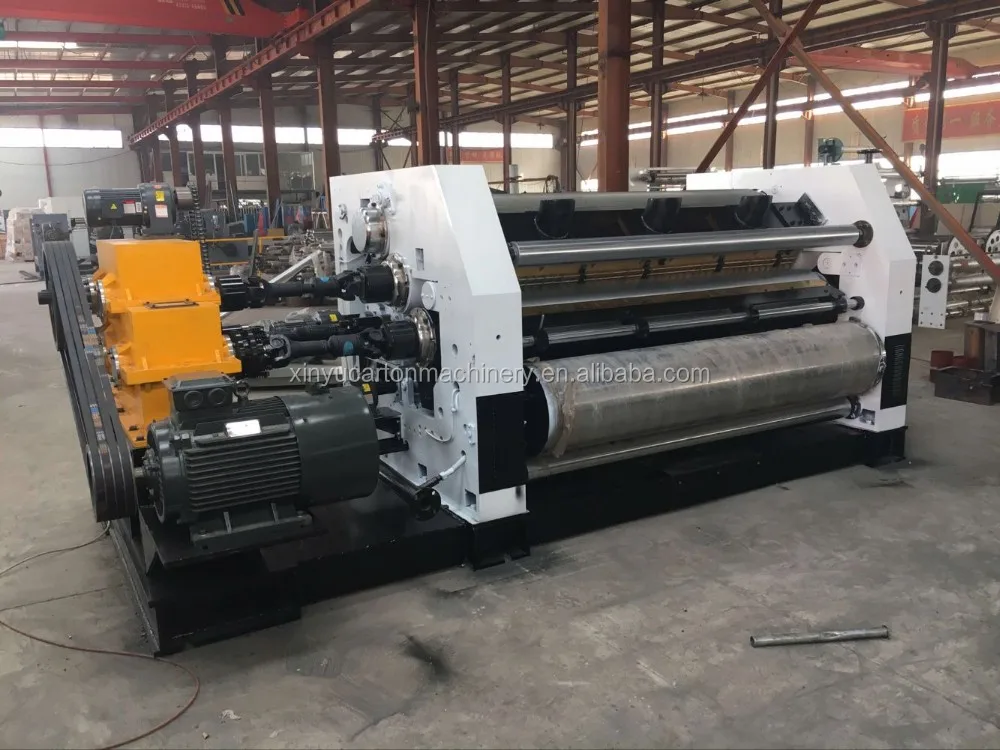

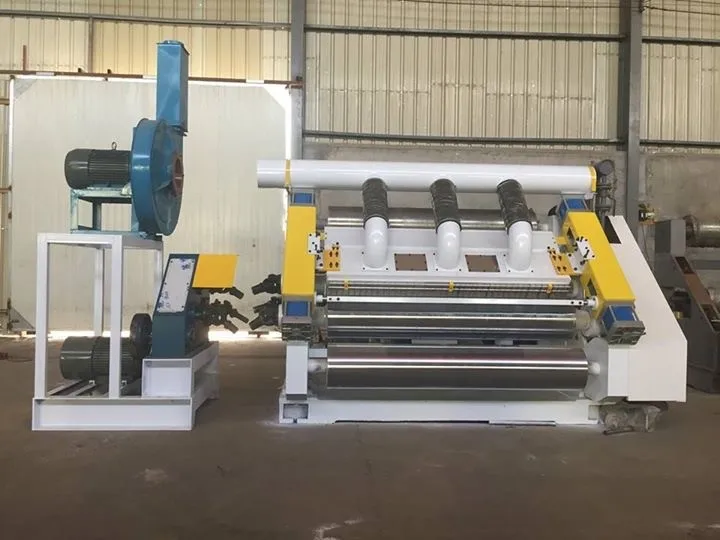

2ply 1600mm corrugated cardboard making single facer machine

1. 270s design speed:100m/min
320s design speed:120 m/min
2.360s design speed:150m/min
3.effective width:1400mm-2500mm
4.corrugated roller : Ø 270 Ø 320 Ø360mm
5.drive reduce box with oil immerse type lubricating to reduce noise keep running stable. adopt gimbal transmission . sepate power.(optional)
6.corrugating roller, pressure roller and glue roller by pneumatic adjustment
7.carboard transmit adopt vacuum suction method, with wind control system, keep flute profiles stable of the lpwer-roller in the condition of running up.
8.bearing of corrugated and pressure roller adopt high temperature lubricate grease
9.glue parts auto supply glue circularly

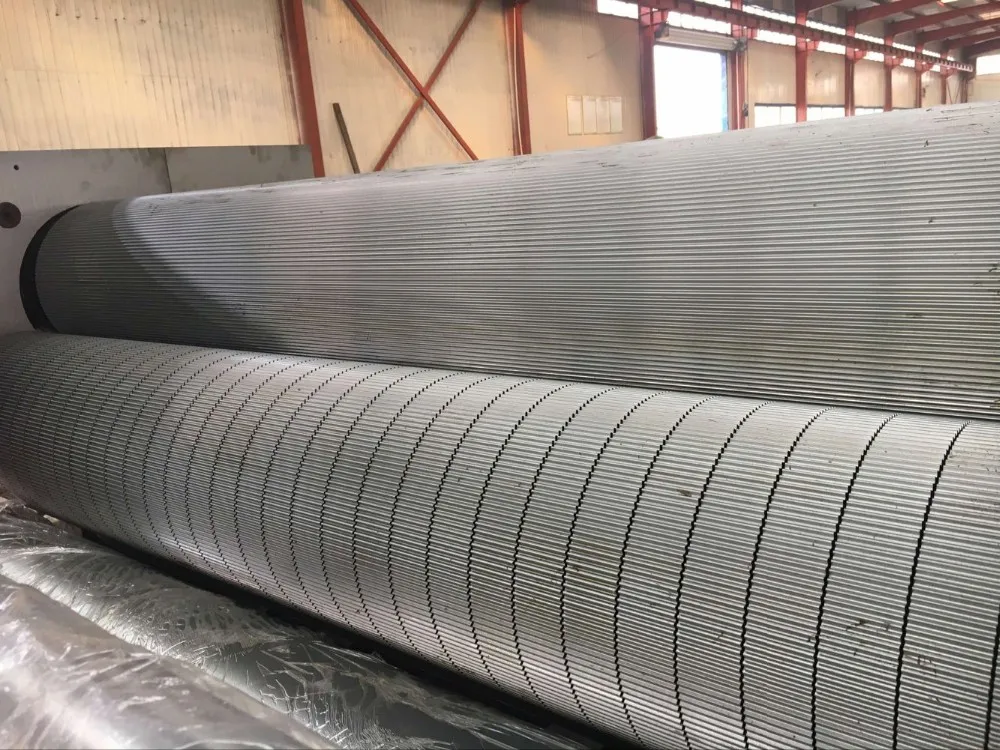

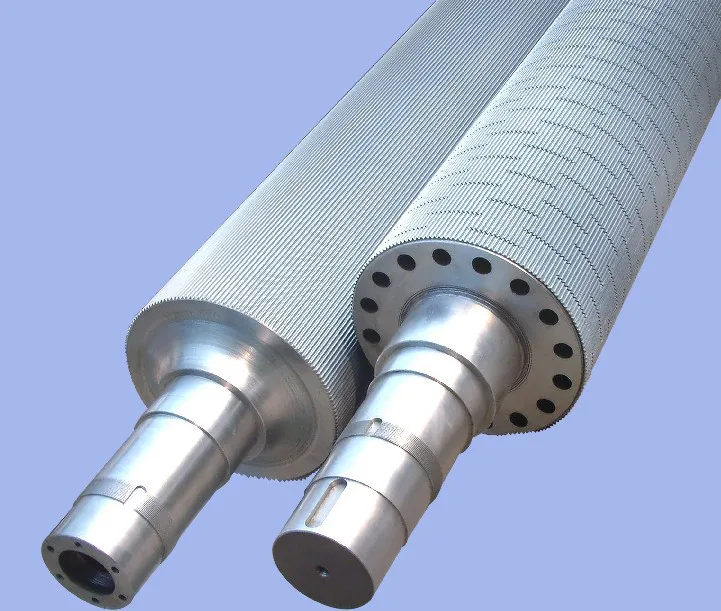

10.the upper-lower corrugaing roller are made of 48 CrMo high quality alloy steel after heat-treatment. the hardness HRC 58-60 degree ,the surface be grinded.
11.the glue part surface are treated by special mesh snicked and chromeplated.
12.motorized or manual glue width dividing to match the paper width.
13.glue part can be running independently or non-independently or non- independently while stooped.
Main parts name | Brand or origin | Material |
Wallboard and base | produced | HT200 |
Transmission box | produced | HT200 |
Rotary joints and metal hose | Tengzhouguanqiu |
|
The main motor | YIDE OF JIANGSU | 5.5KW |
bearing | HA W LO |
|
Insert bearing | WANSHAN OF ANHUI |
|
High-pressure blower | local |
|
cylinder | local |
|
Electromagnetic valve | Hydraulic FACTORY OF TIANAO |
|
valve of water | BEIJING |
|
Contactor and relays | DELIXI |
|
Based on DONGGUANG CANGZHOU, XINYU CARTON MACHINERY was established in 1990, Mrs Li, the ceo of the company, has always helped inovercoming challenges in the industry. with the rich of experience of around 30 years, we are capable of successfully serving several clients. Quality Assurance At XinYu company, quality is our prime forte. Keeping this in mind, we havedirected all our endeavours to attaining highest level of quality in our products, We have a trained team of quality auditors who take care of quality department. Also, we manufacture our products from the finest qualty of material. Client Satisfation We provide quick solutions to clients for their feedback and queries,Morever,we facilite our client with easy payment modes.


1.We need to test the machine working condition before delivery to customer country.
2.If you need our engineers install and teach you how to operate machine, we also can send our engineers to your country, but need you bear all fee: tickets, food, hotel and salary.
3.Our machine has one year warranty, during this period, if problems caused by our machine quality, we will change all parts for you by free fee. If any questions, send me email by 24 hours, we also help you solve these problems.
1)Q: Are you a factory or trading company?
A: We are a manufacture which is specialized in the production of various kinds of carton equipment for 3o years. (with export license)
2)Q: What are your products?
A: We are specialized in producing 2ply, 5ply, 7ply corrugated cardboard production line, high speed printing machine, ordinary printing machine, single facer, rotary die cutter and other corrugated cardboard production equipment.
3)Q: How does your factory do regarding quality controlling?
A: Over the years our company take"the quality first"integrity-based corporate purpose always meet user's requirements as our sole purpose providing the products with excellent quality, professional technology. always attach great importance to quality controlling from the very beginning to the very end.
a.All raw material we used are environment-friendly.
b.Skillful workers care every details in handling the product and packing process.
c.Quality control department specially responsible for quality in each process.
4)Q: What is the payment terms?
A: T/T, it is 3o% deposit due at placing order and 7o% balance due before loading, or L/C.
5)Q: What is your warranty?
A:12months after the date of installation for mechanical parts, electric parts(expect easily damaged parts under the normal use). within the guarantee period, if the parts failed due to the manufacturing cause, the seller shall send the replacement parts free of charge. otherwise the buyer shall pay for the cost of replacement parts.
