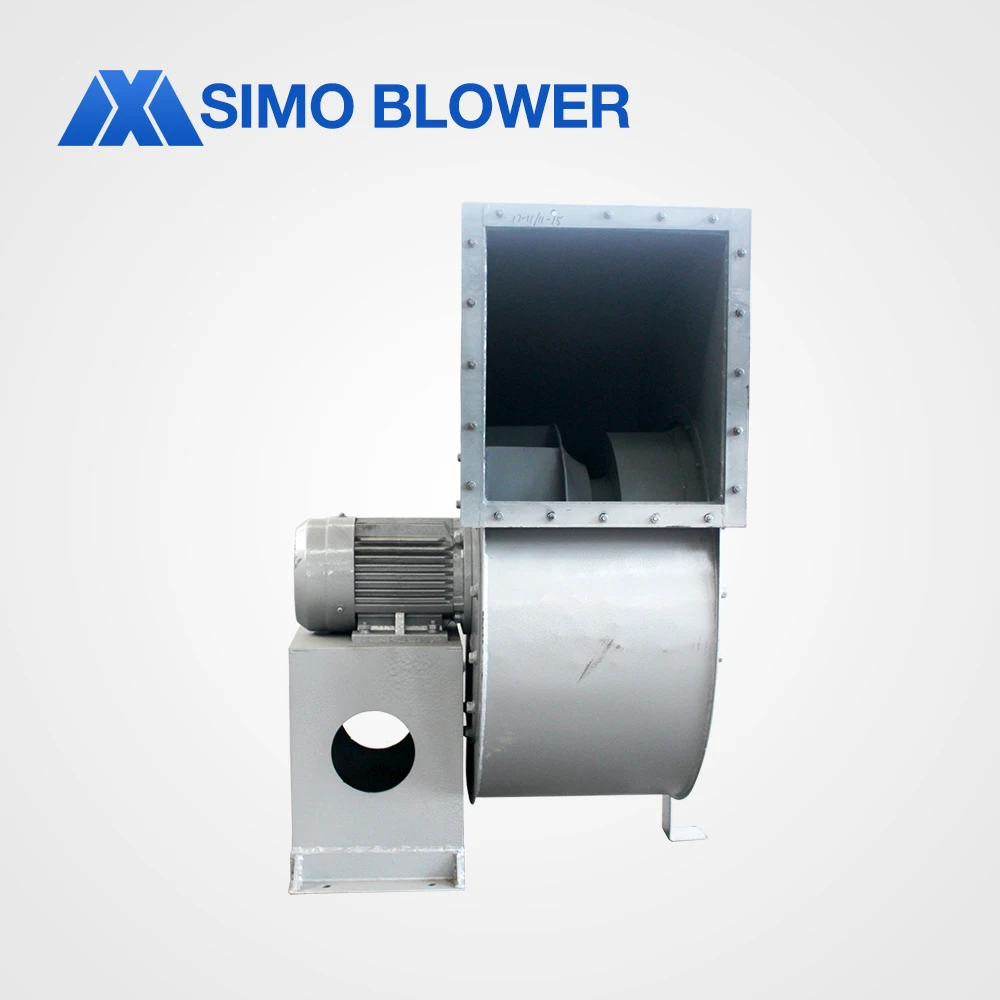

ISO Standard High Flow Emission Gas Hot Air Blower
- Category: >>>
- Supplier: Xinxiang Simo Blower Co. Ltd.
Share on (60766773634):
Product Overview
Description

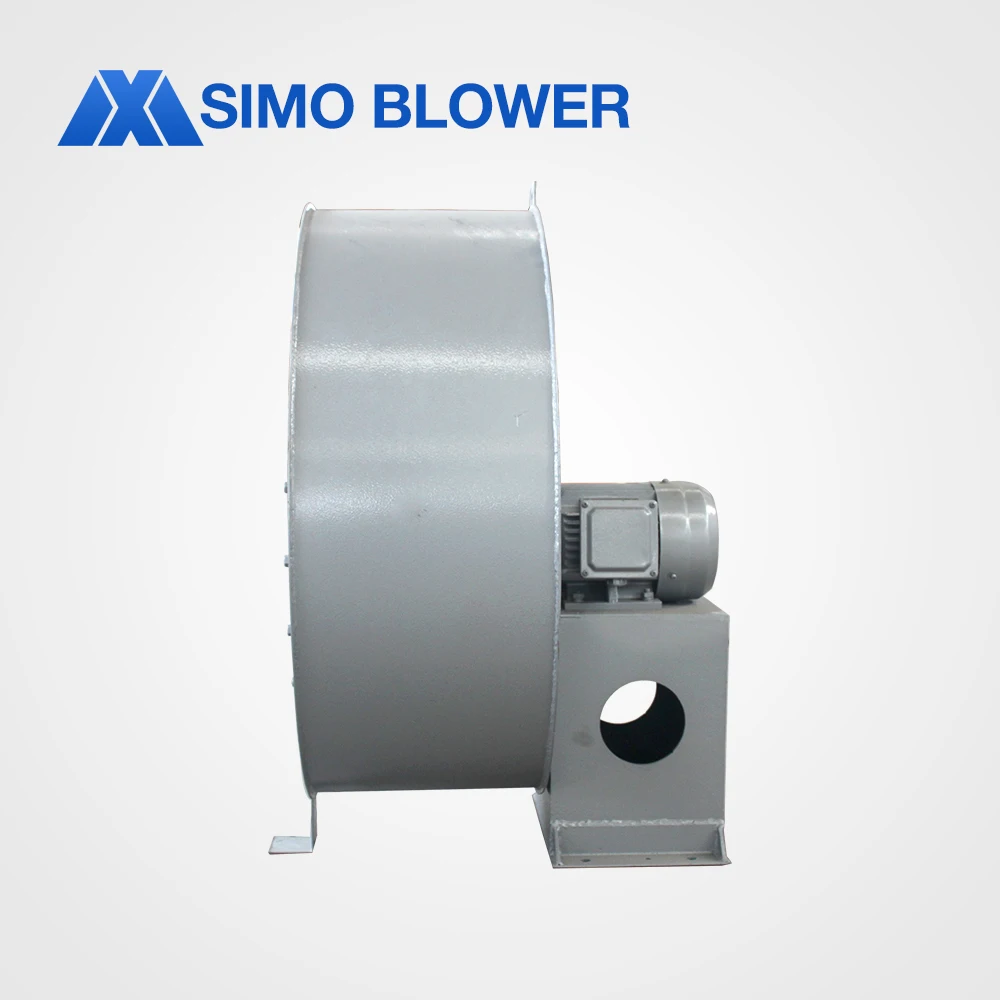

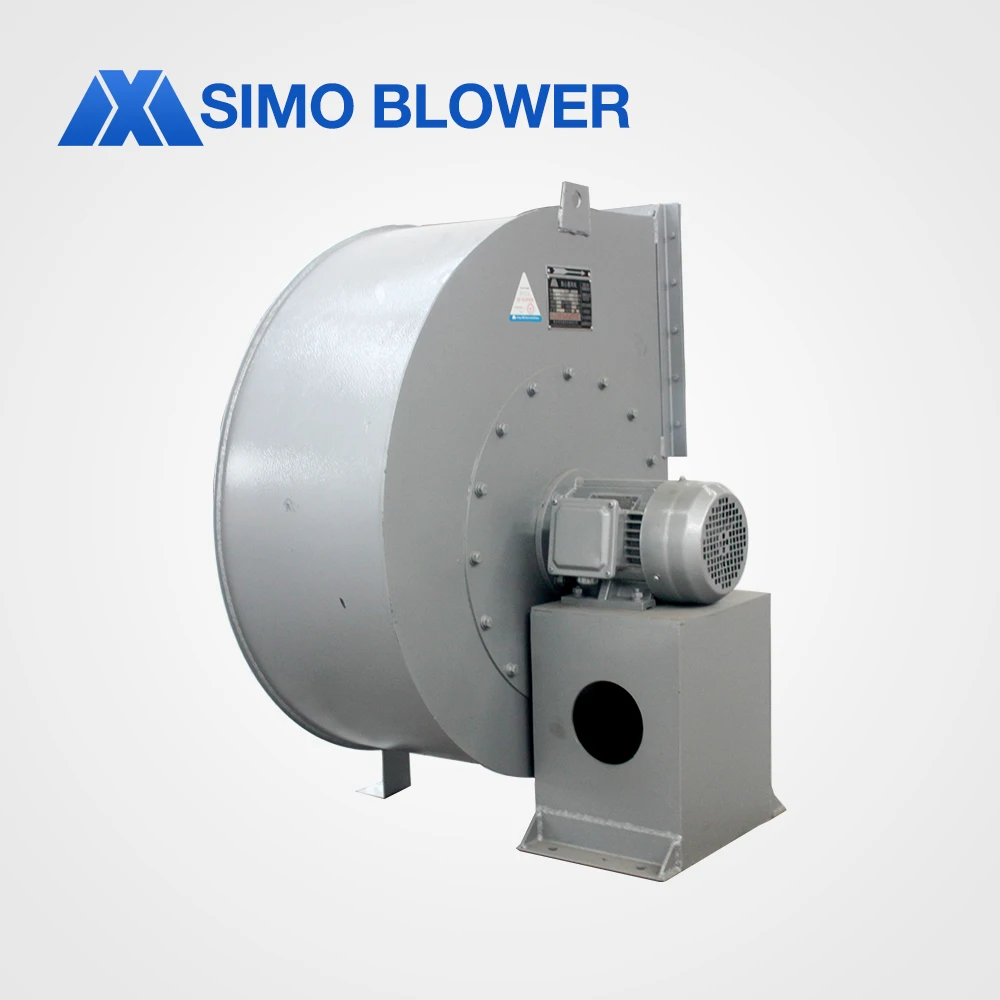

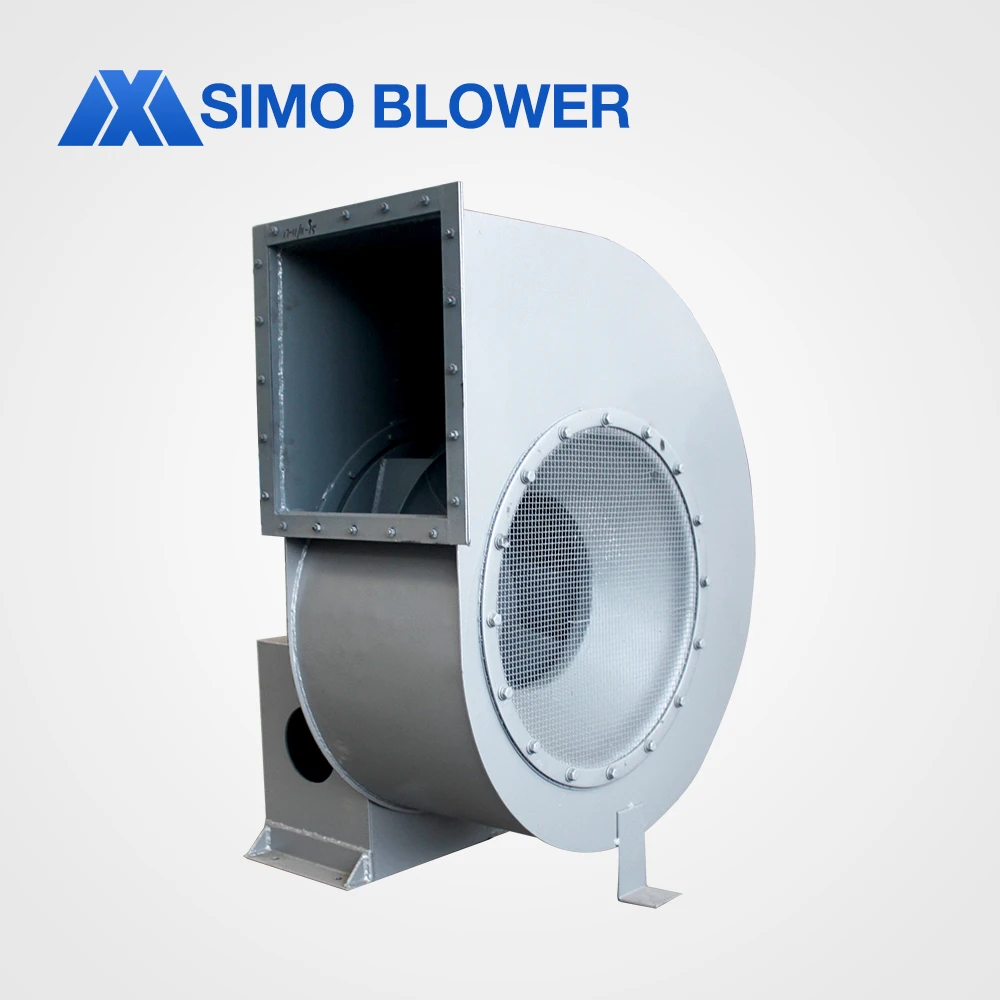

ISO Standard High Flow Emission Gas Hot Air Blower
Product Description
1. The air flows into the air inlet cone to generate air energy by the rotation of the impeller. The air is radially output along the casing, then sent out from the air outlet cone of the centrifugal fan.

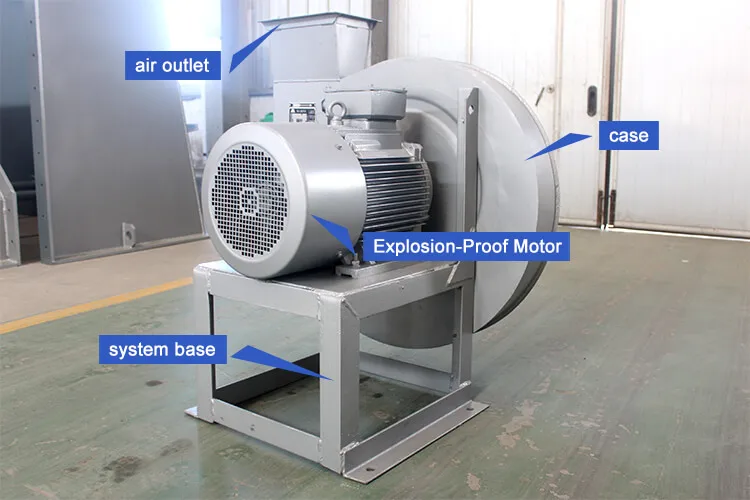

2. The components of centrifugal fan: Casing, impeller, motor and base.
Performance
| ISO Standard High Flow Emission Gas Hot Air Blower | |||
| Performance | Pressure range | 198 ~1300 | Pa |
| Air flow range | 844 ~ 3517 | m3/h | |
| Impeller diameter | 320 | mm | |
| Speed | 1450 ~ 2900 | rpm | |
| Material | High flow air blower case | Q235, Q345, stainless steel | Design as special |
| High flow air blower shaft | 45# steel, Q304, SS304,SS316L | ||
| High flow air blower impeller | Q304, 12Cr1Mov,15Crmov, 15MnV | ||
| Medium | 10---120℃ | Dustiness<80 g/m3 | incombustible |
| Motor | Siemens, ABB, WN, SIMO, LA | IP 54,55,56 | 3 phase |
| Optional components | System base frame, inlet & outlet flange, damper, electric actuator. Lube system, overhead lube tank. System monitoring instrument, vibrating sensor. (Machine accessories customized according to customer request) | ||
Application

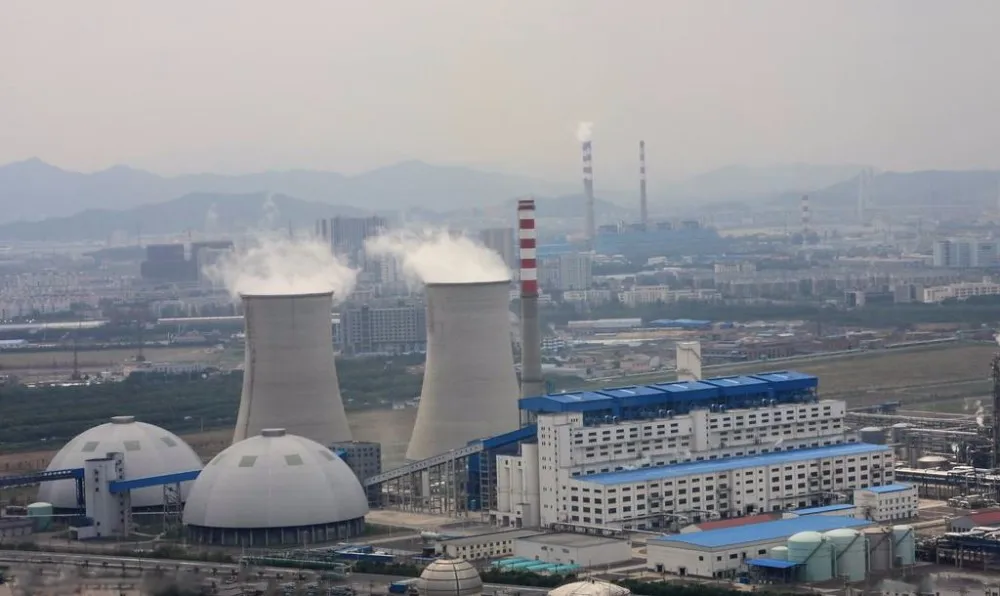

 | Power Generation |
| biomass energy | |
| coal furnace | |
| waste incineration |

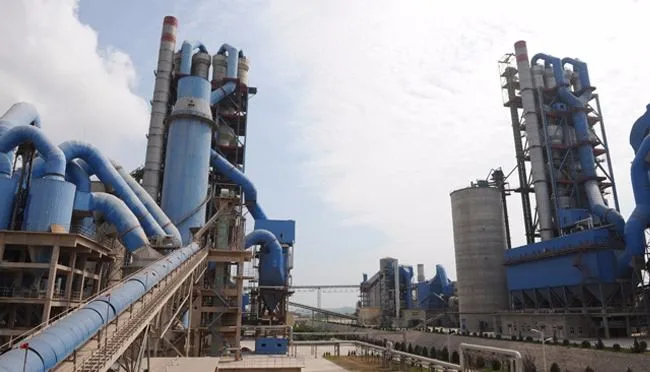

| Building materials |  |
| Cement mill | |
| Glass product | |
| Brick klin | |
| mineral waste esidue |

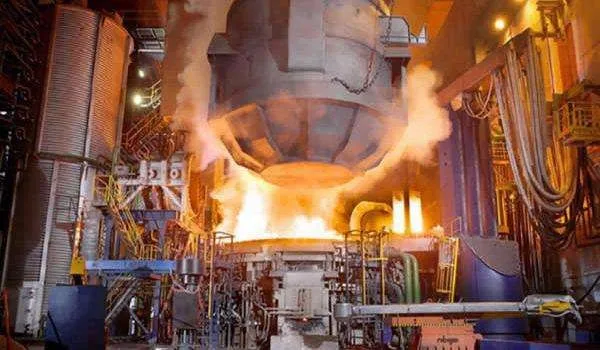

 | Metallurgy |
| coke blast-furnace | |
| steel-making | |
| electrolytic aluminium |
Our Services
 |  |  |
1. Professional technical team 2. Design the centrifugal fan as your requirement 3. Intelligentialize---high accuracy |

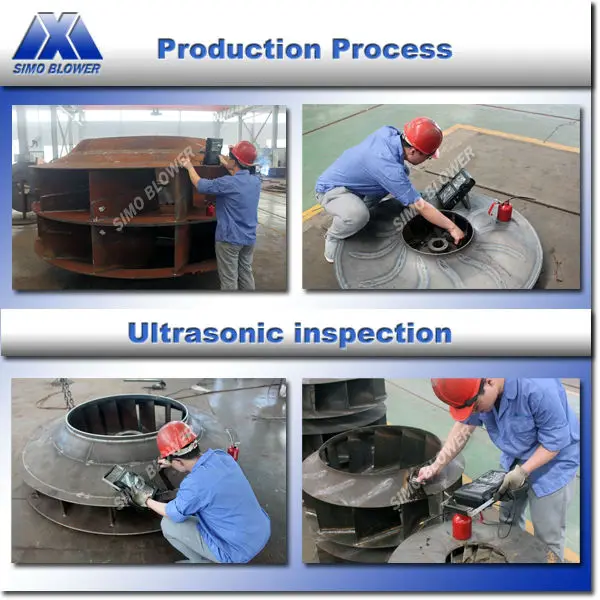

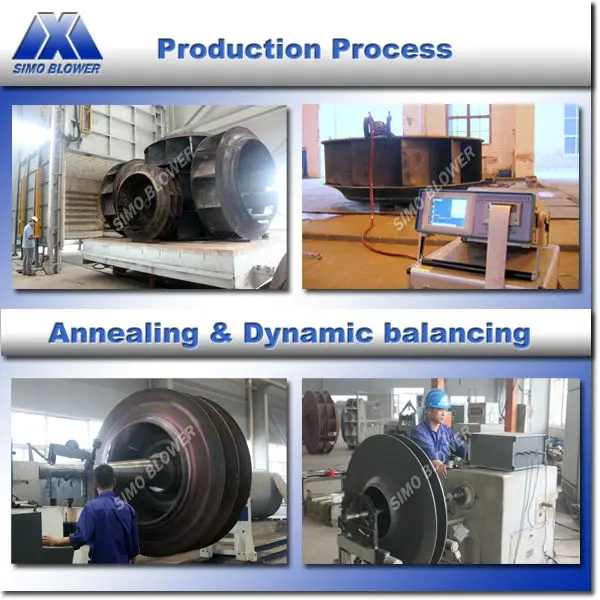

1. Advanced equipment 2. Different size (40mm---2600mm) 3. Anneal, gain impeller and welding line strength | 1. Quality assurance 2. Data as evidence 3. 7x24 online |
Packaging & Shipping
Packing detail:ISO Standard High Flow Emission Gas Hot Air Blower is packed by wooden case and steel pallet
Delivery detail: 25 days after order
Related product
Company Information
Xinxiang SIMO BLOWER Limited Company which was founded in 1995, mainly designs and manufactures Centrifugal fans and Axial flow fans which are applied to industrial systems, which is the senior member of China General Machinery Industry Association. SIMO BLOWER is one of the main large fan manufacturers in Central China, which covers an area of 100,000 square metres, owns more than 200 employees and the production capacity of 15000 sets one year.
There is an advanced Air flow Test Laboratory in our company. We master mature fan designing, testing, manufacturing technology, and can design and manufacture multipurpose fans according to users' requirements. So, we are able to meet users' complex and professional applications. SIMO BLOWER's products have been widely used in thousands of customers' industrial systems, such as Coal-fired power, Metallurgy, Papermaking, Cement and Glass production, Chemical industry, Material handling, Sewage treatment, Waste incineration, Subway ventilation, Industrial boiler and Dust removal systems etc.
