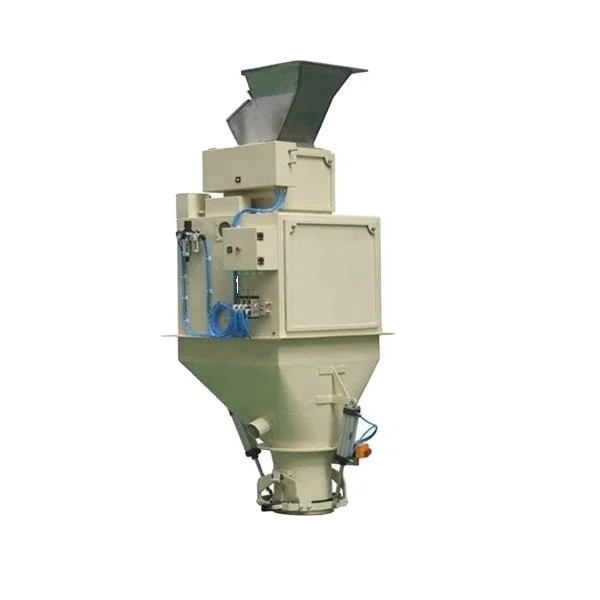

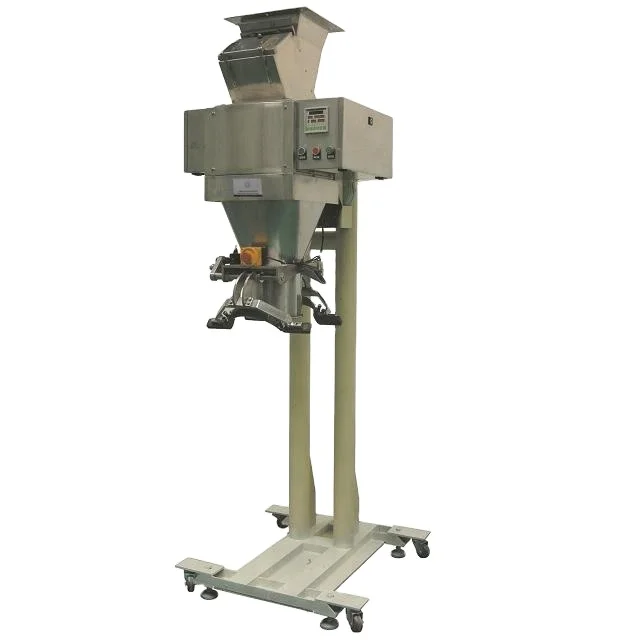

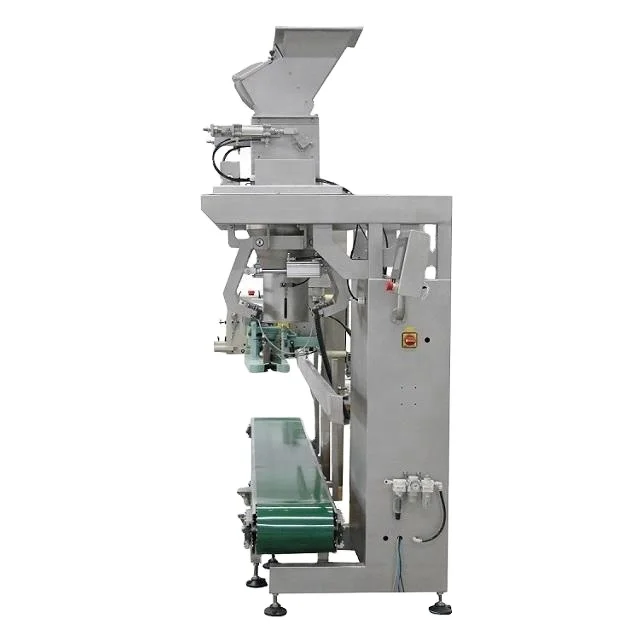

Packing machines for 25/50 kg bags caustic soda flakes
Packing machines for 25/50 kg bags caustic soda flakes
Packing machines for 25/50 kg bags caustic soda flakes
Packing machines for 25/50 kg bags caustic soda flakes
Packing machines for 25/50 kg bags caustic soda flakes
Packing machines for 25/50 kg bags caustic soda flakes

Packing machines for 25/50 kg bags caustic soda flakes

Share on (60766789949):


Price:

Quantity:


Product Overview

Description


Packing machines for 25/50 kg bags caustic soda flakes feed acking machine.jpg



Product information


Part 1:Brief description


This semi-automatic packing scale can be supporting for measuring,filling, sealing and conveying if combined with belt conveyor and sewing/sealing machine.
Due to short body and flexible design on out feed filling,it is suitable for pharmaceuticals raw material, grains,animal feeds, coffee beans, plastic pellets, sugar, salt ,ect.





Part 2:Specifications










































































SPECIFICATIONS
Model DCS-55A-ZL-DMDCS-55A-ZD-DMDCS-55A-JL-DMDCS-110A-ZL-DMDCS-110A-ZD-DMDCS-110A-JL-DM
Packing Weight5-25kgs20-50kgs
Packing accuracy

≤±0.2%


Filling speed

3-4 bags/min



2-3bags/min


2-3bags/min3-4bags/min2-3bags/min2-3bags/min
Power supply




AC220V/50HZ






AC3800V/50HZ






AC220V/50HZ









AC3800V/50HZ





Total power

0.3 KW



0.6KW


3.6KW0.3KW0.6KW3.6KW
Total weight200KGS240KGS400KGS280KGS350KGS520KGS
Overall dimensions(mm)

630*800*1230



750*800*1350


1500*800*1300680*850*1350800*850*14802000*850*1600

Working Process:



  • An empty bag manually put onto the filling spout and bag clamp, the filling cycle acts ;

  • There is a buffer hopper above the bag clamp, the gravity feeder will fill the material into it;

  • When the weight close to the target value, the fast feeding will stop , meanwhile the slow feeding continues filling till it reached the target value , it stops , so that to keep the high packing accurate;

  • Empty bag will be filled with already weight products which stored in the buffer hopper ;

  • When filling complete, the operator is alerted and the bag was detached from the bag clamp and filling spout;

  • Filled bag was transported to next position to sealing .






Application & package sample





1

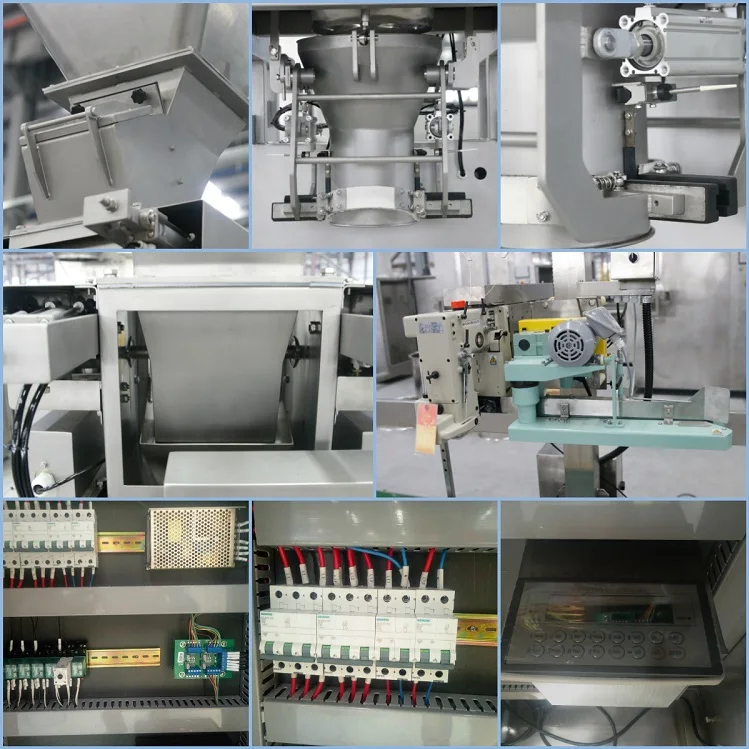

Part 3:Detailed images








Part 4:Project case

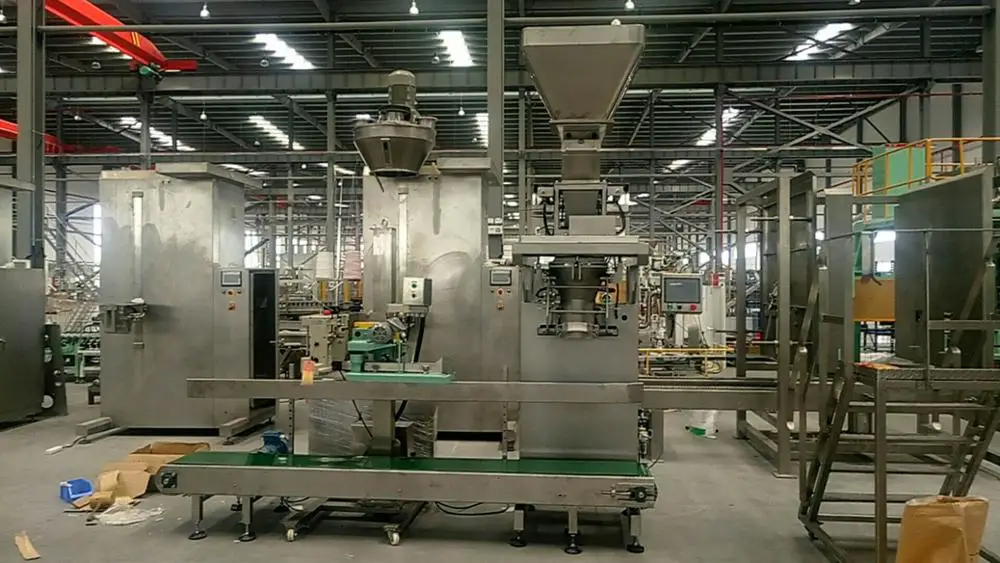

animal food packing machine

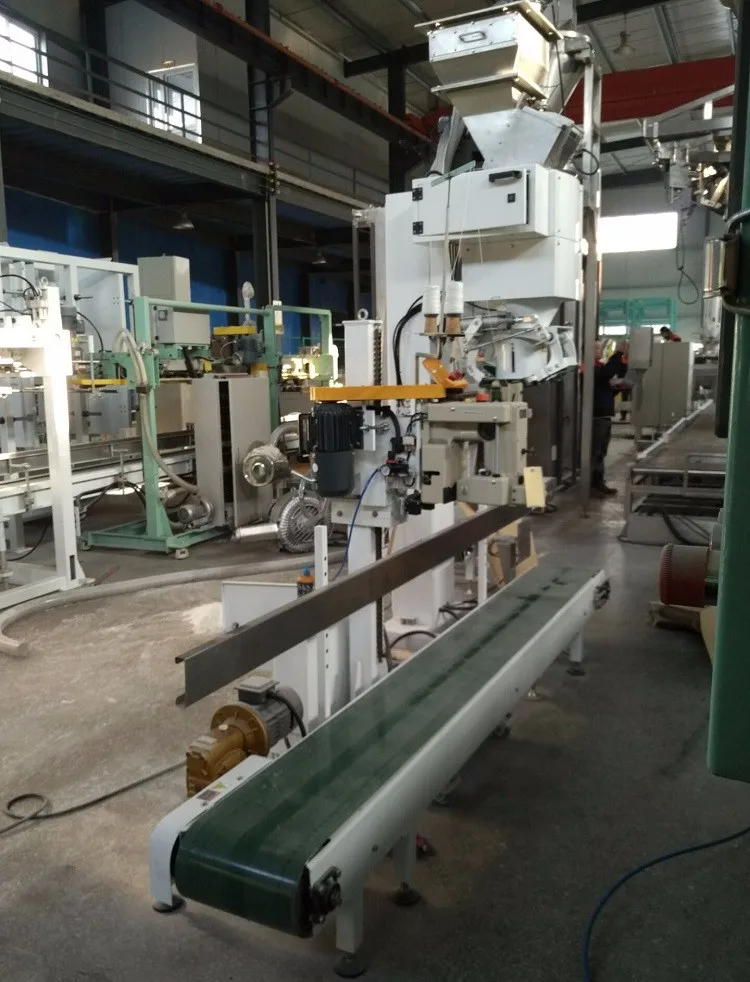

gravity type packing machine

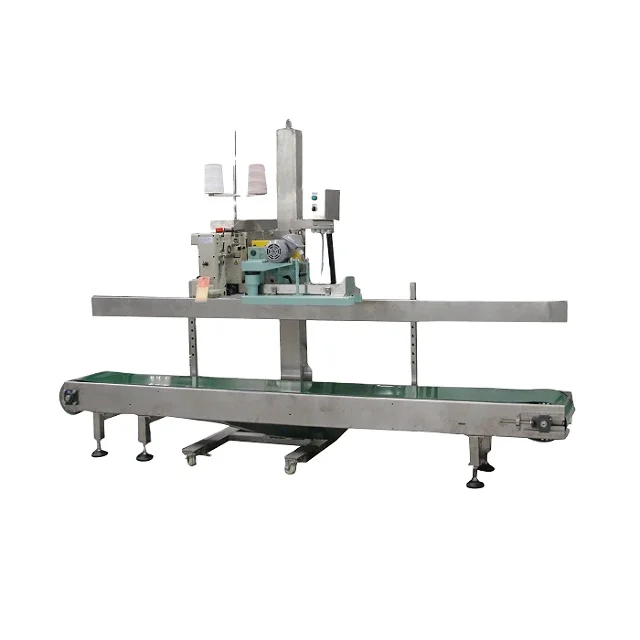

bag sewing machine

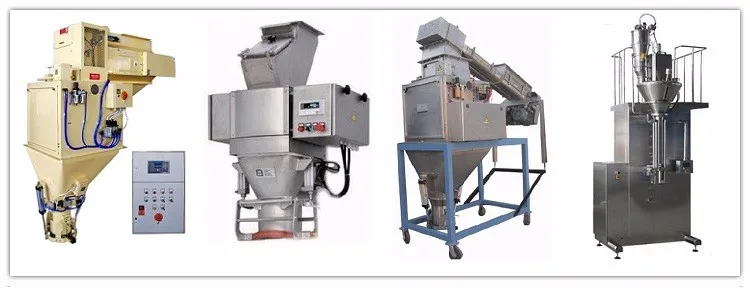

Part 5:You may like


.jpg

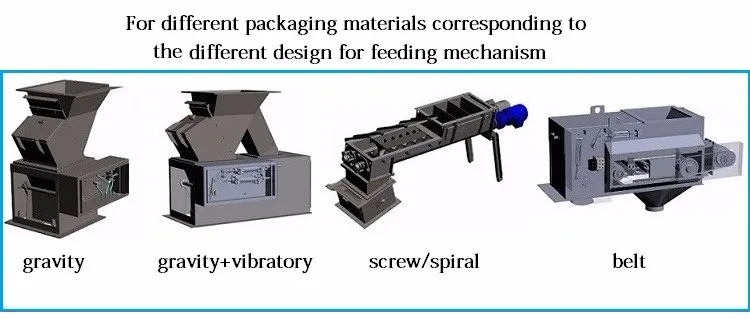

feeders 1



Company information


Part 1:Company profile


company


 Shanghai Jinbao Packaging Machinery Co., Ltd specializes in the production and sale of packaging machine, packaging and palletizing line, big bag automatic weighing packaging production line, particle packing machine, powder packing machine, automatic mixing packaging production line, according to customer requirements the specific system. The products are widely used in chemical, fertilizer feed, pesticide, washing powder, seeds, grain, food, medicine, spices, tea, building materials and other industries, and exported to the Middle East, Southeast Asia, North America, Northern Europe and other more than 10 countries and regions.


our industry


Part 2:Certifications


CERTIFICATION


certification 3


Part 3:Our service





Warranty periaod & After service



  • Life-time warranty.

  • Any problem caused by our party within one year from the date of shipment, we will provide free spare parts for the repairment.

  • After one year, we can provide the spare parts, but the user should pay for the related cost, including cost of the spare parts, delivery cost etc.


Part 4:Packaging & Shipping


photobank


Packaging:



  •   Machine packing inside is plastic films and outside is fumigation wooden case.

  •   Our wooden case is very strong,it can bear long time shipping on the sea.

  •   And machine with preservative film,it can stop the salt sea water enter into the machine and make the machine corrosion.


Shipping:



  • Upon receipt of payment , delivery date will be in 3-15days

  • By Air, by Sea or by Express (DHL etc)

  • Shipment cost will depend on the destination, shipment way,size and the weight of the goods.





FAQ


1.  15 years manufacture experience,strong R&D department ;




2.  Own processing machines makes sure of the product quality and on-time shipping ;


3.  Use world famous brand components to make sure the products' stable and long-time performance ;


4.  One year warranty , lifelong free service ,24 hours online professional technical service .



How to find us


our location





Tips:


In order to let our sales to help you recommend a suitable machine for your packaging project,


please provide detailed information if you can:



  • What exact products going to pack?

  • Packing weights/volume?

  • Bag or other containers type?

  • Bag or other containers sizes?

  • Capacity request per hour or daily?
