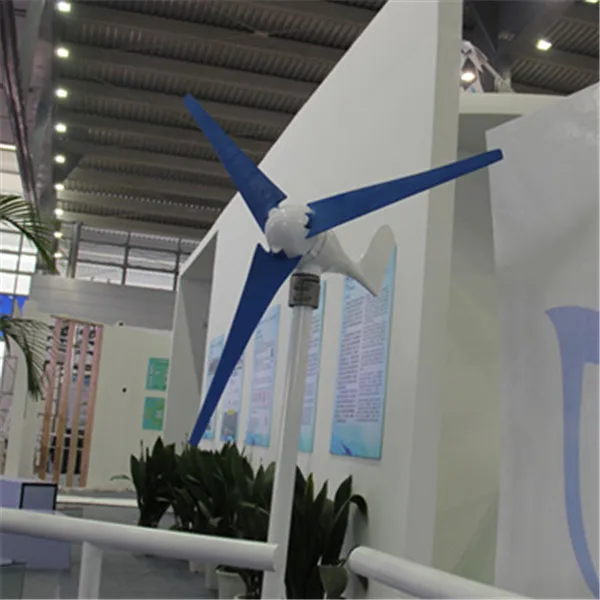

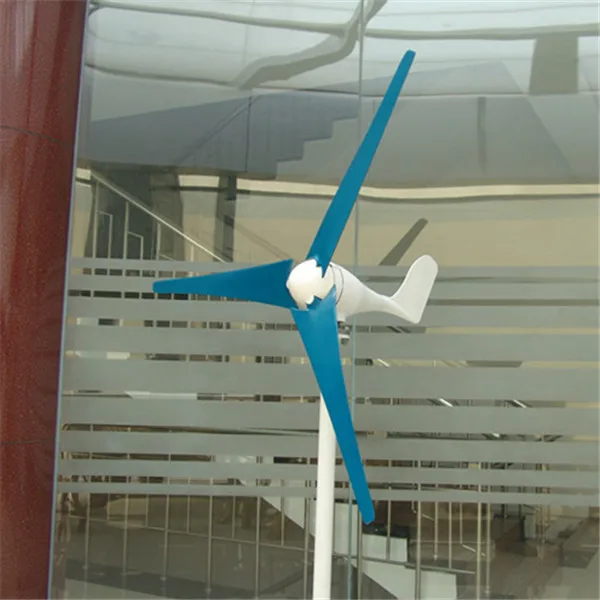

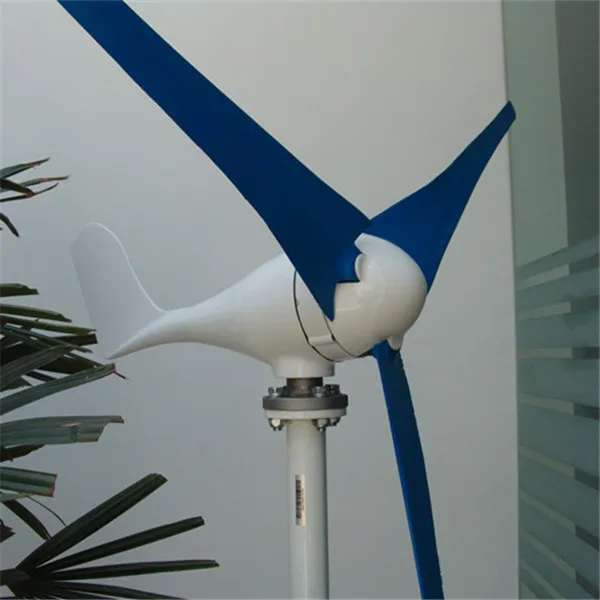

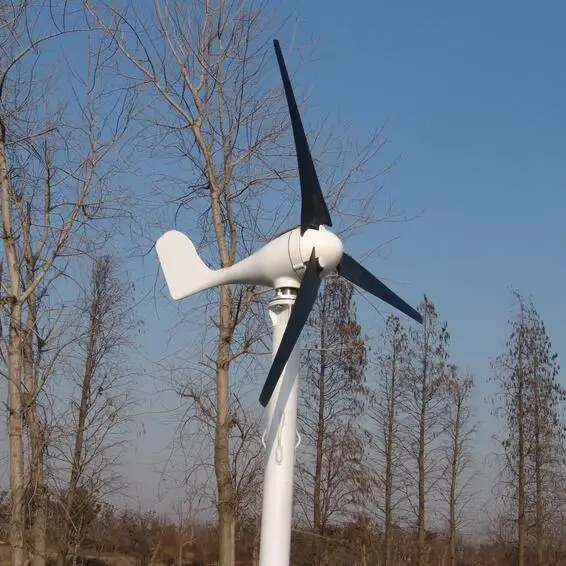

Easy install small wind turbine 300watts
- Category: >>>
- Supplier: Shanghai Laisa New Energy Technology Co. Ltd.
Share on (60766811907):
Product Overview
Description
Product Introduction
1.Low start up wind speed, compact, light, beautiful and with little vibration.

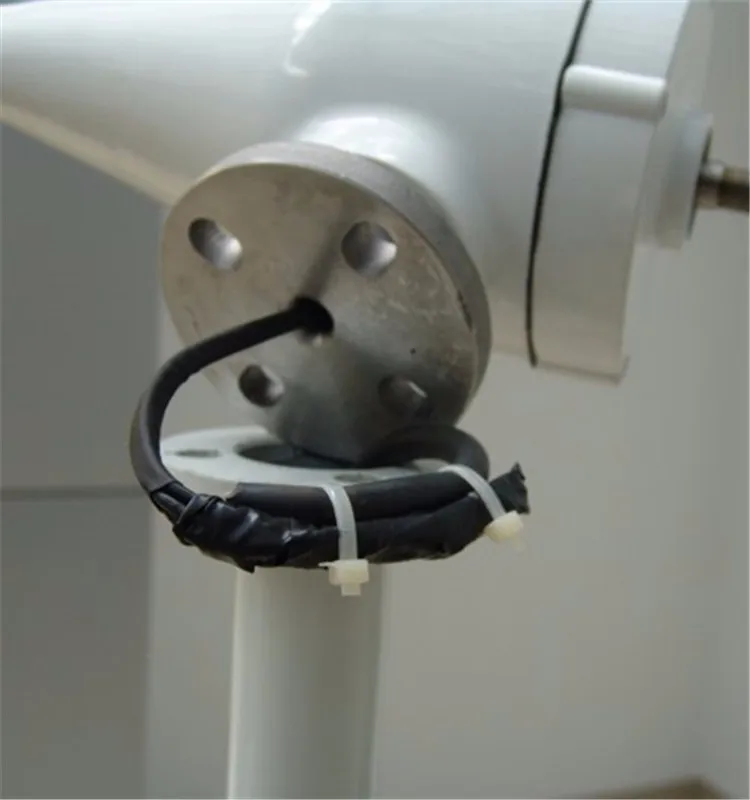

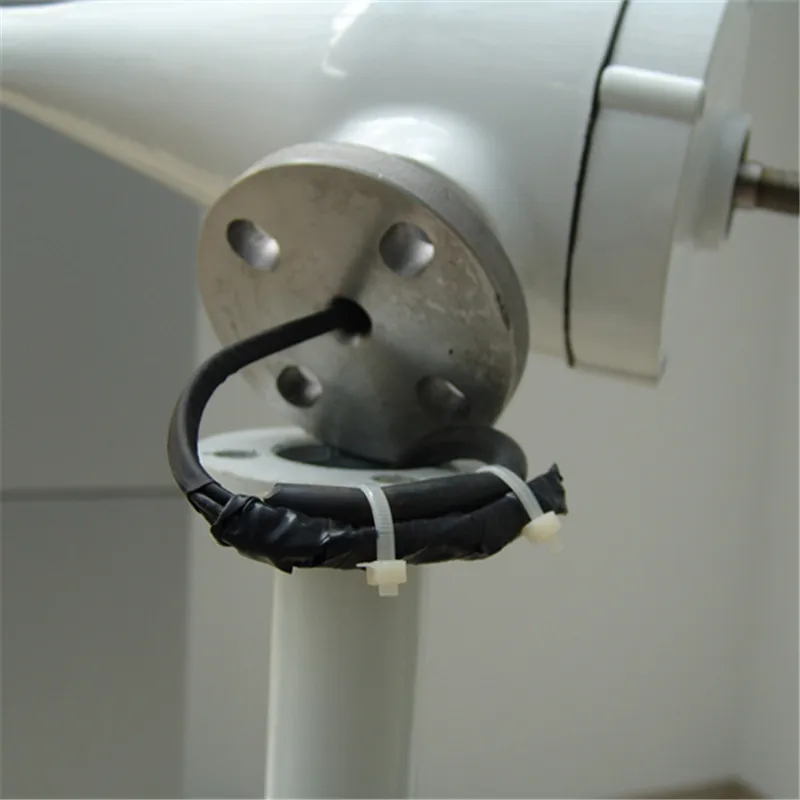

2.Easy installation, flange connection.

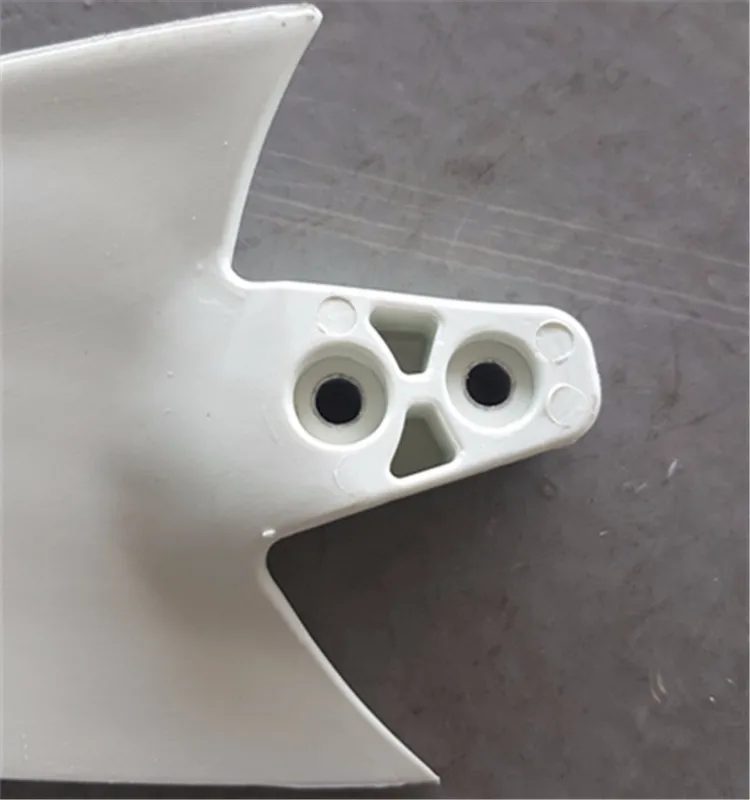

3.Casting aluminum alloy body, blades using new art of precision injection molding ,
matched with optimized aerodynamic shape and structure,which enhance the wind energy utilization and annual output. 4.Patented permanent magnet ac generator with special stator,effectively reduce torque, make only 1/3 torque of ordinary
generator,well match the wind wheel and generator, and ensure the performance of whole system. 5.Adopting MPPT
intelligent micro effectively adjusts current and voltage.
Product Parameters
| Model | LS-300S | |||
| Rated power | 300W | |||
| Maximum power | 310W | |||
| Rated voltage | 12V/24V | |||
| Start up wind speed | 2.0m/s | |||
| Rated wind speed | 13.0m/s | |||
| Survival wind speed | 50.0m/s | |||
| Top net weight | 6.5kg | |||
| Wheel diameter | 1.35m | |||

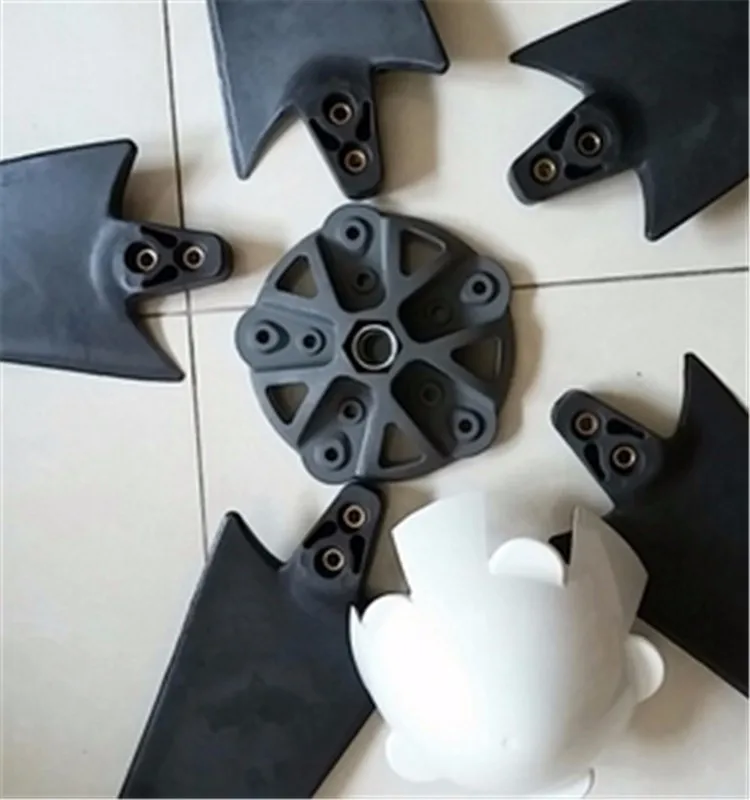

| Blades number | 3/5 | |||
| Blades material | Nylon fiber | |||
| Generator | Three phase permanent magnet ac generator | |||
| Magnetic steel | NdFeB | |||
| Generator case | Die-casting aluminum | |||
| Control system | Electromagnet | |||
| Speed regulation | Automatically adjust windward | |||
| Working temperature | -40℃～80℃ | |||
Product Details Show

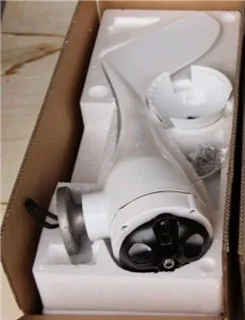

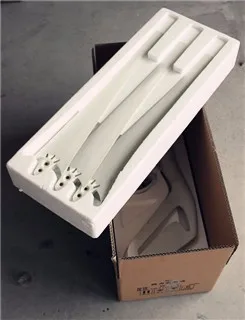

Packing & Delivery
