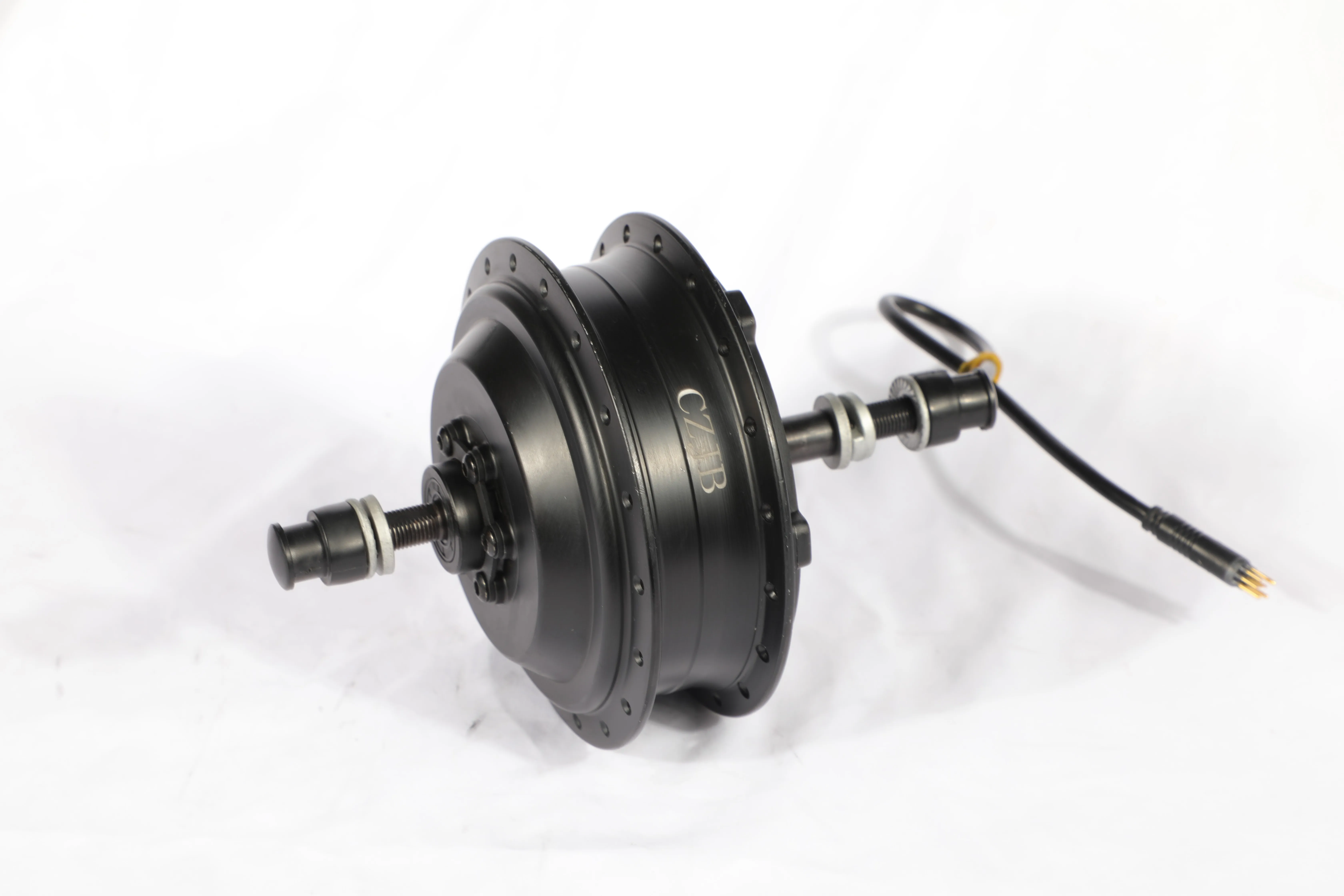

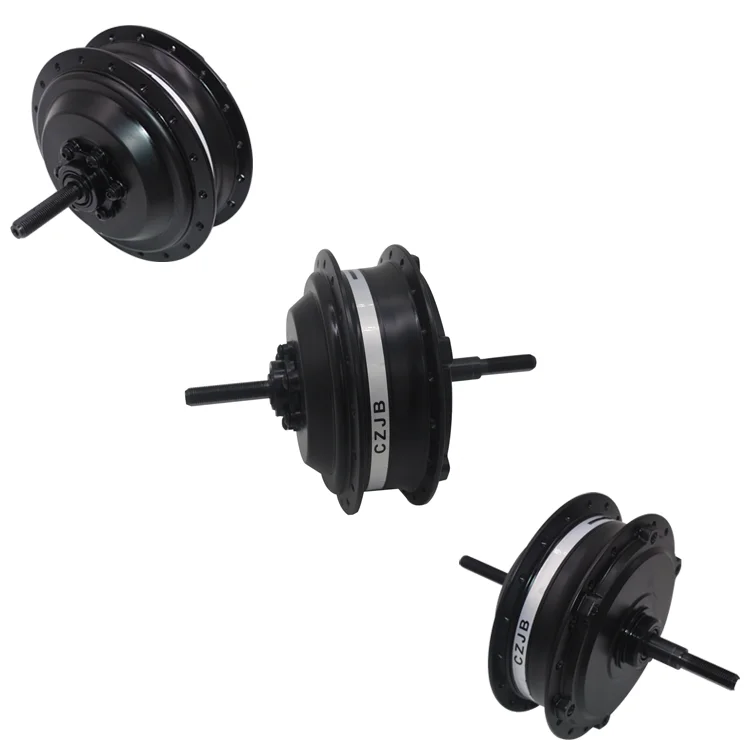

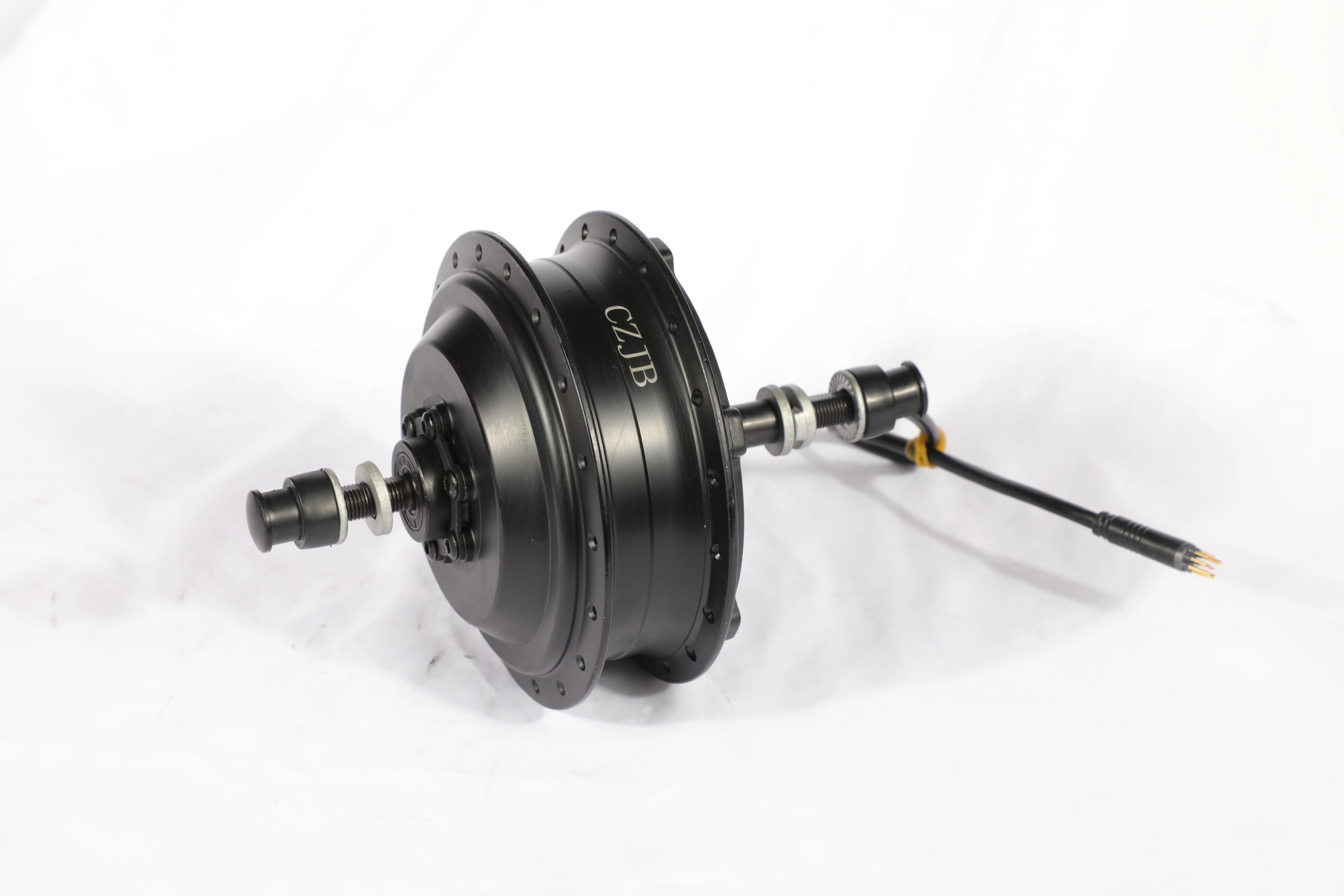

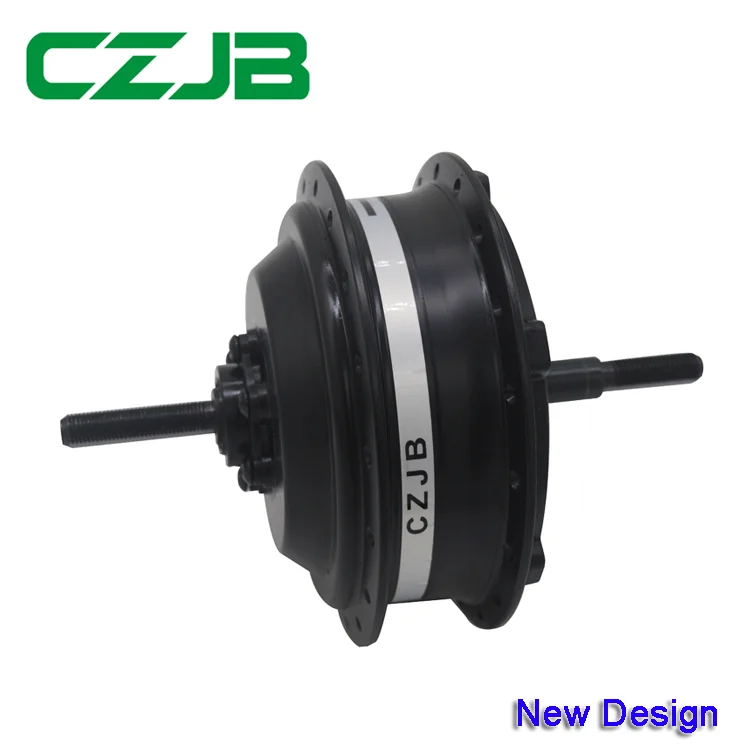

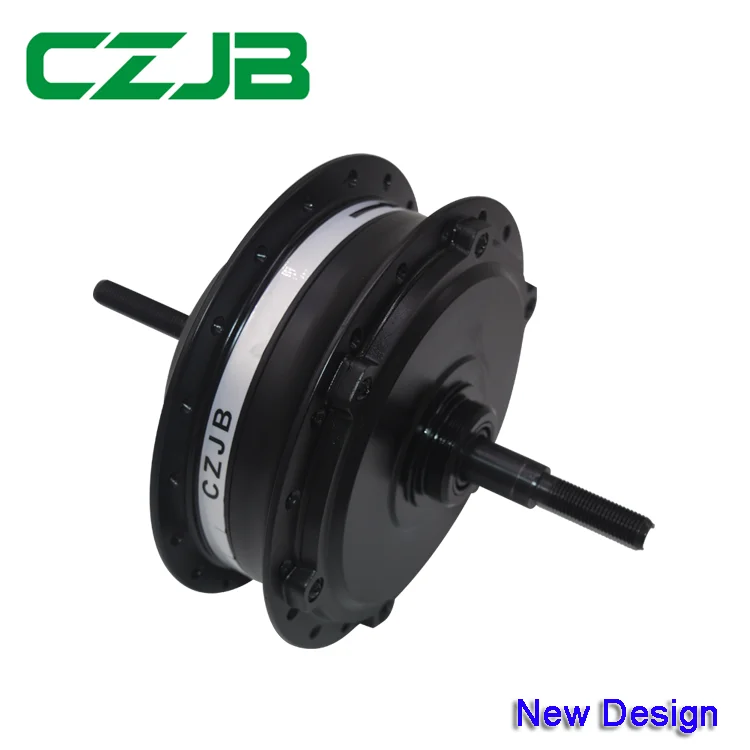

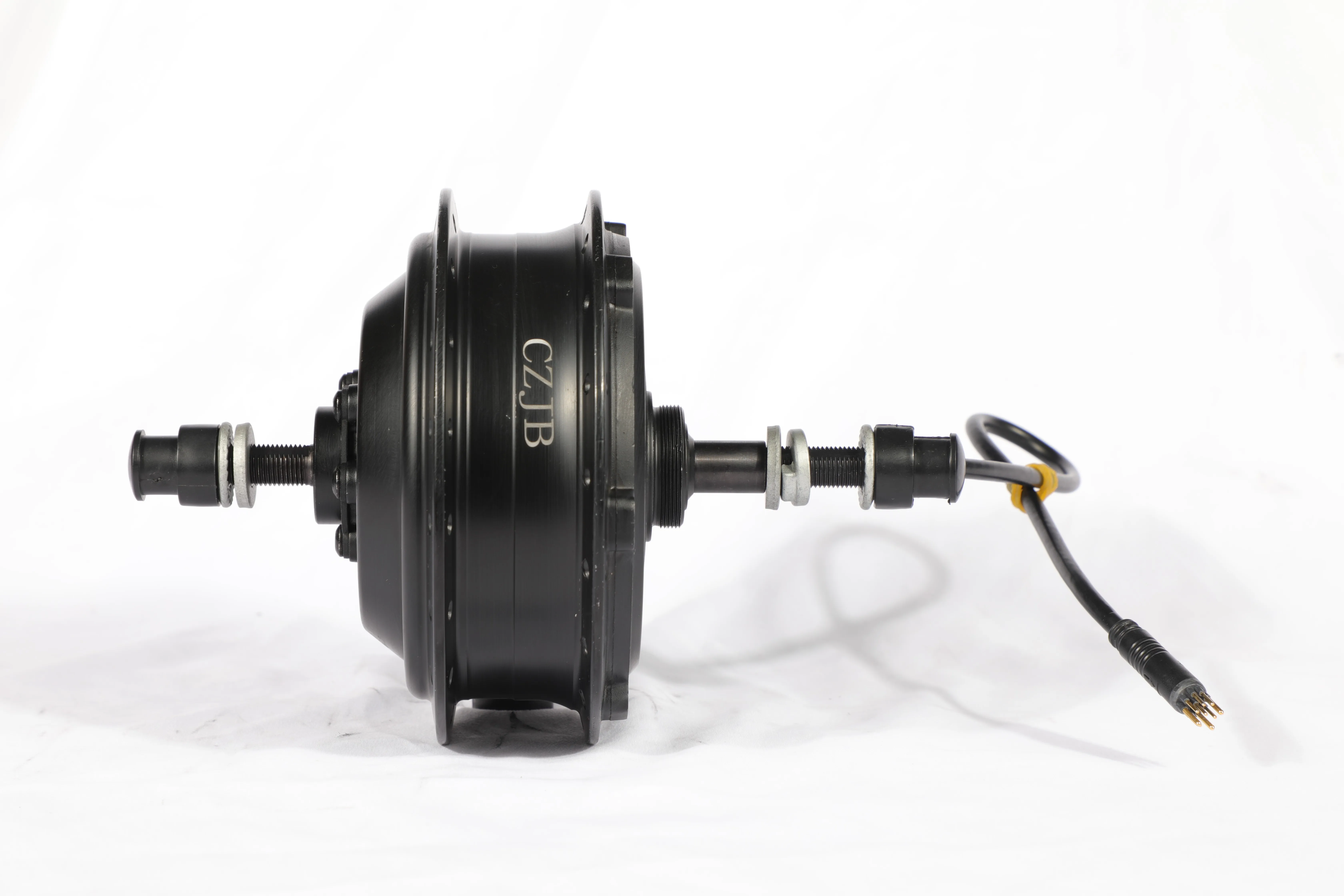

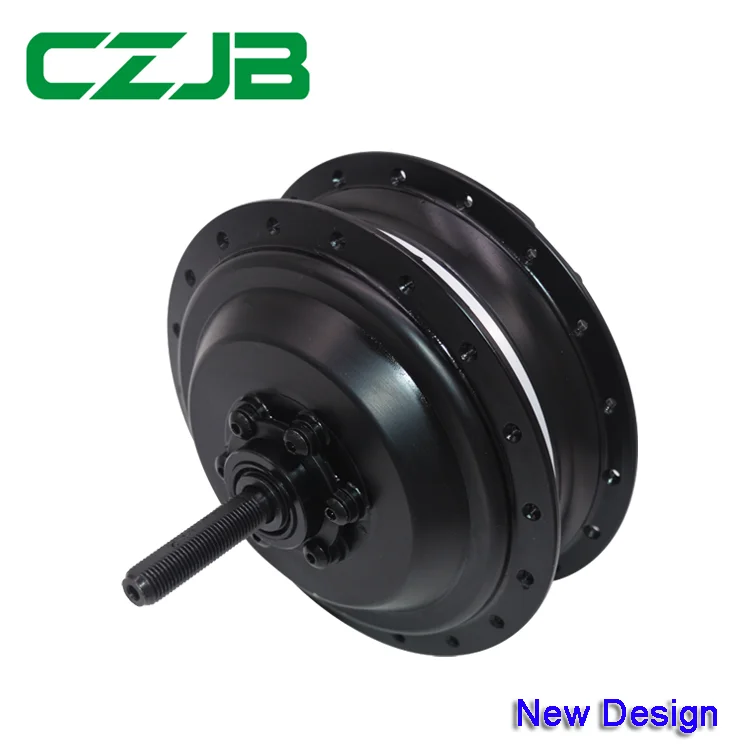

CZJB 105C New 48v 500w Brushless E bike Wheel Hub Motor
- Category: >>>
- Supplier: Changzhou Jiabo Machinery Manufacturing Co. Ltd.
Share on (60766815673):
Product Overview
Description
Products Paramenters
105C 500W high speed electric bike motor | ||
Rated Voltage(V) | 24/36/48/60 | |
Rated Power(W) | 250-500W | |
Rated Speed(km/h) | 25 | |
Temperature(℃) | -20～45 | |
Rated Efficiency(%) | ≥82 | |
Hall Sensor | Optional | |
Integrate Speed Sensor | Optional | |
Color | Shining/Black/Silver | |
Wheel Size | 16"-28" | |
Redution Ration | 1:5.8 | |
Weight（kg） | 3.5 | |

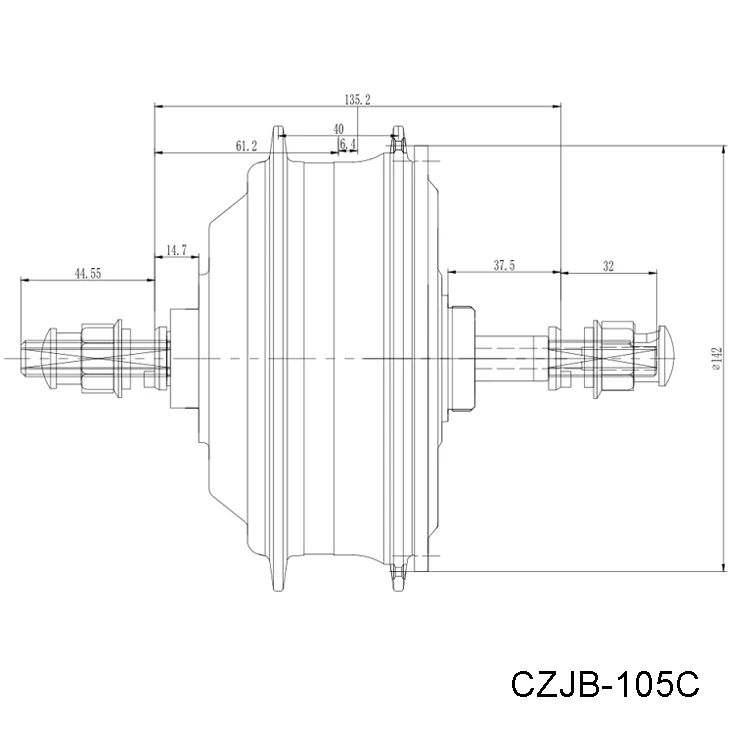

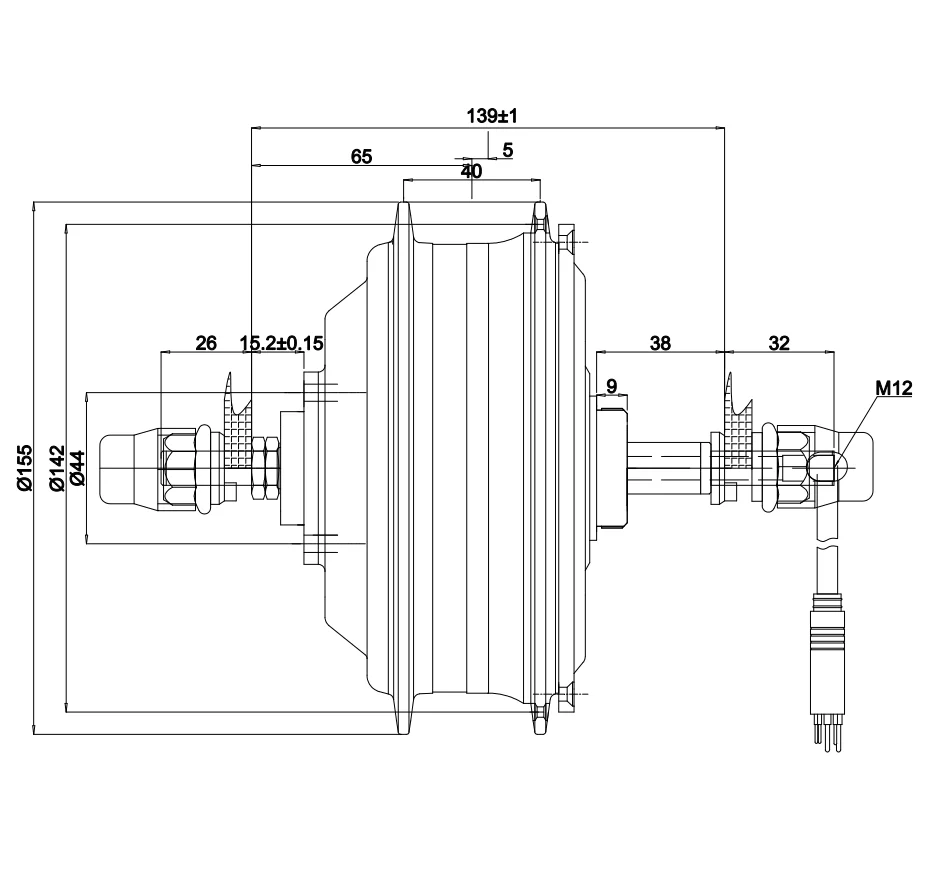

Open Size(mm) | 139 | |
Max torque(N.m) | 40 | |
Freewheel | 6-7s | |
Cable Location | Shaft Center Right | |
Spoke Specification | 36H*12g/13g | |
Brake Type | V /Disc Brake | |
Noise(db) | <55db | |
Waterproof Grade | IP65 | |
Product Advantages

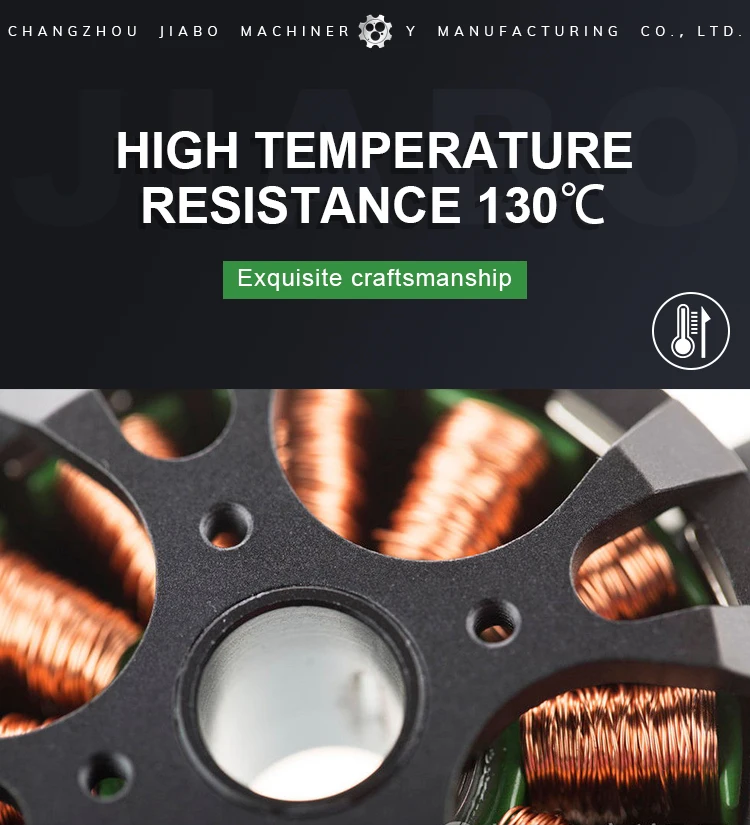

A1:High temperature resistant, pure copper coil, exquisite workmanship and exquisite workmanship.

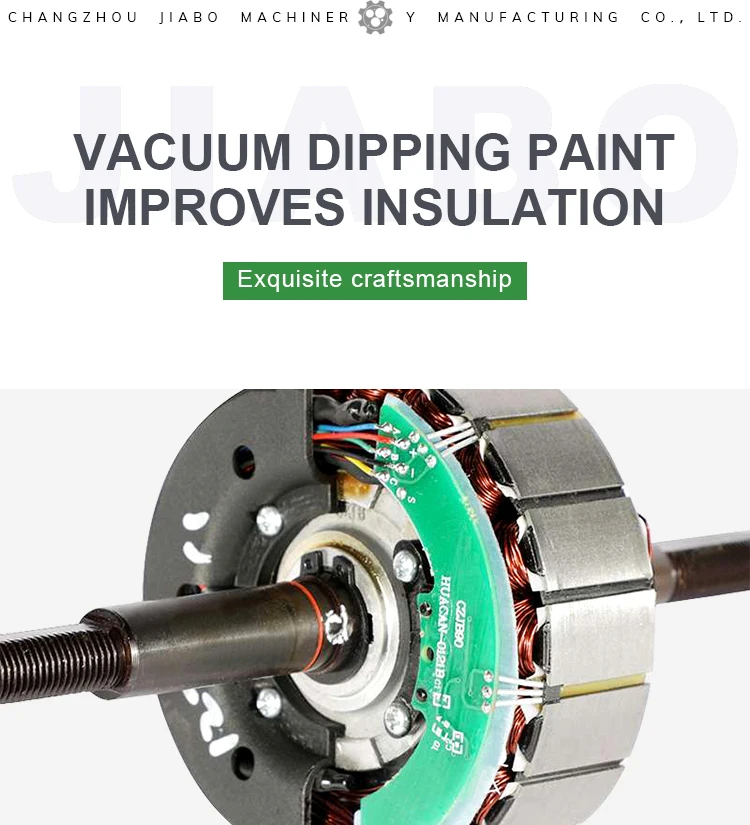

A2:Vacuum dipping paint can improve insulation, reduce vibration, noise and temperature rise, etc. The effect is remarkable, and the service life of products.

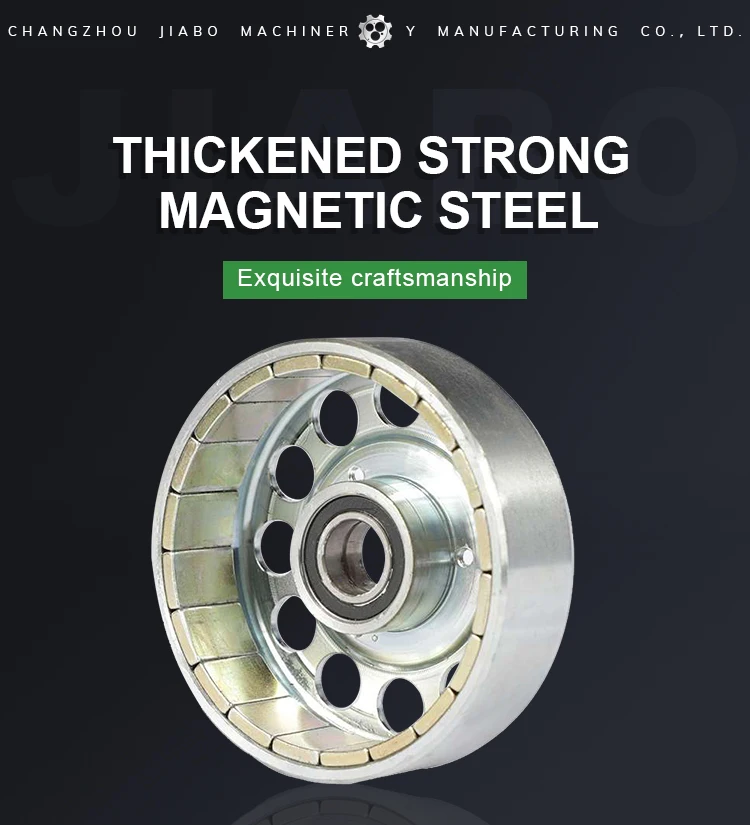

A3:Our bent magnets are made of 38H, with a high temperature resistance of 120 degrees, placed in a 110 ℃ high temperaturebox, constant temperature for 2 hours, demagnetization rate ≤ 2.6%.

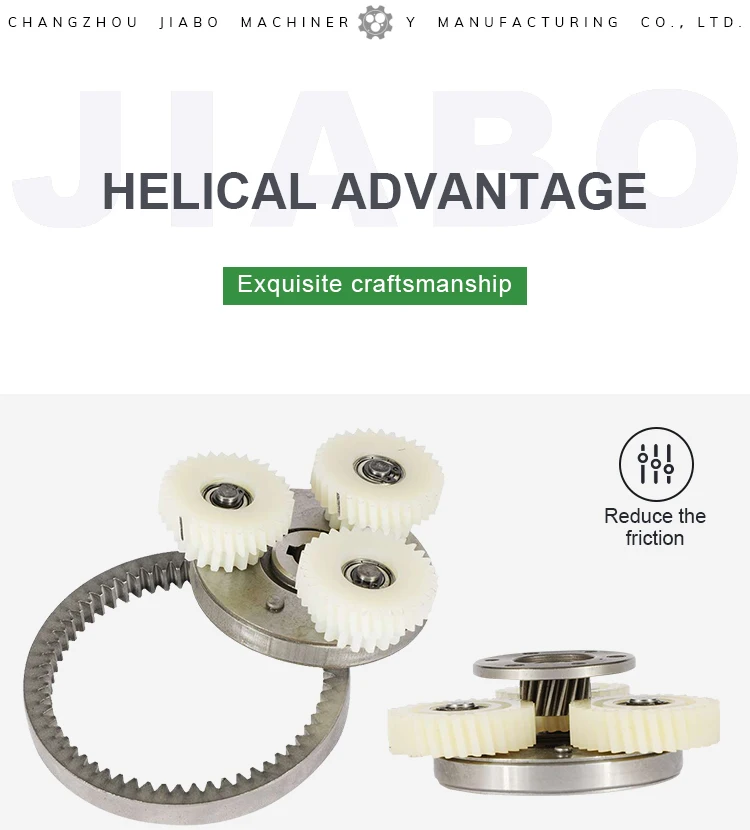

A4:Reduce the gear friction to ensure low noise and strong powerunder load. Applicable models: 75Q, 75T, 75T2, 90T, 90TQ, 90T2, 90TZ,105C,105CQ,105C2,105CZ.
Application
About us
Changzhou Jiabo Machinery Manufacturing Co., Ltd.founded in 2008, concentrates on researching and developing ebikes, lithium electric bike motors, electric bicycle conversion kits and so on. With more than 10 years experience in price and quality..
Jiabo has its own R&D department consist of over 10 senior engineers who guarantee the products' quality and development of new products. Our products exported to many countries and regions around the world, especially America, Europe, the Middle East and South Asia. Our products enjoy good reputation among our customers.
Jiabo, which is a factory with complete after-sale service system. We promise 2 years' warranty. First year, exchanging products for free and second year, maintence free. You only need to do is pay the freight. OEM and ODM is available.
Jiabo has its own R&D department consist of over 10 senior engineers who guarantee the products' quality and development of new products. Our products exported to many countries and regions around the world, especially America, Europe, the Middle East and South Asia. Our products enjoy good reputation among our customers.
Jiabo, which is a factory with complete after-sale service system. We promise 2 years' warranty. First year, exchanging products for free and second year, maintence free. You only need to do is pay the freight. OEM and ODM is available.
Package
Certifications

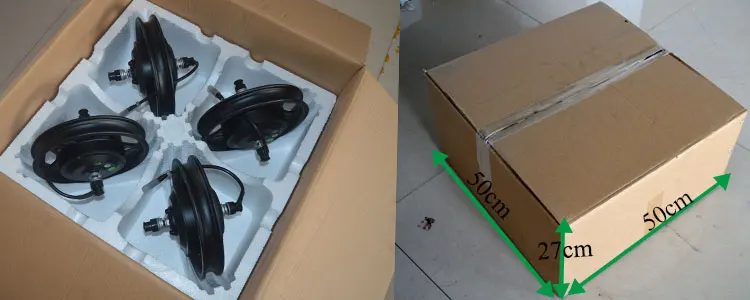

1. Q: What are your terms of packing?
A: Generally, Packaging with foam and makar carton for ebike motors which is suitable for shipping container.
A: Generally, Packaging with foam and makar carton for ebike motors which is suitable for shipping container.
2. Q. What is your terms of payment ?
A: T/T 30% as deposit, and 70% before delivery. 100% for sample.We'll show you the photos or video of the products
and packages before you pay the balance. Or you can come to have a check of it.
A: T/T 30% as deposit, and 70% before delivery. 100% for sample.We'll show you the photos or video of the products
and packages before you pay the balance. Or you can come to have a check of it.
3. Q: Do you test all your goods before delivery?
A: Yes, all products will be tested before delivery.
A: Yes, all products will be tested before delivery.
4. Q: Could you print customer’s logo and information on motors?
A:Yes, OEM and ODM is available for ebike motor.
A:Yes, OEM and ODM is available for ebike motor.
5. Q: Do you accept sample order?
A:Yes, Sample order is available and sample delivery by express such as FedEx, DHL.
A:Yes, Sample order is available and sample delivery by express such as FedEx, DHL.
6. Q: How long is your lead time ?
A:Sample order for e-bike motor is within 15 working days
Sample order for E-bike conversion kit is about 25-30 working days
7. Q: How to confirm the conversion kit fit my bicycle?
The conversion was designed to fit 90% of the bicycles, and you can check your bicycle fork(the two metal pieces that attach the wheel to the bicycle) to be sure. You will need at least 100mm for front wheel and 135mm for rear wheel.
A:Sample order for e-bike motor is within 15 working days
Sample order for E-bike conversion kit is about 25-30 working days
7. Q: How to confirm the conversion kit fit my bicycle?
The conversion was designed to fit 90% of the bicycles, and you can check your bicycle fork(the two metal pieces that attach the wheel to the bicycle) to be sure. You will need at least 100mm for front wheel and 135mm for rear wheel.
