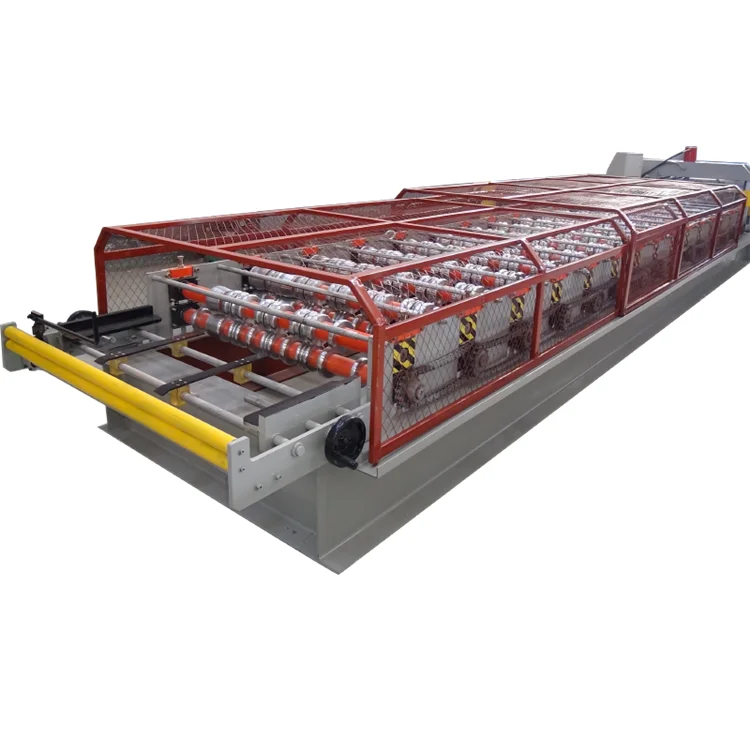

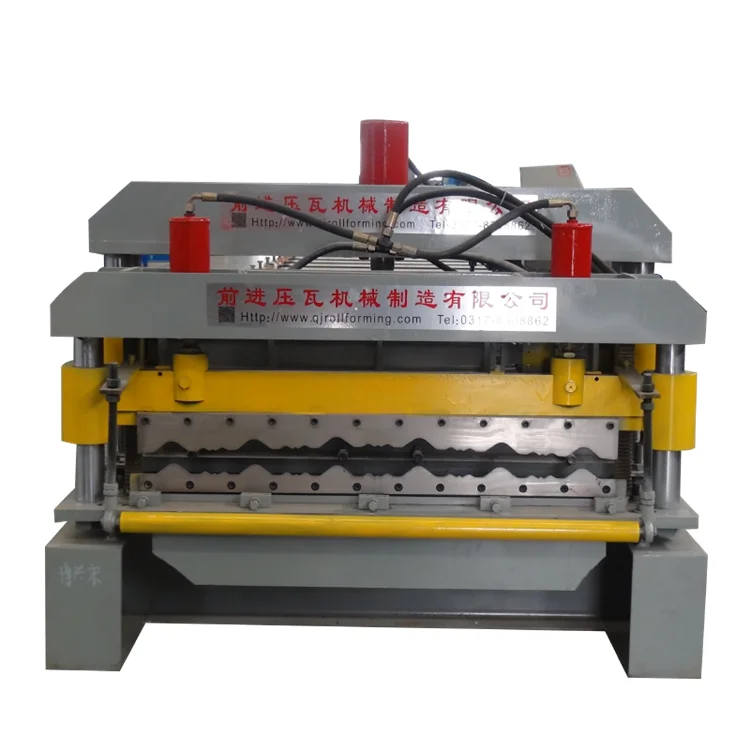

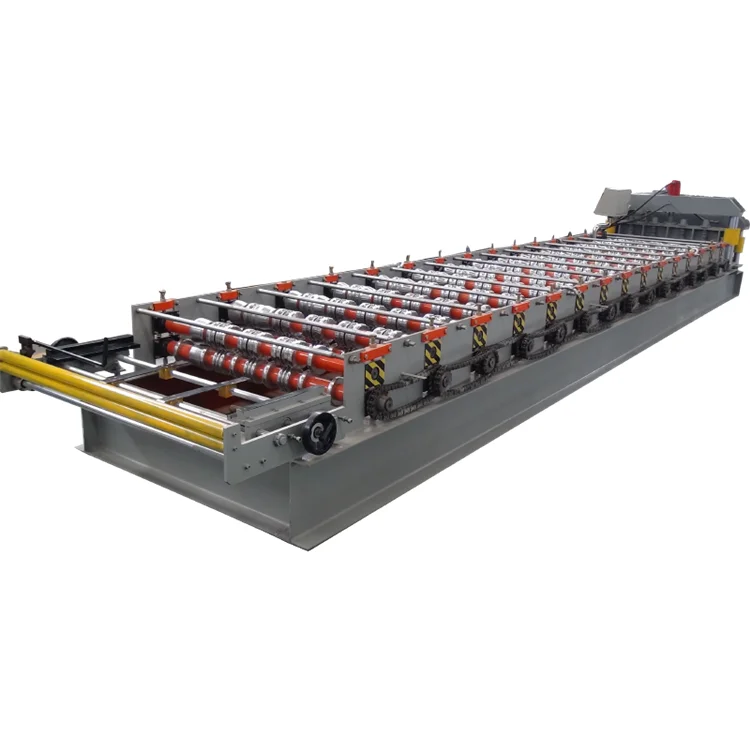

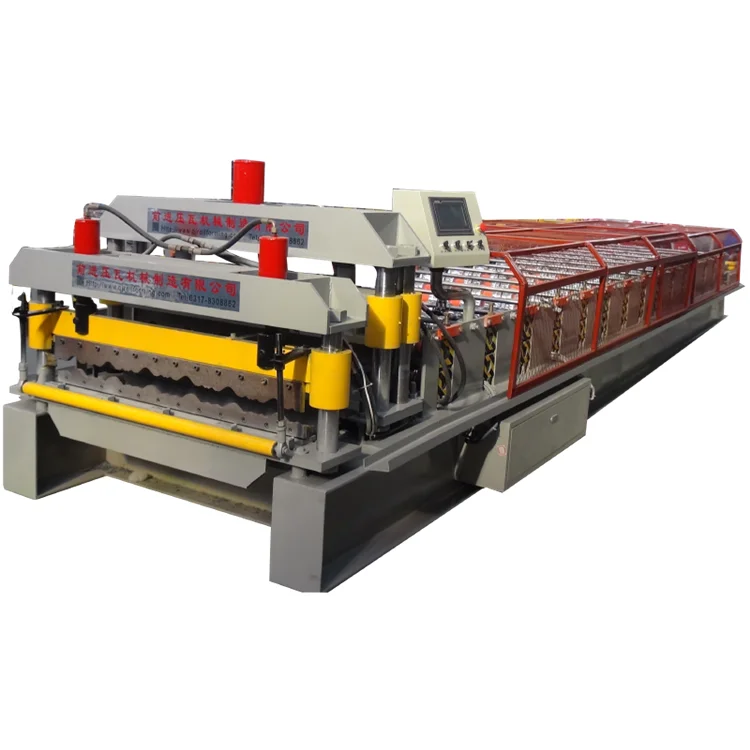

Factory Building Material Roofing Roll Forming Machine
Product Description

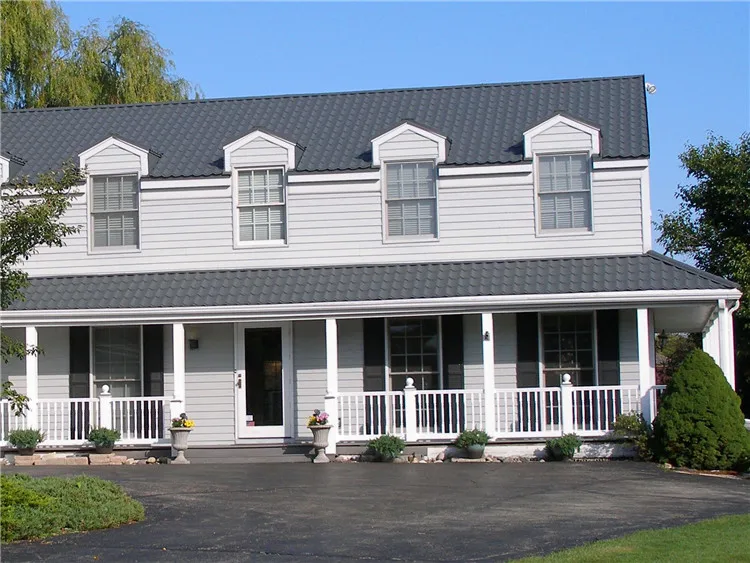

The finished product of Roll Forming Machine Factory is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste.
Main Technical Specifications:
Name of Roll Forming Machine
Roll Forming Machine Factory
Profile Drawing or Sample Picture
1
Suitable raw material
PPGI/PPGL/GI/GL Steel Coils
2
Thickness of coil sheet
0.3-0.8mm
3
Feeding Coil width
1200mm
4
Effective width
980mm
5
Under frame
350H-beam
6
Diameter of Soild shaft
70mm, high grade 45# steel, finish turning, cylindrical grinding,with keyway
7

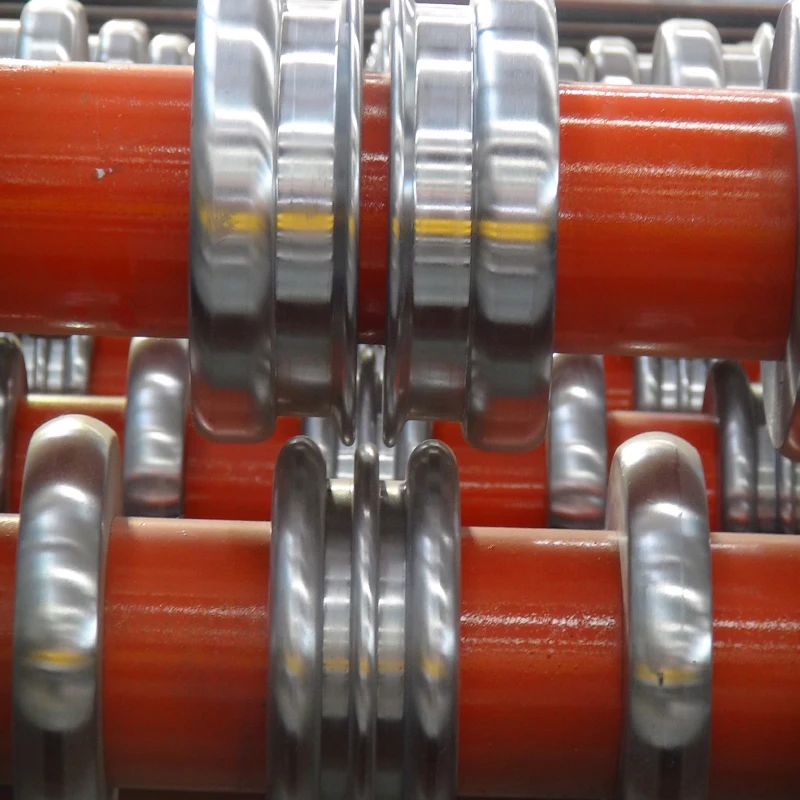

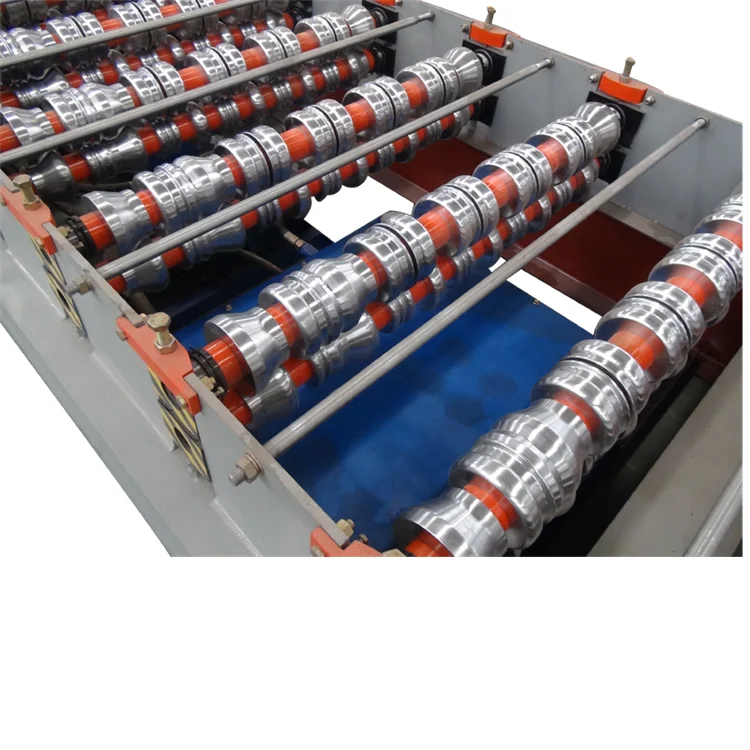

Roller
High grade 45# steel, processed by CNC lathe, Quenched and tempered treatment,
hard chrome coated 0.05-0.07mm
8
Thickness of middle plate
Guide pillar memorial archway
9
Forming stations
15
10
Drive type
By Gear Box
11
Power of main motor
5.5kw motor, Lichao, Shanghai
12
Power of pump station
4kw
13
Forming speed
About 15-20m/min
14

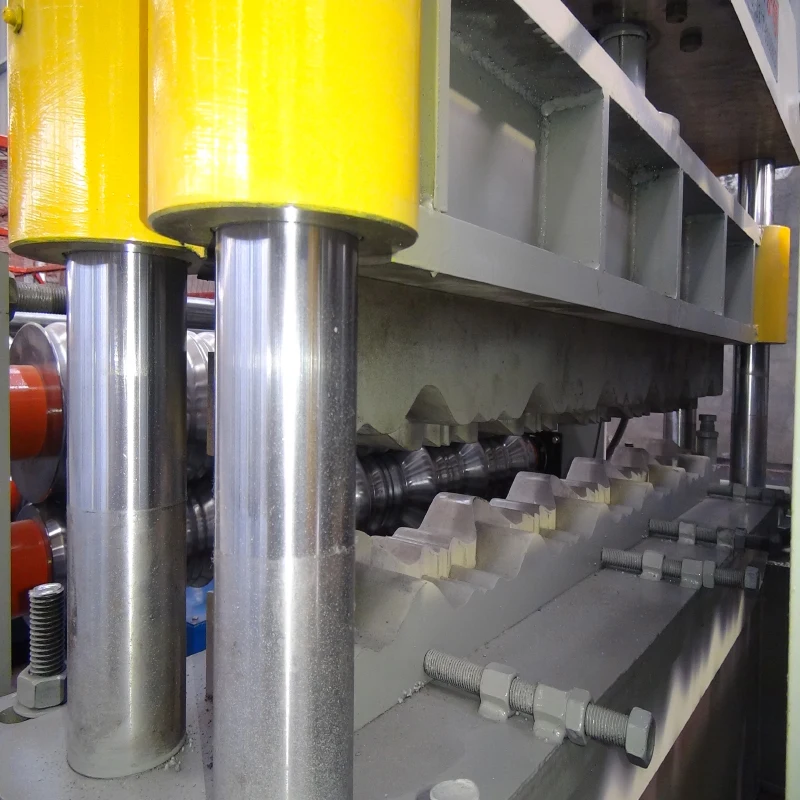

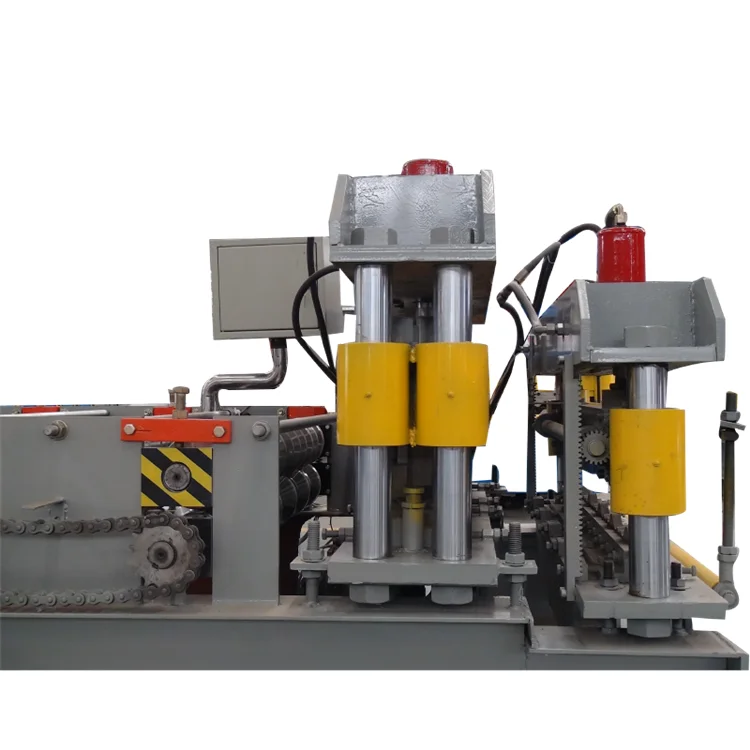

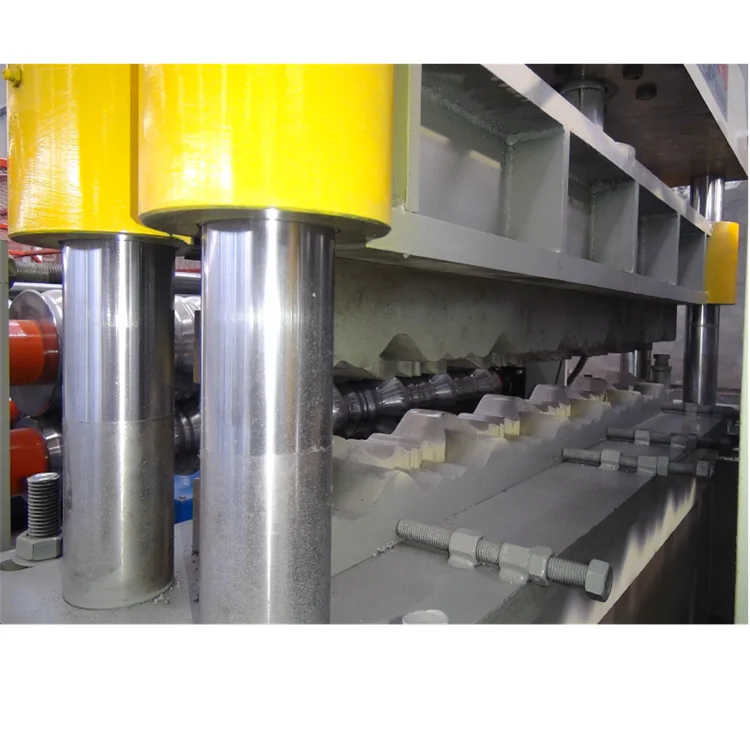

Hydraulic cutting
Controlled by PLC
15
PLC
DELTA, TAIWAN / Mitsubishi, Japan
16
Material of cutting blade
Cr12Mov, quenching 58-62℃
17
Frequency converter
It has the advantage of slowing down before cutting, to ensure the
length accuracy(±1mm, far better than industrial
standard ±3mm).
18
Switch
CHNT
19
Transducer
SAJ

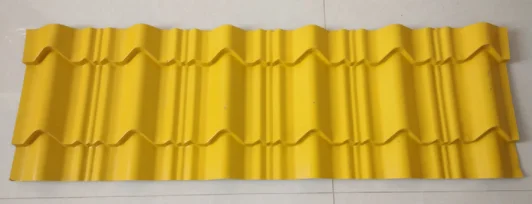

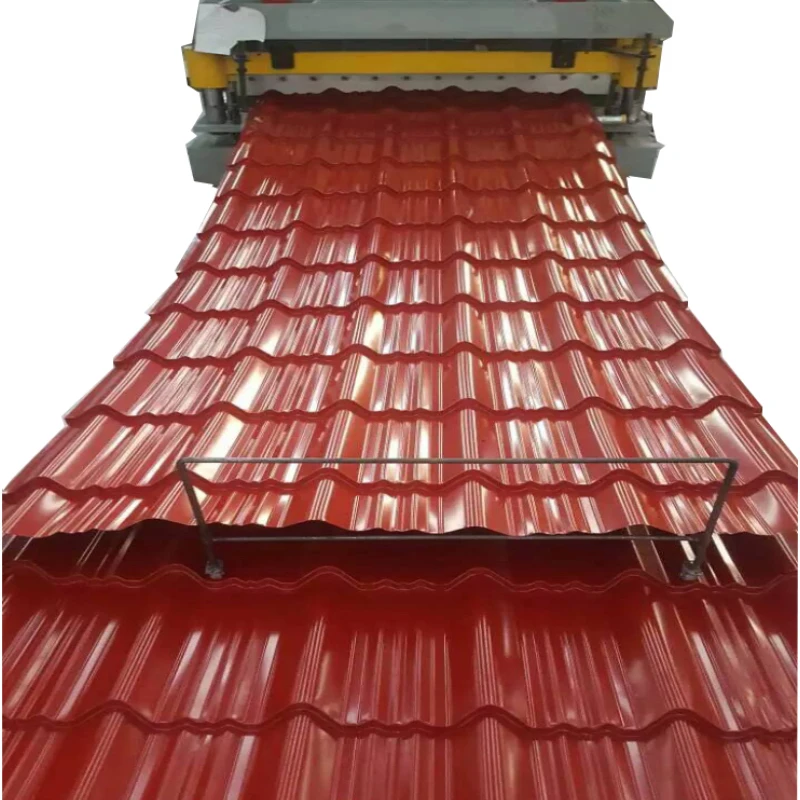

Product Effects
Certifications
Trade Shows
Buyer Feedback
Company Information
FAQ
Q1. What's your payment terms and delivery time? A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.
After we get down payment, we will arrange production. About 30-45 days for delivery.
Q2. Do you have after-sales support? A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world. We guarentee your machine running well in order to make your business running well.
Q3. Do you sell only standard machines? A3: No, customized service will be provided for all of our customers. Most of our machines are built according to customers specifications, using top brand components. Q4. What will you do if the machine is broken? A4: We provide 18 months free warranty and free technical support for the whole life of any machine. If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.
Q5. Can you be responsible for transport? A5: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q6. How to visit your company? A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour). 2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
Q7. How to contact with you?
A7: Welcome to contact Wendy directly, My Mob / Wechat / Whatsapp number is : +86 18830710099
