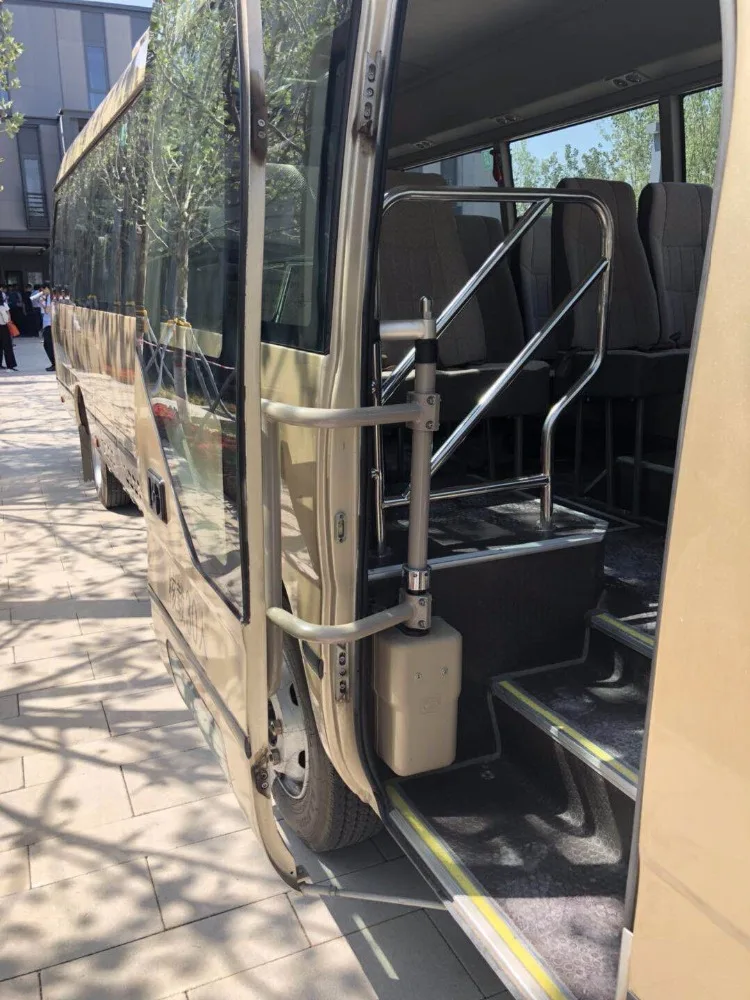

Left or Right Open Pneumatic Bus Door Mechanism For Coach Pneumatic bus door cylinder

Product Overview

Description



Application: tour bus,intercity bus,coach.

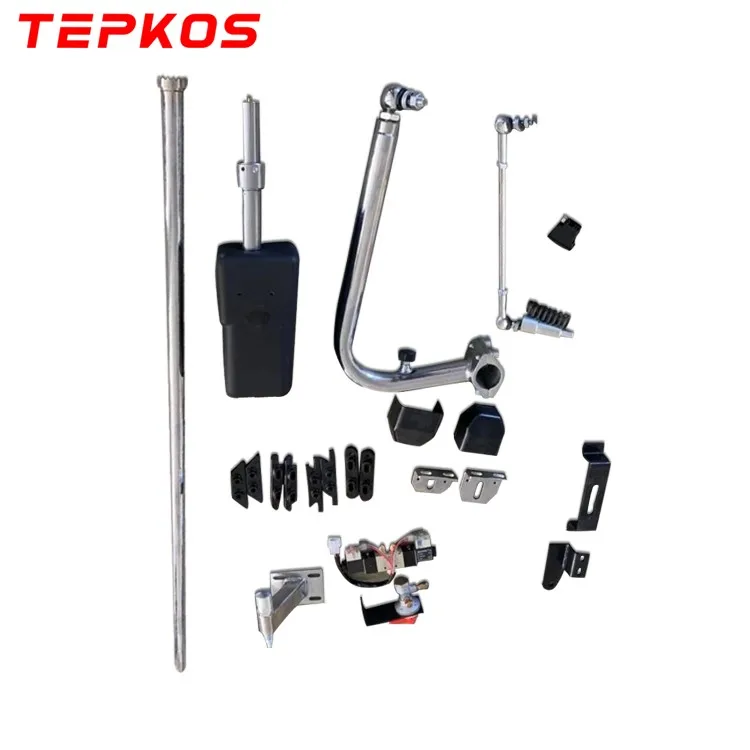

System Component:

Rotary actuator,

Shaft assembly

Door panel assembly.

1) The actuator provides rotary motion and “Lift-to-latch” feature.


2) The shaft assembly is designed for easy installation and maintenance.

3) The door panel made of aluminum alloy, which has the attributes of light weight, high strength and long life.

2. Operating principle:

1)Auto operation
2)Emergency release
3)Sensitive edge

3. Main Parameter:



Maximum torque in locked position	(@90 psi) 122 ft-lbs
Recommended door shaft rotation	90 degree
Operating temperature	-30°C to 80°C
Envelope size	5.51”w x 12.50”d x 4.53”h
Operating pressure	90-125 psi
Minimum Life cycle	500,000
Locking mechanism	Local wedge lock
Door opening/closing time	3-5 seconds
