YE2 200L2 6 22KW 30HP brushless ac electric motor
- Category: >>>
- Supplier: Jiangsu Wangpai Motor Manufacturing Co. Ltd.
Share on (60766852009):
Product Overview
Description

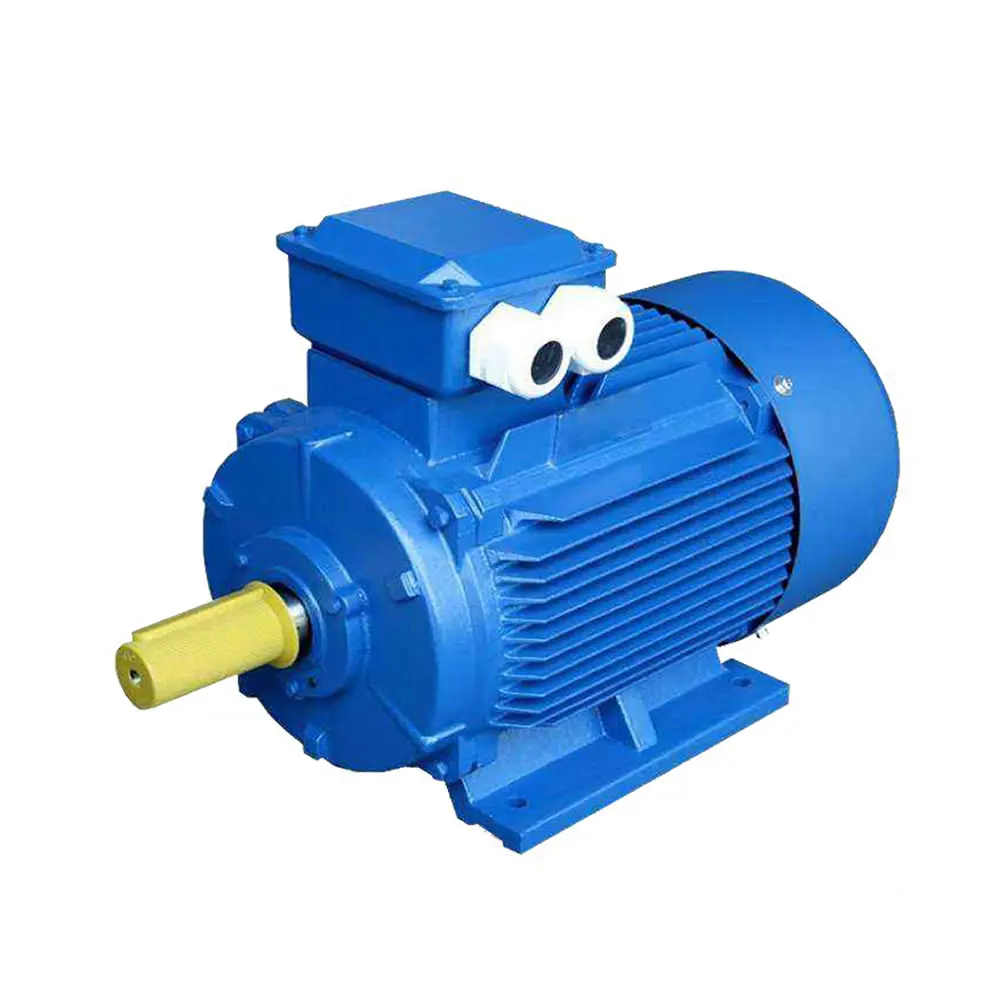

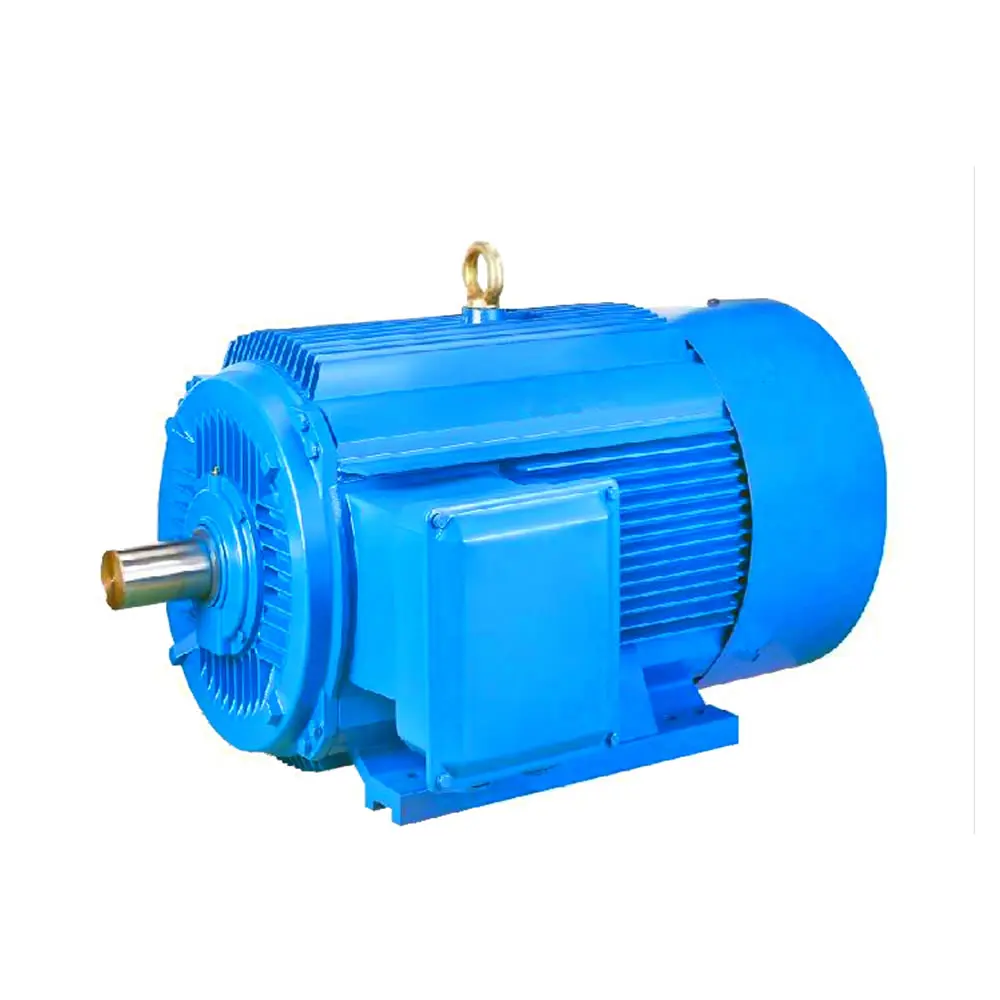

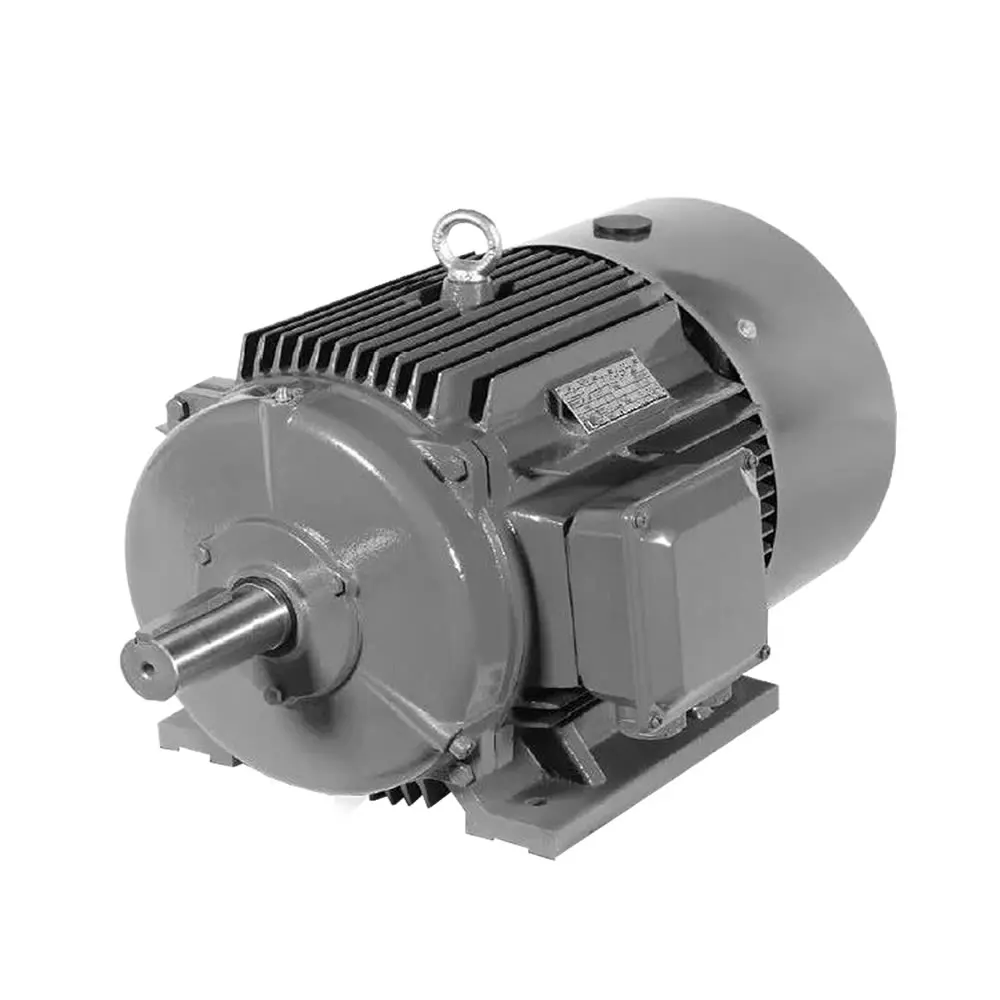

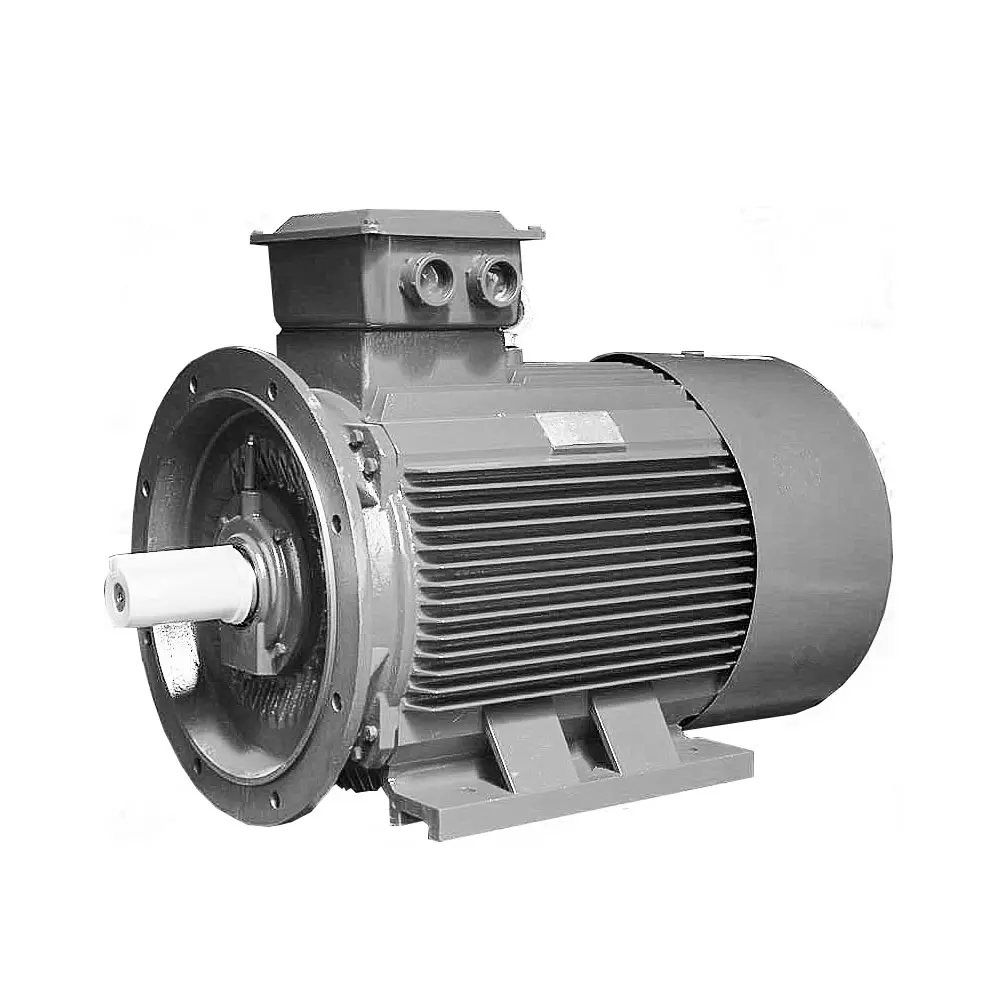

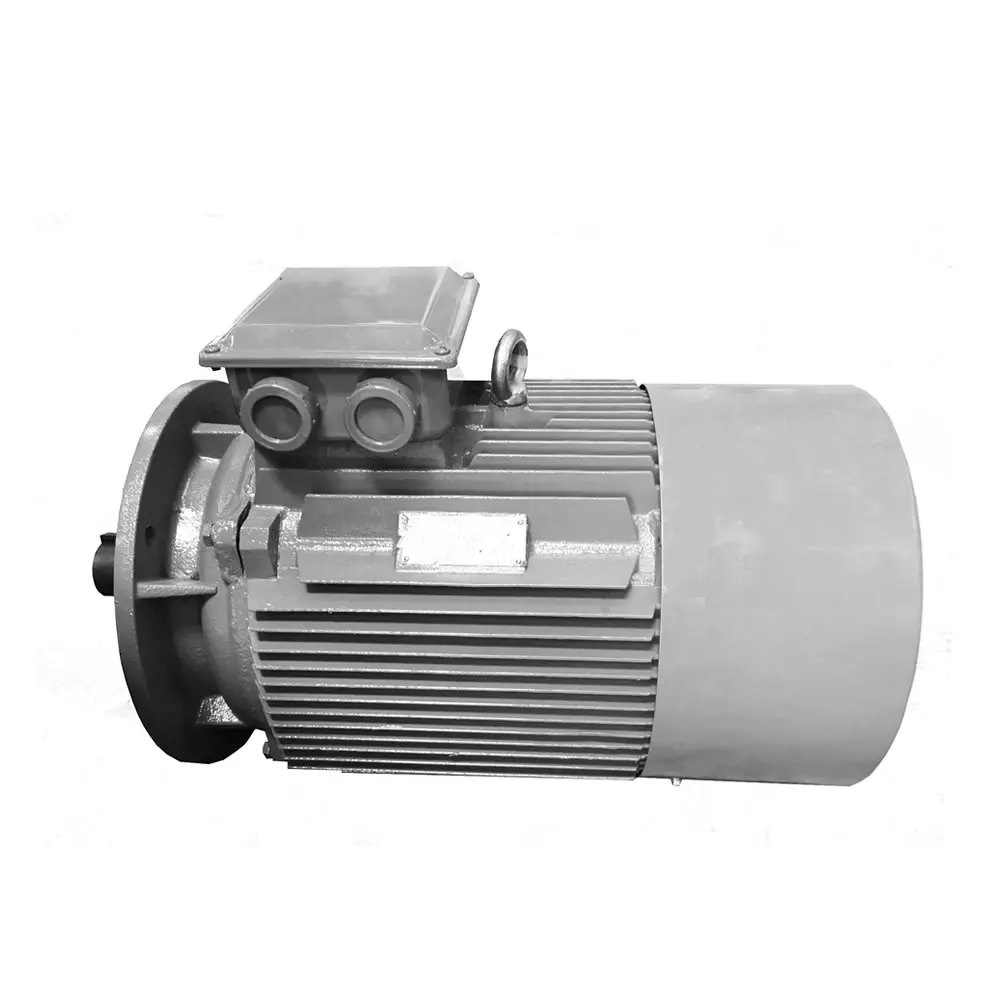

YE2-200L2-6 22KW 30HP brushless ac electric motor 3 three phase induction
YE2 Series Three Phase Asynchronous Motor
| Power | 55KW – 315KW |
| Voltage | Normal 400V |
| Speed | 3000r/min, 1500r/min, 1000r/min |
| Protection Degree | IP55 |
| Insulation Class | F |
| Duty | S1 |
| Package | Export Wooden Package |
| Payment | 30% in advance, balance by T/T or L/C at sight |
YE2-200L2-6, 22KW, 380V/400V, 980r/min, IC411, IP55, F Insulation
Product Description
| YE2 series motors center height | H80-H355 |
| Output | 22kw |
| pole | 2, 4, 6 |
| degree of protection | IP55 |
| cooling method | IC411. Mounting dimensions conform to lEC standard |
| Rated voltage | 400V |
| Rated frequency | 50HZ |
| Ambient temperature | 40°C max |
| Altitude | 1000m |
| Duty | continuous (S1) |
YE2 series high efficiency three phase induction motors have some notable advantages such as high efficiency, good starting performance, low noise, improved structure, improved cooling capabilities, this series motors are three phase induction motors which be used for general motors and can be used to drive all kinds of general purpose machines such as compressors, ventilators, pumps, etc. Other uses such as petrol chemical, medical, chemical industries and mining. For special requirements please contact our sales department.
YE2 series motors are equal with Y2 series three phaseinduction motors in dimensions.
