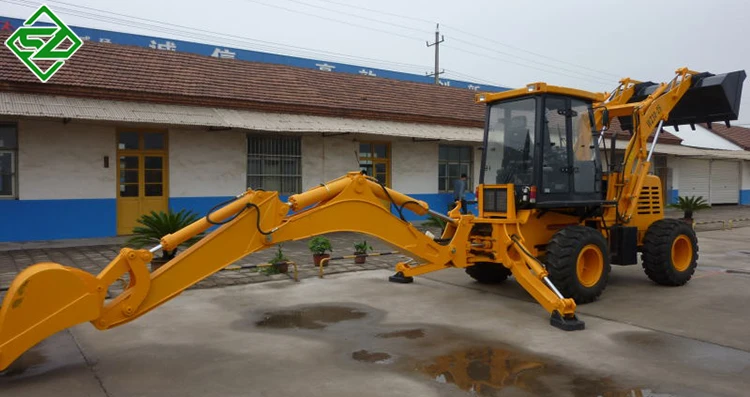

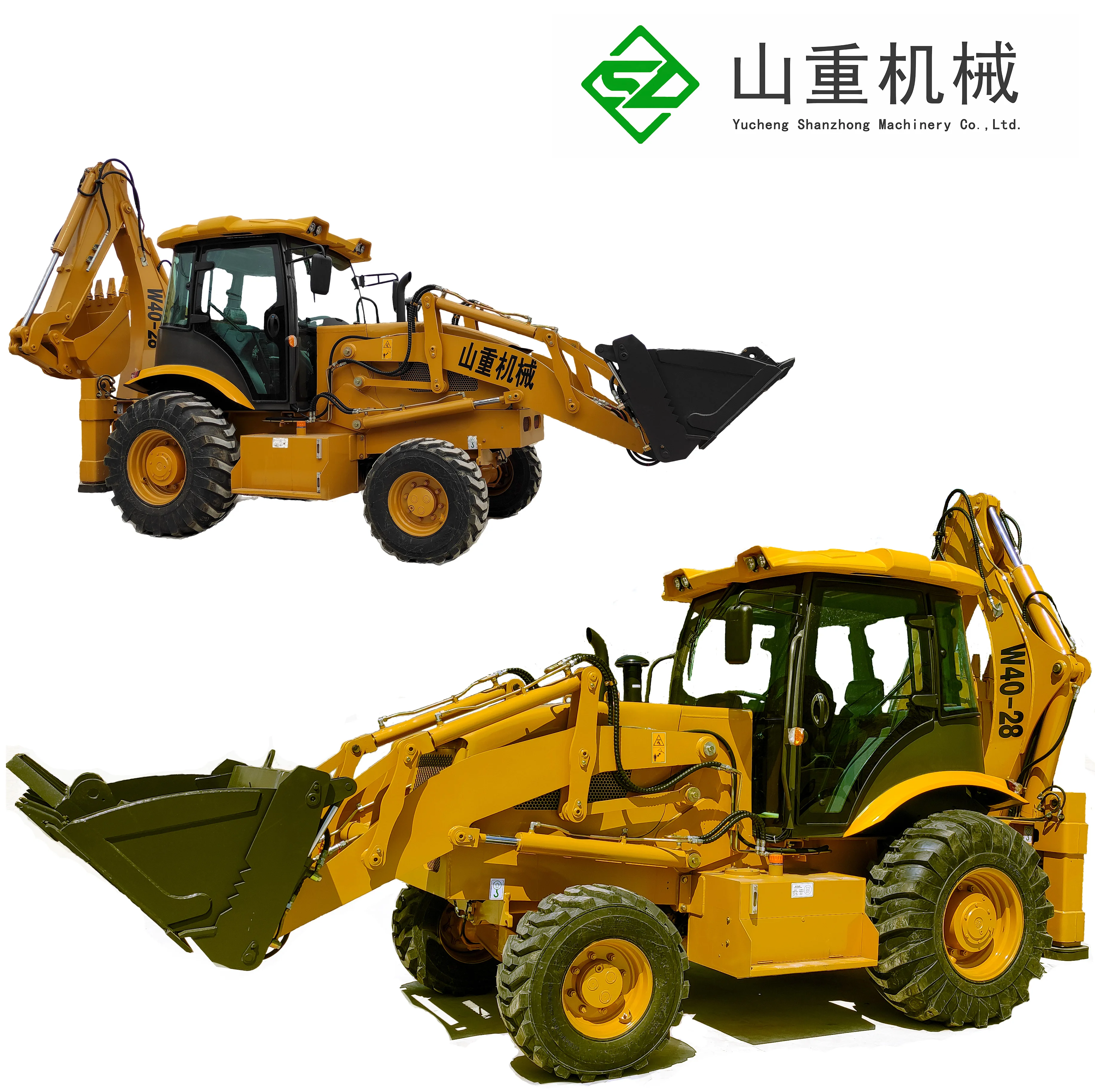

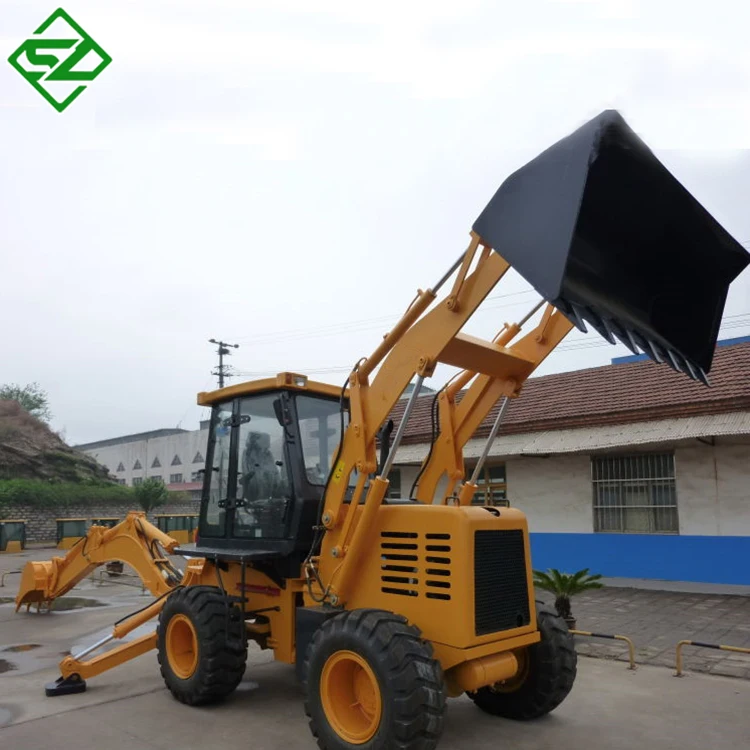

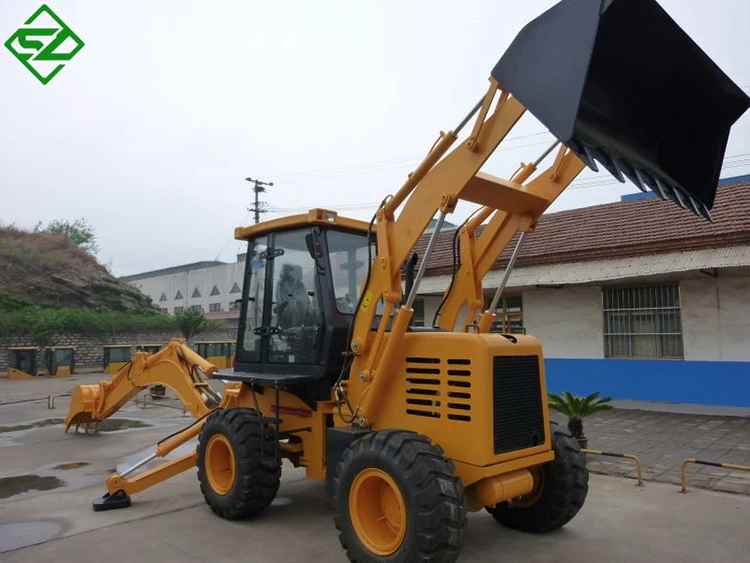

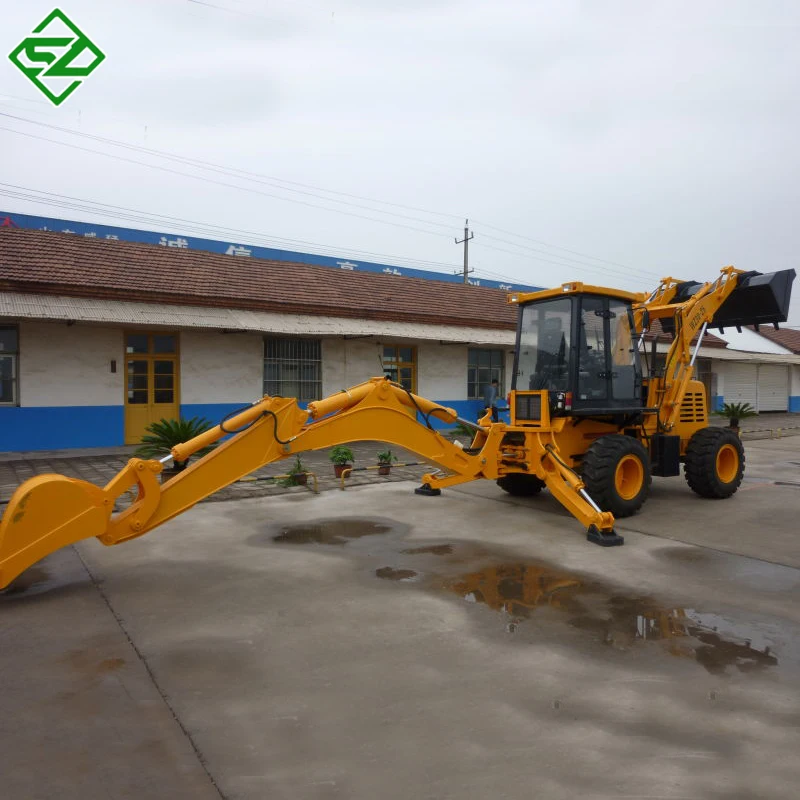

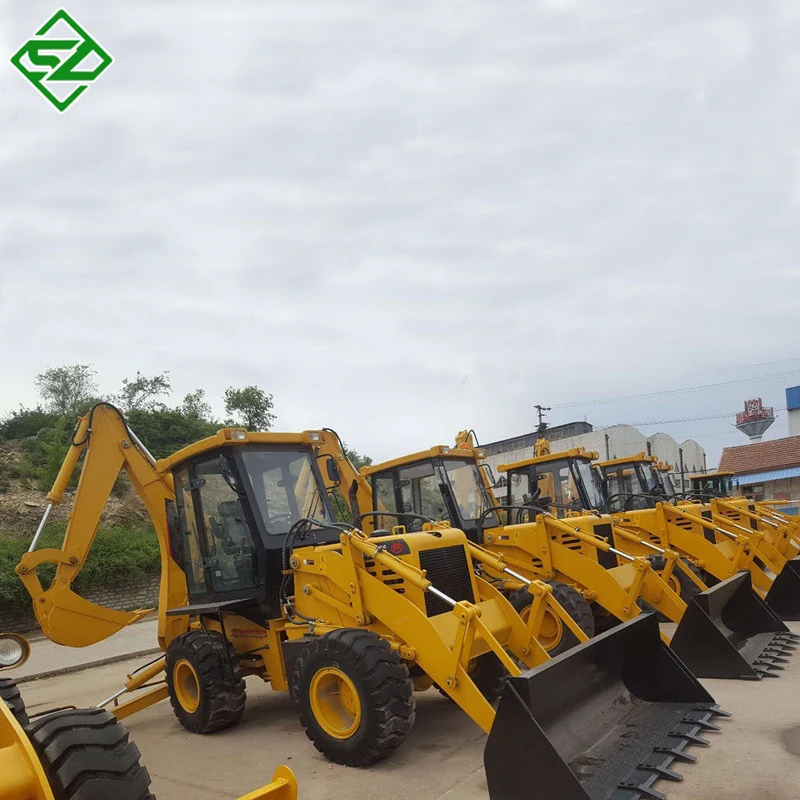

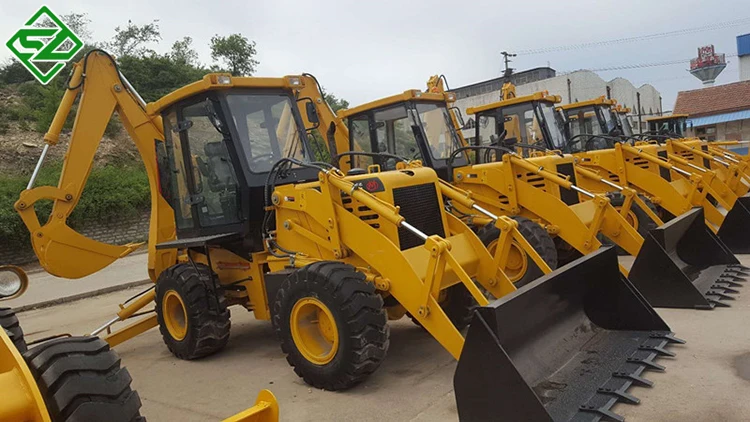

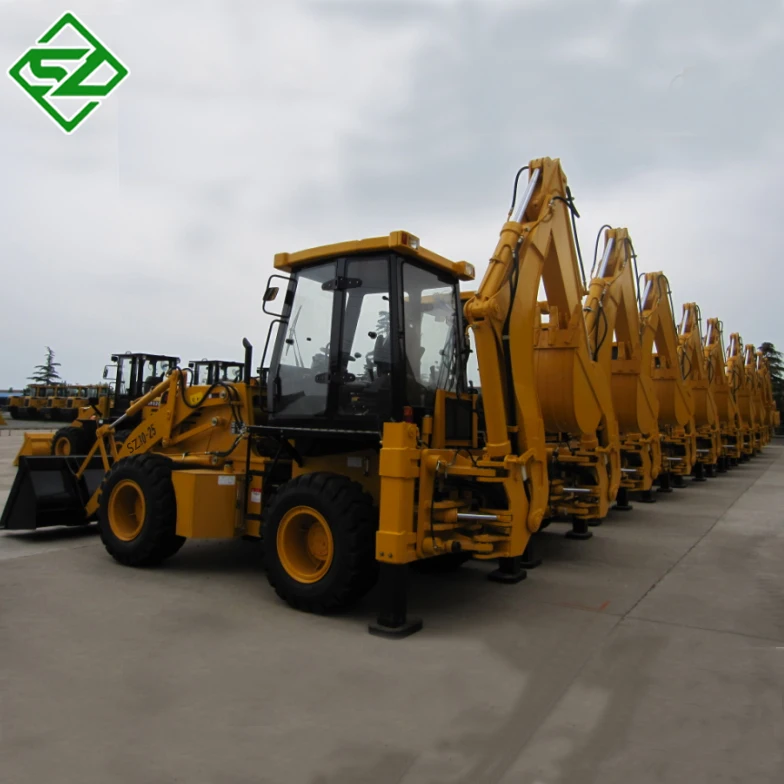

4wd 40hp tractor with front end loader and backhoe
- Category: >>>
- Supplier: Yucheng Shanzhong Machinery Co. Ltd.
Share on (60766866890):
Product Overview
Description
cheap 4wd 40hp tractor with front end loader and backhoe
Product Description
1. Simple linear structure, easy to install and maintain.
2. Adopt advanced world famous components in pneumatic parts, electrical components and operation parts.
3. CE certification, four wheel drive, full hydraulic system, pilot control, joystick, one leg, sideslip function.Yuchai engine and Cummins Engine is optional.
4. Backhoe quick coupler, Auger, Breaker, Loader quick coupler, Pallet fork, 4 in 1 bucket, A/C, Heater, Anti-roll cab,H- leg.
Dimension technological parameters
1.Overall Dimension
Length X Width X Height | 5910X 2268 X 3760(mm) |
Wheel base | 2250(mm) |
Track | 1640(mm) |
Min. ground clearance | 300(mm) |
2.Main Technical Specification
load hydraulic system | 18Mpa |
dig hydraulic system | 20Mpa |
four-wheel drive | four-wheel drive |
total operating weight | 7600kg |
maximum speed | 22Km/h |
loading bucket capacity | 1.2m3 |
maximum articulated height of bucket | 3400(mm) |
bucket discharge height | 2795(mm) |
bucket hydraulic translation function | yes |
maximum tractive force | 39KN |
maximum breakout force | 38KN |
backacter bucket capacity | 0.3m3 |
| backacter discharge height | 3878(mm) |
| maximum digging depth | 4080~4500(mm) |
maximum digging radius | 5688(mm) |
bucket digging capacity | 46KN |
Transmission system Steering system Axles Wheel
type | articulated hydraulic steering |
minimum turning radius | 5018(mm) |
main transmission type | single reduction |
service braking | air over hydraulic disc on 4 wheels |
parking brake | manual parking brake |
Related Products

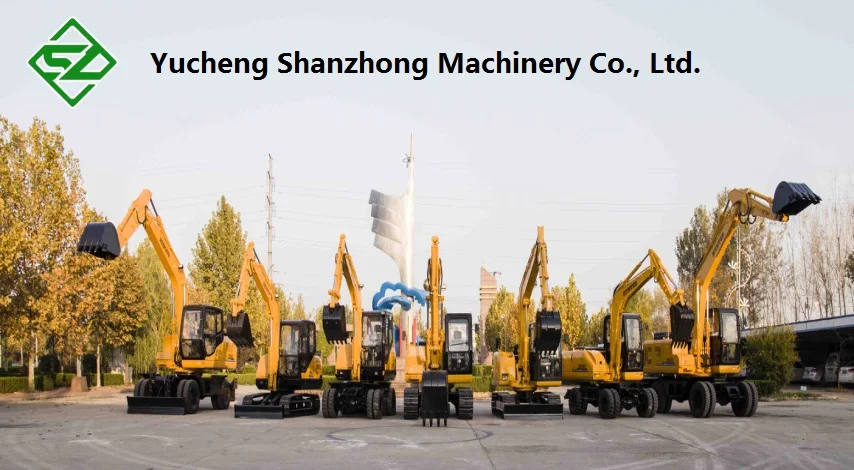

Yucheng Shanzhong Machinery Co., Ltd.is a large chinese manufacturer for crawler excavators and wheel excavators.
2 ton crawler excavator, 9 ton crawler excavator, 15 ton crawler excavator;
8 ton wheel excavator, 12 ton wheel excavator, 15 ton wheel excavator, 18 ton wheel excavator,
tree moving machine, wood crab, steel crab.
Certifications
As a large enterprise, While developing ourselves, we pay more attention to the harmony between enterprise development and environment, the physical and mental health of employees, and strive to improve working conditions, overcome unsafe factors, and ensure safe production.
Packaging & Shipping
We mainly transport the machines by roro-ship/bulk shipment. For container shipment we have to disassemble either the wheels or cabroom before loading (depends on the machine size and the situations), and these parts will be fixed by steel wire rope in the container. Eventually you need to reinstall the machiner under our guidance.

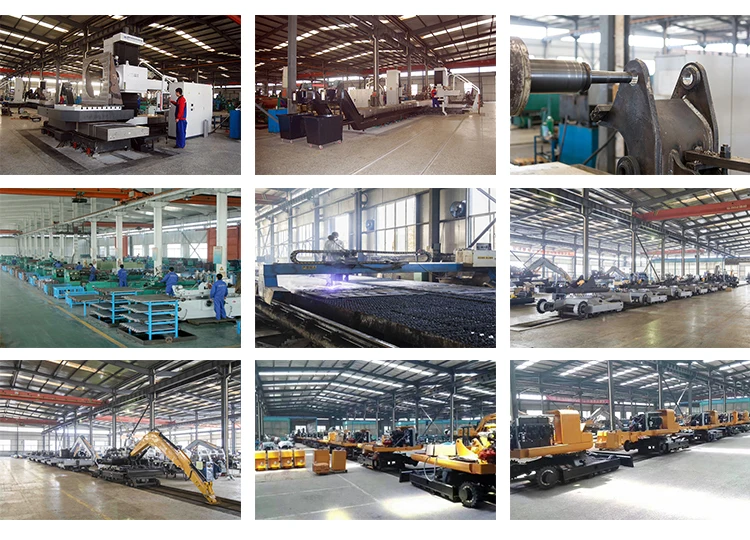

Workshop
The company developed the first excavator in 1995 and put into mass production in 1996. We produce "SHANZHONG" brand SZ85, SZ75 series of small and medium-sized excavators 3000 units, and have become one of the ten pillar enterprises in Dezhou City.
Cylinder with buffer function: boom cylinder and bucket cylinder, bucket cylinder designed buffer, can reduce the vibration and impact of the machine, reduce noise and extend the life of the cylinder.
Double pump confluence technology: increase the main valve to provide the boom, bucket, bucket flow of each cylinder, improve the operation speed.
The improved design of the cross section shape of the crawler frame reduces the soil accumulation, makes the carrier sprocket more difficult to wear, and improves the durability of the machine.
The important hinge part of the bucket is made of forging structure, which can reduce the stress and improve the durability by changing the shape and the thickness of the plate.
The boom is welded integrally, and finally, the boring of the boring machine is processed, and the firmness of the arm is greatly strengthened, and the service life of the pin and the sleeve is prolonged, so as to avoid the welding break at the welding place and to be durable.
Bucket cutting plate adopts special wear-resistant steel plate, suitable for heavy duty operation requirements, with wear-resistant bucket teeth, side teeth, improve the performance of the machine.
Use thicker steel plate and increase side strengthening plate to improve wear resistance
The trimming surface is neat and flat when the flat bucket is used for leveling operation.

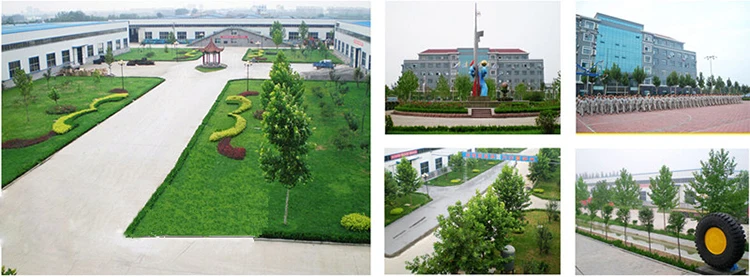

Company Information
Yucheng Shanzhong Machinery Co., Ltd. is specialized in excavator production for more than twenty years, the scale of nearly one million square meters, the organization for the six departments and one center,more than 500 employees,and more than 80 engineering and technical personnels.
It is a collection of scientific research, manufacturing, sales and service in one of the professional excavator manufacturers.The scale is nearly 1000000 square meters.The organization are the six departments and one center.
Serving you foreign advanced ceramic products with Chinese price is our company survival and development basic tenets.
International famous brand engine and powerful power make your operation efficient.
Accurate matching design and advanced energy saving control make the machine less fuel consumption.
New cooling fans and large mufflers reduce the noise of the machines.Advanced turbocharger technology enhances the plateau adaptability of the machine. Unique funnel fan hood greatly enhance the engine air intake and the ability to heat the system, to ensure continuous and efficient operation of the machine
Upmarket configuration: the main pump, main valve, rotary motor, walking motor, cylinder, pilot control valve and other components are all internationally renowned brands, to ensure the quality of the product.
Adopt the latest research to reduce energy consumption.Improve design to respond faster.By improving the torque reserve, the machine provides more powerful slewing ability.
Upmarket configuration: the main pump, main valve, rotary motor, walking motor, cylinder, pilot control valve and other components are all internationally renowned brands, to ensure the quality of the product.
Adopt the latest research to reduce energy consumption.Improve design to respond faster.By improving the torque reserve, the machine provides more powerful slewing ability.
Foreign Customers
Our products are exported to Southeast Asia, North America, Arabia, the Middle East and so on. The company often organizes to participate in the domestic and foreign exhibitions.We also welcome domestic and foreign customers to visit Our factory.
FAQ
Q: How can I trust you, and what can you offer me?
A: In this case, we would like to invite you over to visit our factory.If neceassary we can go to your country for a face to face negotiation. Our ultimate goal is to establish a long term cooperations in the trade of machinery products, but if you like a quick deal is also acceptable. We will do our best to reach your target price.
Q: How about your product quality?
A: All our products are from the original manufacturers and the quality is 100% guaranteed.
Q: Can you supply the spare parts or the loader attachment?
A: Yes, we can. Any of the machine part and attachment can be provided, and all of them are directly from factory.
Q: How about your warranty item?
A: We can support email or telephone assistance in the following days. If necessary, our experienced engineer can go abroad to your place for technical support.
Q:Can I be your agent in my country ?
A: It's OK if the order quantity is appropriate. We supply excavators to many domestic and foreign trade company. We looks forward to long-term cooperation.
