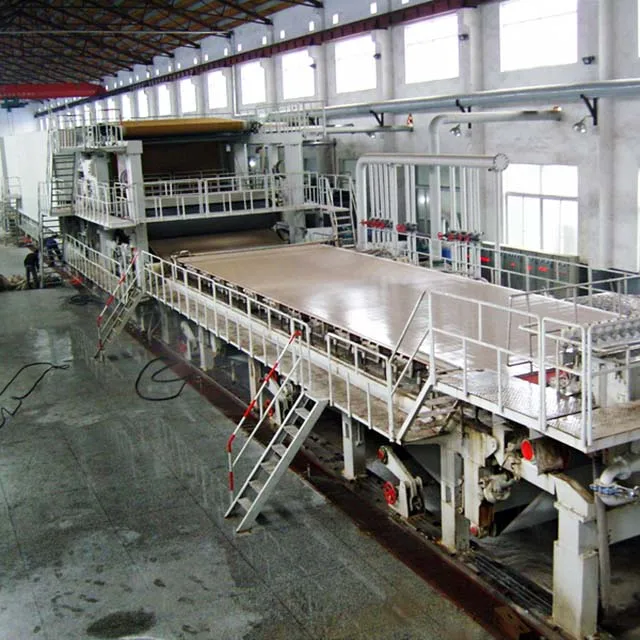

High Speed 3800mm 205tons Kraft Liner Paper and Duplex/ Fluting Paper Production Line

1. Raw material: OCC, white paper edge

2. Output paper: kraft liner paper

3. Output paper weight: 115-350g/m²

4. Net paper width:4000mm

5. Wire width: 4400mm

6. Capacity: 205T/D

7. Working speed: 100-250m/min

8. Designing speed: 300m/min

9. Rail gauge: 5000mm

10. Drive way: A/C inverter speed control, sectional drive.

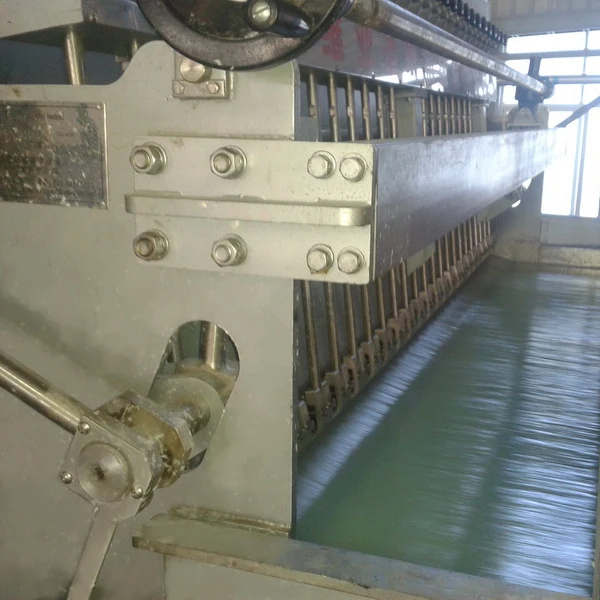

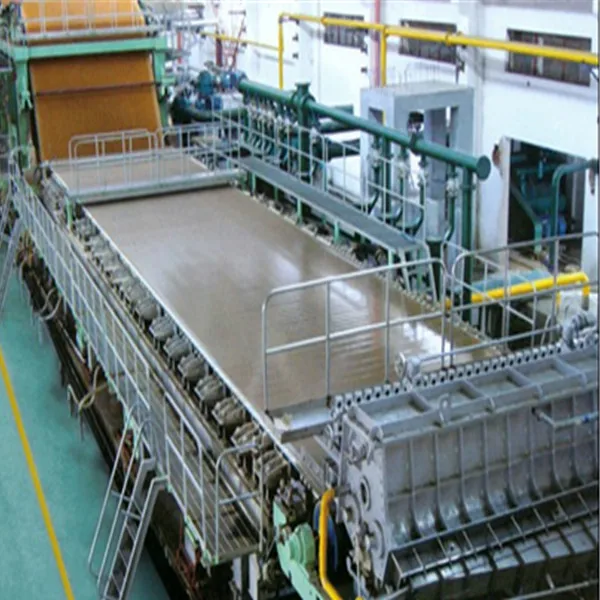

1. Wire part

Three wire designing, bottom wire table length 16m, top double-wire table length 8m, frame welded by #45 steel plate, covered by stainless steel board. With 3 sets closed flow box, made of stainless steel, with double evener rolls. Wire changing type: by cantilever bean.

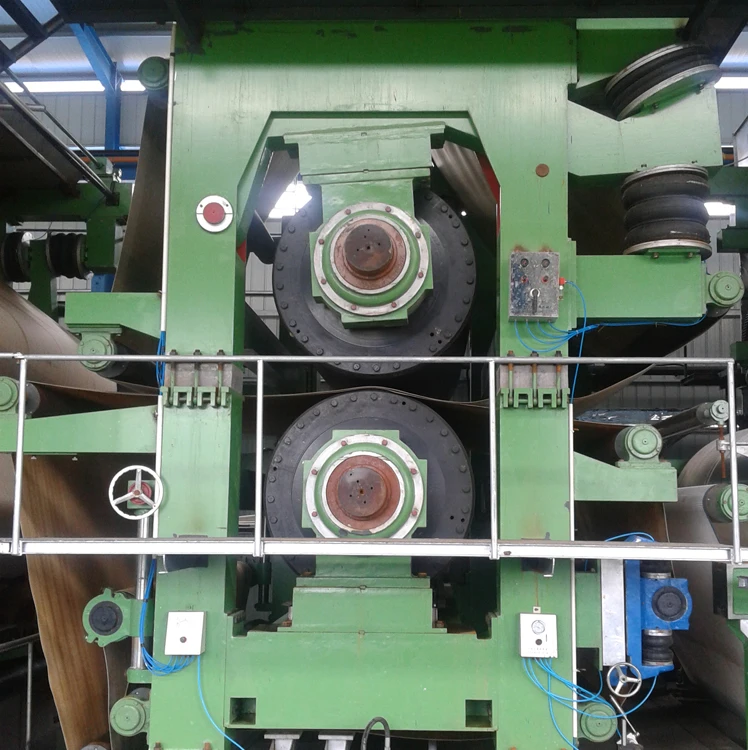

2. Press part

2 sets of press rolls in large diameter.

4 pcs Blind press roll Φ1350mm×4400mm×5000mm, rubber shore hardness 96℃±2, with pneumatic pressure device. Adopting frame-type machine structure.

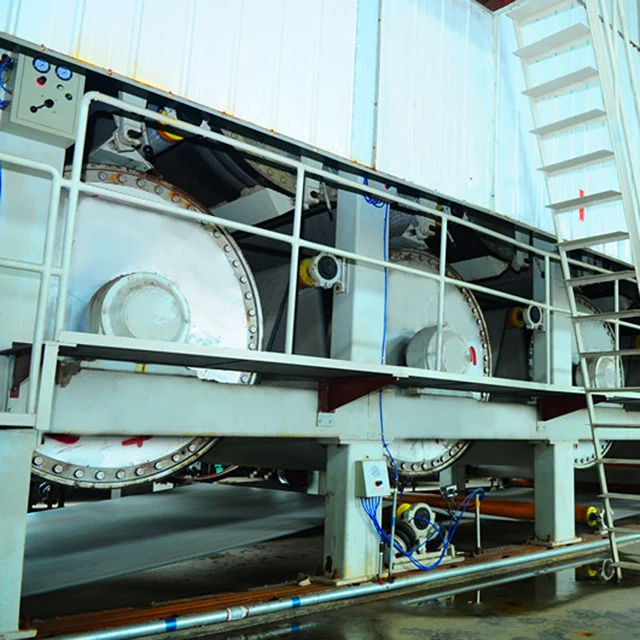

3. Dryer part

37 sets of Φ1500mm×4400mm×5000mm alloy dryer cylinder with 37 pcs of doctor blade. Dryer cylinders are arrayed in the order of 25 + sizing machine + 12.

4. Sizing part

1 set of inclined-type sizing machine, top roll Φ1000mm×4400mm×5000mm imitation stone roll, bottom roll Φ1005mm×4400mm×5000mm rubber roll, rubber shore hardness 96℃±2..

5. Calendering part

Hard calendering machine with chilled rolls.

6. Winding part

1 set of horizontal pneumatic winding machine with winding cylinder Φ1100mm×4400mm×5000mm.

7. Rewinding part:

1 set of 3800mm Frame structure rewinding machine.
