2 Ton Moveable Jib Crane 12 Months with Pillar Price CE/ISO9001 360degree Yuantai CN;HEN 1 2t Loading Capacity 5m BZ

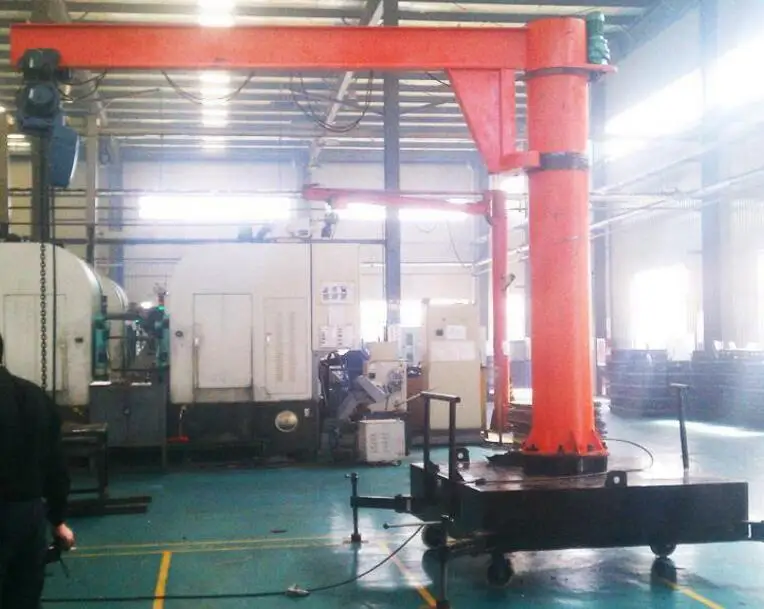

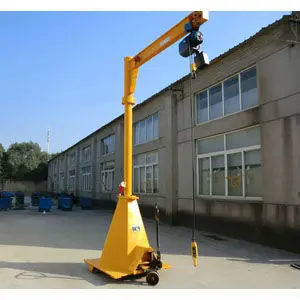

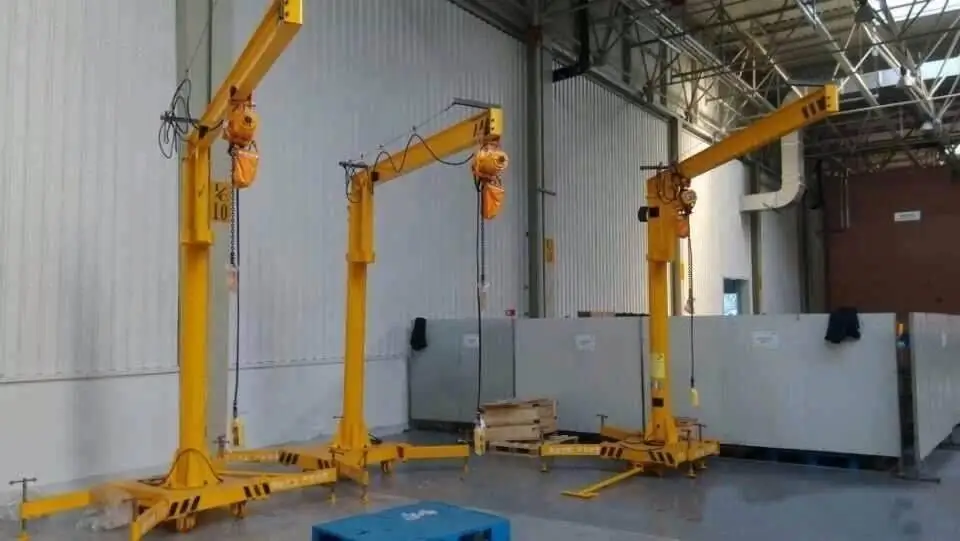

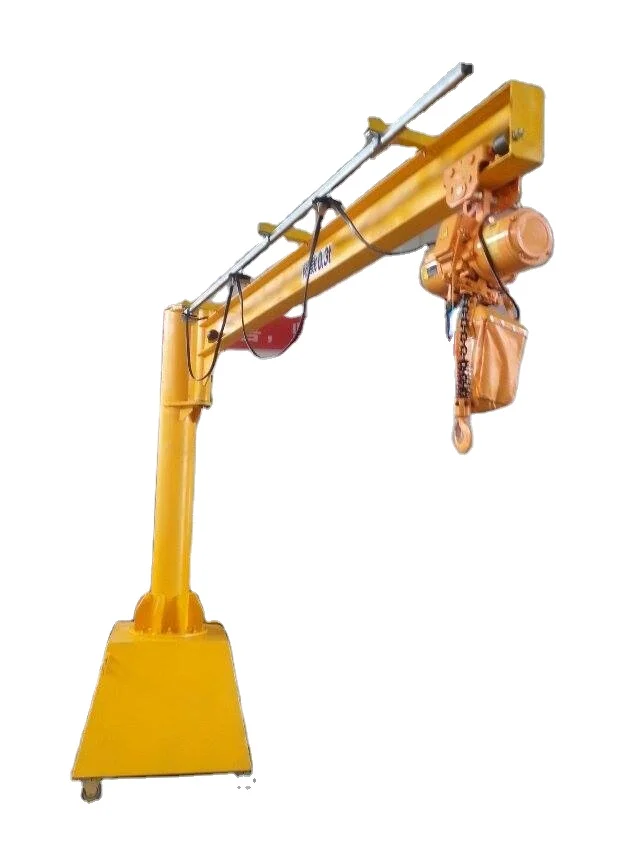

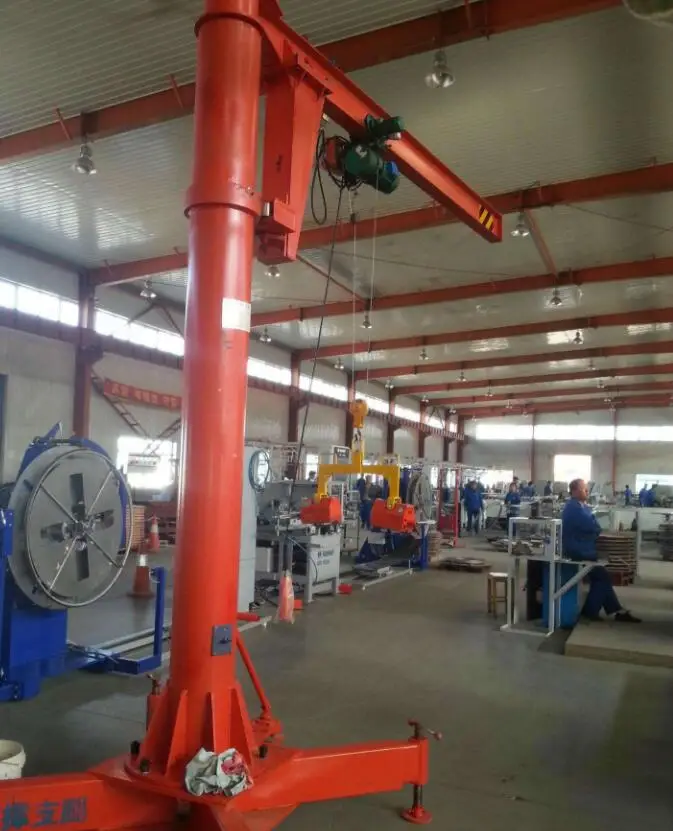

The moveable pillar jib crane

Product description

The moveable jib cranes can move in any direction to the required locations, and electric hoist can move on the cantilever, suitable for the weight need to move or installed.The lifting device has simple structure, convenient operation, flexible,large work space,application widely characters.

Main features

1. Column using seamless pipe, main beam use I-beam or KBK beam

2. Rotation can be manual or motorized

3. Hoist can be equipped with electric wire rope hoists, electric chain hoists or manual hoists.

4. Unique structure, safe and reliable, high effiency, energy & time saving and flexible.

5. Can be customized for lifting capacity, maximum angle of slew, jib arm length, and functionalities.

6. Easy installation.

Application

Used for the goods or the workpiece lifting operations, the other end with the counter weight, as opposed to a lift arm rotating at the same time to balance the lifting. Widely used in factories, workshops, field, warehouse, small equipment installation.Goods and workpiece loading and unloading, and low building where cannot erection crane and so on.

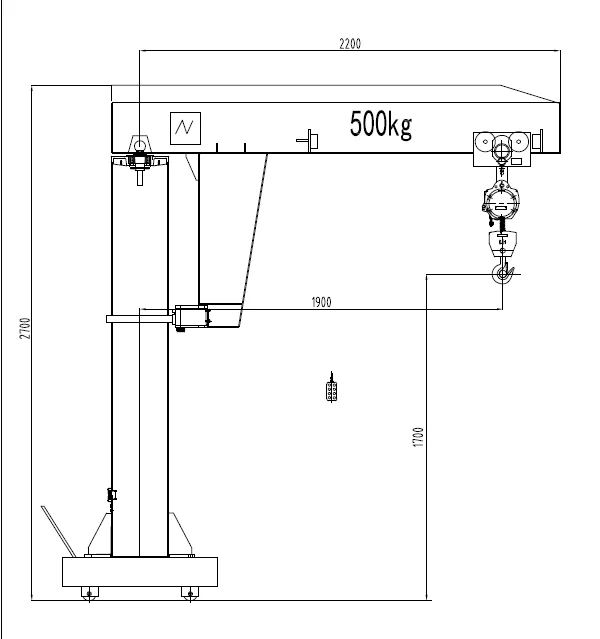

Technical drawing

Protection Device

Phase protection system;

Overload protection system;

No-voltage protection system;

Over-current protection system;

Lifting limit protection system;

Emergency stop protection system

Production line

We have past CE, ISO, SGS, GOST and so on

1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying;

2. Main beams, end beams and electric hoist are packed by plastic woven cloth. It can reduce abrasion when transport.

1.Is your products cuztomized?

Thanks for your question, yes.because the working condition is different, all our products are cuztomized, depending on the detail require, so if you give us more information, the accurate solution we can prepare for you.

2.What the information should i provide when i am inquiry?

Thanks for your question, the more information you provide, the accurate solution prepare for you! The information such as lifting height, lifting capacity, span, power source or other specials you provide will be much apprciated.

3.How many operation methods for my selction?

Thanks for question. The standard operation methods we provide is pendent controller with push buttons, meanwhile,we also can provide remote control with push buttons or the cabin.

4.The space of my workshop is limited, can the crane ok for me?

Thanks for your question. For low headroom workshop, we have special products. The details demension our engineer will be design for you.

5.Do your side can provide lifting tools?

Thanks for your question. Yes, we can provide any kind of lifting tools such as hook, electricmagnetic, grab...

NOTICE:

As this kind of crane is customized, in order to offer you most suitable design and best solution, please confirm following information when you send inquiry.

1. Lifting capacity.

2. Span length.

3. Lifting height.(hook center to ground)

4.Power supply: Voltage.

5. Working condition: which material to lift? temprature?

 Come to us! The best installation team is ready for you!
