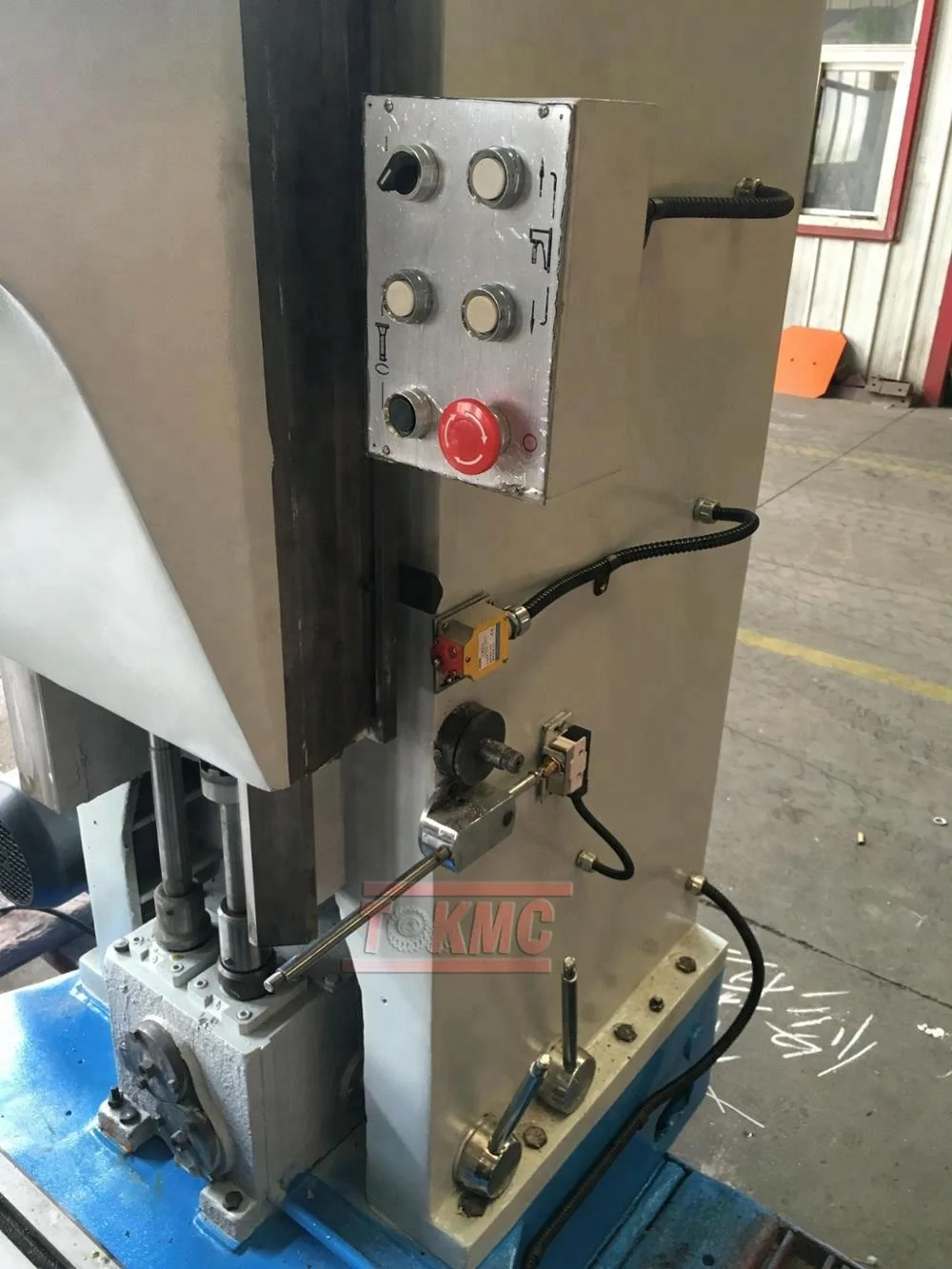

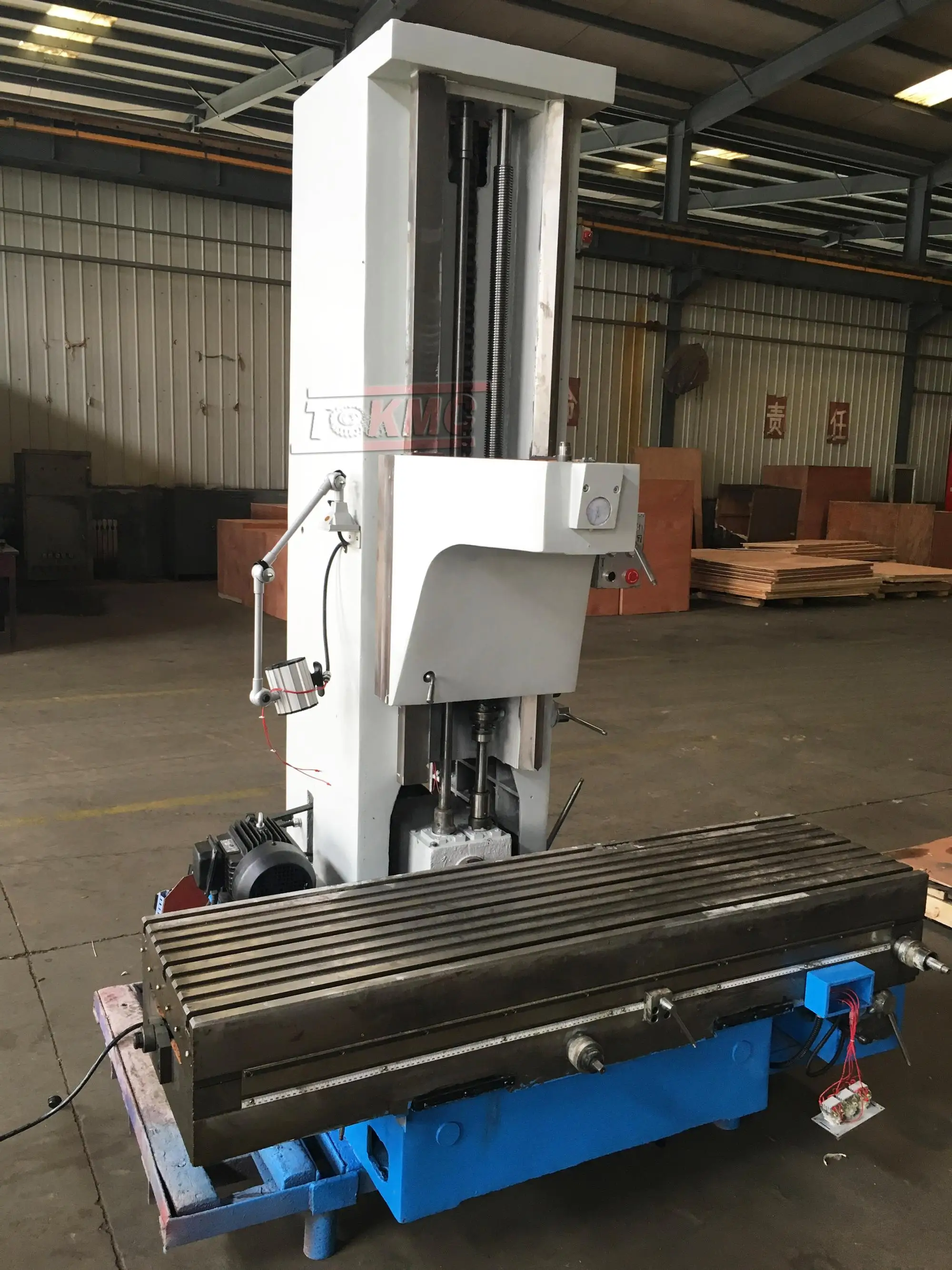

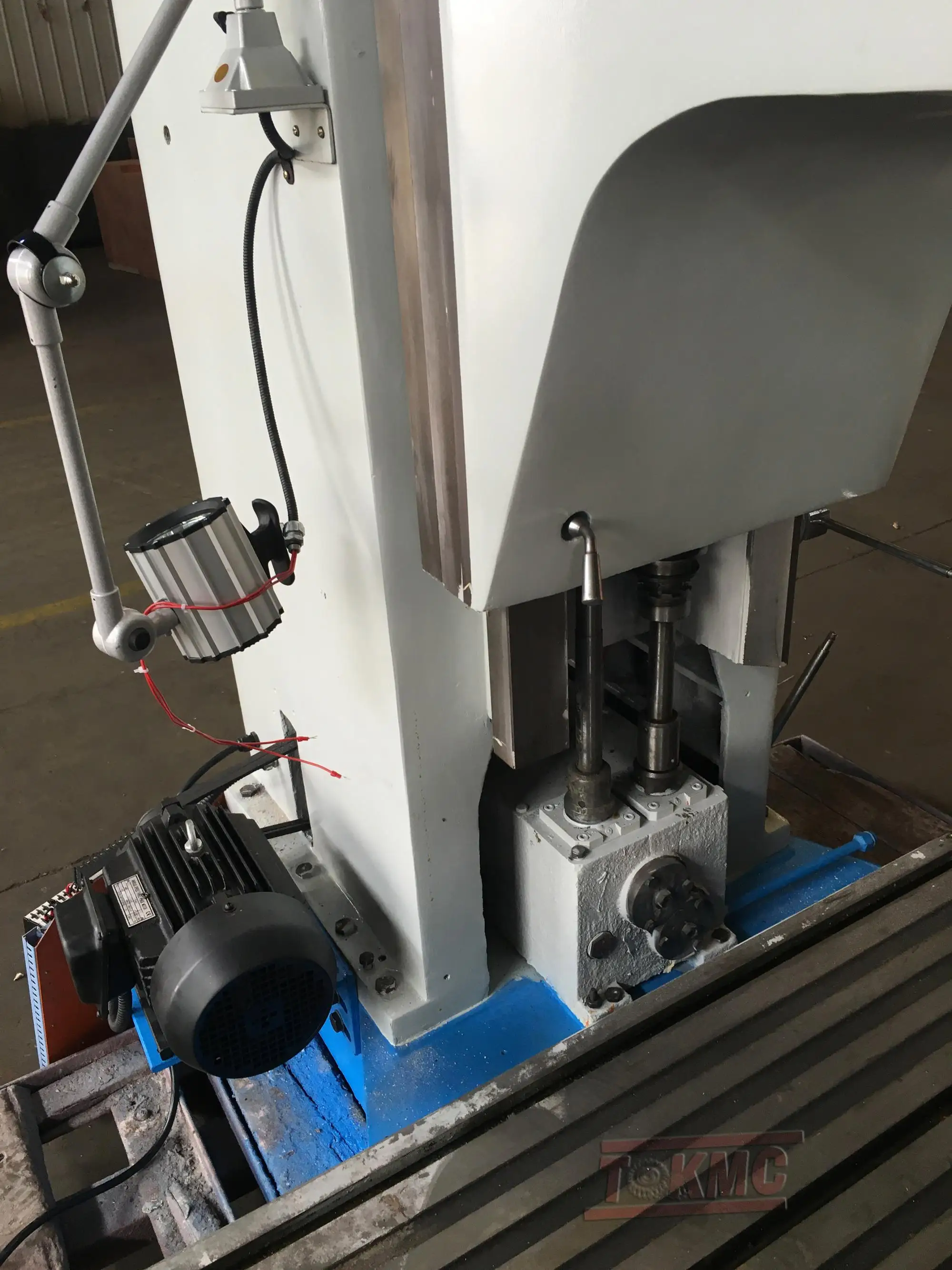

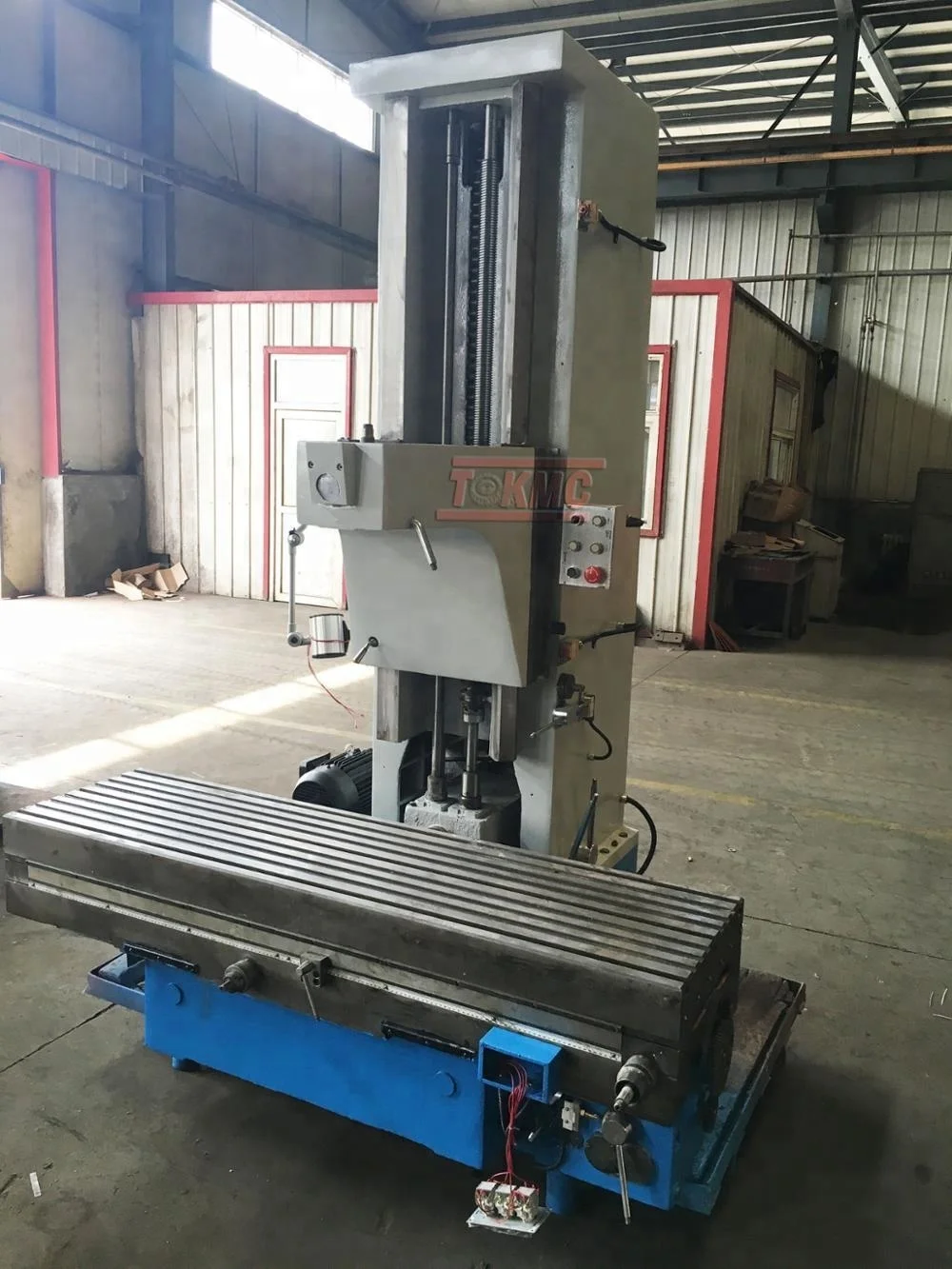

cylinder boring machine price TG18

Main Specifications

TG18A/B

Range of Boring Diameter

58-180mm

Max.boring Depth

450mm

Spindle Travel

700mm

The Distance from Central Line of the Spindle to the body

320mm

The Rotational Speed of Spindle

175,230,300,350,460,600(140-610)r/min

Spindle Feed

0.05,0.10,0.20(mm/r)

Rapid Travel of Spindle

2.65m/min

Table Size(L×W)

1200×500mm

Table Travel

Crosswise:100 Lengthwise:800 mm

Motor Power

Main Motor

Y100L2-4B3 3kw 1420 r/min

High Speed Motor

Y802-4B5 0.75kw 1400 r/min

Overall Dimensions(L×W×H)

2000×1225×2120 mm

Packing Dimensions(L×W×H)

1460×1400×2380 mm

N.W/G.W

2100/2300 kg
