60 degree circular array led lens ufo led lens for smd 3030

Product Overview

Description

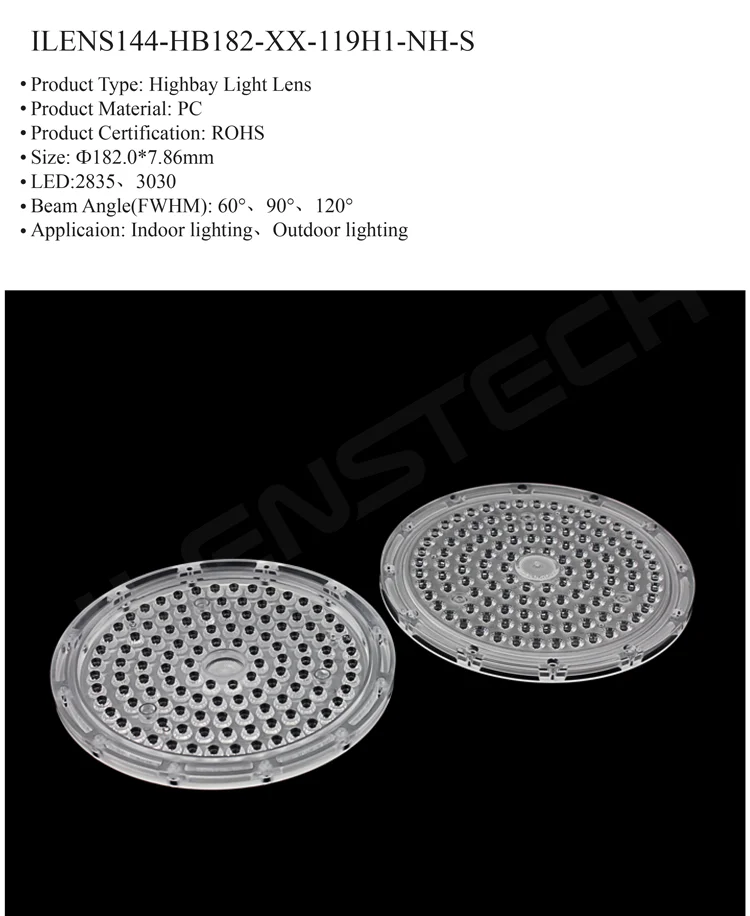

60 degree circular array led lens ufo led lens for smd 3030

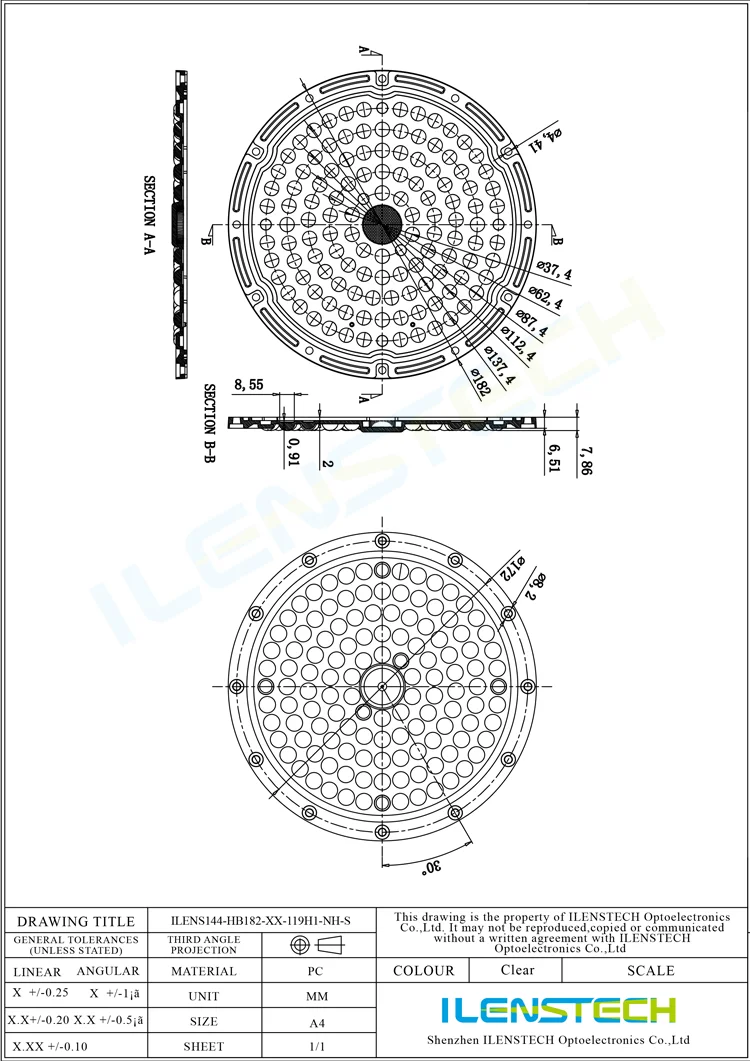

Model	ILENS144-HB182-XX-119H1-NH-S
Beam angle	60/90/120 degree
Type:	injection lens
Lens size:	182mm*7.86mm
Keywords:	Led light lens / led lens  /led optical lens
LED chip:	For Bridgelux/ Edison /Osram LED 3030,2835
application	for led lighting
Material for LENS:	Optical grade PC
Lens transmittance:	93%
Work temperature:	-40-120 °C
Samples and OEM:	Welcome
Delivery time:	3-5 work days (depend on stock)









FAQ for led light lenses:

Q:What details you need from us to reference lens?

A:Pls offer what beam angle ,what size you need, as well what led you will use.

Q:Do you need to know the application?

A:Yes, and if you know the size and beam angle will be more helpful.

Q:I didn't find the lenses in your website, does all your lenses on website?

A:No,we have so much kinds of lenses, just part of lens in website.contact us for more.

Q:Will you offer samples for us to test before order?

A:Yes, we advise you to try led light lens samples first

Q:I don't know much about the lens i need,can you help this?

A:Yes, we have professional engineers will be here to help you.

Q:Do you have catalog?what the material you will use?

A:Yes,We can send catalog to you.we use PMMA,PC



Welcome to contact us for catalog or custom lens
