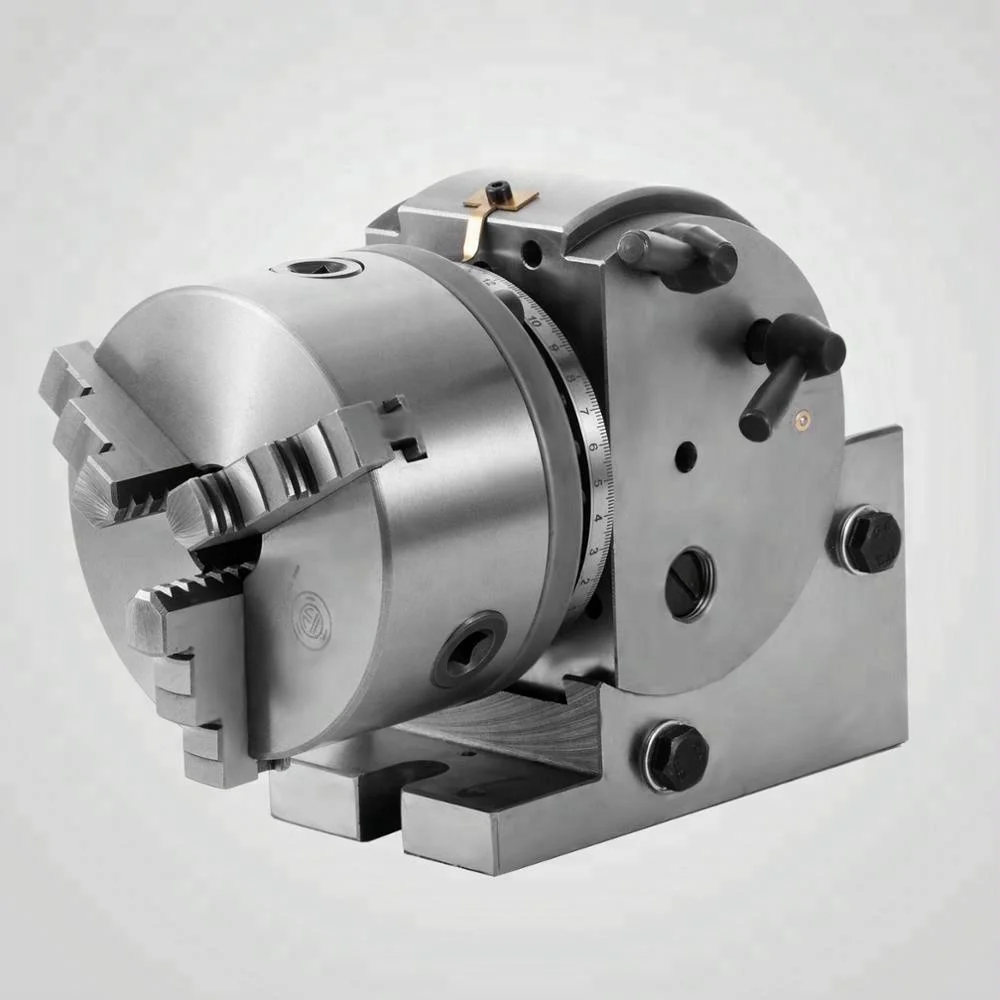

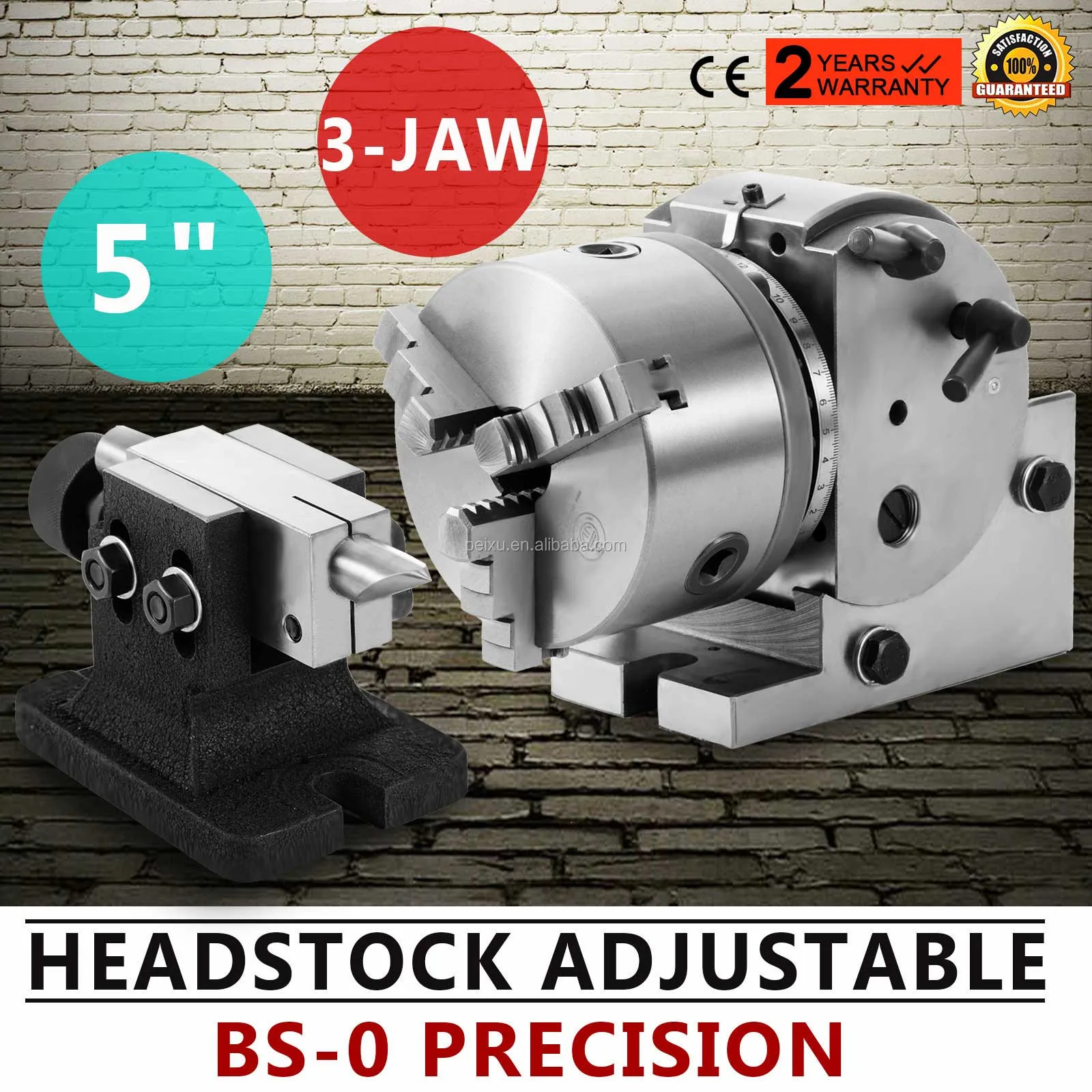

BS Series of Universal Precision Milling machine BS0 Dividing Head
Product Description

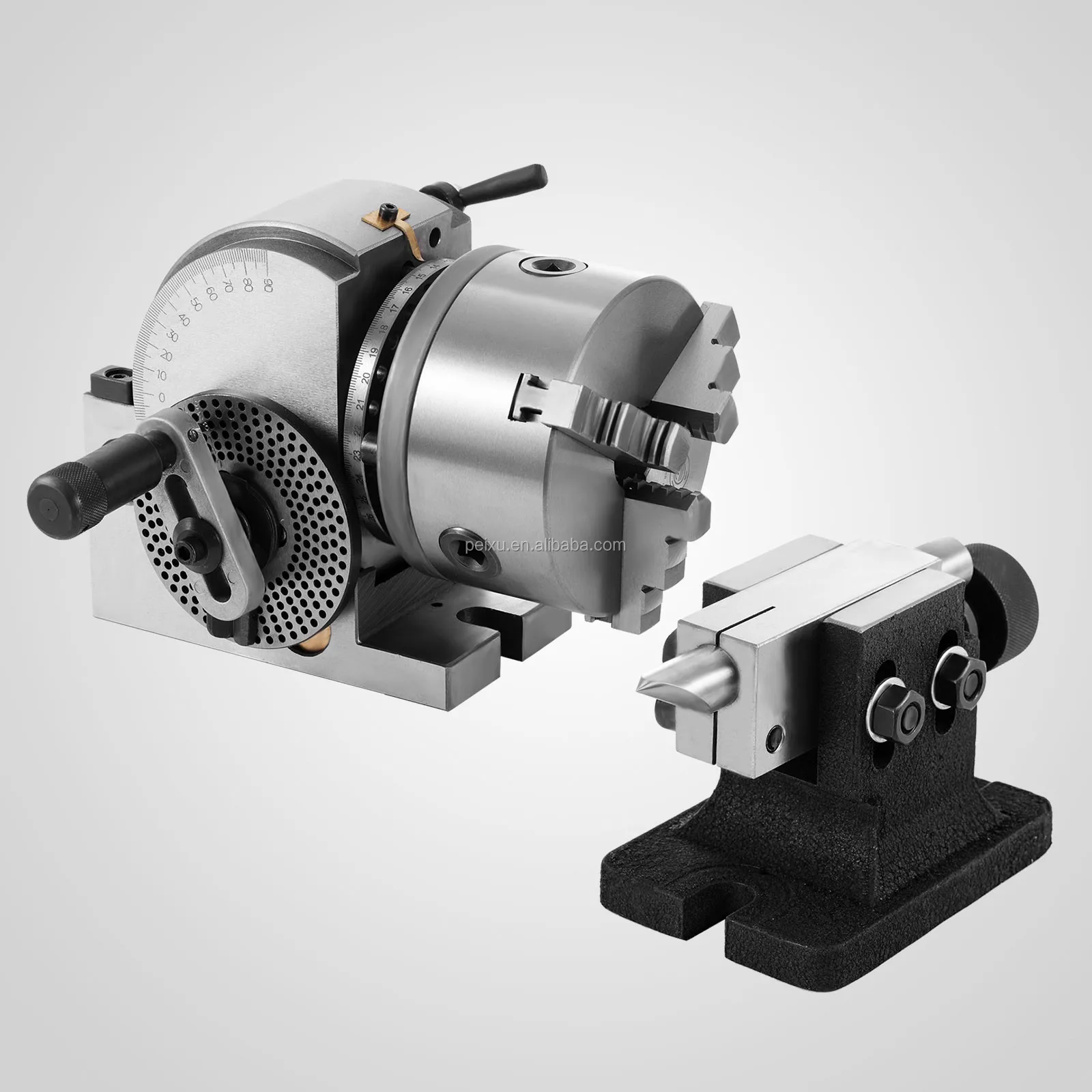

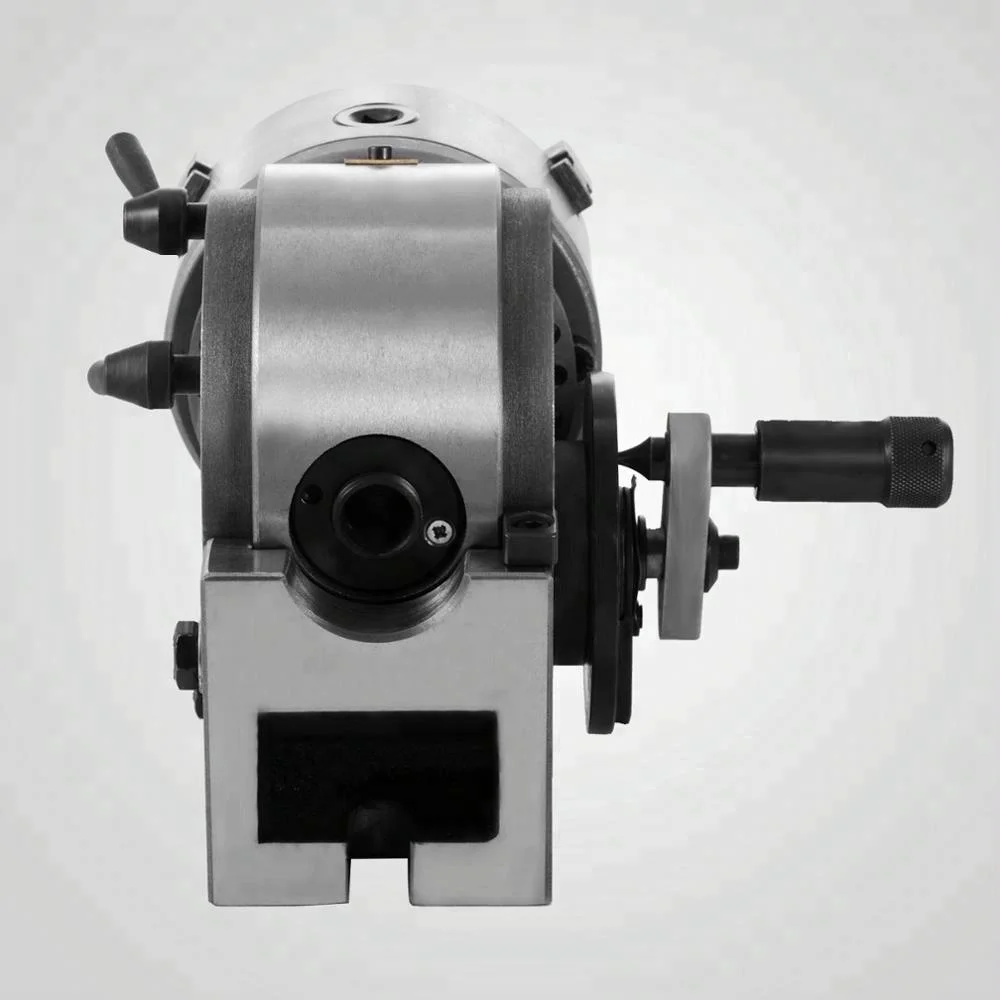

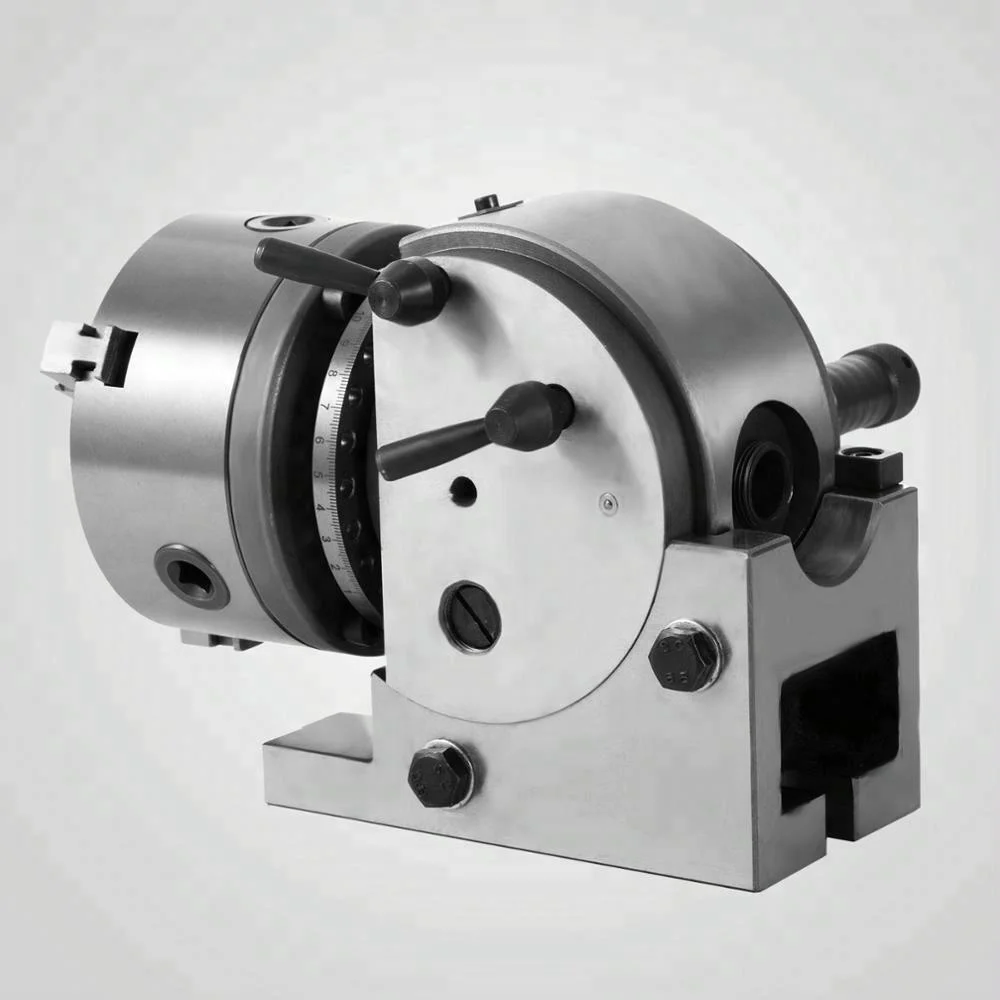

milling machine dividing head

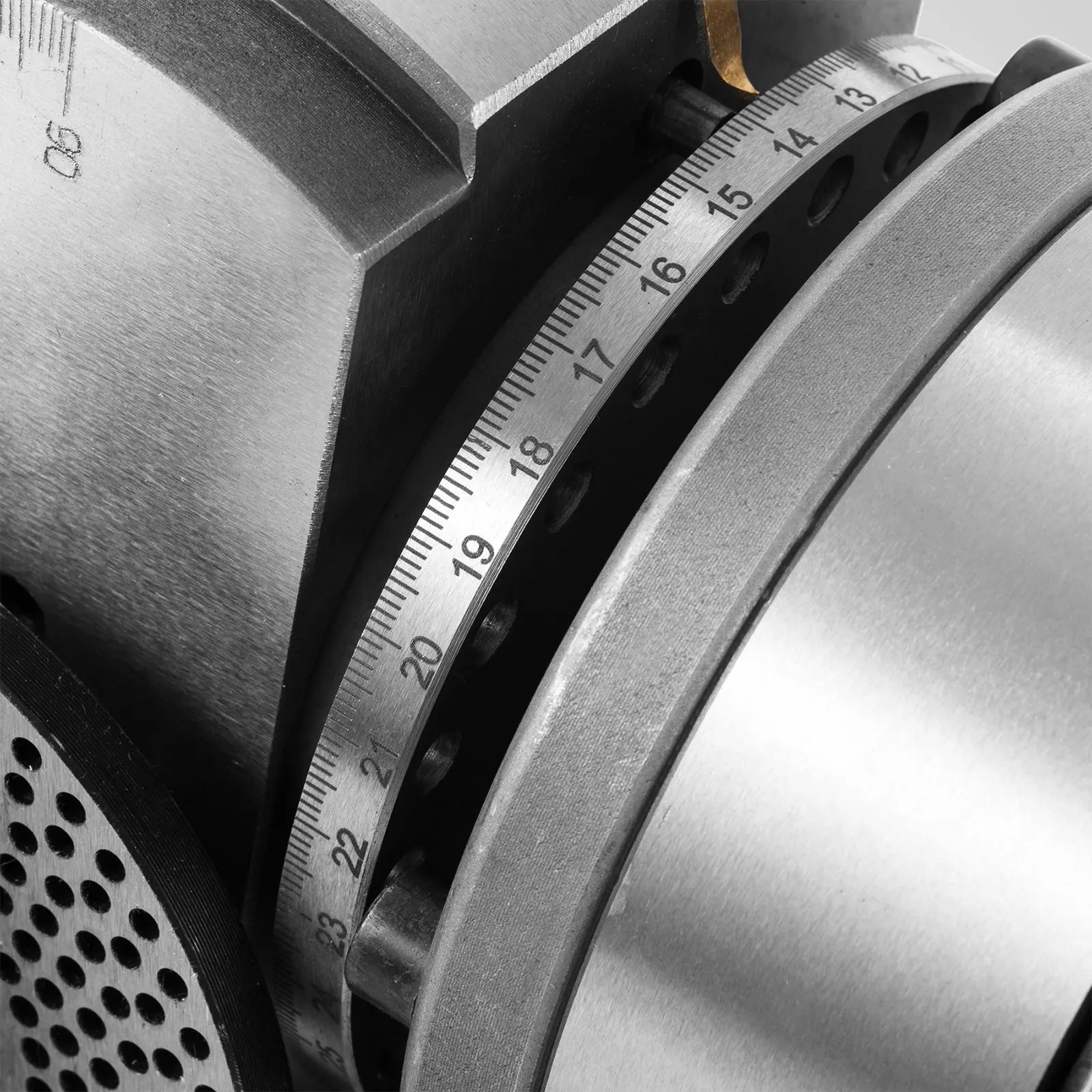

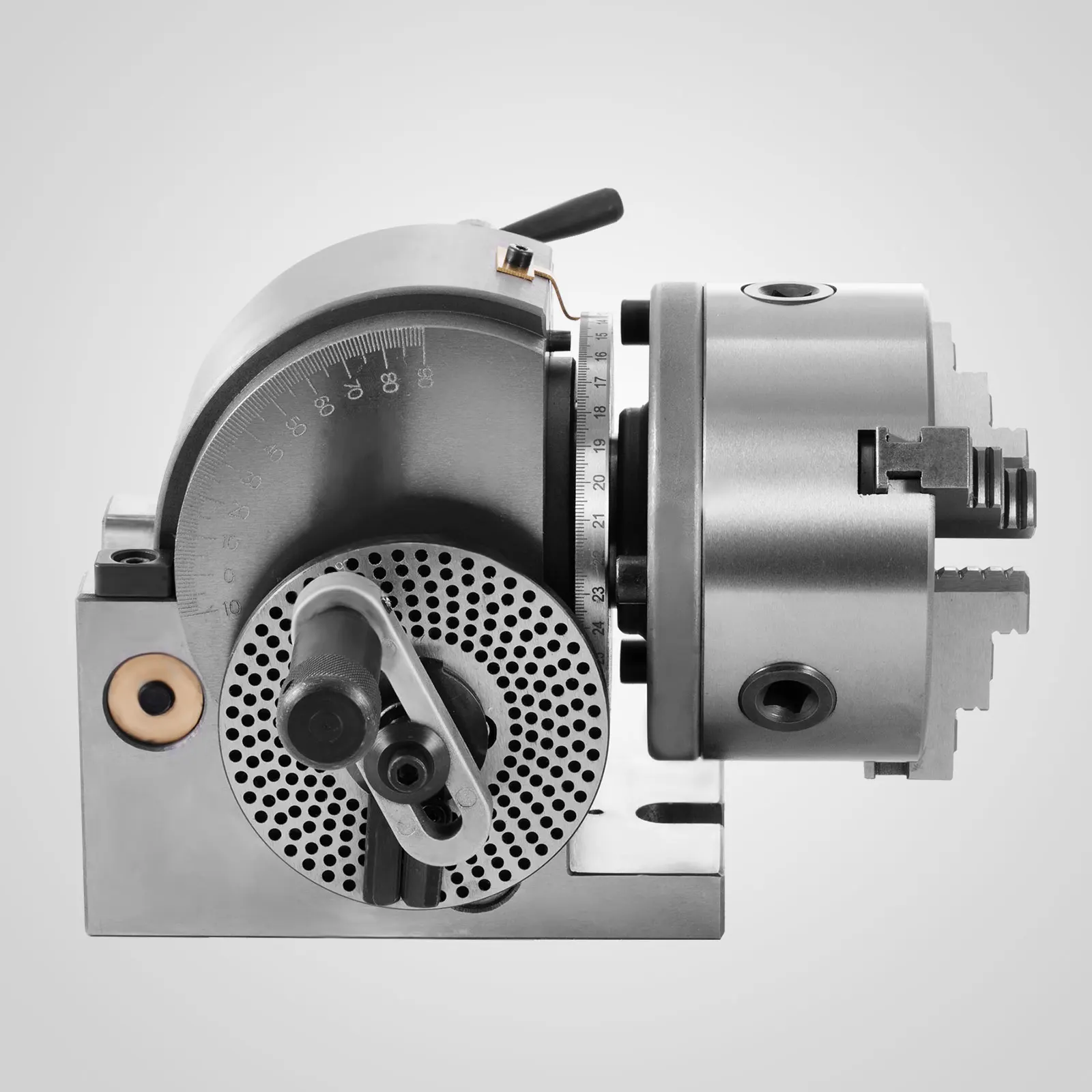

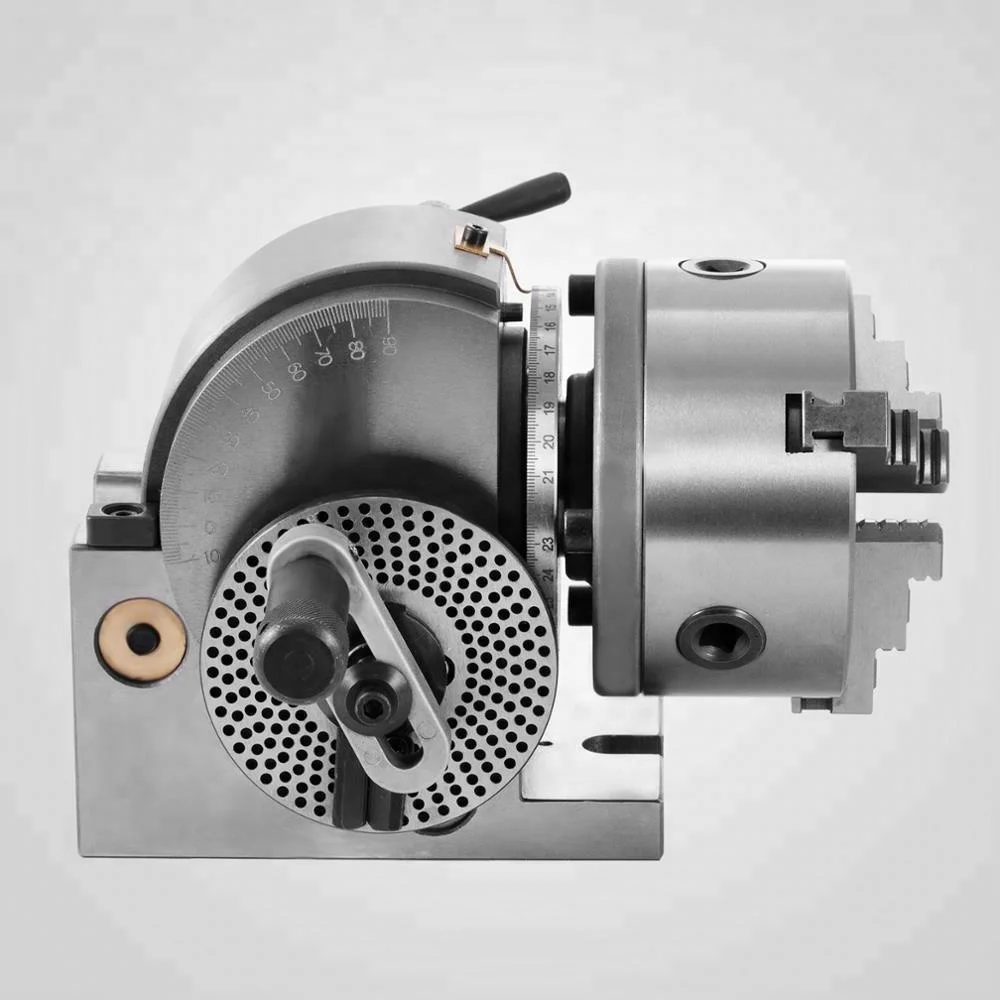

This is our semi-universal dividing head, one of machine tool accessories for dividing workpieces into equal partitions. By using dividing scale ring, vernier, locating pin, index plate and change gear, workpieces placed can be divided into equal partitions according to your demand. It can be used for direct and indirect dividing. Able to complete gear, face and flute processing without need of accessories, however its whole construction is the same with the universal type. The 24 quick-dividing holes can complete 2, 3, 4, 6, 8, 12, 24 division indexing. 3 dividing plates are attached along with the dividing head for indirect dividing in any division indexing 2-50, 51-380 except prime numbers and certain other numbers.

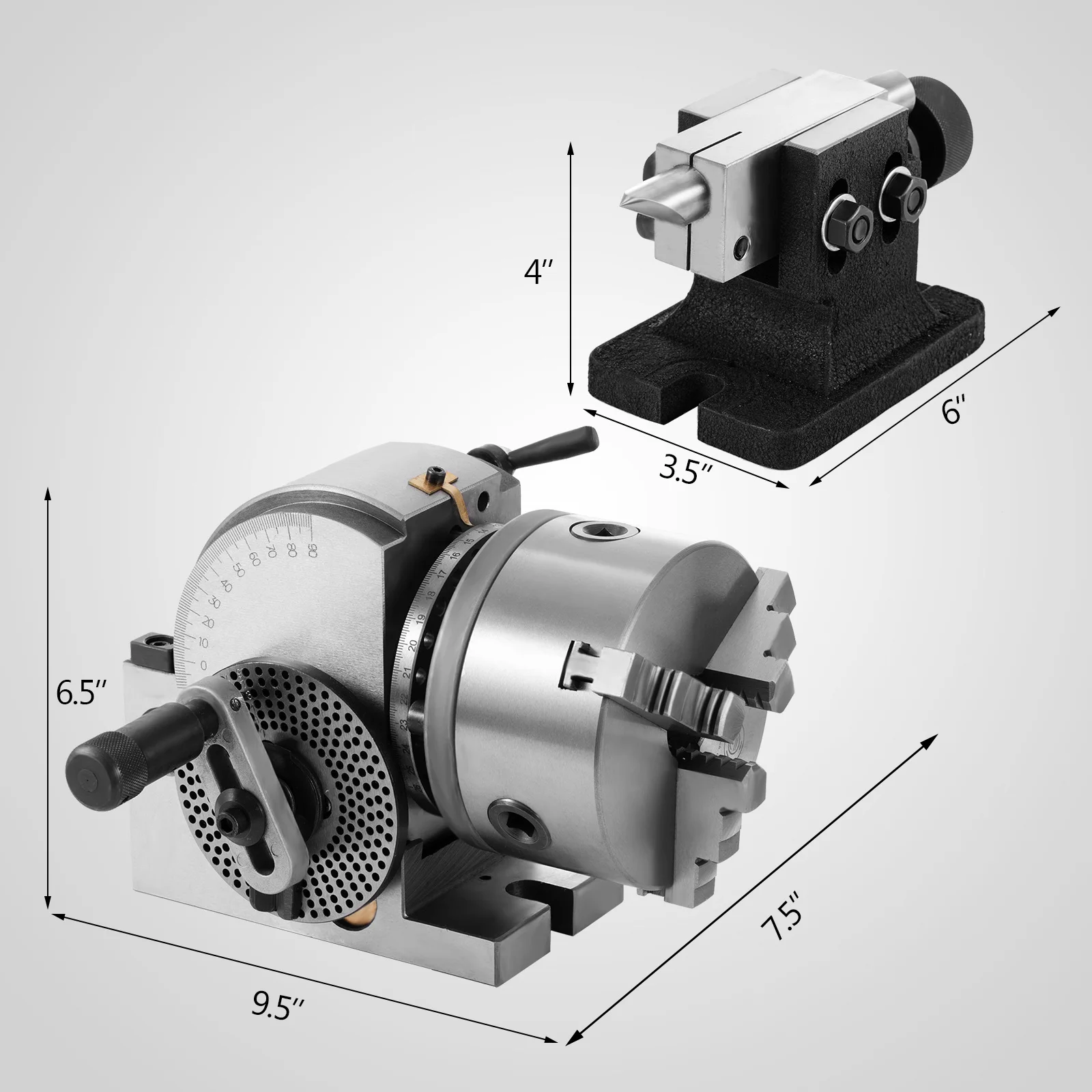

1. The front of dividing head dimension:
Model | Unit | A | B | H | H | a | b | g | Center pin ejector | Mandrel diameter |
BS-0 | Metric | 193 | 140 | 173 | 100 | 166 | 90 | 16 | MT2 | 18
|
Inch | 7.59 | 5.51 | 6.81 | 3.93 | 6.53 | 3.54 | 0.63 | B&SN0.7 |
2. The tail of the dividing head dimension:
Model | Unit | A1 | B1 | H1 | h | a1 | b1 | g1 |
BS-0 | Metric | 175 | 87 | 107 | 100 | 130 | 92 | 16 |
Inch | 6.89 | 3.42 | 4.21 | 3.93 | 5.12 | 3.62 | 0.63 |
3. Dividing Plate: Quantity of dividing plate’s hole (Helical gear reduction ratio 1:40)
Dividing Plate A | 15 | 16 | 17 | 18 | 19 | 20 |
Dividing Plate B | 21 | 23 | 27 | 29 | 31 | 33 |
Dividing Plate C | 37 | 39 | 41 | 43 | 47 | 49 |

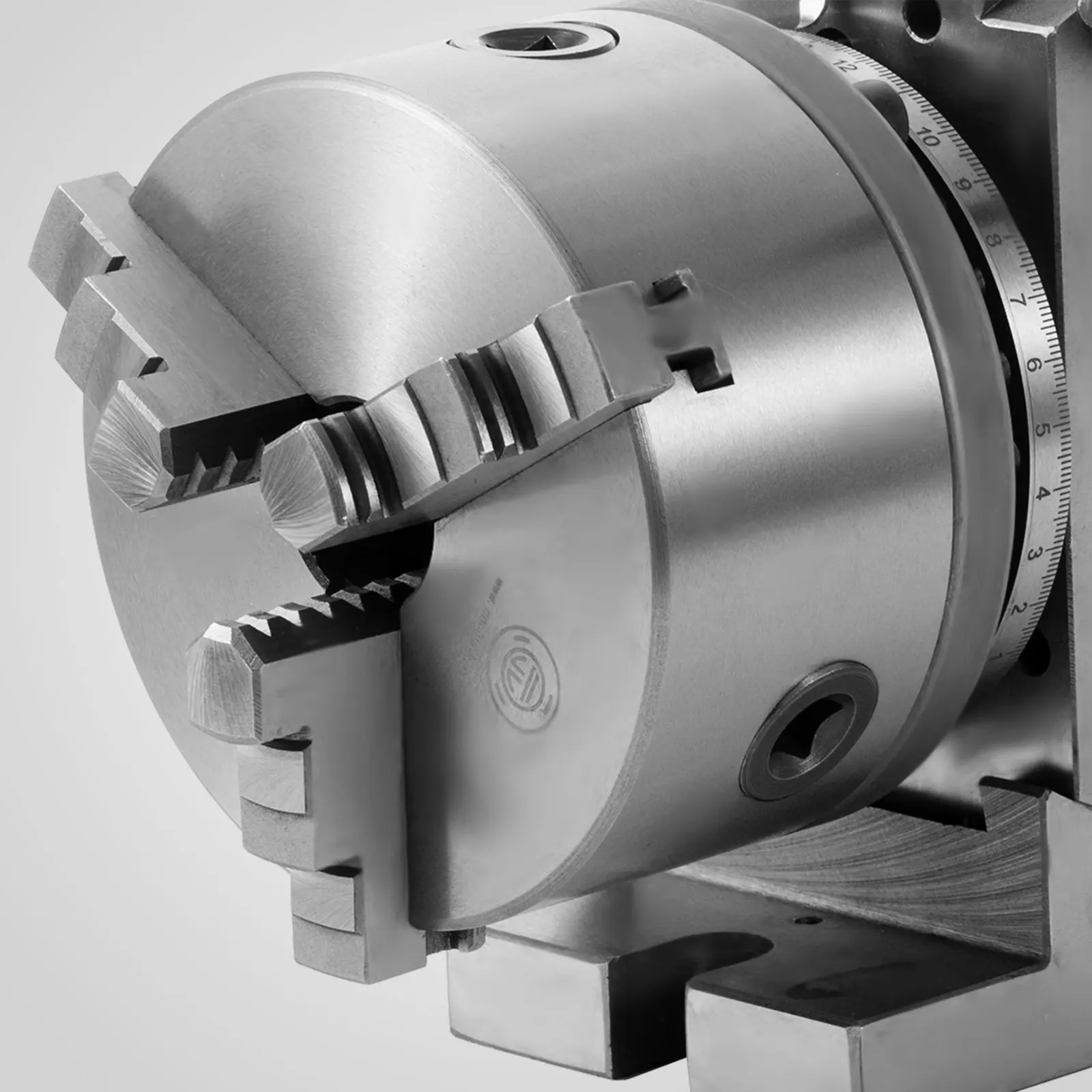

4. Lathe Chuck details:
| Size D | Internal Jaws | External Jaws | |
| Clamping Range | Jamming Range | Clamping Range | |
| A-A1 | B-B1 | C-C1 | |
| 125 mm | 2.5-40 | 38-125 | 38-110 |
Product Features
dividing head
- 100% brand new, of good quality
- Direct/indirect dividing
- Semi-universal dividing head
- User-friendly machine
- Professional precise division
Technical Data
universal dividing head
- Brand: Vevor
- Condition: Brand New
- Swing: 6-1/2"
- Center Height: 3-15/16"
- Headstock Taper: 7 B&S
- Weight: 23 kg (50.7 lbs)
- Package Dimensions: 410*235*205mm (16*9*8inch)
Package
- 1 X Dividing Head Set
- 3 X Dividing Plates
- 1 X Tailstock
- 1 X 125mm 3 Jaw Chuck
