Stealth Bomber B52 E Bike Kit 5000W 72V 30Ah 20S10P 18650 30Q Lithium Ion Battery Pack

Product Overview

Description

Material	Lithium Ion Battery (LiNiCoMnO2)
Nominal Voltage	72V
Nominal Capacity	30Ah
Cell Assembly	Samsung INR18650-30Q 3000mAh (15A discharge)
	20 series with 10 parallel
Built-in BMS (20S 80A BMS)	Over-charge & discharge protection. Temperature control function. Short circuit protection. Balances the cells and ensures long cell life.
Charge	Charge Model	CC / CV
	Charge Current	2A / 5A Charger
	BMS Charge Cut-off Voltage	84V
	Cell Overcharge Protection Voltage	4.2V / Cell
Discharge	Max Continuous Discharge Current	80A
	Peak Discharge Current	160A
	BMS Discharge Cut-off Voltage	55 +/-1V
	Cell Over-discharge Protection Voltage	2.8V / Cell
Working Temperature	Charge Temperature Range	0~45°C
	Discharge Temperature Range	-20~60°C
Cycle Life	800~1000 cycles
Our certifications	ISO9001, UL 1642, CE, ROSH
Dimension	220*200*140 mm / 370*158*120 mm
Weight	10 Kg
Application	E-Bike, Scooter, Motorcycle...
Warranty	13 Months

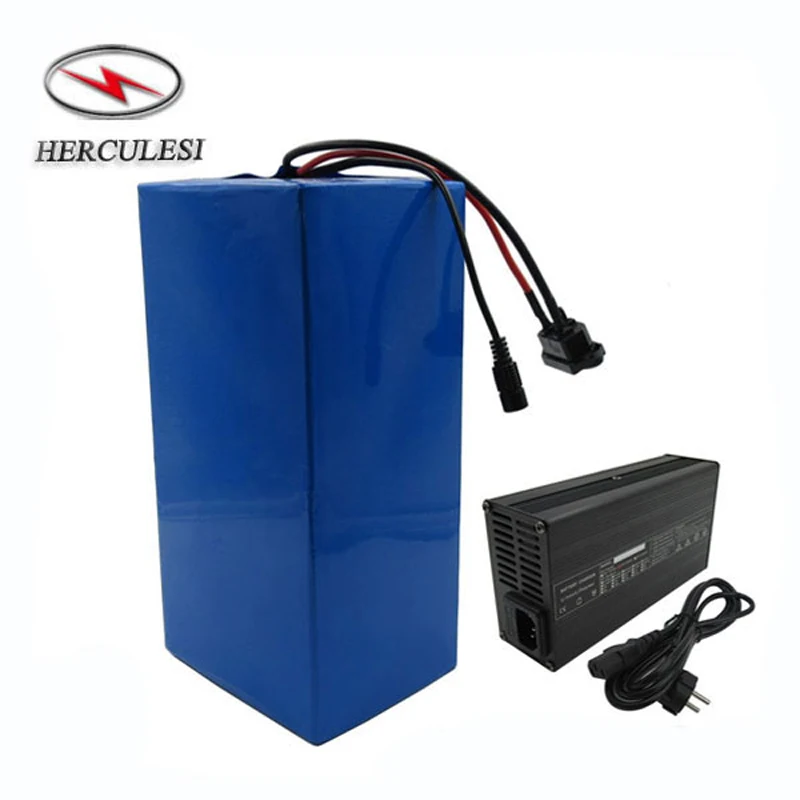

Part Included	1× 72V 30Ah Lithium Ion Battery 1× 84V 5A Charger



- Samsung 30Q, has a 3000mAh capacity and a whopping 15Amp continuous discharge rate. The 30Q cells are amazing both in their capacity and their discharge rate.

- 80 Amp max continuous balancing function built-in BMS

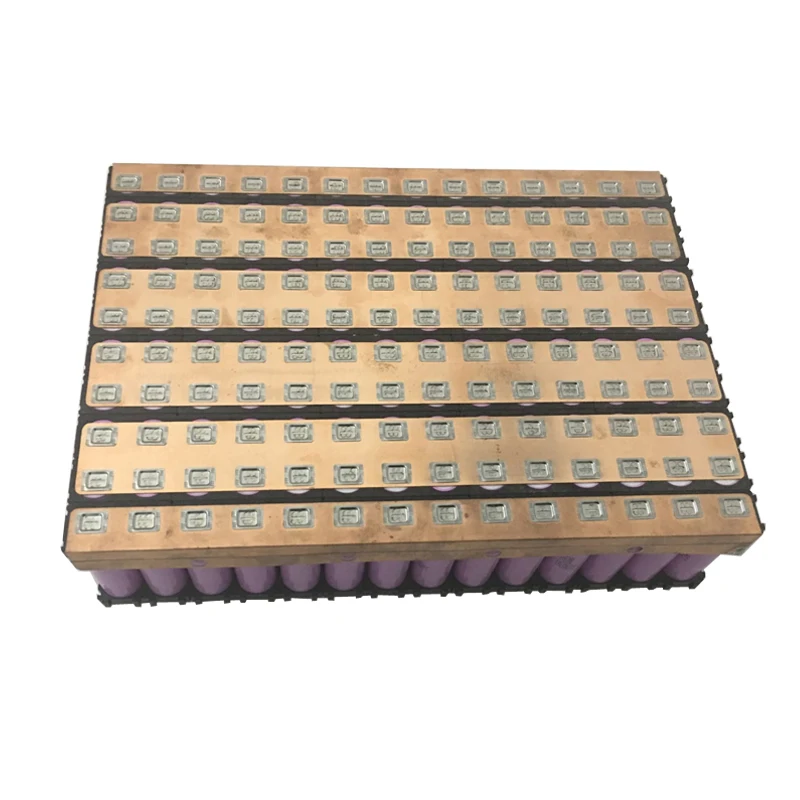

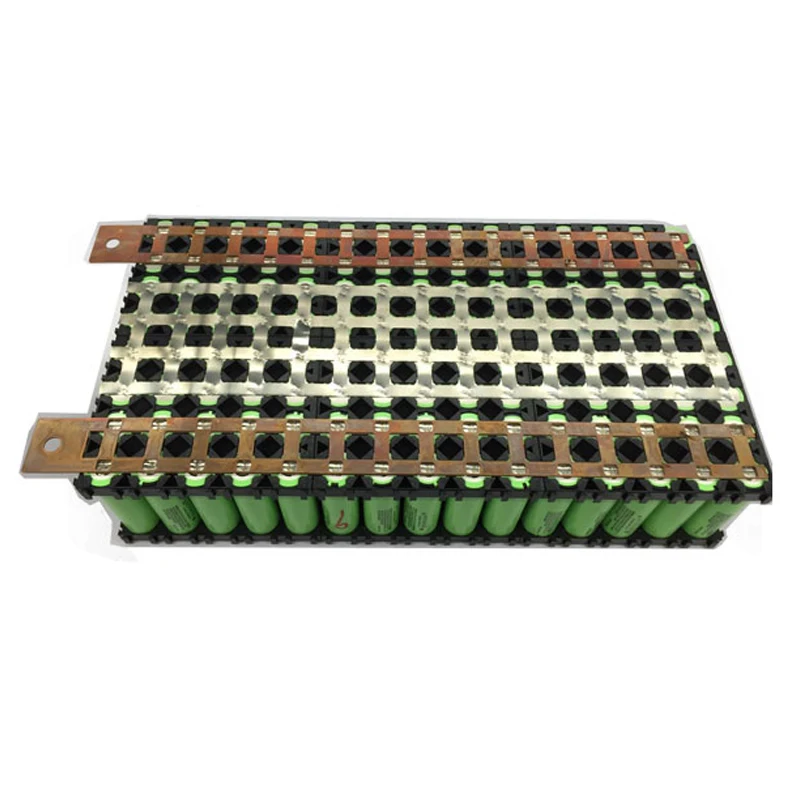

- Use high quality red copper plates, not just common nickel strips
- The excellent way of cell combination make sure the strong stability and nice performance of the battery

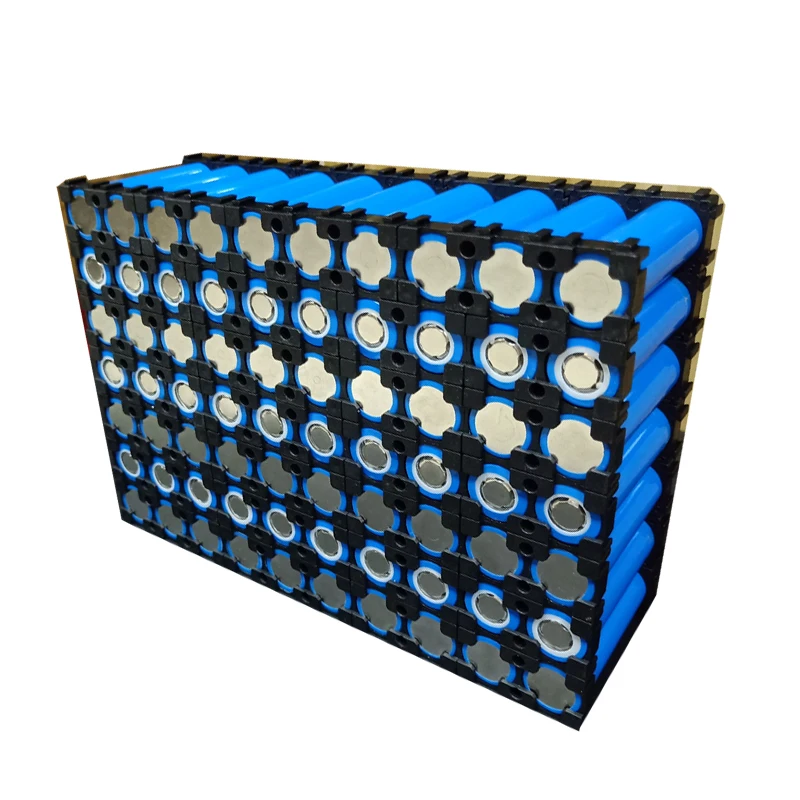

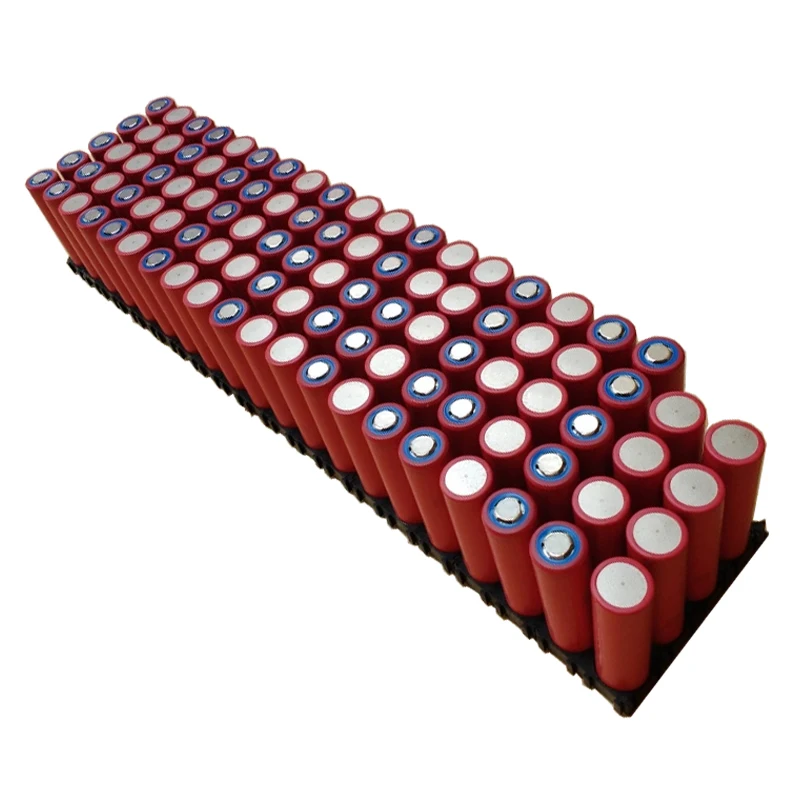

- Add cell grid holder to make the battery more stronger, protect the battery pack from damage. The large air gaps between the cells means your pack will run much cooler and the temps will be more even throughout the pack, this is by far the biggest benefit.



20S10P Samsung 18650-30Q 72V 30Ah pack size, 2 solutions for choice.

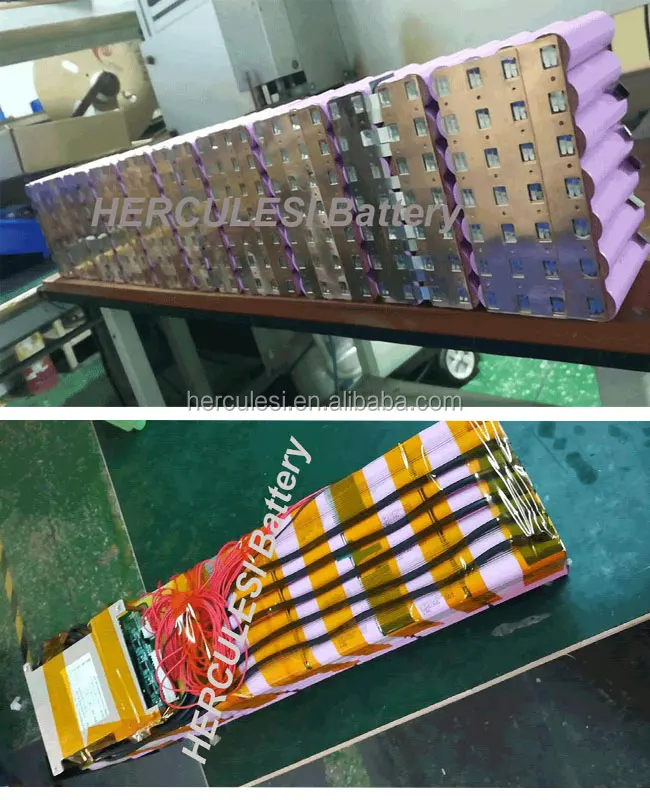

- Hot Glued pack : 220 x 200 x 140 mm
- Plastic Stenciled pack : 240 x 220 x 160 mm



Herculesi is one of white hair for battery business in China since 2008.

1. "Quality is our culture", passed ISO9001, UL 1642, CE, ROSH

2. "With us your money in safe, your bussiness in safe", full refund in case of bad quality.

3. OEM is also welcome in our factory!

4. "Quality is the soul of an enterprise", CE ROSH UN38.3 MSDS can be provided if needed.

5. Fully 13 months warranty with good after customer services.

6. Down tube/ Rear Carrier / Folding / Under Saddle E-Bike, Scooter, Motorcycle, Boat, Wheelchair, Solar Storage, EV, RV, Forklift LiFePO4 battery solution available.



We provide high quality battery to clients all over the world and help cleints deliver battery from China to them by sea and by air at reasonable price. Also we provide necessary technical solution and warranty to you!



Nancy Zheng
Email: sales03(at)herculesi.com at=@
