Computerize Multi Needles sewing Machine for jacket ,bed sheets machine,lock stitch quilting machine

Product Overview

Description





 ♦ Technical parameters :

Model	YGB64-2-3	YGB64-3-6
Dimension(L*W*H)	3800mm*1200mm*1800mm	3800mm*1200mm*1800mm
Quilting Width	1650mm	1650mm
Needle rows	2	3
Space between needle rows	3" inch	3"+3" inch
Space between needle	25.4mm	25.4mm
X-axis movement displacement	254mm	304.8mm
Thickness of quilting	≤25mm	≤25mm
Stitch length	2-6mm	2-6mm
Speed of operation(m/hour)	20-120(m/hour)	20-120(m/hour)
Model of needle	16#,19#	16#,19#
Shuttle	7# or 10#	7# or 10#
Quilting Speed(r/min)	300-800(RPM)	300-800(RPM)
Voltage(AC)	380V/50HZ,3-Phase 220V/60HZ,3-Phase	380V/50HZ,3-Phase 220V/60HZ,3-Phase
Total power	3.5KW	3.5KW
Gross weight	3200kg	3200kg

 * Can be customized according to customer requirements









 ♦ Product main features :

1,Computerized speed governing , max.800r/min.
2, Needle row driven by aluminum alloy needle bar frame structure. Oil free, sturdy and durable.
3, Saddles and Rollers driven by Servo drive equipment, Spindle adopts frequency conversion control.
4, Saddles using quilting machine with high rigidity design. The stand of fabric separate from saddles, effectively reduce the operating load of motor.
5, Dual clutch device, to solve the synchronization problem of rollers in front and back.
6, Using high-precision and high rigidity Imported screw mandrel.
7, 360 degree free quilting come with unlimited Multi-span quilting independent patterns.
8, Automatic thread-break detection unit.
9, Infrared sensor make sure more safety operation.
10,The machine runs smoothly,low noise, high precision, low thread-break rate and easy to operate.









 ♦ Purpose :

It is widely used for quilting high-quality garments, bedding covers, textile, leather, shoes, cap, bags, vanity, gloves, sleeping bag, seat cover and Wall decoration etc.

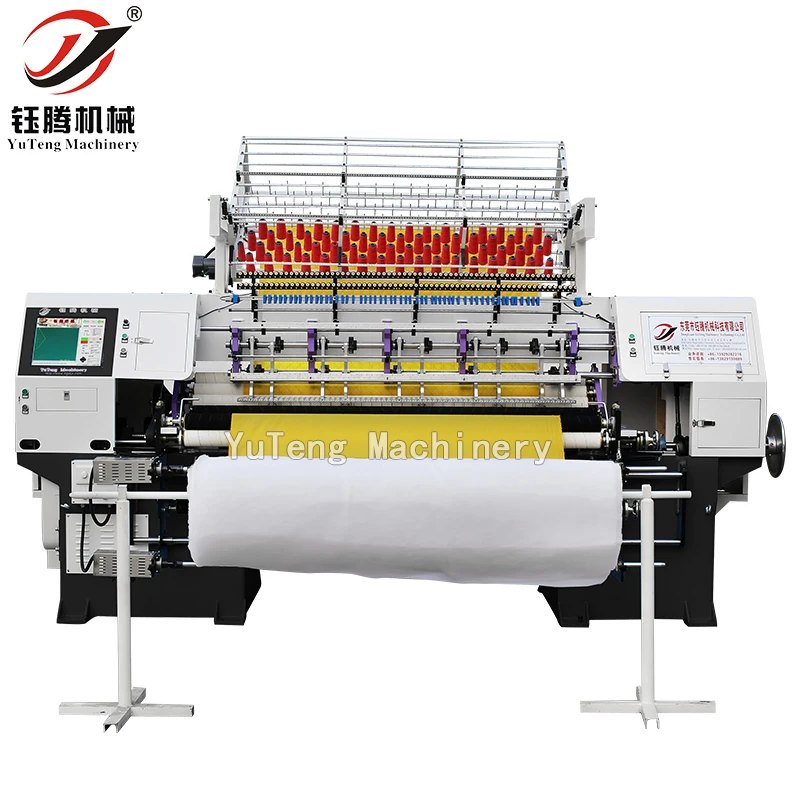

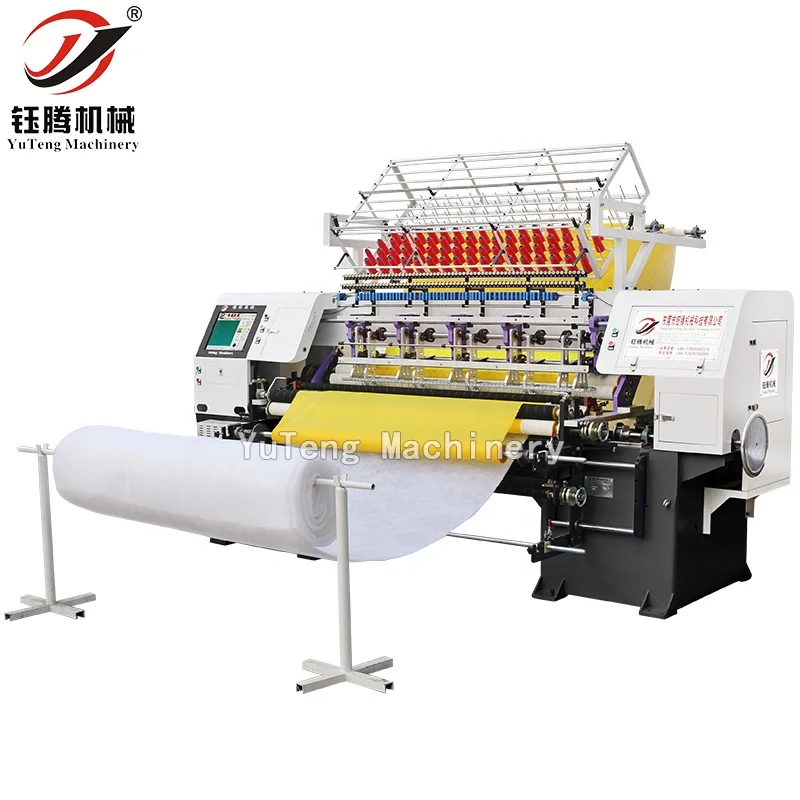

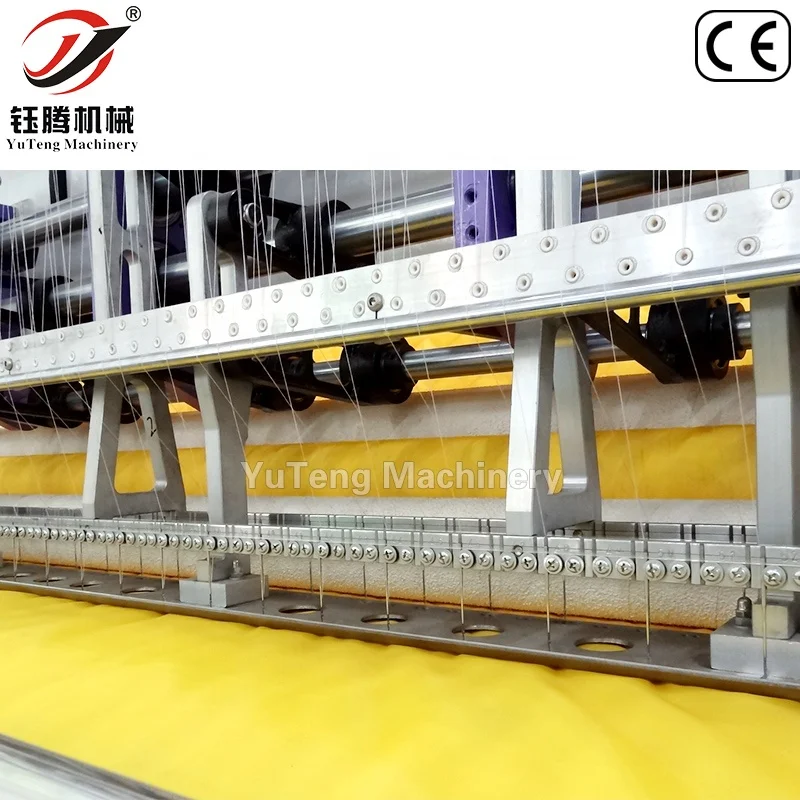

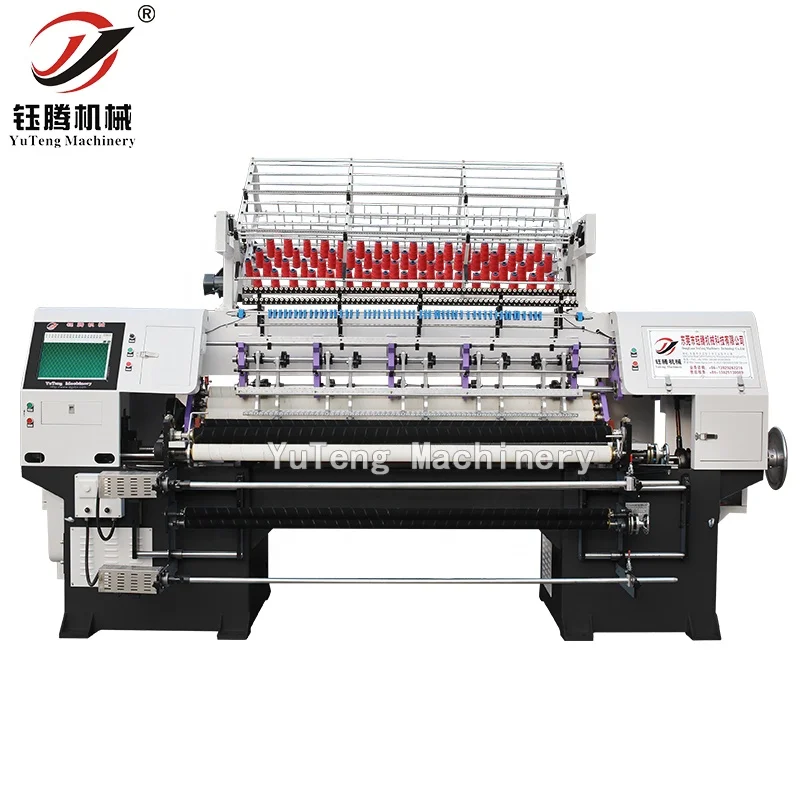

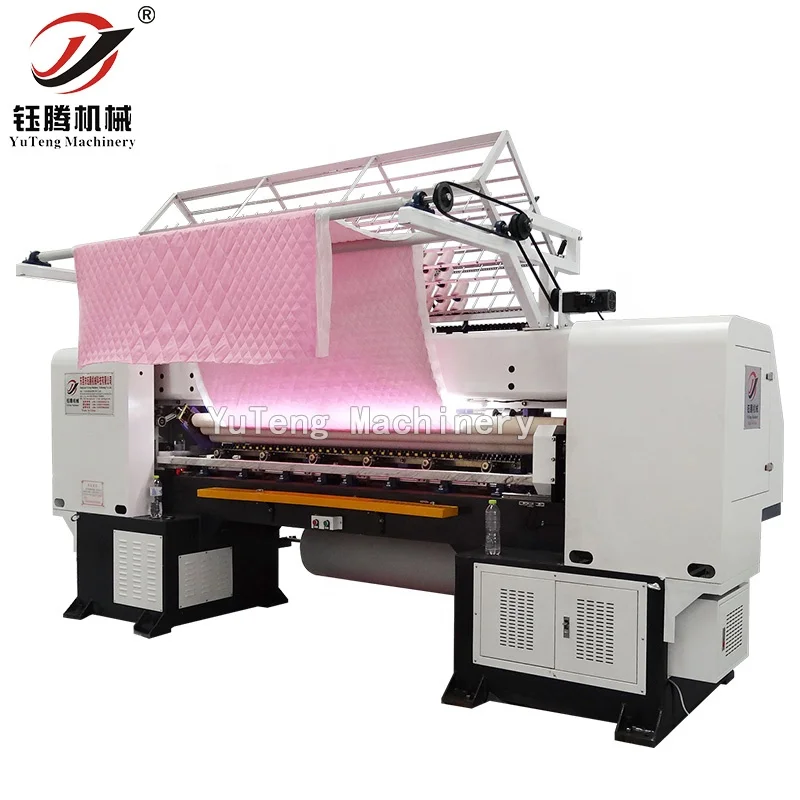

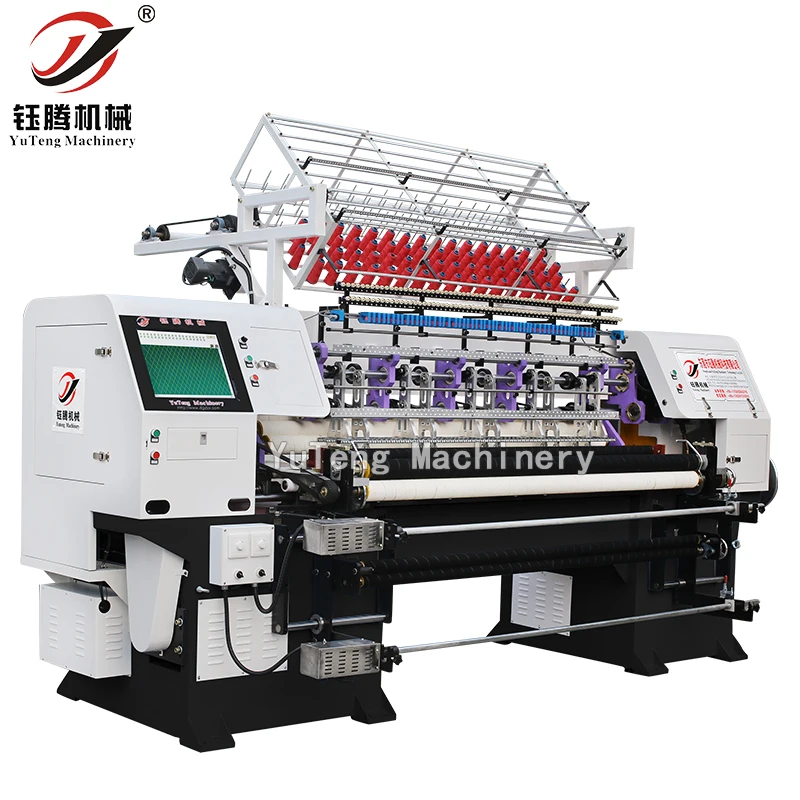

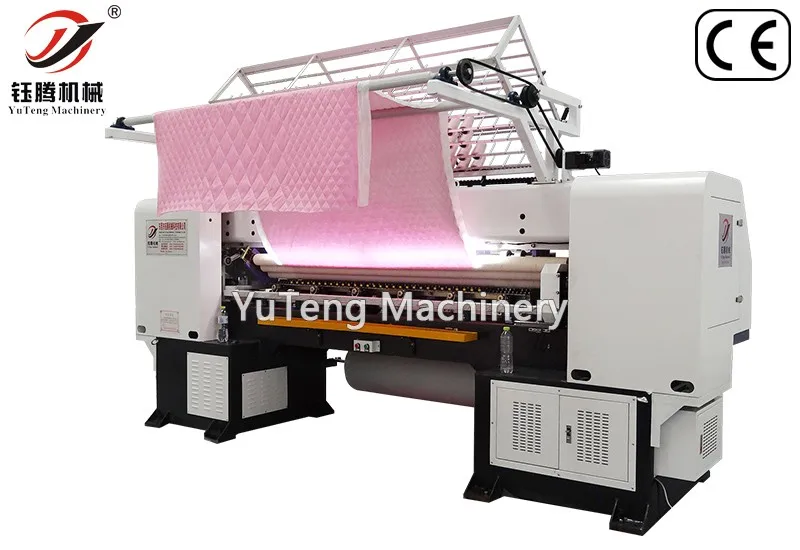

 ♦ Quilting Machine Pictures :















 ♦ Certificate :











 ♦ Company pictures :









 ♦Our service :

1.Warranty: One year.
2.Overseas engineers can be sent to install machines and teach you how to use them.
3.We provide quality Before-sales service and after-sales service.

4.We have our own manufacture factory and sales teams and engineers.
5.Visit our Factory.

6.Can provide quilted fabric samples.
