Pan Head Plastic Nylon Screws Cross Recess PA 66 Machine Fastener
- Category: >>>
- Supplier: Dongguan Vedali Hardware Co. Ltd.
Share on (60767000236):
Product Overview
Description

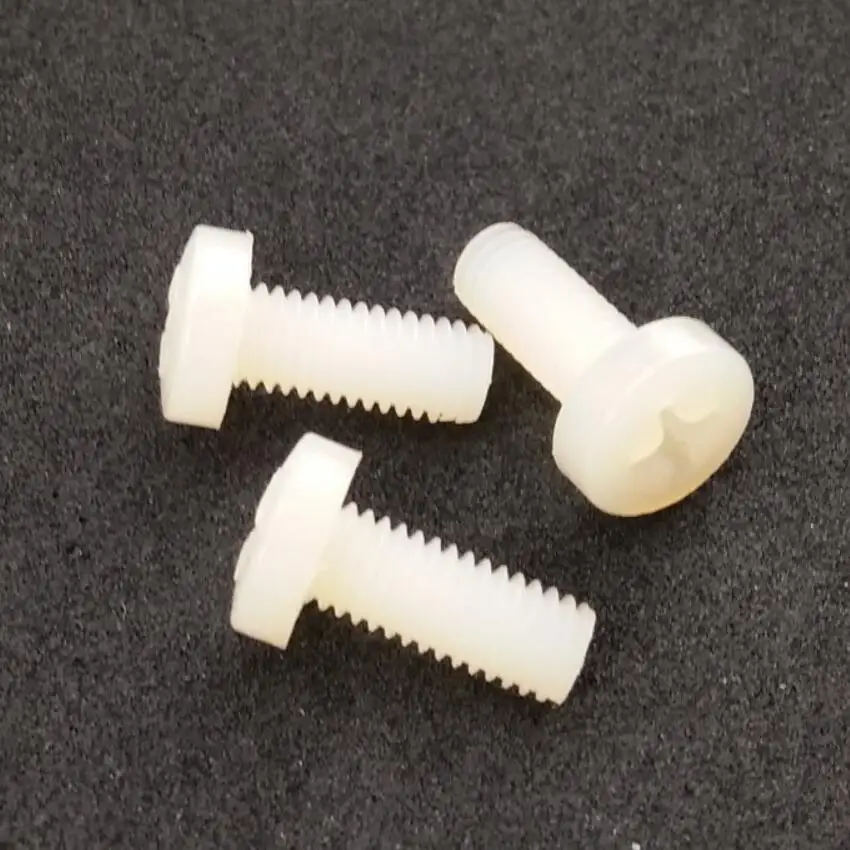

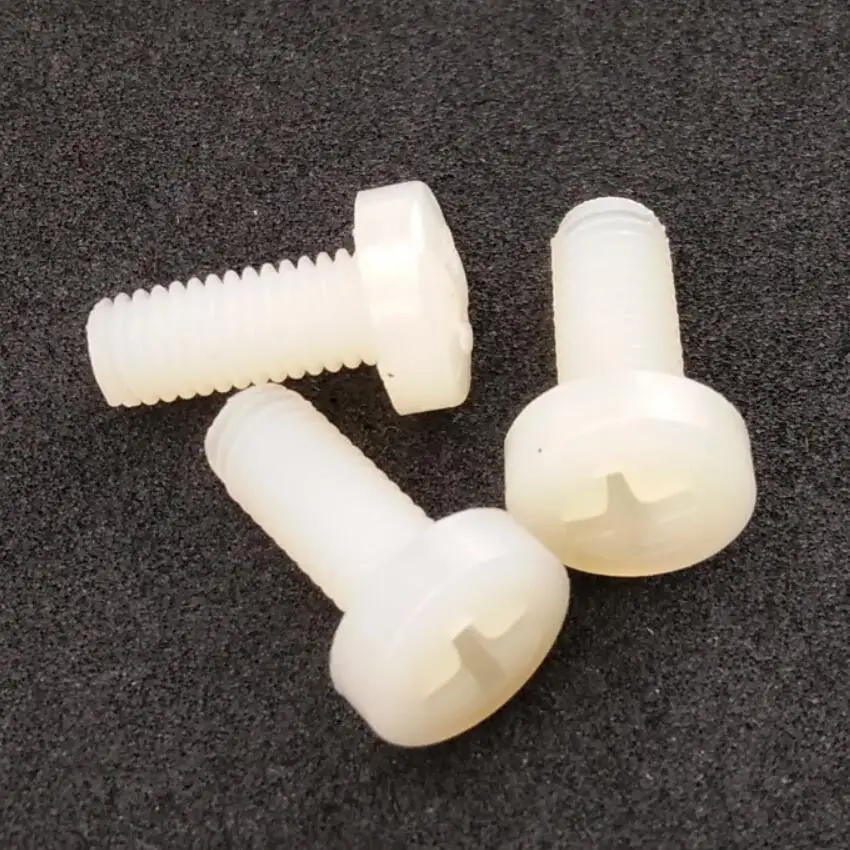

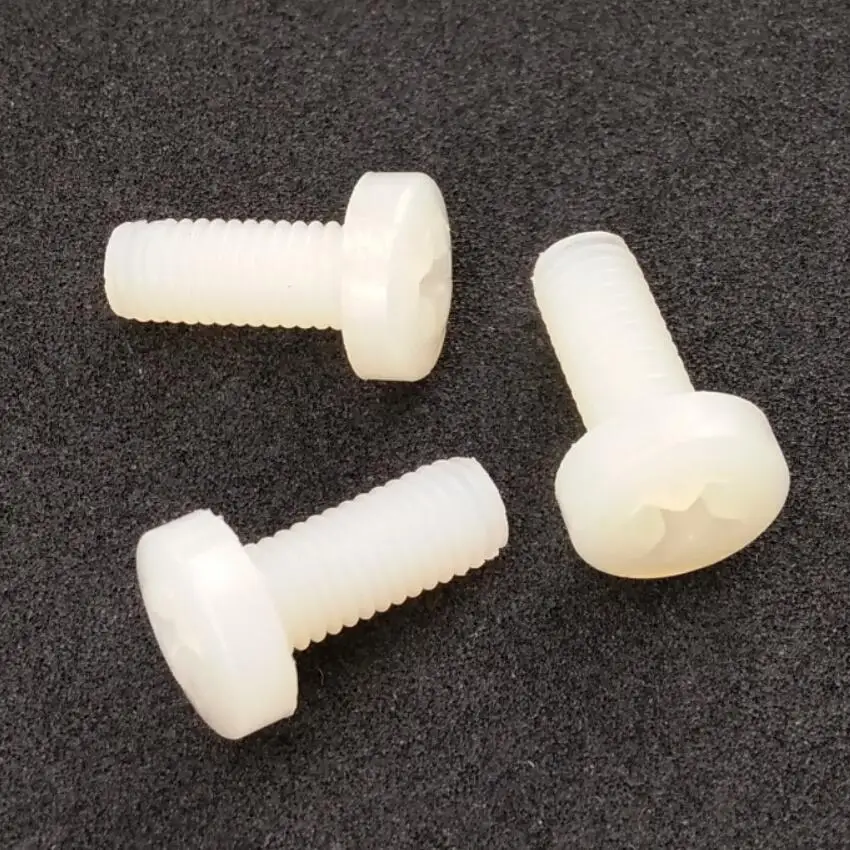

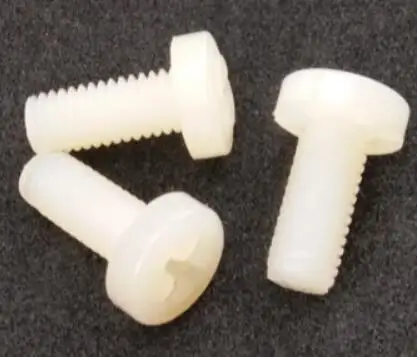

Pan Head Plastic Nylon Screws Cross Recess PA 66 Machine Fastener
Product Description
Plastic nylon machine screws are made from standard nylon material with grade 66 that complaint of RoHS and UL 94V-2 resistance requested , Pan head and cross recess screw drive , metric full machine threads and flat point .
Plastic nylon screws with good corrosion resistance , it is good choice for chemical or other that easy to be rusted .
Technical Data
Items | Description | Remark | Picture | |
Material | Plastic nylon | 66 |
| |
Finish / Plating | NA |
| ||
Hardness | 118 | HR | ||
Color | White |
| ||
Standard | DIN |
| ||
Elongation at break % | 2.2 | Bending strength MPa |
110 | |
Tensile strength MPa |
75
| Modulus of elasticity for bending MPa |
2500 | |
Dimensions
| Thread dia. | M4 | Head dia. | 8.2 |
Full length | 16 | Head height | 3.0 | |
Pitch | 0.6 | Head socket | PH2 | |
Product Features
1 . Good anti-wear
Nylon material grade 66 is not easy to be weared .
2 . Perfect corrosion resistance
Plastic nylon screws are not rusted .
3. Not easy to be broken
4 . Good insulation
5 . No burrs or scratch .
6 . Water proof
Tips for application
1 . Operated by a cross screwdriver
2 . Not suitable for high temeparture that over 130 degree
3 . Far from fire
4 . Do not put over torque on plastic nylon screws .
Product Application
Nyon plastic machine screws are widely used to chemical , electronics or ocean equipments etc .
How we pack
Normal packing
1. In bulk : Polybag ( 1-5 kgs) and cartons (8-20 kgs ) , 0.01 CBM / CTN
2. Boxes : Box ( 1-3 kgs) and cartons ( 5-15 kgs ) , 0.01 CBM / CTN
3. All cartons to a pallet ( 1X1.2 m )
4. Customized packing |  |
Note : Objects showed in picture are only for reference , not stand for described items .
Optional Products
We manufacture various hardware parts , you can find and click following descriptions to see more items .
Screws
| Various standard and non-standard fastener screws with qualified materials for different applications . |
Nuts and bolts | High tensile strength bolts nuts for engineering projects . |
Washers and spacers | Different materials washers and spacers for mechanical and clectronic parts |
Fastener Pins | Precise mechanical tolerances and good quality for industry . |
Plastic Parts | Customized manufacturing service and top materials for communication and electronics and auto etc . |
Quality Guarantee
Precise testing equipments and tools for hardness , dimensions , corrosion resistance and pass rate etc . our tolerance for tools is up to 0.005 mm . | All products are compliance with RoHS and REACH standards | |
| |
|
| |
|
Note : We are available for customized requests on quality
| ||
Production Capacity
Stamping parts with complicated designs , min. tolerances to 0.01mm (0.0004 inch ) , monthly capacity ups to 100 tons .
Availabe material : 1. Carbon steel 2. Brass 3. Aluminum 4. Stainless steel 5. Plastic 6. Various alloy steel eg. titanium alloy . |
|
 | Precise turning machines and CNC , tolerances are up to 0.01 and 0.008 mm for limitaiton . 5 million pcs monthly capacity .
Availabe material :
1. Carbon steel 2. Brass 3. Aluminum 4. Stainless steel 5. Plastic 6. Various alloy steel eg. titanium alloy .
|
Assorted fastener machines to make different screws , bolts , nuts and pins etc . Diameter from M0.8 to M30 . Monthly capacity ups to 300 tons .
Availabe material : 1. Carbon steel 2. Brass 3. Aluminum 4. Stainless steel 5. Plastic 6. Various alloy steel eg. titanium alloy . |  |
