China Manufacturer 4-12mm 3 ribbed rebar steel cold rolling mill plant
Product Description
China manufacturers manufacture advanced 3 ribs steel cold roll mill with high quality
This cold rolling mill is a kind of steel roll forming machine for processing Grade Q235 hot-rolled round bar to 3 side ribbed steel equipment. The cold rolling machine is the main part of cold rolling automatic production line. The 3 ribbed steel bar can be used for bridge engineering, houses construction, high-rise buildings and other industry etc. The tensile strength and yield strength of steel bar is reinforced and the steel costs can be saved by about 40%. The cold rolling mill can roll the base metal into three-side thread steel bar which reaches to 550 Mpa and meet the National Standard (GBT13788).
China Manufacturer 4-12mm 3 ribbed rebar steel cold rolling mill plant Advantages: 1.High degree of automation, 2.Sophisticated manufacturing process, 3.High output and long lifespan, 4.Easy to operate and maintenance.
China Manufacturer 4-12mm 3 ribbed rebar steel cold rolling mill plant Operating Instruction and Maintenance:
1. Check the electrical system before starting cold rolling mill, 2. Check oil level of each tank, 3. Fill each oiling part, 4. Check if the base material is rational or not,5. The dusts and debris of the electrical part should be always cleaned up, 6. The moving parts should be fastened frequently, 7. In the production process, cold rolling mill can not overburden to avoid damage of mechanical. Operation should be in accordance of rolling standard so as to ensure the safe use of equipment and the qualified product.
China Manufacturer 4-12mm 3 ribbed rebar steel cold rolling mill plant Technical specification
Model
Main motor kw
Deputy motor kw
Shift capacity T
LZ130φ5-7
30
4.5
6-10
LZ150φ5-9
45
5.5
13-25
LZ150φ5-11
55-75
7.5
30-45
Three High Reversible Cold Rolling Mill production line developed by our company has been optimized each system and achieve automation which greatly improved line speed and product quality of cold-rolled ribbed steel bar production line.

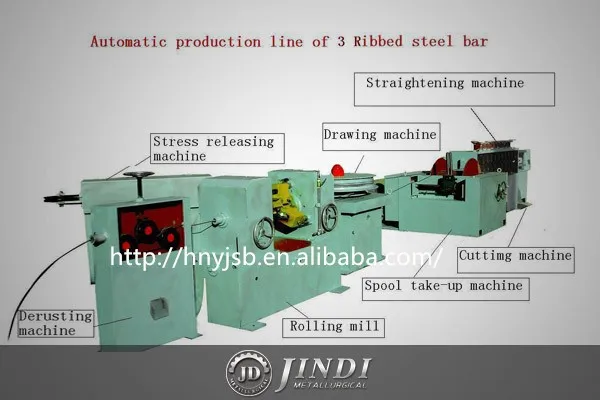

Process flow diagram of automatic production line of China Manufacturer 4-12mm 3 ribbed rebar steel cold rolling mill plant.
Steel Diameter Range:
Raw Material Diameter: 5-13mm
Final Rebar Diameter : 4-12mm
Speed: 1.5-3m/s
Capacity: 20-50T/Shift

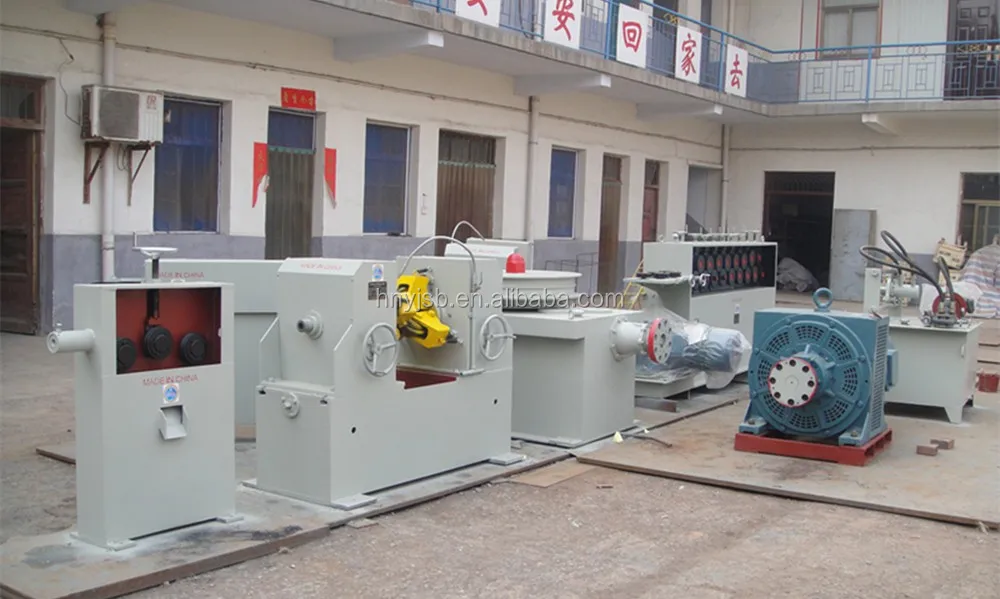

Layout of 3 ribs steel bar production line There are two types layout:
1. Final rebar in coil
2. Final rebar in straight

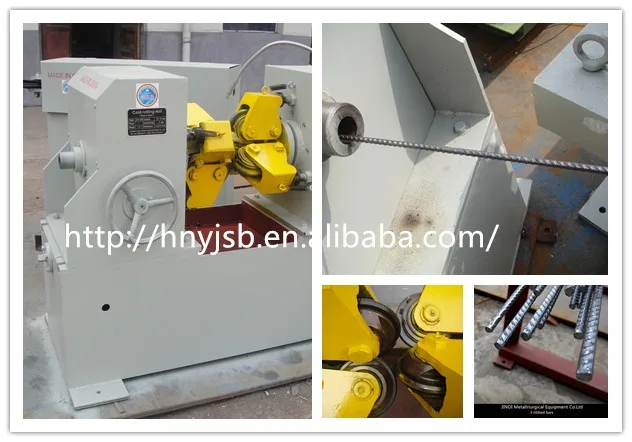

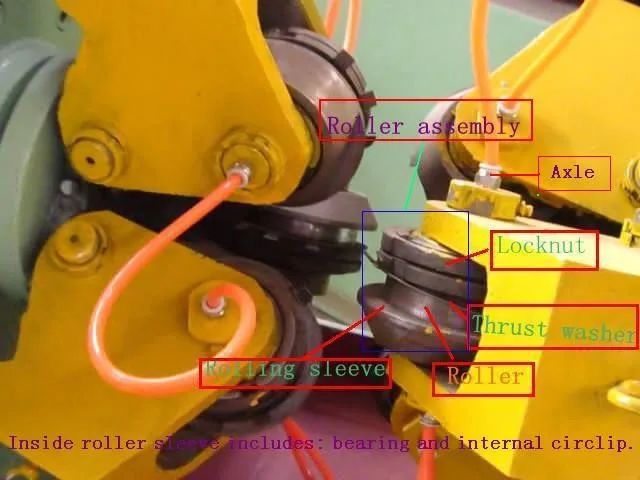

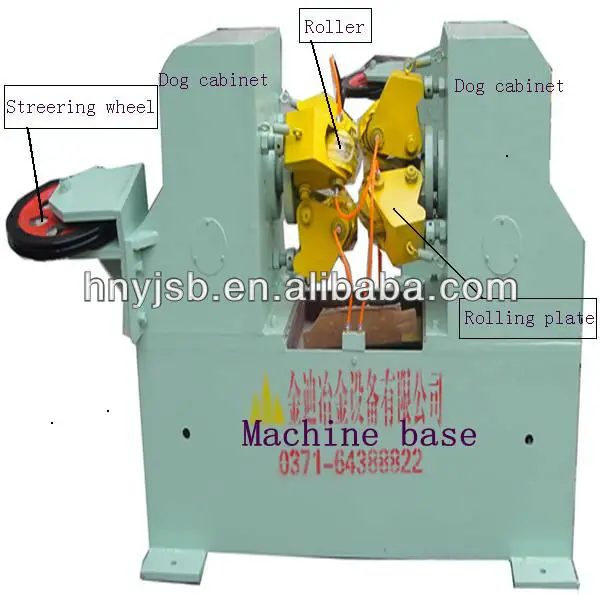

As shown above,The most important machine in the Production Line of Cold Rolled 3 Ribbed Steel Bar
1. Advertisements are only designed to entice people into buying merchandise; field survey will help you know the true quality.
2. Keeping you engineer company when you carrying out a field survey. 3. Communicate with factory’s technician to see their comprehensive strength and technical competence.
Welcome to our factory visit to better understand our latest design of cold rolling mill and cold rolling belt rib steel bar production line.
Packaging & Shipping
China Manufacturer 4-12mm 3 ribbed rebar steel cold rolling mill plant packing.
1.Safe loading and fixing Professional teams 2.Professional shipping lines Package Type: The seller will provide standard commercial packaging, suitable for transportation by ground-surface and sea shipping, supplying safety and integrity of the goods while in transportation.
Our Services
Our advantages:
1. As one of Top and early manufacturers of Rolling Mill industry in China 2. Providing R&D, design, manufacture and engineering services for rolling mill for 23 years. 3. Designing and making customized rolling mill. 4. Providing professional and first-clasee services to clients, including profession consult and plan, pre-sale, on-sale and after-sale service. 5. Various types of ribbed steel bar having been produced by our production shows advanced quality 6. Every machine will test before delivery and we will send the test video and other realted video to our client 7. Production line qulaity approved by local Quality and Technical Supervision Bureau. 8. Rolling mill getting certificate of patent by State Intellectual Property Office of PRC.
Gongyi Jindi Metallurgical Equipment Co., Ltd as a professional manufacturers of cold-rolled ribbed steel bar production line, develop and produce two ribs and three ribs rebar production line to meet the differentneeds of customers.
Use "cold rolling mill " Wisdom to Creat Excellence
Since the establishment of our company, we acquired ISO9001 quality certification in Chinese quality certification center.
Our trophy and certificate
We came from customers
Welcome to visiting our factory,we will provide our best service.
FAQ
Q:How many types cold rolled ribbed steel wire machine line do you have?
A:We have two main types
1:Three ribs cold rolling mill. 2. Two ribs cold rolling mill.
Q:why choose us?
A:1. "Quality is priority”. we always attach great importance to quality controlling from the very beginning to the very end.
2. we have a professional manufacture and sales experience .
3. we are factory ,we can provide you the super quality and competivite price .
4.company has a quality,young,innovative and strong scientific research team
Q:new design cold rolling mill and production line for Cold-rolled ribbed steel bar Is your price competitive?
A: Only good quality machine we supply, surely we will give you best factory price based on superior product and service.
.advice for the solutions best for customers requirements
Main products:
1. Cold rolling mill for 2/3 Ribbed steel 2. Mid-frequency heat treatment equipment
3. Steel bar cutting machine 4. Steel bar flip rack 5. Biomass pellet machine
