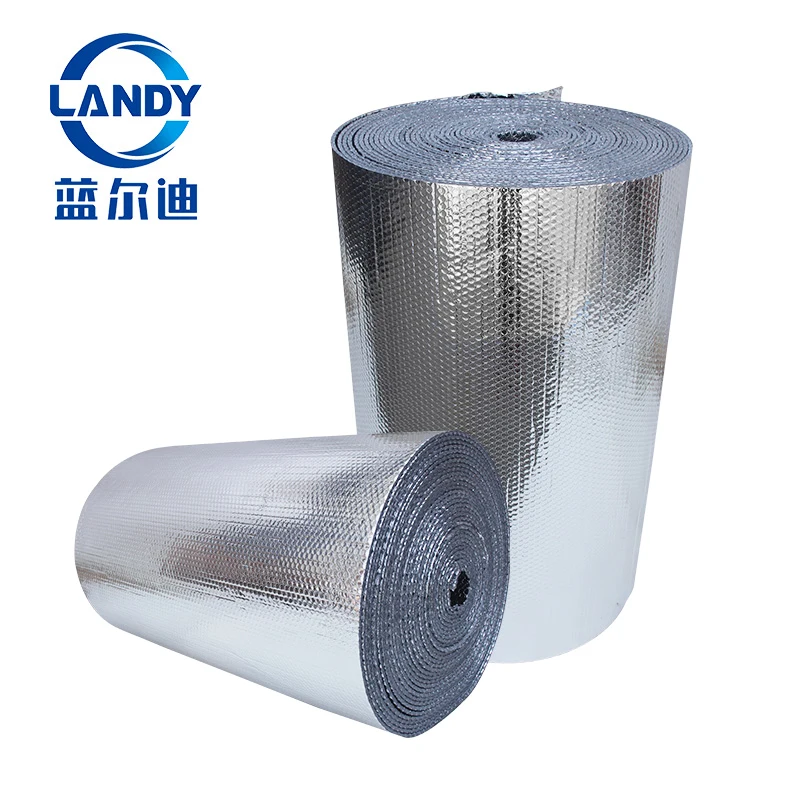

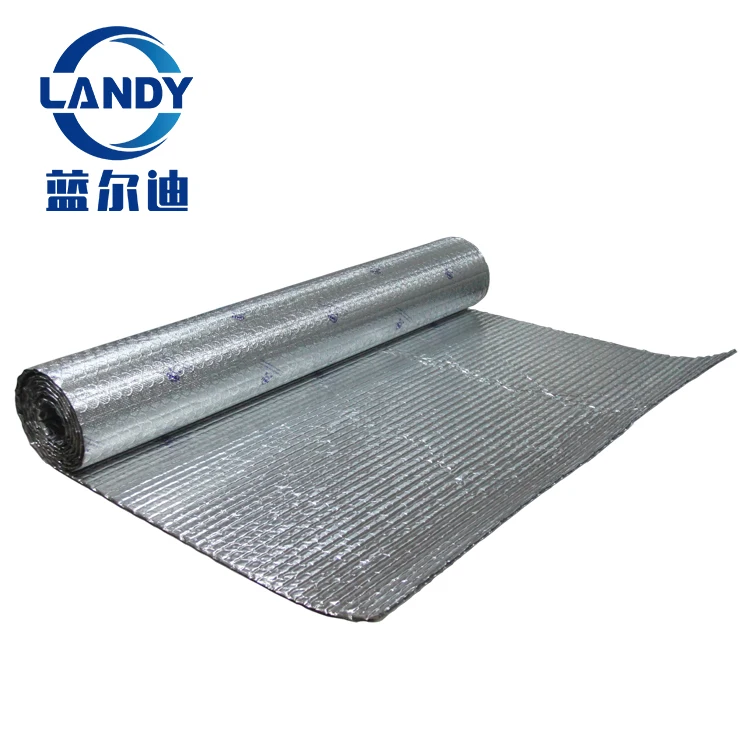

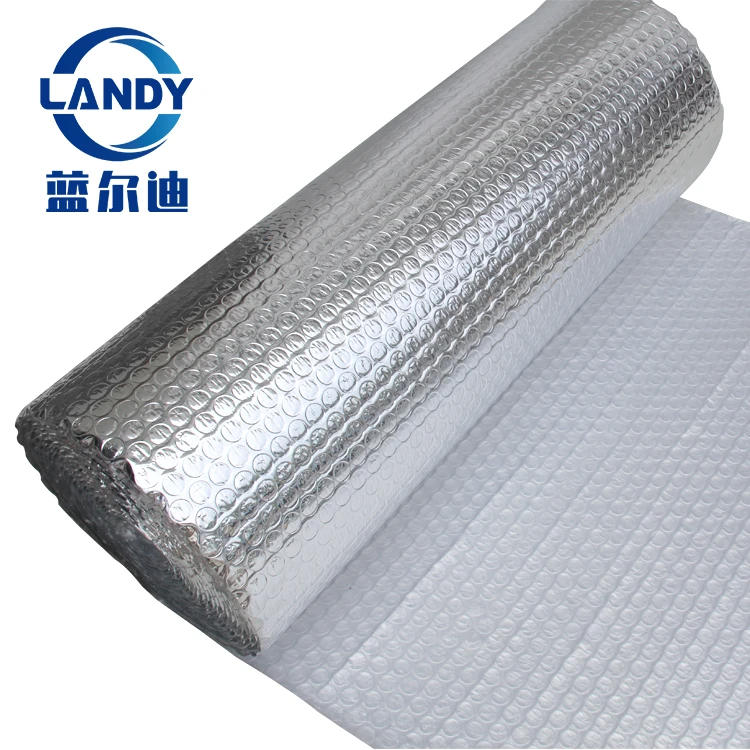

Metallic foil film air bubble material foil insulation wrap with one side white film insulated bubble box liner

Share on (60767070469):


Price:$0.65 - $1.10

Quantity:


Product Overview

Description


Metallic foil film air bubble material foil insulation wrap with one side white film insulated bubble box liner




Product Overviews


1.Product Introduction of the Heat metalized aluminum reflective roof material


This kind of heat reflective roof insulation foil material consists of metalized film bonded to single/double layers of bubbles.The shiny surface metalized insulation have a high reflective component,can blocks most of the radiation heat. This bubble insulation shield can be used for bubble foil loft insulation,room insulation and mobile home insulation.

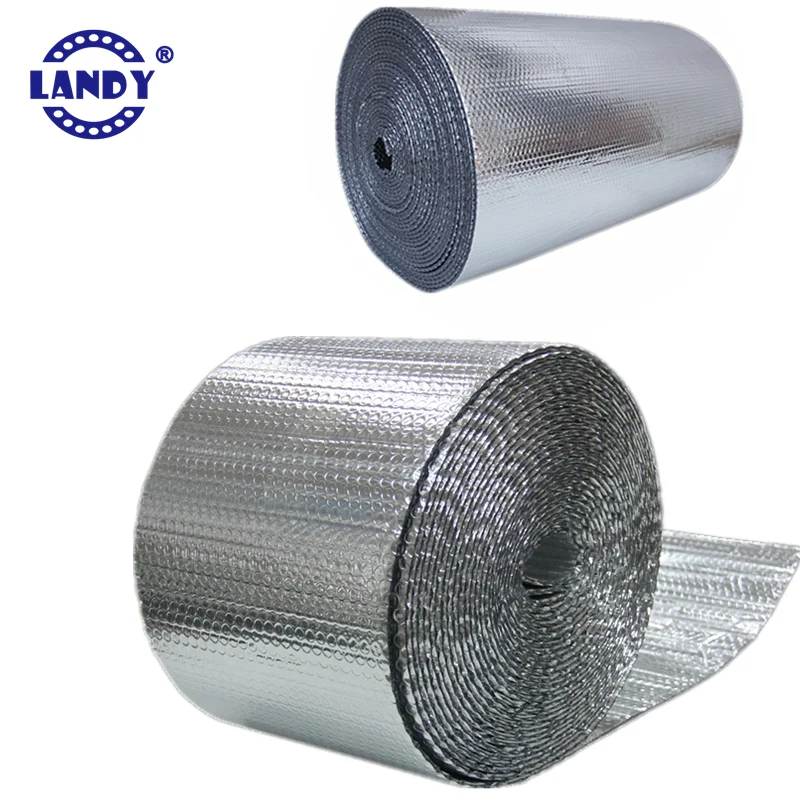

 bubbleinsulation (1).png


26 (3).jpg





26 (1).jpg








Custom print










Alu+woven+bubble+alu

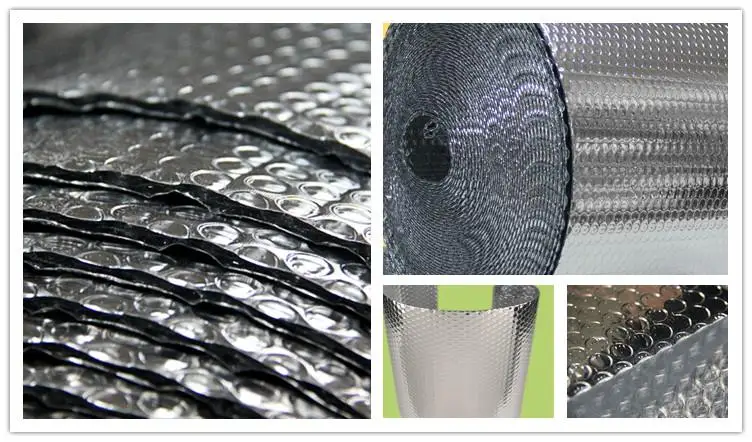

 2.Details of the Bubble metalized aluminum foil insulation














































PROPERTIES



PAPAMETER









Description



Normal size: 1.2m width x 30m / 40m Length


Thickness: 3-8mm


Bubble diameter: ø10mm


Length and width can be customized.,Max width is 1.6m



R-Value



0.1-0.2 m²•K/W



GSM



150~350 g/m²



Thermal Conductivity(ASTM C518)



0.0297 W/m²•K



Reflectivity (AS/NZS 421.5)



95%-97%



Flammability Index



1



Emissivity (AS/NZS 4201.5)



0.05



Edge Tearing Resistance(AS/NZS 4201.2)



432N

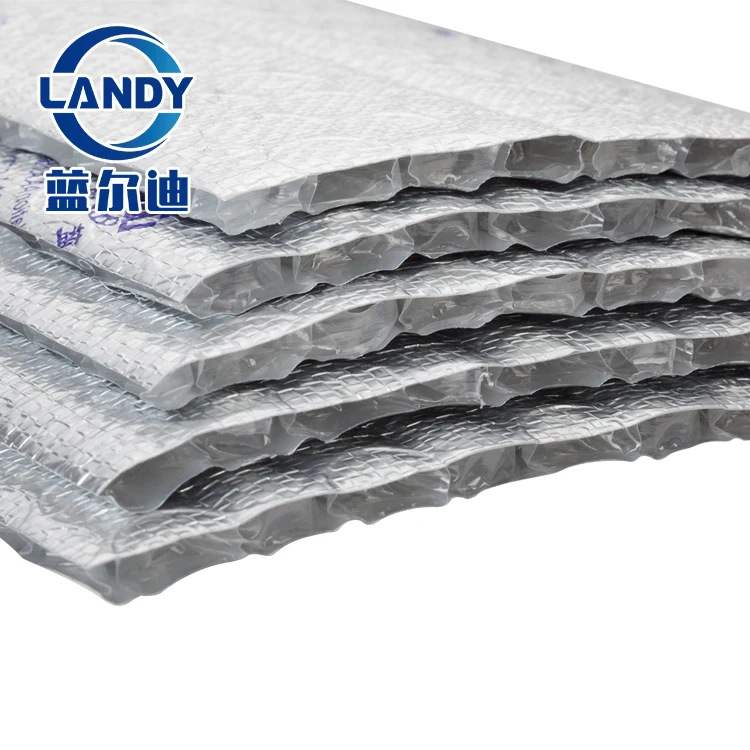

Material structure



1. MPET+Bubble+PE film


2. MPET+Bubble+MPET


3. MPET+Double Bubble+PE film


4. MPET+Double Bubble+MPET


5. MPET+ Bubble+xpe/epe+Bubble+MPET


MPET=Aluminum laminated films.


Bubble can be fire retardant.


Aluminum foil can be color coating and anti-glare coating.


Aluminum foil can be reinforced fiberglass and woven fabric.








3.Product Feature and Application of the Heat reflective building material


Effective in extreme temperatures both cold and hot.


lightweight enough to installed easily by your own.


very flexible and easily to install, cut, stapled, nailed or glued into place.

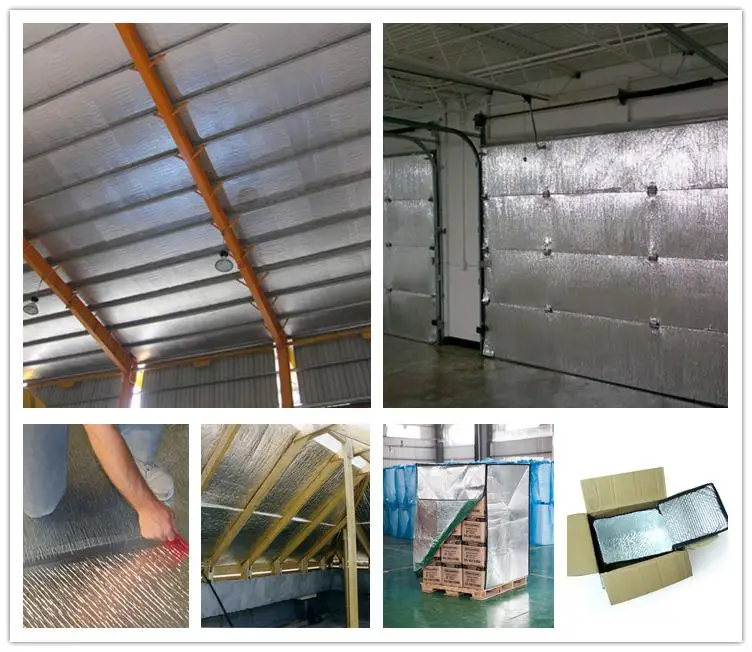

Application

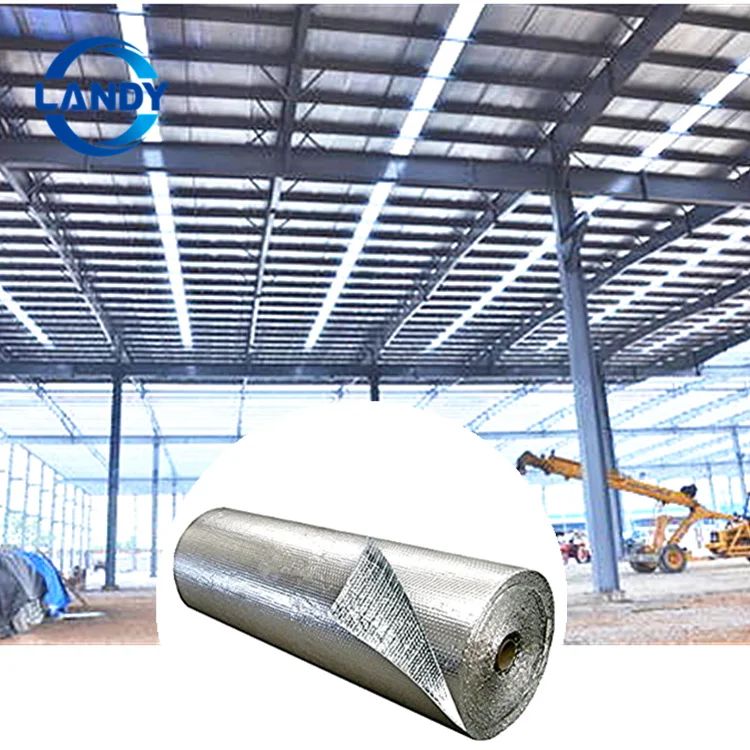

Bubble foil insulation is a good solution for a wide range of manufacturing,industrial and packaging application. Such as for steel warehouse, commercial metal buildings, resident house insulation and packaging insulation material.







4.Qualification of the Bubble foil insulation














Recommendation

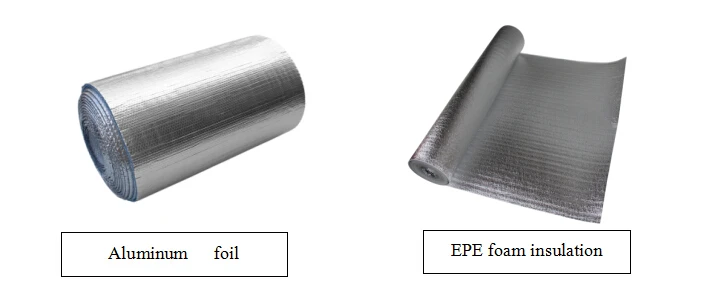

 Recommendation




  Click the pics to view more product details


.jpg











FAQ


Q1: What's the structure of your pure aluminum film?
A1: We use the pure aluminum film with PET/AL/PE layers, the PET can protect Al from oxidation and corrosion.


Q2:What is difference between aluminum foil insulation and metalized insulation ?


A2:Pure aluminum foil insulation has dim surface, Metalized insulation has shinny surface.


Pure aluminum foil insulation can be fire retardant but Metalized insulation can not .


Pure Aluminum have Longer service life than metalized insulation.


Q3: What's the advantage of your aluminum insulated foil wrap?


A3:Good vapor barrier protection.Fiber free and environmentally friendly.Increases your energy efficiency, Lower energy use both for heating and cooling.
