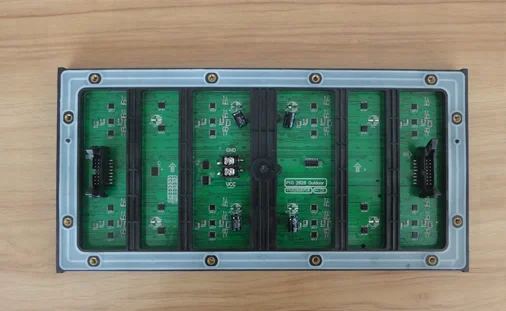

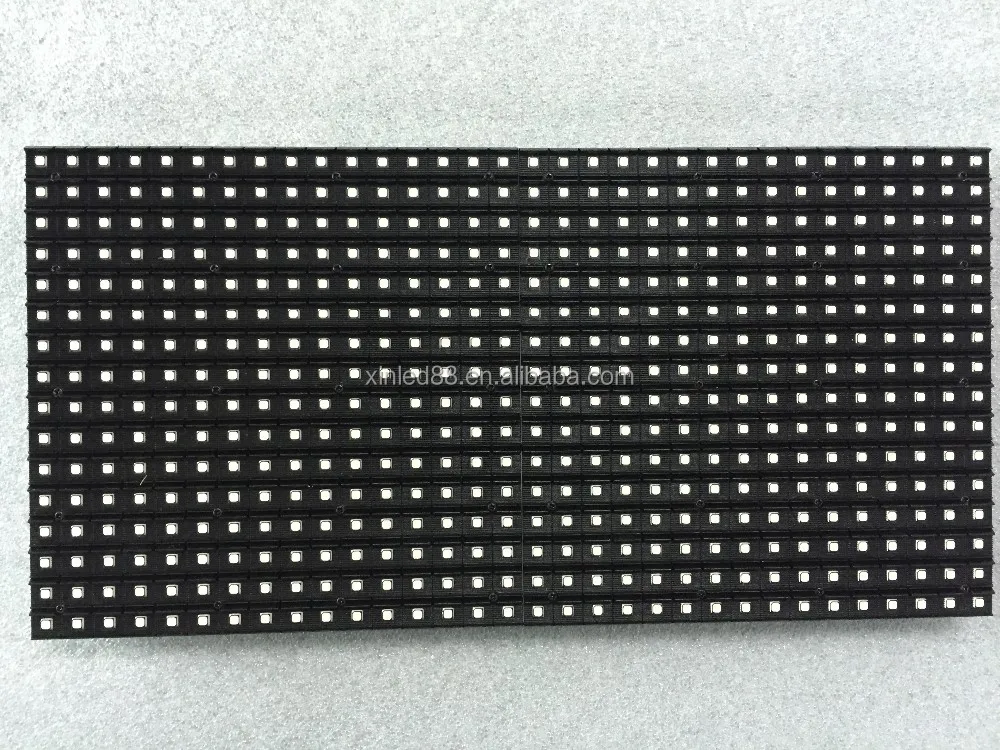

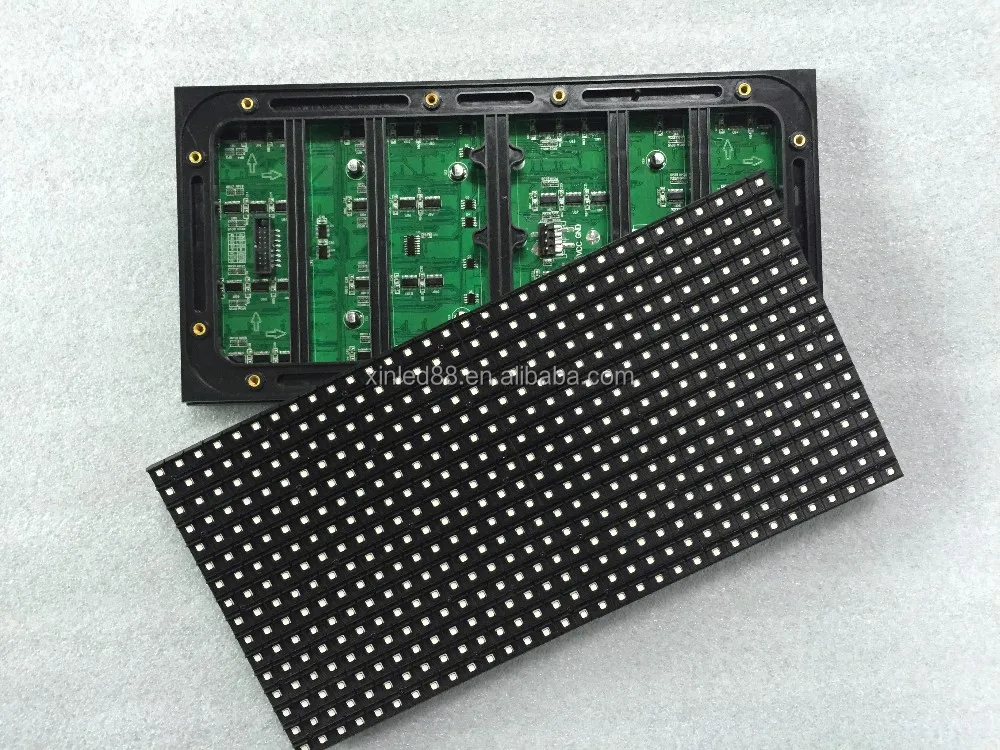

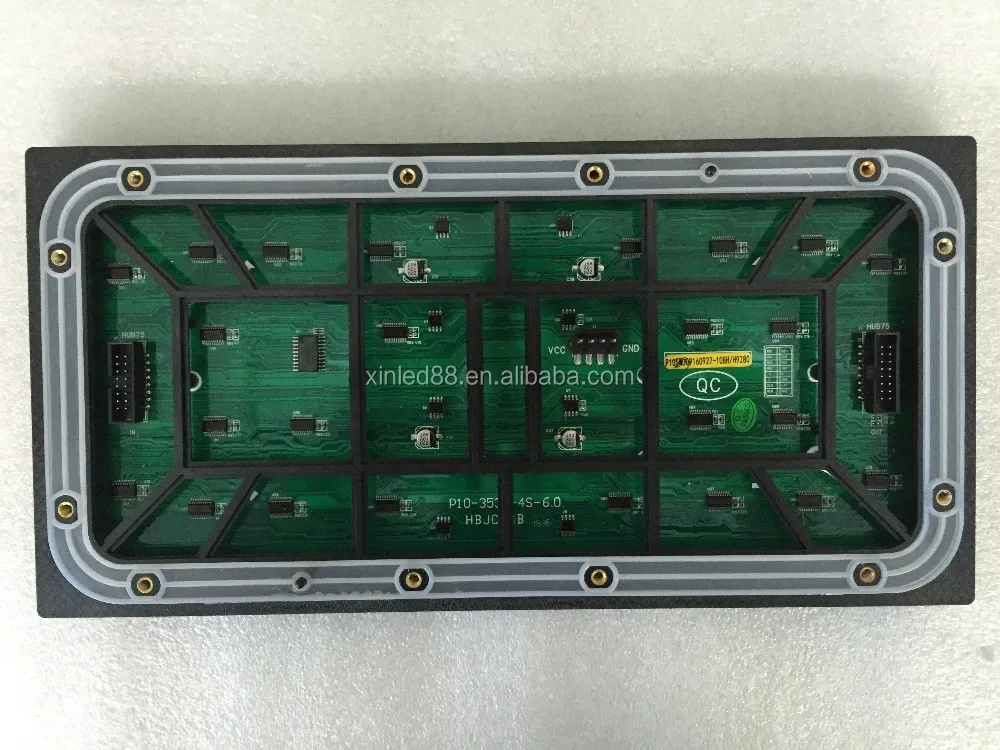

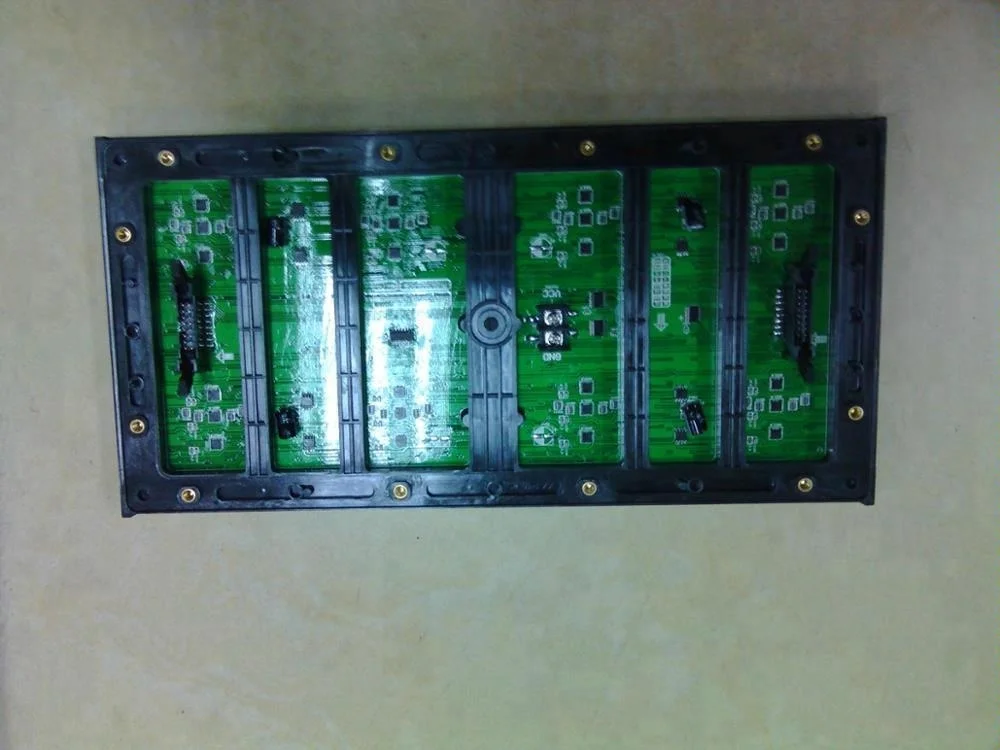

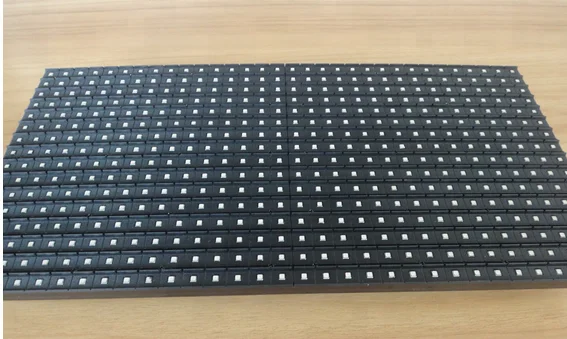

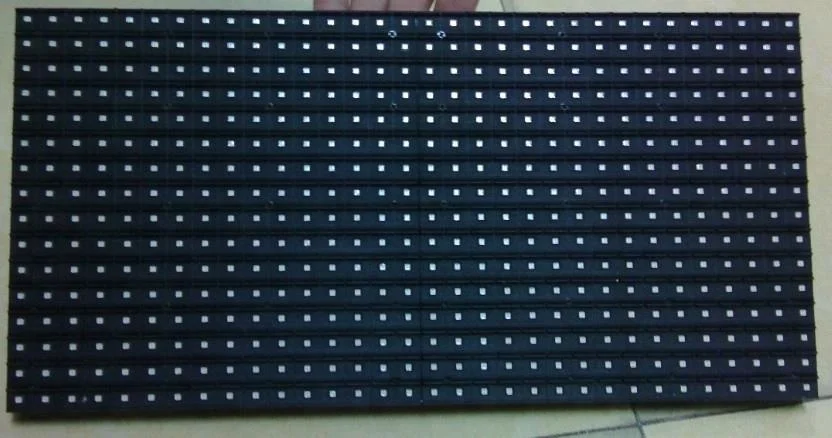

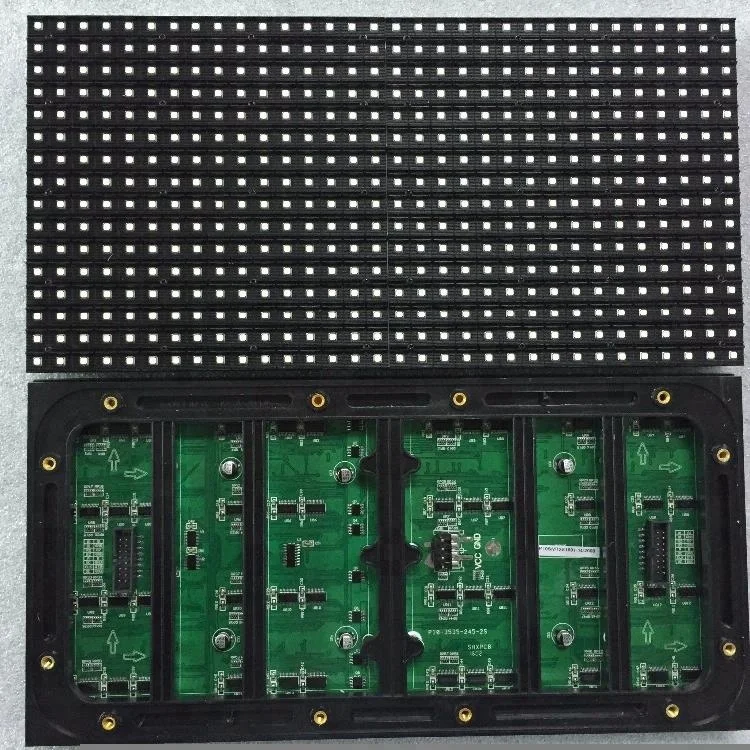

outdoor 320*160mm 32*16pixels 3in1 SMD 1/4 scan 1/2 scan RGB P10 full color LED module for Advertising media LED Display

Product Overview

Description

Model number	PH10
Pixch pitch	10mm
Pixel Density(dots/m2)	10000
Pixel Configuration	SMD3528 3 IN1
Module size (mm)	320*160
Module resolution (dots)	32*16
Scanning method	1/4  1/2
Brightness (cd/m2)	7000
Min. viewing distance	≥5
Viewing angle ( 50% brightness )	≤150°
Screen fresh rate	LED screen refresh frame freauency recommended is no less than 1200HZ(recommended)
Average Power Consumption(w/m2)	600
IP grade ( Waterproof Grade )	IP67
Module thickness	1.5cm
Control system	LINSN , Nova ,HD , XIXUN.....
Input Voltage	AC220 V/50HZ or AC 110V/60HZ
Gray Scale	Recommended 14bit
Printed Circuit Board(PCB)	4 Layer
Color Temperature	The brightness of R.G.B.is adjustable according to software 100level;Color temperature is adjustable in terms of detailed requirements
Color	64g color(on the condition of 4096 gray scale)
Effective Communication Distance(without relay)	Unshielded twisted-pair net line transmission distance is 100 meters,max transmission distance is 130 meters.
Module weight	0.5KG/PCS
Warranty	3 years

















Q1:Are you a manufacturer or trading company?

A1:We are a Professional OEM/ODM manufacturer which has specialized in led display industry for more than 17 years.



Q2:How does your factory do regarding quality control?

A2:Quality is priority.Brighter people always attach great importance to quality controlling from the very beginning to the very end. We focus on every detail,Our factory has gained ISO9001, ISO14001, CE, RoHS ,FCC authentication.



Q3:What is your MOQ?

A3:Any quantity is acceptable for your order. And the price is negotiable for large quantity.



Q4:When will you make the delivery?

A4:We can make the delivery within 3-5 working days for the led modules and 10-12days for the led finished screen according to the size and quantities of your order.



Q5:What technical supports can you offer?

A5:We provide all kinds of technology trainings for free, including the operation and maintenance training of the LED screens in our factory. we can send an engineer team to the country of the customer to instruct the installation.



Q6:How long is the warranty?
A6:The standard warranty is 1 year. It could be longer upon request.

Q7:Do you provide any free spare parts in each order?

A7:Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED lamp, IC, mask, power supply, receiving card, etc.



For more questions, please feel free to contact us





FAQ

Q1: How about your company ?
A: XINLED is a professional LED display manufacturer, having been enrolled in led display industry with professional R&D team and skilled QC team for 12 years

Q2: What is the control system? How is it?
A: We use Novastar/Colorlight/Linsn/HD..... control system. Support cluster play and management. Support APP/ Phone/ WIFI/ Ipad/ Laptop/PC/ Cloud control.
It’s very easy and convenient to control the screen.

Q3: What is your best service?
A: One to one sales engineer to customer responsibility system. We will do:
1. Know your project and provide the best solution for it;
2. Track your order and let you know each step and detail of it;
3. Teach you how to install and use the screen;
4. Care the subsequent use of your screen and ensure your after - sales service be well,
5…6…etc.

Q4. How about your delivery time?
A: Standard module we have stock ,Can send out after 12 hours aging testing .The led display can finish 10-15 days.

Q5:How about your Warranty Term?
A: 1-3 years warranty. Structure design, installation problem, program the screen, how to use the screen.....We have professional after-sale team to solve any questions after you placed an order. And your exclusive sales engineer will also help you get over any problems.



Q6: What quality certificates do you have?
A: We have CE-LVD, CE-EMC,RoHS,FCC certificates.
