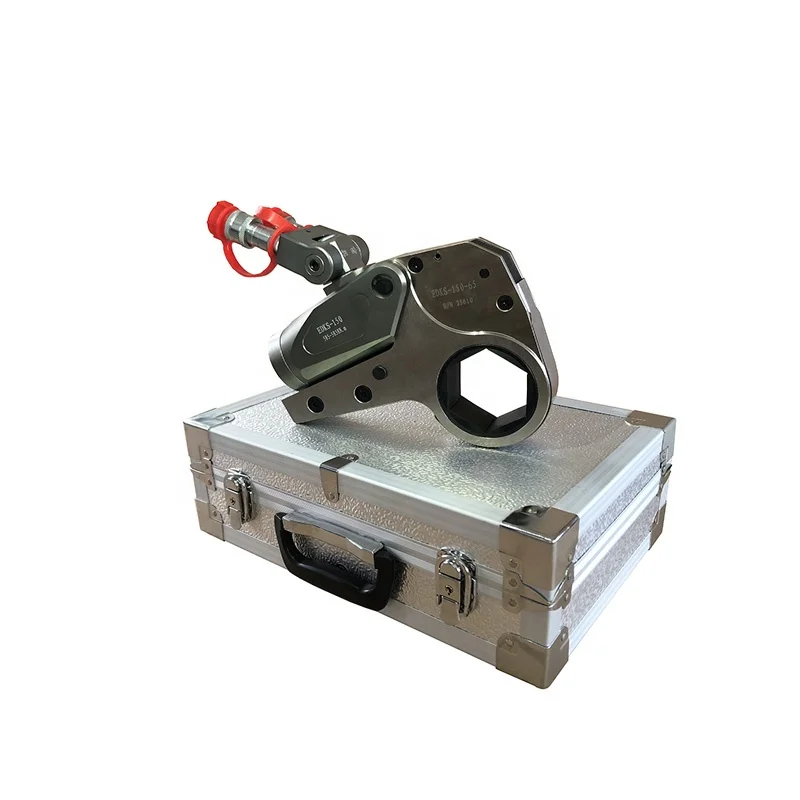

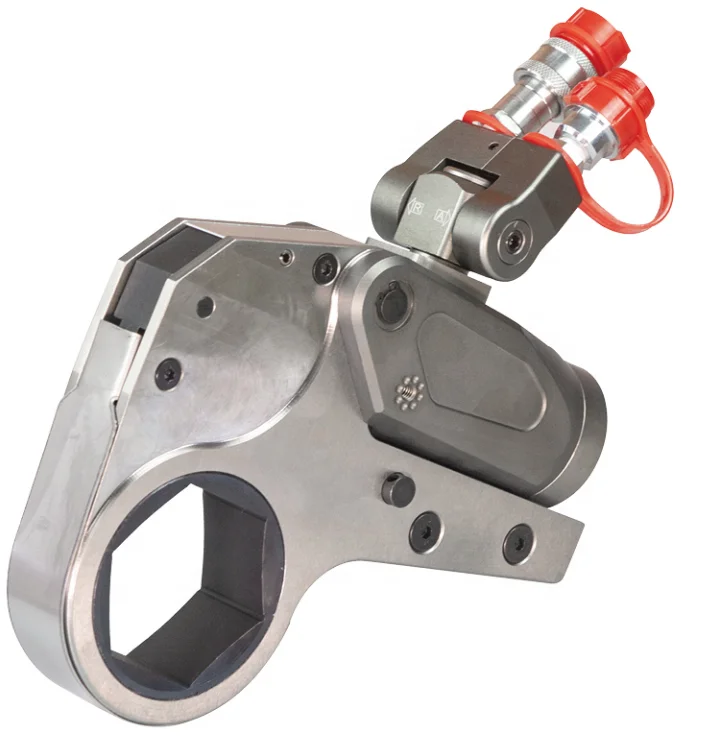

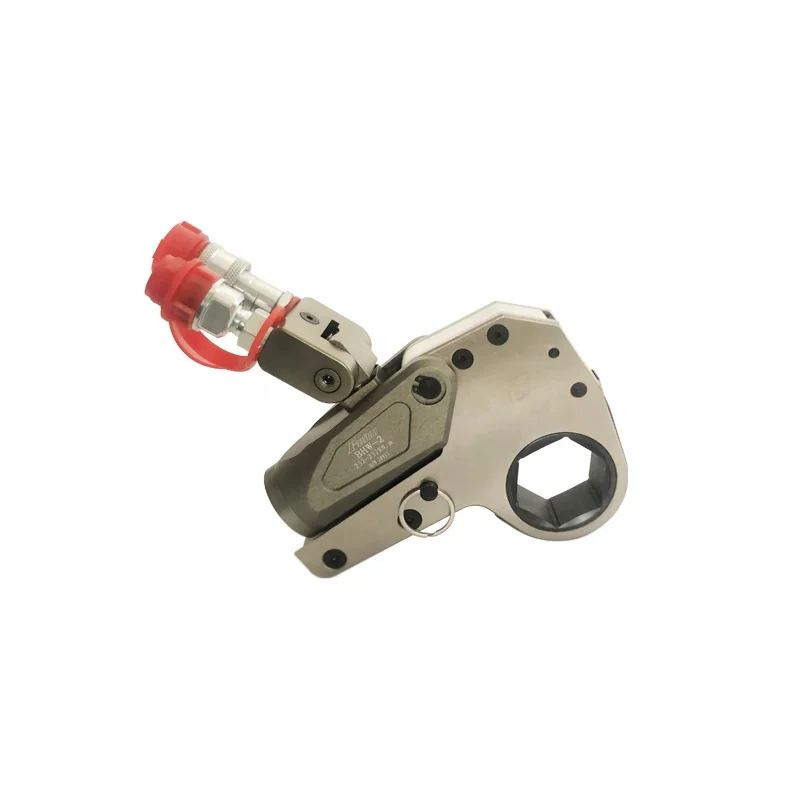

BHW Series Low Profile Hexagon Cassette Hydraulic Torque Wrench

Product Overview

Description

• Designing using 3D CAD modeling software, provide torque precision within ±3%.


• Using High-tech aerospace mateiral , integrally molded body. Strengthen the body  for using durability.


• 360 Degrees swiveling couplings with screw couplers.


•


  Wide range of metric and imperial  interchangeable hexagon retchet cassettes available.





• Laser Engraved hexagon ratchet cassettes show model number, serial number and maximum capacity.

Model No.	Range of Torque (Nm) @ 700 bar	Range of Torque (lbf.ft) @ 700 bar	Hexagon Size Range (mm)	Hexagon A/F Size Range	L (mm)	H1 (mm)	H2 (mm)	W1 (mm)	W2 (mm)	Weight Of Power Head (kg)	Weight Of Cassettes (kg)
BHW-2	232-2328	172-1,723	19-55	3/4" - 2-3/16"	197	126	102	32	51	1.0	1.6
	241-2414	178-1,786	60	2-3/8"	197	129	105	32	51	1.0	1.7
BHW-4	585-5,858	433-4,335	34-65	1-7/16" - 2-9/16"	245	177	136	42	66	2.0	4.4
	647-6,474	479-4,791	70-80	2-3/4" - 3-1/8"	246	187	146	42	66	2.0	4.6
BHW-8	1,094-10,941	809-8,096	41-95	1-5/8" - 3-7/8"	300	207	169	53	83	3.3	8.0
	1,177-11,774	871-8713	100-105	4-1/4"	301	216	178	53	83	3.3	8.4
BHW-14	1,852-18,521	1,370-13,706	50-117	2" - 4-5/8"	361	239	204	64	99	5.5	11.6
BHW-30	4,188-41,882	3,099-30,993	85-155	3-1/2" - 6-1/8"	430	303	272	85	131	11.4	29.0
	4,459-44,593	3,299-32,999	160-175	6-1/2" - 6-7/8"	441	315	285	85	131	11.4	30.0
