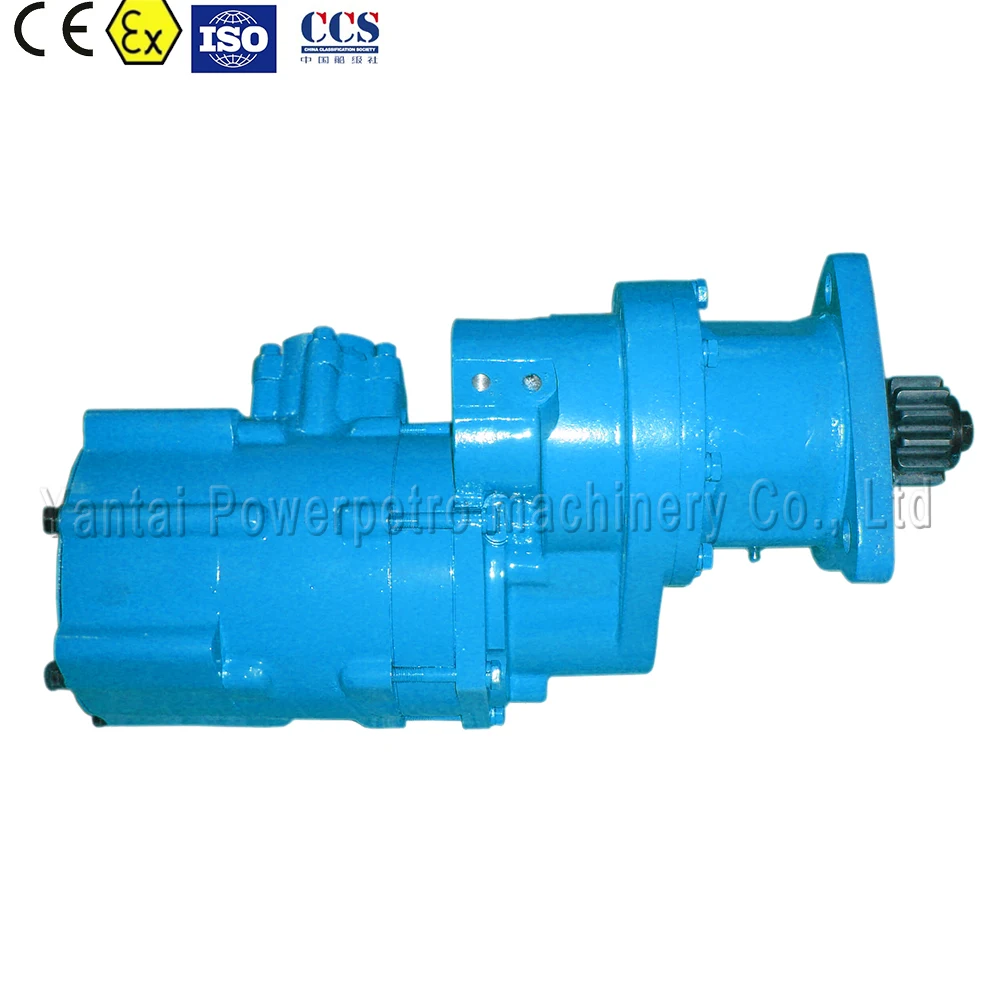

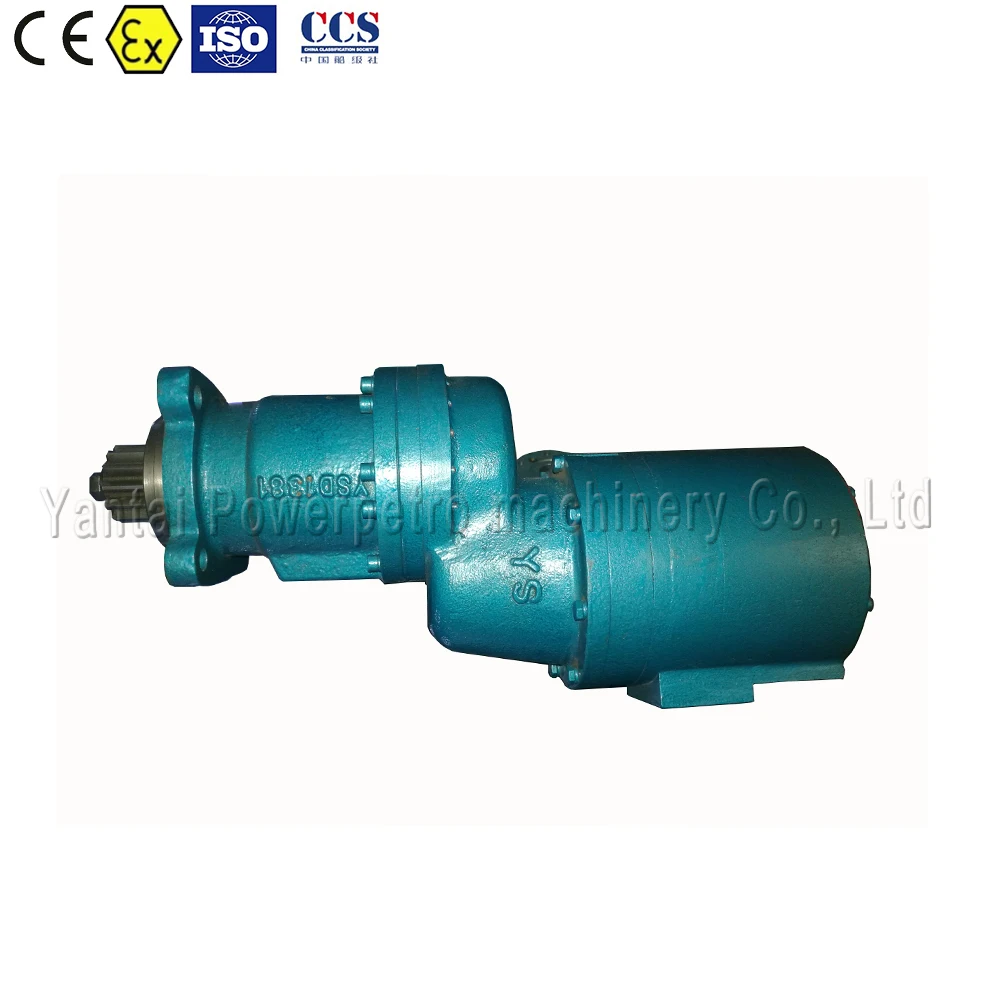

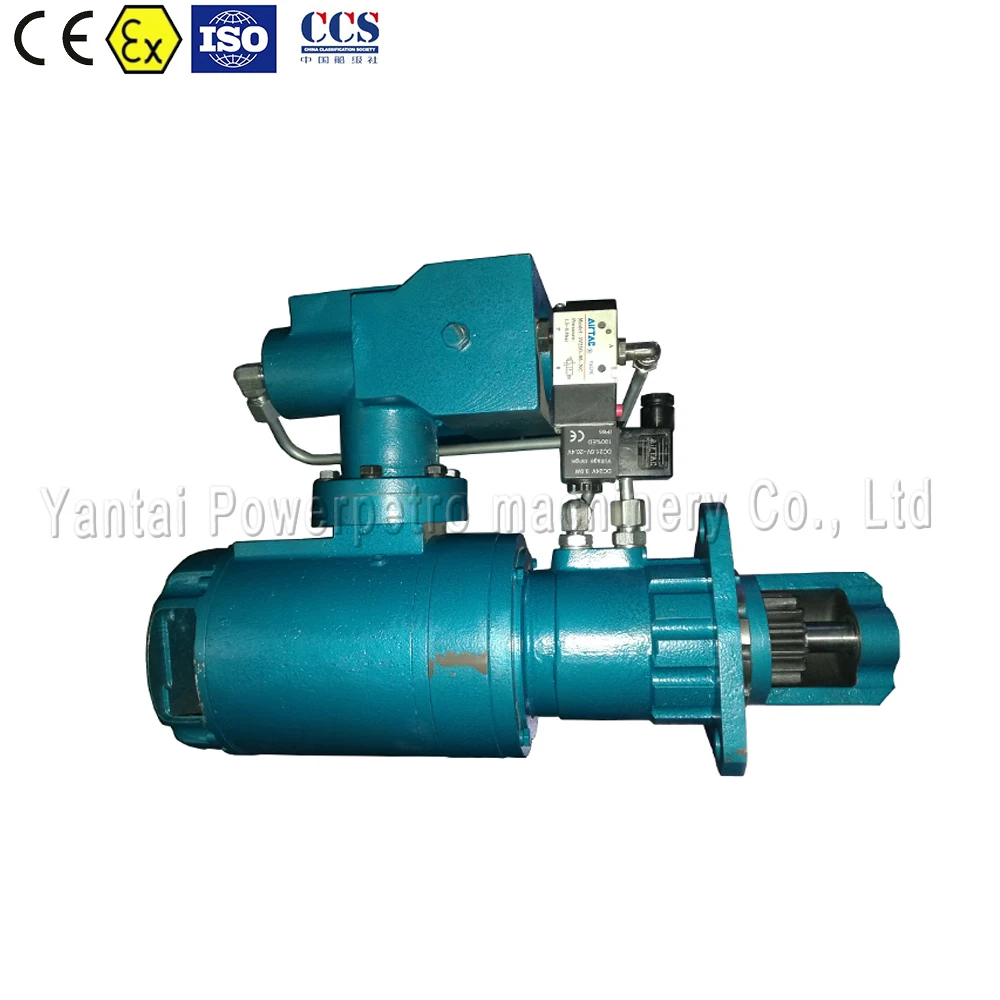

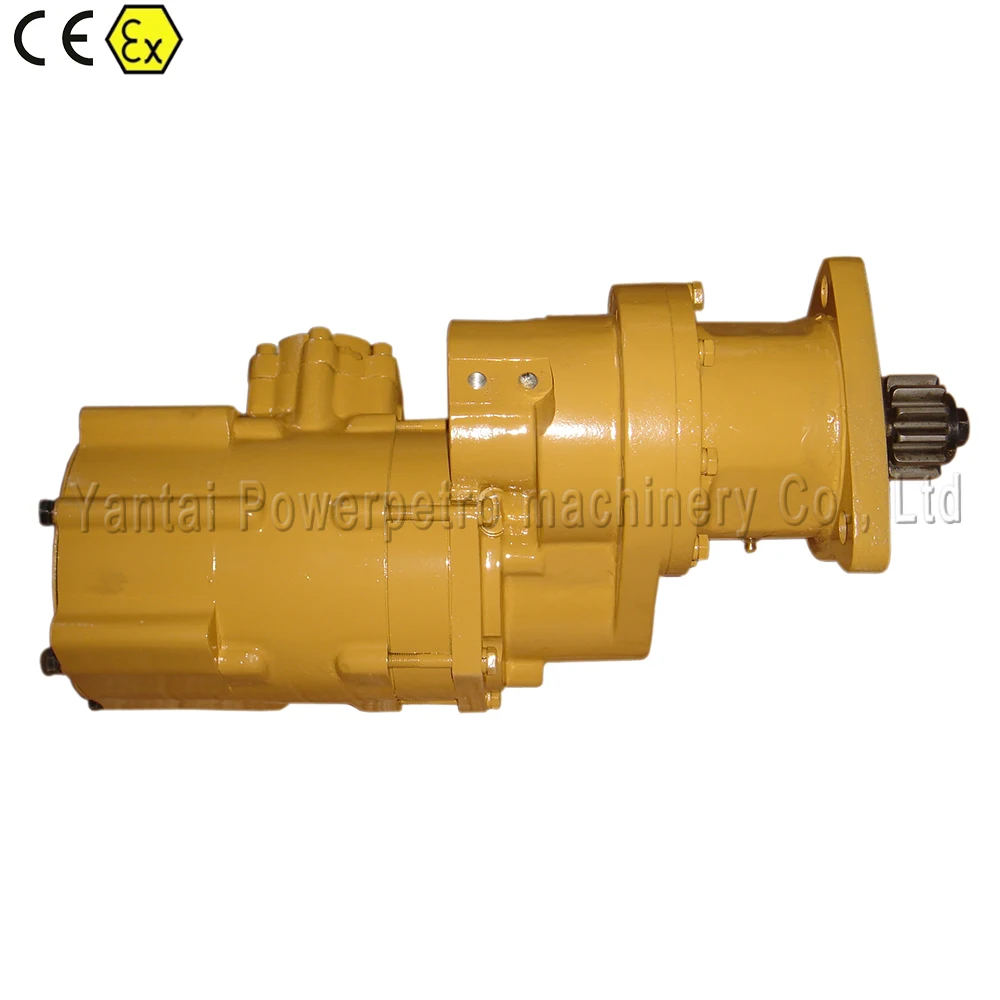

TMW15QD Turbo Air Starter TDI 112V Air Motor

Product Shows:

Main Features:

Turbine air starter include two parts:power part and output part,power part adopts twin turbine or single turbine,when starting engine,press air cock(or solenoid valve switch),let compressed air through output part pre-engaged air inlet into it, driving output shaft out and automatic adjustment,let output gear and flywheel ring gear into correct engaged position.When output gear at specified position,compressed air through pre-engaged outlet connect with relay valve,open main air path,compressed air get into air starter,drive motor turbine rotate,start engine.When engine is started,this air starter is realized by overrun clutch,avoid big ring drive motor,loosen starting switch,cut off air source,output gear automatic back,complete a starting process.

The Air Motor is featured as follows:

1. Small size,light weight.

2. Compact structure,suit for small space.

3. Adopt single or twin turbine,reduce speed by planetary wheel,start with high torque,start quickly and powerful.

4.Turbine flow adopts unique large flow design,not easy to cause stagnation.

5. Don’t need lubrication,no blade viscous.

6. Each connection part adopt sealing treatment,reduce oil pollution.

7.Anti-explosive function, reliable operation under inflammable and explosive environment.

8.Safe operation under high wet, damp conditions.

For the above-mentioned features, it is Ideally used fo large-scale marine and mining diesel engines.

47 Year's Experience

Our factory established in 1970, we are the largest supplier of pneumatic winch and pneumatic motor in China, own 60% domestic market, approved by CE, ISO, ABS, DNV, and API.

1. We hereby confirm that the air starter can be tailor-made to meet customers' special needs and requests, with the highest quality, prompt delivery and first-rate service.

2. For our customer's convenience, the majority of motors have been fitted with pipeline systems & lubricator & muffler, and are available and ready to despatch to your preferred site.
