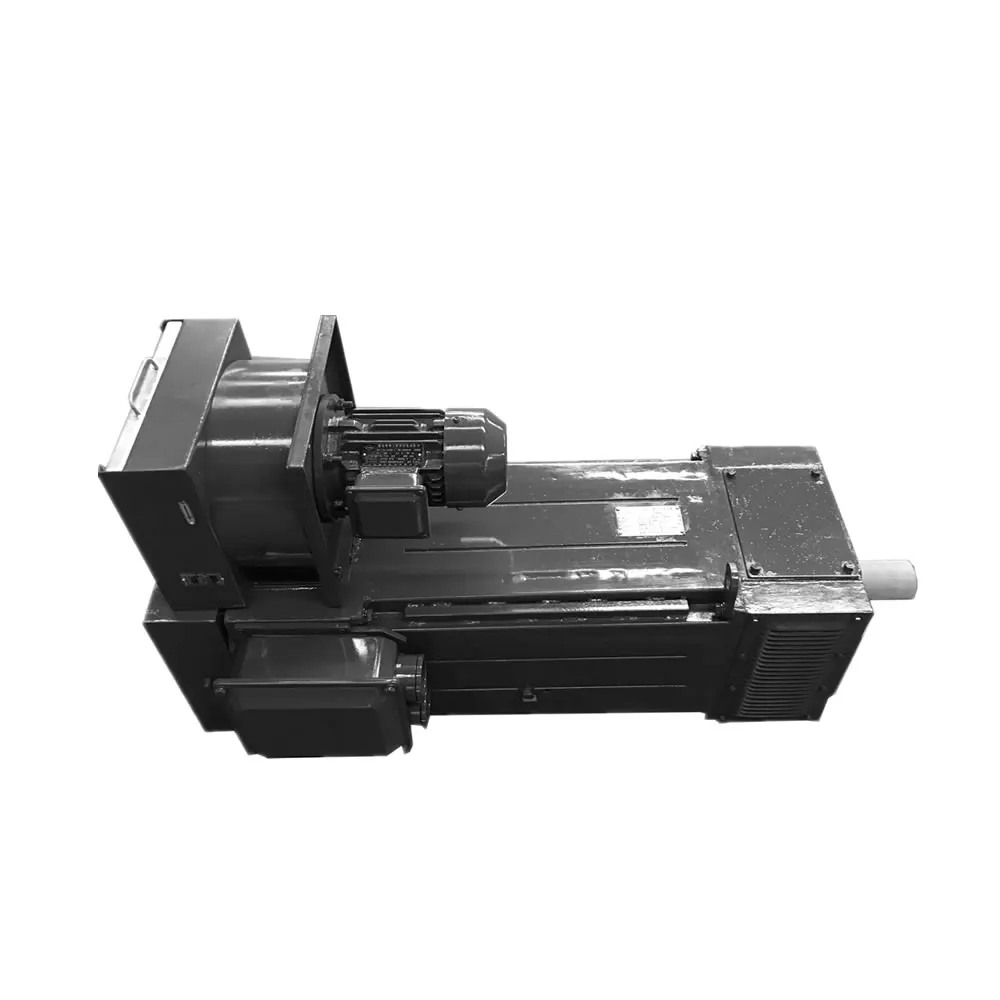

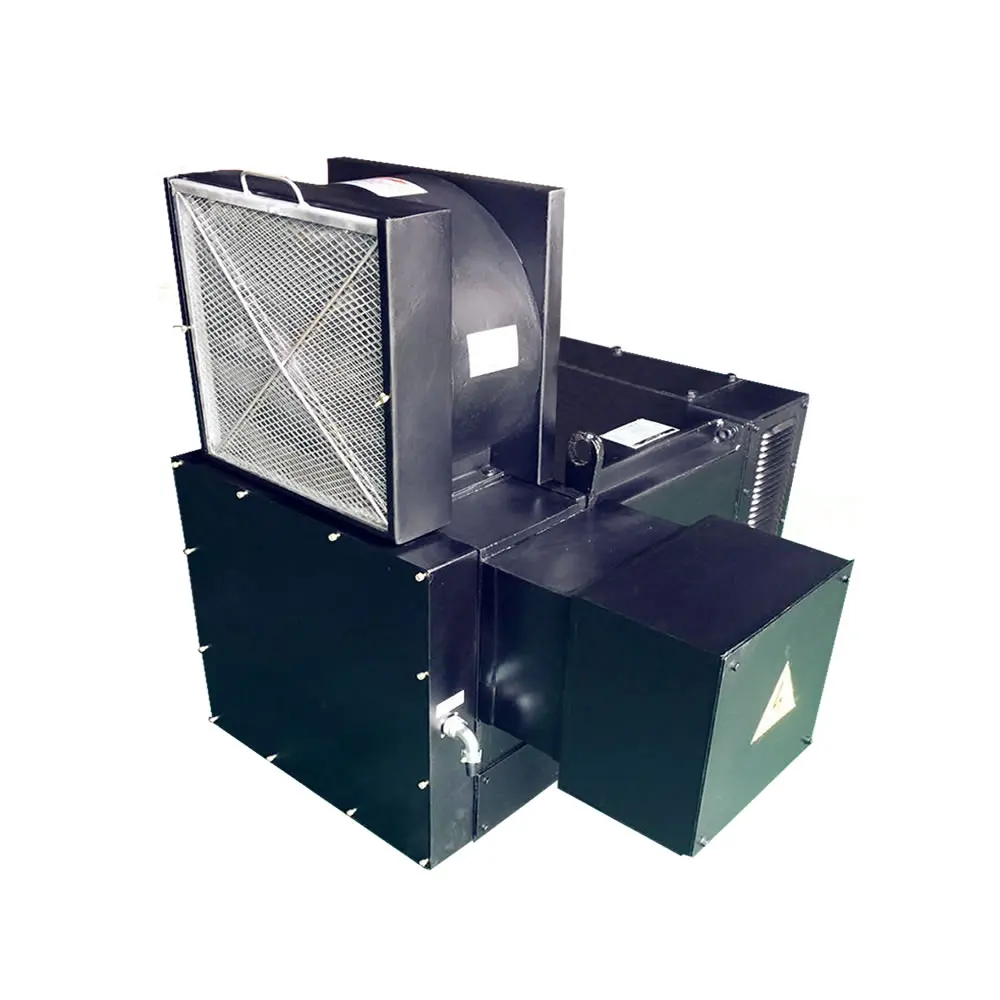

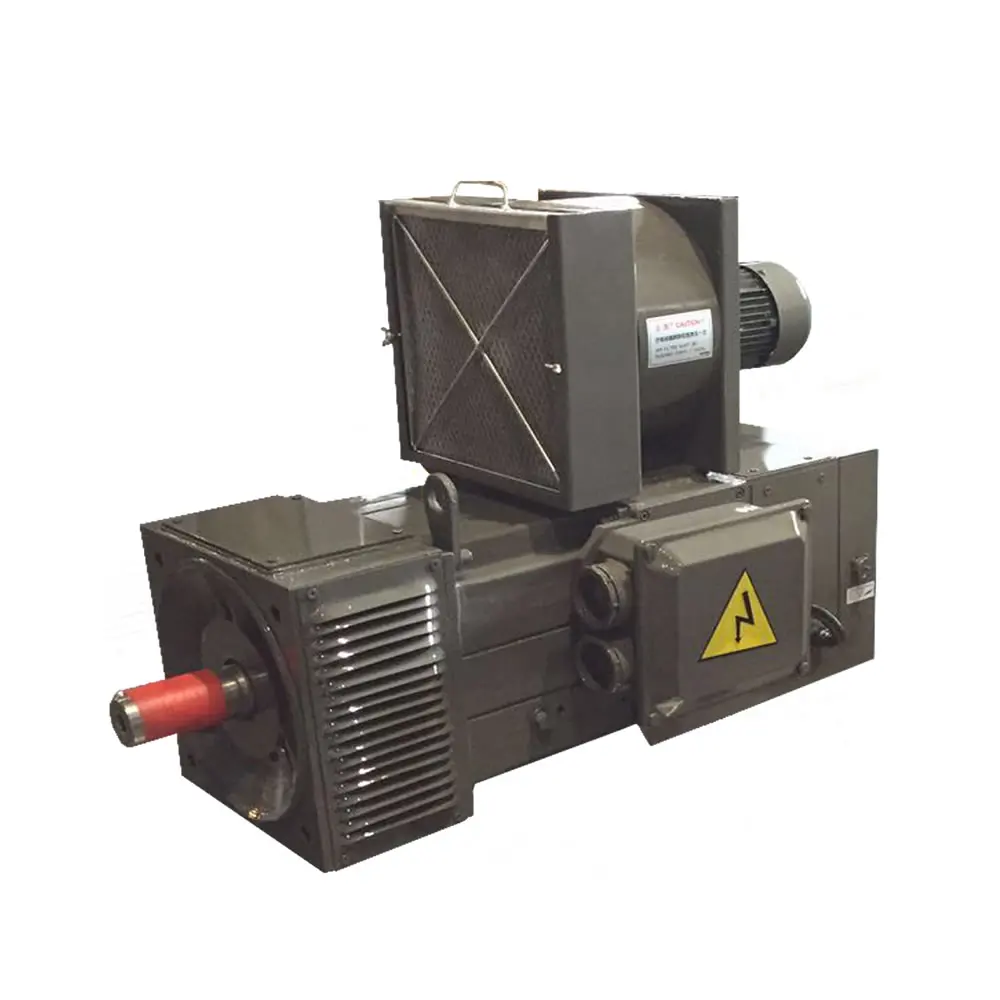

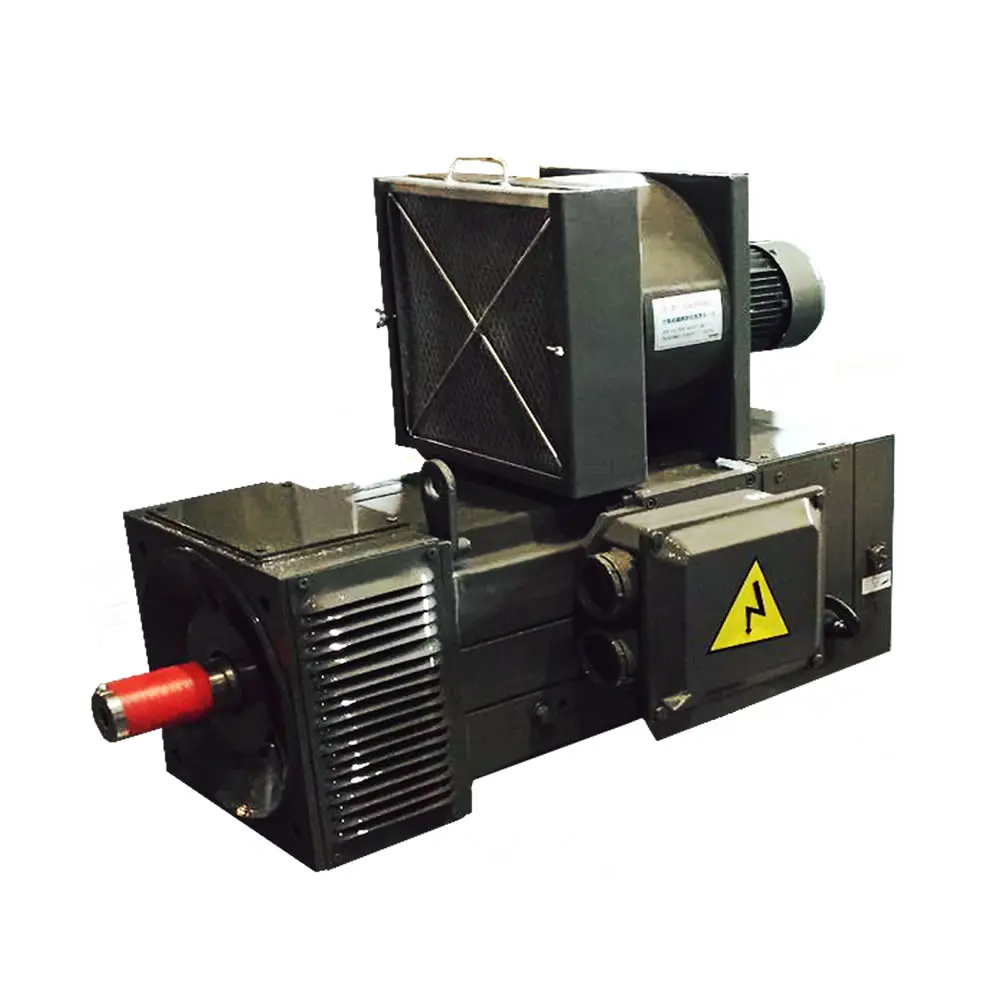

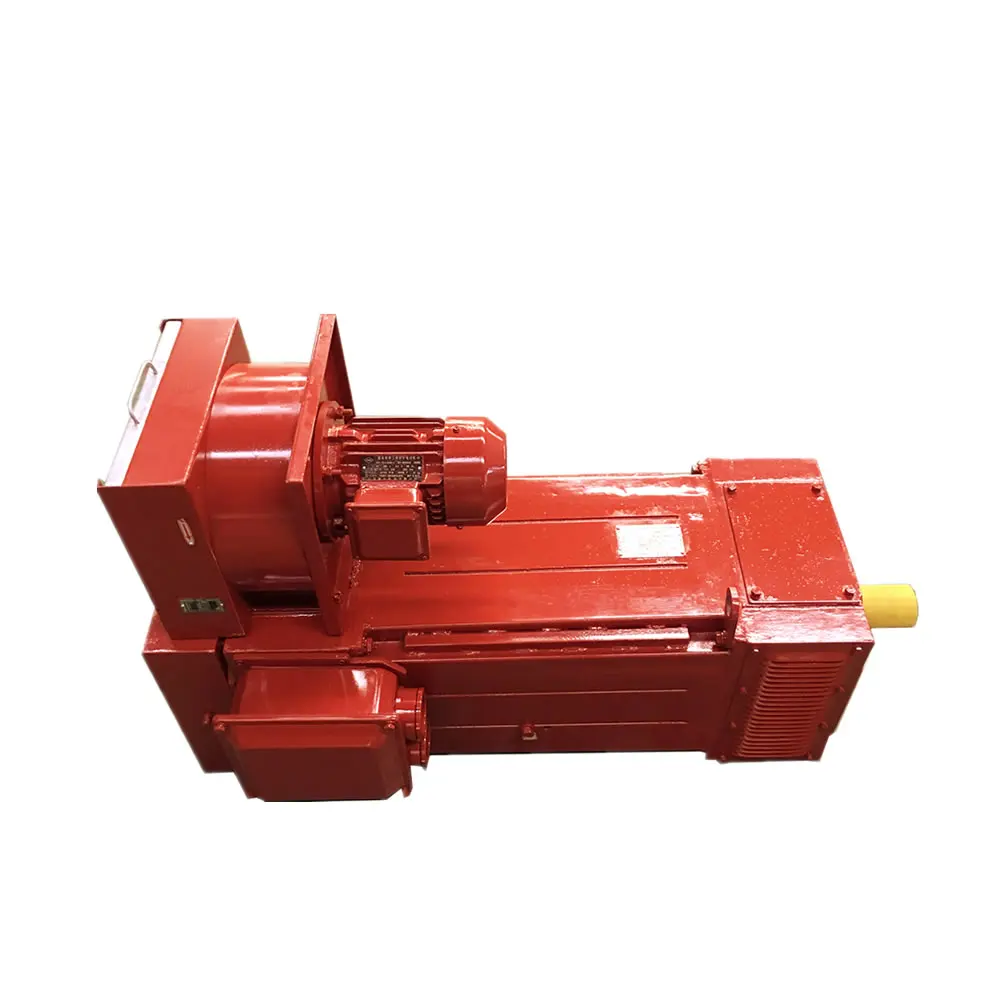

YPT180L 4 100kw 110KW 150HP 380V 660V 1000RPM brushless ac servo 3 three phase induction electric motor
- Category: >>>
- Supplier: Jiangsu Wangpai Motor Manufacturing Co. Ltd.
Share on (60767140064):
Product Overview
Description

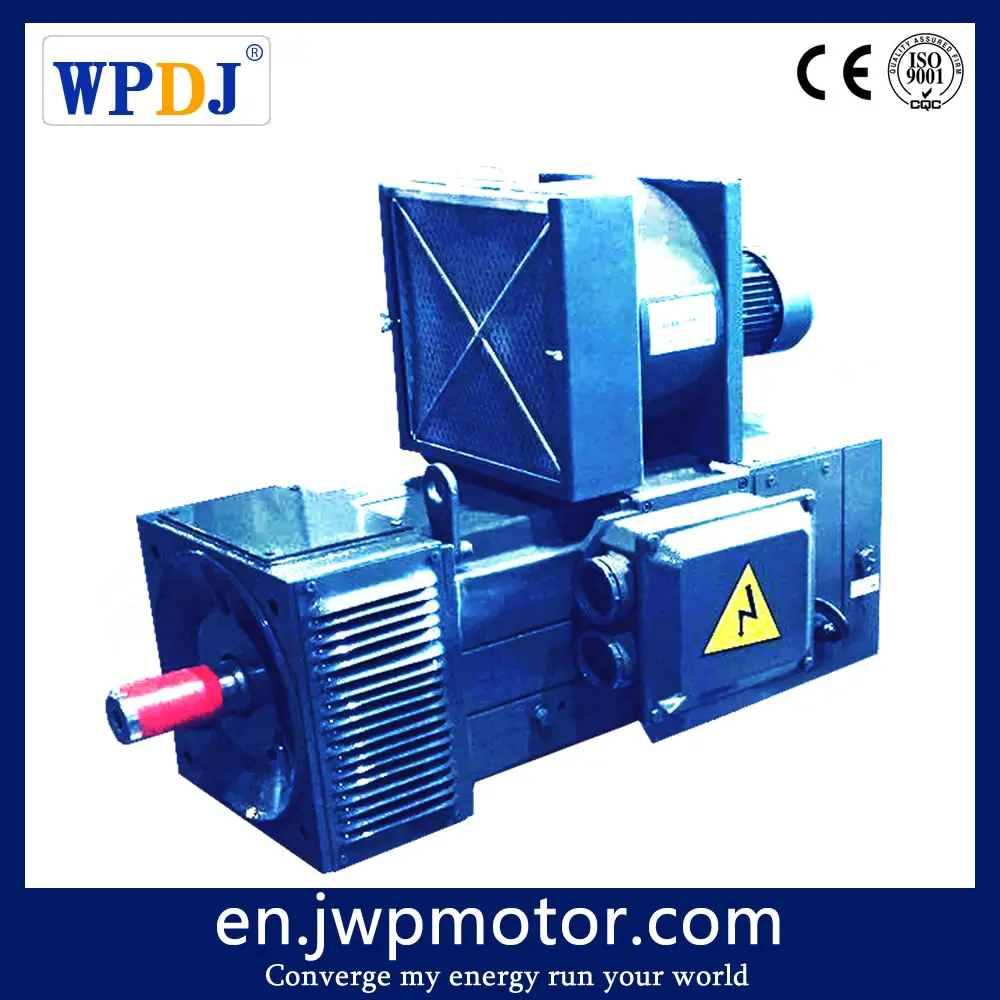

YPT Series AC Induction Servo Motor
| Power: | 7.5kw - 1250KW |
| Motor Frame: | H160-H355 |
| Voltage: | 380V/660V |
| Speed: | 500RPM/750RPM/1000RPM/1500RPM |
| Protection Degree: | IP23 |
| Cooling method: | IC06 |
| Insulation Class: | F |
| Feedback Device: | LEICA full function type encoder:C50-H-1024-ZCU410(hollow shaft), voltage range: 5-30VDC, and it can collocated with different functional PG card of converter. |
| Duty: | S1 |
| Extra Protection Device: | 01. Motor windings with 140℃ overheat switch, For motor frame above H280, |
| 02. Ground carbon brush are provided to eliminate the axial current(For special working environment required) | |
| Package: | Export Wooden Package |
| Payment: | 30% in advance, balance by T/T or L/C at sight |
YPT180L-4, 110KW, 380V/660V, 1000r/min, IC06, IP23, F Insulation
Product Description
YPT series three-phase AC induction servo motors are specifically designed in accordance with mechanical actual performance for machinery and transmission field. Through open loop control or closed loop control to realize wide frequency, high speed and high precision operation.
It’s outstanding features for small motor frame with big output power
It features it's high efficiency, energy saving, low noise, low vibration, light weight and reliability of running.
It is widely used on the mechanical equipment in common place where there are no inflammable, explosive and corrosive gases and in place with no special requirements, such as the machine tools for cutting metals, exhaust fan, compressors, etc.
Working Condition
1. Ambient Working Temperature: Ambient temperature varying with seasons should be between 40℃ and -15℃.
2. Altitude: Not over 1000m above sea level.
3. The average relative humidity in the most moisture month is 90%.
4. Operation Mode(duty): S1.
