Android Biometric Handheld Machine with Smart Card Reader for National ID Verification, Law Enforcement, Mobile Time Attendance
- Category: >>>
- Supplier: Ekemp Electronics (shenzhen) Co. Ltd.
Share on (60767145969):
Product Overview
Description
Android Biometric Handheld Machine with Smart Card Reader for National ID Verification, Law Enforcement, Mobile Time Attendance
Product Description
Physical Parameter | ||
Type | Handheld Terminal | |
Dimensions (L*W*D) | 182 mm x 81 mm x 25mm | |
Weight | 365g(Including Battery) | |
Keys | Power Button, Volume Button, Camera Quick Button | |
Function Parameter | ||
Operating System | Android 8.1 | |
CPU | MTK8735, 1.3Ghz, Quad Core | |
Memory | 1GB RAM, 8GB ROM(2GB RAM+16GB ROM available) | |
Camera | Rear 8.0M Pixels, Auto Focus with | |
Dual Flash(13MP could be customized), Front 2.0 M Pixels | ||
Memory and Extension | Micro SD Card, up to 32GB | |
GPS | GPS,GLONASS supported,10m | |
Bluetooth | BT 4.0 LE | |
WIFI | IEEE 802.11b/g/n | |
Display | 5 inch IPS Display, Resolution 1280*720 | |
Panel | Capacitive touch screen | |
PSAM Card | 1 PSAM card slot | |
Networks | GSM: 850/900/1800/1900 | |
WCDMA: B1/B2 | ||
CDMA: BC0 | ||
TDS-CDMA: B34/B39 | ||
Function Module | ||
RFID(Optional) | 14443A/B, mifare s50s70, FM1208 cpu | |
Fingerprint Scanner | 500dpi / 256 gray resolution, image Size: 300 x 400 pixels, WSQ Compression available, | |
ISO197942, ANSI378 template, FBI PIV, FBI Mobile ID FAP20, IP65 certified, Image Format | ||
ISO19794-4, support live finger detection, work under direct sunlight available. | ||
Contact Card Reader(Optional) | FM Cos Card, ISO7816 | |
Iris Scanner(Optional) | ISO/IEC 19794-6 and ISO 8583, Capture Mode: single iris,Capture Speed: <1s Capture Distance: 0~2cm (eyes to patch) FRR: <0.1% FAR: <0.0001% | |
Other Parameter | ||
Battery Pack | 3.7V, 5000mAh | |
USB | Mini- USB 10pin | |
Voice Call | Supported | |
Reliability | MTBF no less than 5000 hours | |
Peripheral | Hand Stripe | |
Speaker | Supported | |
Charging interface | DC 5V 1.5A | |
Usage Environment | ||
Operating Temp | 0℃~50℃ | |
Storage Temp | -10℃~60℃ | |
Working humidity | Working humidity | |
Storage humidity | 5% ~90%RH | |
Brief Introductions
Thanks to it's convenience and ultra security benefits, mobile identity are playing an increasingly important role in every ones daily life. Fingerprint and other biometric application are being widely applied in election, telecom, banking, social insurance, border control, access control, time attendance, law enforcement and other wide range of applications etc.
Based on its abundant engagement in biometric related application like election, telecom, banking, low enforcement and rich field experience gained from former projects, EKEMP listened a lot about the customer's need, design and
develop its next generation biometric device: Biometric Handheld Terminal H5, bring with enhanced usability and robustness to ensure seamless enrollment, ID verification and identification on the spot.
Product Features
> Compact, light weight, stable and reliable performance, and enabling with state of the art biometric technology.
> 5” touchscreen handheld terminal with iintegrated FBI PIV certified FAP20 live scan optical fingerprint sensor.
> Contact smart card reader which support CPU National Identity card reading.
> 8 MP camera with LED Flash Light for face capture, 1D/2D barcode and MRZ reading.
> Contactless smart card supporting Contactless CPU card, NFC and E passport reading.
> Iris Scanner Support Iris Capturing and Verification, (Built by top brand camera and LED).
> High Volume 5000mAh Lithium Battery Ensuring Long Field Operation and Standby.
> Embedded PSAM Card Support with Enhanced Security.
> 4G, Wi-Fi and Bluetooth, dual sim card slots.
Attention
The listed price is not the final cost.
We will confirm the final quotation according to the function configuration and order quantity.
Application
Company Introduction
Founded in 2006, EKEMP INT'L Ltd., is national high tech enterprise focusing on R&D, Manufaturing of Biometric Handheld Terminal, POS terminal, Biometric Identify products,optical mark scanner and software system development,etc.
Our hardware and software solution have been widely applied in governmental projects
like national elections, national projects, civil identities, educations, lotteries, telecom projects etc.

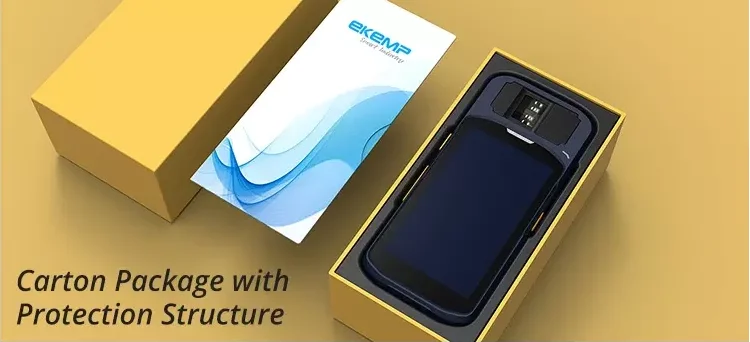

Packing&Shipping
Exhibition
Related Products
FAQ
1.Q:Are you manufacturer?
A:Yes.Our company and factory are located in Shenzhen.
2.Q:Can you provide application software for the hardware?
A:We provide free SDK and User manual of all API to support your development or programming.
3.Q:What is the warranty?
A:The warranty time is 1 year without man-made damage.
4.Q:Does the device have the language default as English?
A:Of course, our device supports multilanguage such as English,Spanish, Portuguese ,French, German,
Polish,Japanese, Russian and so on.
5.Q: what are the payment terms?
Flexible payment terms. T/T, Western Union, Paypal
