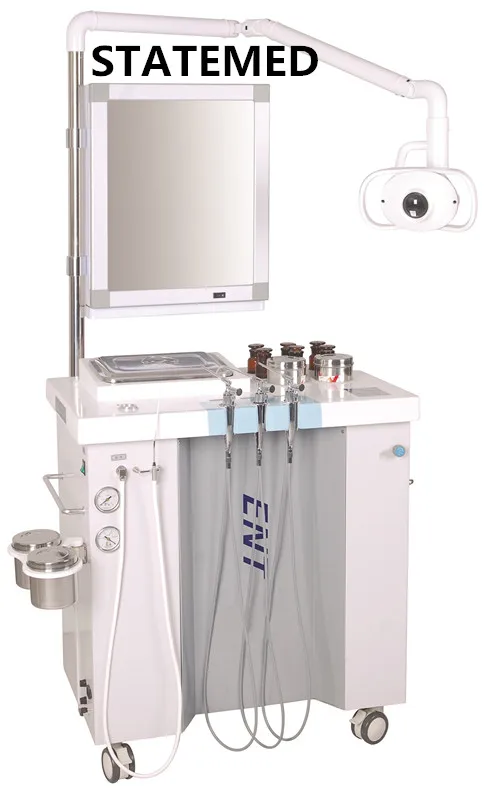

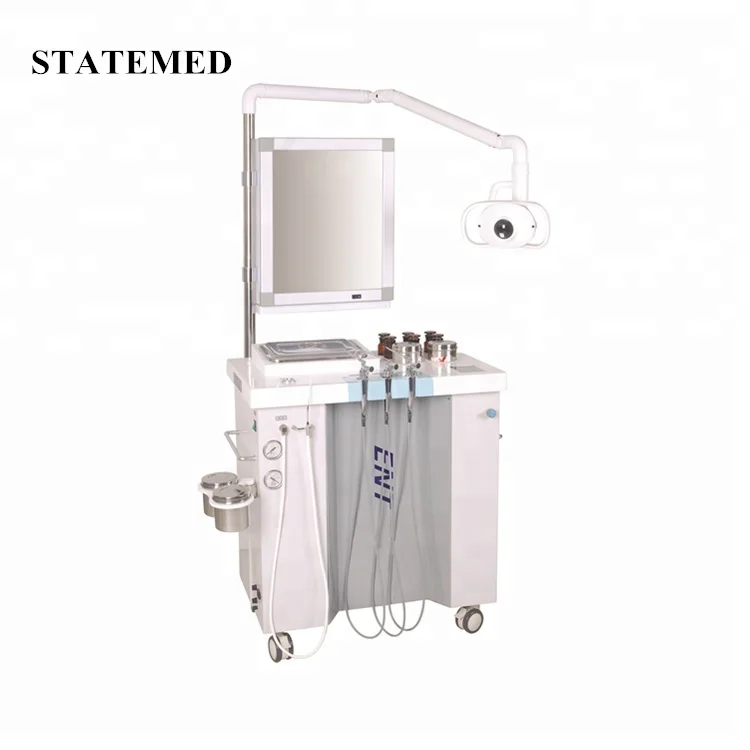

ENT Workstation High Quality ENT Treatment Unit

Standard Equipment

Subsidiary treatment table,Size:750mm*485mm*860mm

1pc

Compressor pump

1pc

Suction vacuum pump

1pc

Main suction apparatus

1pc

Larynhoscope preheater

1pc(Time is adjustable)

projection lamp (LED)

1pc

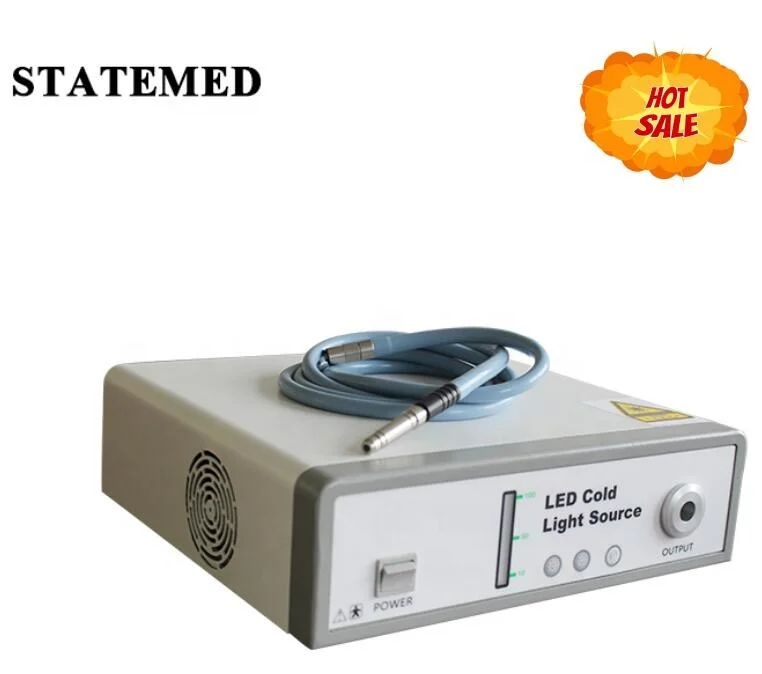

Cold light source (LED)

1pc

Monitor (LED)

1pc

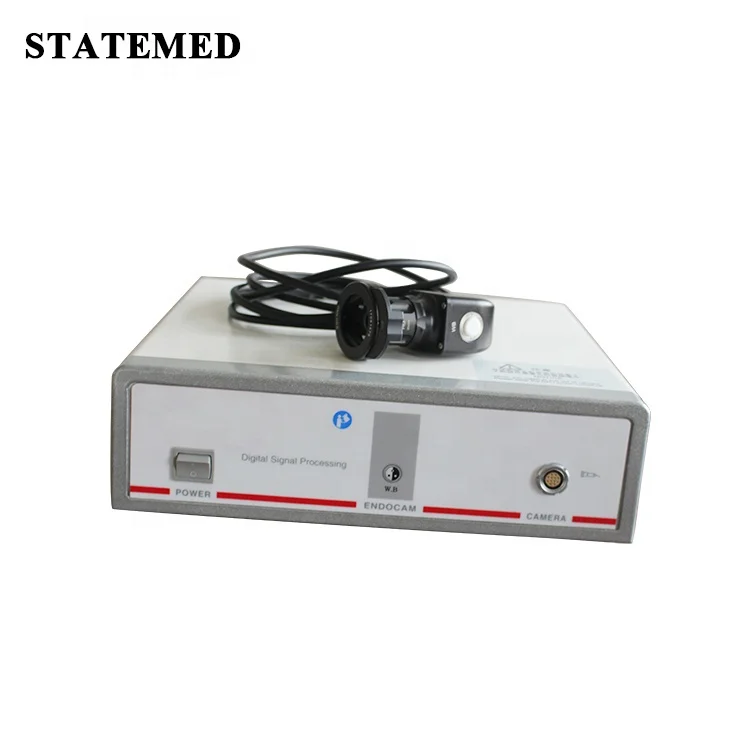

CCD camera

1pc

Endoscope

3pcs

Sprayer

3pcs(curved 1pc,straight 2 pcs)

Suction device

1pc

Tray

1pcs

Cotton can

2pcs

Liquid medicine bottle

6pcs

Control panel

1pc

Technical Parameter

Desk top

Marble

Positive pressure

2.5kg/cm2 (Optional imported parts)

Negative pressure

740mmHg(max) (Optional imported parts)

Main suction apparatus

2500CC

Larynhoscope preheater

450W(adaptive control system,adjustable time)

LED projection lamp

above or equal 8 W ; illuminate above or equal1×10⁴

Sprayer

Pressure: 0.1MPa~0.15MPa (adjustable)

Suction device

above or equal 0.07MPa (adjustable)

Temperature

10℃~35℃

Voltage

220V

Frequency

50/60HZ

Cold light source (LED)

60W

1.Camera

Image sensor

SONY SUPER HAD CCD

Pixel output

PAL:795(H)*598(V)

Horizontal definition

≥700 line

Scanning System

PAL:752 lines,50fied/sec

White balance

Automatic/manual lock white balance

Synchronous system

internal synchronization

Video output

CVBS*2

Gamma correction

0.45

Signal-noise ration

above or equal 55dB

White balance range

200—15000‘K

Electronic shutter

1/50—1/100000(second consecutive)

Camera

IPX7 level (waterproof,can be
Soak disinfection)
