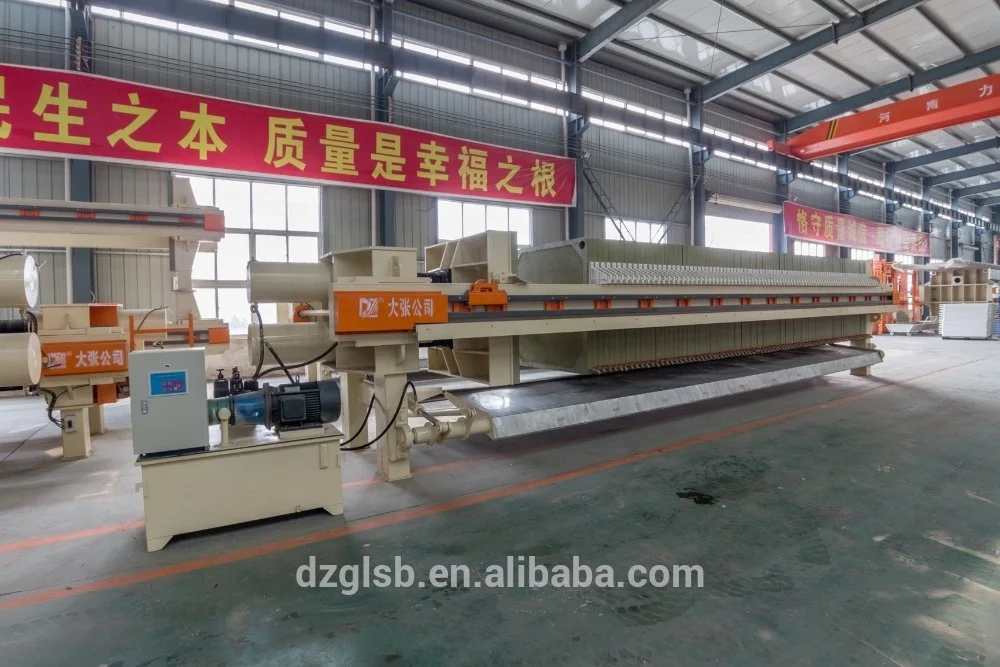

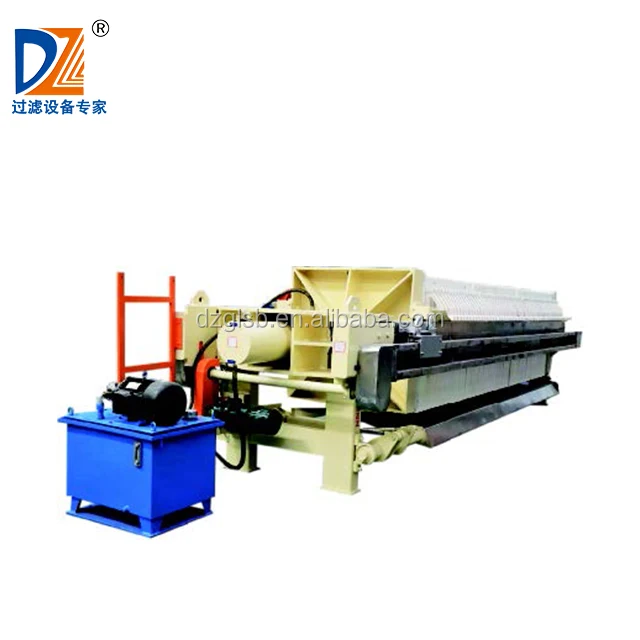

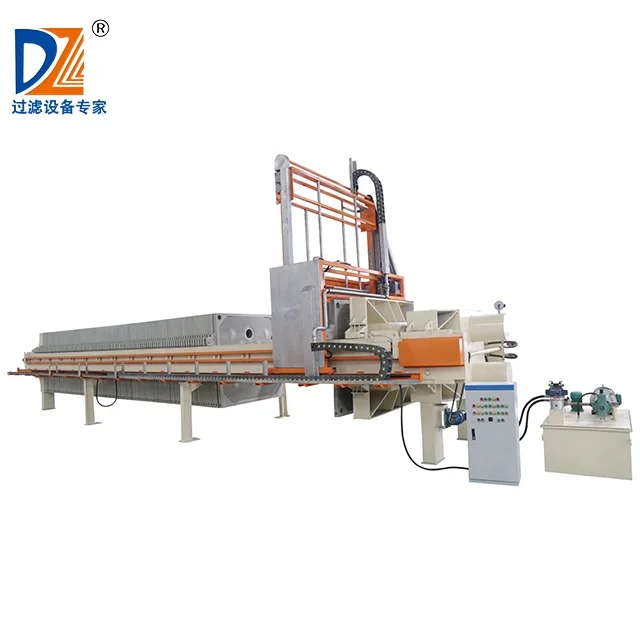

Program controlled automatic filter press machine for water treatment
(Model: XG70/870)
Automatic chamber/recessed filter press use micro computer processor , PLC and touch screen to control every part's actions , such as : cylinder , plate shifter , cloth washing etc. and remote control ports are left .
High efficiency filter press expended the length of cylinder and can discharge several cakes every time . the advantages : stable performance , high efficiency and lower running cost .
The fast open system can increase the cake discharging efficiency 3-6 times , especially for the filter press that have a large quantity of plates and need frequent operations .
Design feature
Advantages
Automatic chamber
Stable performance
Micro computer processor
High efficiency
PLC
Lower running cost
Touch screen
Fast open system
Remote control ports
Especially applicable to frequent operations
Key Parameters
Detailed Images

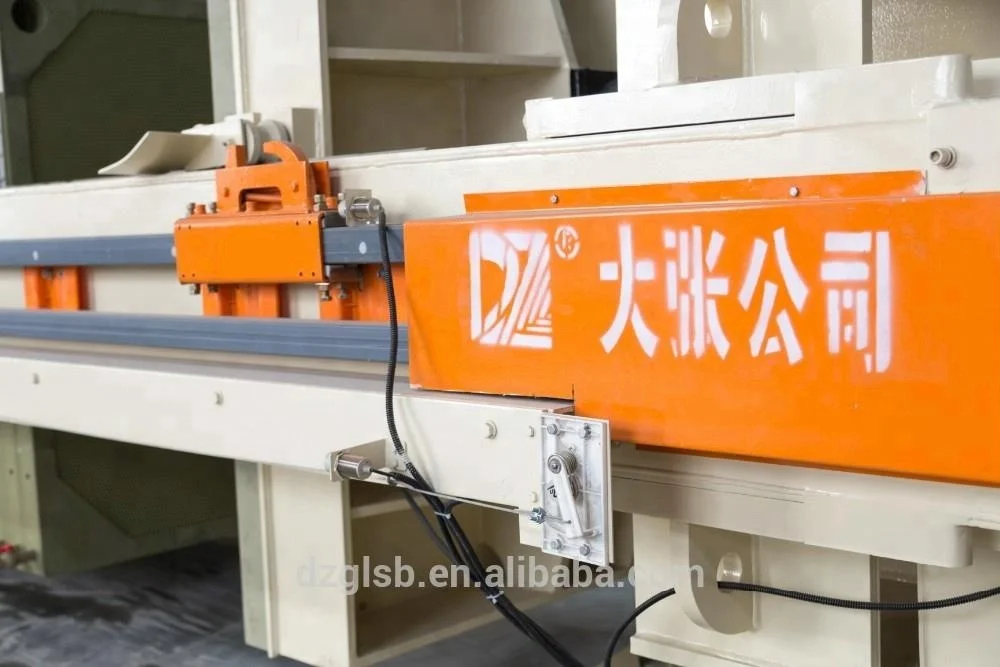

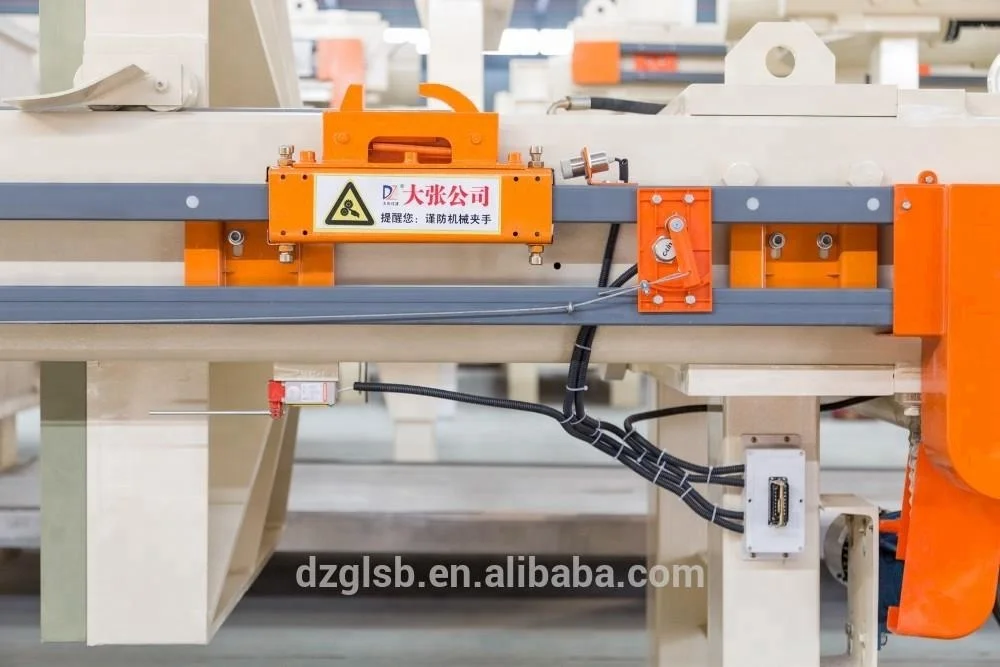

Automatic plate shifting part
The automatic plate shifting mechanism consists of hydraulic motor, manipulator, transmission mechanism, pause device etc..The hydraulic motor drives the driving chain in order to drive the manipulator to move. Filter plate will be shifted one by one by the plate shifting manipulator.
Hydraulic system
Function: to provide pressing power and ensure oil cylinder open/close and manipulator normally work Makeup: oil tank, oil pump system, manifold block, hydraulic valves, oil pipes, pressure displayer and driving system.
Cloth washing system
Filter cloth washing part composite by the cleaning car, cleaning pipe rack and other components. Pull plate cake unloading cake residue on the filter cloth is difficult to fall off, affecting the filter effect, the user should be wash the filter cloth based on the use of the scene.
Filter plate
Function: to install filtering medium and ensure filter press can filter normally work at rated pressure. Material: New reinforced polypropylene material+TPE elastomer type white Working(filtering/ blowing) pressure: ≤1.0MPa temperature: 80℃
Application

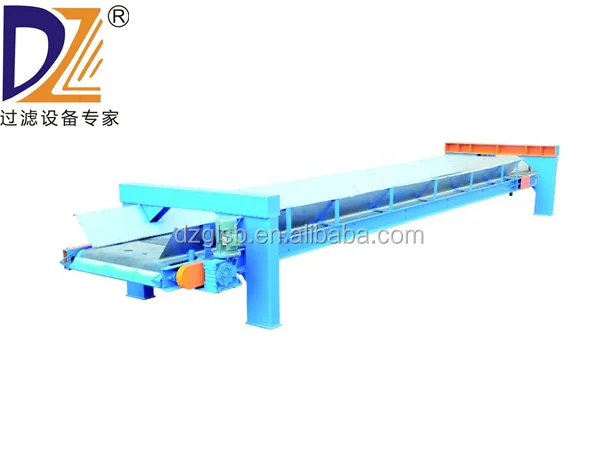

Related Products
Certifications
Our Company
Shanghai Dazhang environment protection Co., Ltd is a professional manufacturing company of solid-liquid separation equipment. We are specialized in design, manufacture, and sales of various filtration equipment, as well as comprehensive filtration solutions and projects. Our factories cover 250,000 square meters with advanced production lines and precise testing equipment. With top-class R&D personnel, experienced workers and highly qualified sales teams, we are all devoting to provide the best products for our clients.
